6,7-Di­bromo-2-methyl-3-phenyl­quinoxaline

Valentin, A.T.; Crundwell, G.; Nichol, G.S.

doi:10.1107/S2414314626010278

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 10| October 2026| x261027

https://doi.org/10.1107/S2414314626010278

Open

access

6,7-Dibromo-2-methyl-3-phenylquinoxaline

Avion T. Valentin,^a Guy Crundwell ^a ^* and Gary S. Nichol ^b

^aDepartment of Chemistry & Biochemistry, Central Connecticut State University, 1619 Stanley Street, New Britain, CT 06053, USA, and ^bThe University of Edinburgh, School of Chemistry, Joseph Black Building, David Brewster Road, Edinburgh, EH9 3FJ, United Kingdom
^*Correspondence e-mail: [email protected]

Edited by M. Zeller, Purdue University, USA (Received 2 September 2026; accepted 5 October 2026; online 9 October 2026)

The title compound, C₁₅H₁₀Br₂N₂, was synthesized using the acid catalyst NH₄HF₂ in a water/methanol solution. There are two molecules per asymmetric unit where the quinoxaline moieties make dihedral angles of 48.05 (4) and 40.83 (5)° with respect to their phenyl rings. In the extended structure, molecules form layers stacked along (001) that are held together by hydrogen and halogen bonds.

Keywords: crystal structure; quinoxaline.

CCDC reference: 2593016

Structure description

In general, quinoxalines are of interest as potential antibacterial (Parhi et al., 2013 ), antimicrobial (Singh et al., 2010 ), and antifungal medicines (Tang et al., 2022 ); therefore, exploring their synthesis and structures is of interest. The title compound was synthesized via a condensation reaction of a diamine and diketone using a water/methanol solution containing a catalytic amout of NH₄HF₂ catalyst (Lassagne et al., 2015 ).

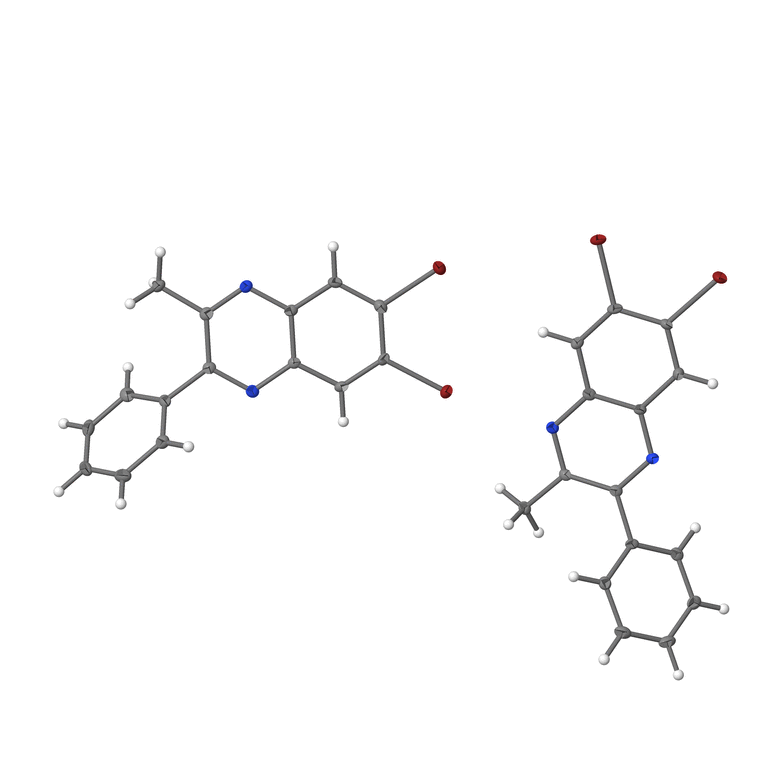

There are two molecules per asymmetric unit (Fig. 1) where the quinoxaline moieties make dihedral angles of 48.05 (4) and 40.83 (5)° with respect to their phenyl rings. Molecules pack in a herringbone pattern where quinoxalines form planes (Fig. 2). There are two types of intermolecular interactions – halogen bonds and hydrogen bonds. Fig. 3 shows the halogen and hydrogen bonds between molecules that lie normal to the (001) direction of the unit cell. The hydrogen bonds in this layer are between C6—H6⋯Br3ⁱ, C6—H6⋯Br4ⁱ, C13—H13⋯N3ⁱⁱⁱ, C21—H21⋯Br1, and C28—H28⋯N1^v (see Table 1 for symmetry codes and metrics). The halogen bonds involve Br1⋯N4 [3.0230 (19) Å, with C1—Br1⋯N4 = 171.29 (8)°] and Br4⋯N2^vi [3.2270 (18) Å, with C4—Br4⋯N2^vi = 160.96 (8)°; symmetry code: (vi) −x, y − $[{1\over 2}]$ , −z + $[{1\over 2}]$ ]. The hydrogen bonds in Table 2 that have not been specifically mentioned involve methyl groups and connect molecules between layers.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C6—H6⋯Br3ⁱ	0.95	2.91	3.784 (2)	154
C6—H6⋯Br4ⁱ	0.95	3.09	3.834 (2)	136
C15—H15B⋯Br1ⁱⁱ	0.98	3.13	4.044 (2)	155
C21—H21⋯Br1	0.95	3.05	3.741 (2)	131
C13—H13⋯N3ⁱⁱⁱ	0.95	2.62	3.495 (3)	152
C28—H28⋯N1^v	0.95	2.68	3.568 (3)	156
Symmetry codes: (i) $[-x, y+{\script{1\over 2}}, -z+{\script{1\over 2}}]$ ; (ii) $[x, -y+{\script{3\over 2}}, z-{\script{1\over 2}}]$ ; (iii) ; (iv) $[x, -y+{\script{1\over 2}}, z+{\script{1\over 2}}]$ ; (v) $[-x+1, y-{\script{1\over 2}}, -z+{\script{3\over 2}}]$ .

Table 2
Experimental details

Crystal data
Chemical formula	C₁₅H₁₀Br₂N₂
M_r	378.07
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	100
a, b, c (Å)	19.0464 (3), 18.6850 (4), 7.5964 (2)
β (°)	97.495 (2)
V (Å³)	2680.32 (10)
Z	8
Radiation type	Mo Kα
μ (mm⁻¹)	6.03
Crystal size (mm)	0.28 × 0.21 × 0.12 × 0.09 (radius)

Data collection
Diffractometer	Rigaku XtaLAB Synergy Single source diffractometer with a HyPix-Arc 100 detector
Absorption correction	For a sphere (CrysAlis PRO; Rigaku OD, 2024 )
T_min, T_max	0.420, 0.436
No. of measured, independent and observed [I > 2σ(I)] reflections	44577, 9561, 7295
R_int	0.047
(sin θ/λ)_max (Å⁻¹)	0.784

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.043, 0.065, 1.05
No. of reflections	9561
No. of parameters	345
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.68, −0.54
Computer programs: CrysAlis PRO (Rigaku OD, 2024), SHELXT (Sheldrick, 2015a ), SHELXL2025 (Sheldrick, 2015b ), ORTEP-3 (Farrugia, 2012 ), Mercury (Macrae et al., 2020 ), and ShelXle (Hübschle et al., 2011 ).

Figure 1
A view of the molecules of the title compound, with displacement ellipsoids drawn at the 50% probability level and H atoms omitted for clarity.

Figure 2
A view of unit-cell packing along [001], with some of the C—H⋯Br hydrogen-bonding interactions shown.

Figure 3
A view of the intermolecular interactions (halogen and hydrogen bonds) in layers along the (001) direction.

Synthesis and crystallization

In a 50 ml Erlenmeyer flask, 1.48 g of 1-phenylpropane-1,2-dione (10.0 mmol) was addded to 2 ml of H₂O and 20 ml of a 2.5 × 10⁻³ M methanol solution of NH₄HF₂ (Lassagne et al., 2015). To this mixture, 2.66 g of 4,5-dibromo-1,2-phenylenediamine (10.0 mmol) was added. The solution was stirred for 24 h, during which time the product precipitated as a pink–white product. 3.48 g of crude product was isolated and recrysallized from methanol solution, yielding 1.60 g of white purified powder (42%). The yield was low due to loss of material during recrystallization. Crystals for diffraction study were isolated from the slow evaporation of a CH₂Cl₂ solution (m.p. 416 K). ¹H NMR (CDCl₃, 300 MHz): δ 2.72 (s, 3H), 7.50 (m, 3H), 7.61 (m, 2H), 8.30 (s, 1H), 8.35 (s, 1H); ¹³C NMR (CDCl₃, 300 MHz): δ 24.54, 125.65, 126.20, 128.65, 128.90, 129.48, 132.42, 133.17, 138.18, 140.21, 140.34, 154.14, 155.99.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms on sp² and sp³ C atoms were placed at calculated positions with C—H distances of 0.95 and 0.98 Å, respectively, and were included in the refinement in riding motion approximation with U_iso(H) = 1.2U_eq or 1.5U_eq of the carrier atom, respectively.

Structural data

CCDC reference: 2593016

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314626010278/zl4104sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314626010278/zl4104Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314626010278/zl4104Isup3.cml

checkCIF report

Computing details top

6,7-Dibromo-2-methyl-3-phenylquinoxaline top

Crystal data top

C₁₅H₁₀Br₂N₂	D_x = 1.874 Mg m⁻³
M_r = 378.07	Melting point: 416 K
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 19.0464 (3) Å	Cell parameters from 15741 reflections
b = 18.6850 (4) Å	θ = 2.9–32.9°
c = 7.5964 (2) Å	µ = 6.03 mm⁻¹
β = 97.495 (2)°	T = 100 K
V = 2680.32 (10) Å³	Block, colorless
Z = 8	0.28 × 0.21 × 0.12 × 0.09 (radius) mm
F(000) = 1472

Data collection top

Rigaku XtaLAB Synergy Single source diffractometer with a HyPix-Arc 100 detector	9561 independent reflections
Radiation source: fine-focus sealed X-ray tube, Enhance (Mo) X-ray Source	7295 reflections with I > 2σ(I)
Graphite monochromator	R_int = 0.047
Detector resolution: 10.0000 pixels mm^-1	θ_max = 33.9°, θ_min = 2.9°
ω scans	h = −29→27
Absorption correction: for a sphere (CrysAlis PRO; Rigaku OD, 2024)	k = −29→24
T_min = 0.420, T_max = 0.436	l = −11→11
44577 measured reflections

Refinement top

Refinement on F²	Primary atom site location: SHELXT (Sheldrick, 2015a)
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.043	H-atom parameters constrained
wR(F²) = 0.065	w = 1/[σ²(F_o²) + (0.0185P)² + 2.9293P] where P = (F_o² + 2F_c²)/3
S = 1.05	(Δ/σ)_max = 0.001
9561 reflections	Δρ_max = 0.68 e Å⁻³
345 parameters	Δρ_min = −0.54 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. 1. Fixed Uiso At 1.2 times of: All C(H) groups At 1.5 times of: All C(H,H,H) groups 2.a Aromatic/amide H refined with riding coordinates: C3(H3), C6(H6), C10(H10), C11(H11), C12(H12), C13(H13), C14(H14), C18(H18), C21(H21), C25(H25), C26(H26), C27(H27), C28(H28), C29(H29) 2.b Idealised Me refined as rotating group: C15(H15a,H15b,H15c), C30(H30a,H30b,H30c)

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Br1	0.24220 (2)	0.47648 (2)	0.59870 (3)	0.01589 (5)
Br2	0.08173 (2)	0.49698 (2)	0.36507 (3)	0.02061 (6)
N1	0.26864 (10)	0.75369 (10)	0.5630 (2)	0.0127 (4)
N2	0.12777 (10)	0.77270 (10)	0.4032 (2)	0.0130 (4)
C1	0.24242 (11)	0.81804 (12)	0.5236 (3)	0.0118 (4)
C2	0.22464 (11)	0.69655 (12)	0.5254 (3)	0.0108 (4)
C3	0.25015 (11)	0.62685 (12)	0.5712 (3)	0.0123 (4)
H3	0.296657	0.620597	0.631582	0.015*
C4	0.20793 (11)	0.56870 (12)	0.5287 (3)	0.0120 (4)
C5	0.13873 (12)	0.57774 (13)	0.4358 (3)	0.0145 (4)
C6	0.11233 (11)	0.64483 (12)	0.3933 (3)	0.0137 (4)
H6	0.065779	0.650351	0.332637	0.016*
C7	0.15481 (11)	0.70558 (12)	0.4404 (3)	0.0120 (4)
C8	0.16899 (11)	0.82787 (12)	0.4477 (3)	0.0129 (4)
C9	0.29498 (11)	0.87743 (12)	0.5513 (3)	0.0130 (4)
C10	0.36089 (12)	0.86606 (13)	0.4938 (3)	0.0156 (5)
H10	0.369780	0.822506	0.436123	0.019*
C11	0.41331 (13)	0.91774 (14)	0.5203 (3)	0.0218 (5)
H11	0.457800	0.909752	0.479885	0.026*
C12	0.40080 (13)	0.98142 (13)	0.6062 (3)	0.0225 (5)
H12	0.436954	1.016625	0.625970	0.027*
C13	0.33547 (13)	0.99332 (13)	0.6627 (3)	0.0200 (5)
H13	0.326855	1.036866	0.720752	0.024*
C14	0.28258 (13)	0.94190 (13)	0.6348 (3)	0.0161 (5)
H14	0.237760	0.950631	0.672709	0.019*
C15	0.13594 (12)	0.90040 (12)	0.4132 (3)	0.0157 (5)
H15A	0.095392	0.896590	0.319925	0.024*
H15B	0.170950	0.933389	0.374788	0.024*
H15C	0.119921	0.918504	0.522263	0.024*
Br3	0.06220 (2)	0.10061 (2)	0.38293 (3)	0.02061 (6)
Br4	0.02408 (2)	0.27571 (2)	0.34126 (3)	0.01466 (5)
N3	0.30515 (9)	0.17557 (10)	0.7234 (2)	0.0121 (4)
N4	0.27362 (9)	0.32225 (10)	0.7003 (2)	0.0120 (4)
C16	0.35225 (11)	0.22414 (12)	0.7863 (3)	0.0103 (4)
C17	0.24113 (11)	0.19876 (12)	0.6434 (3)	0.0115 (4)
C18	0.19038 (11)	0.14799 (12)	0.5711 (3)	0.0137 (4)
H18	0.200116	0.098282	0.584403	0.016*
C19	0.12717 (11)	0.17060 (12)	0.4820 (3)	0.0127 (4)
C20	0.11180 (11)	0.24510 (13)	0.4634 (3)	0.0129 (4)
C21	0.16011 (11)	0.29493 (12)	0.5334 (3)	0.0123 (4)
H21	0.149460	0.344479	0.520711	0.015*
C22	0.22615 (11)	0.27262 (12)	0.6252 (3)	0.0114 (4)
C23	0.33522 (11)	0.29920 (12)	0.7821 (3)	0.0111 (4)
C24	0.42317 (11)	0.19515 (12)	0.8601 (3)	0.0114 (4)
C25	0.42573 (12)	0.13067 (12)	0.9540 (3)	0.0132 (4)
H25	0.382968	0.107428	0.972814	0.016*
C26	0.49055 (12)	0.10032 (13)	1.0202 (3)	0.0155 (5)
H26	0.491937	0.056718	1.084880	0.019*
C27	0.55319 (12)	0.13373 (13)	0.9918 (3)	0.0181 (5)
H27	0.597436	0.113425	1.038665	0.022*
C28	0.55113 (12)	0.19686 (13)	0.8948 (3)	0.0172 (5)
H28	0.594027	0.218994	0.872762	0.021*
C29	0.48638 (11)	0.22790 (12)	0.8297 (3)	0.0138 (4)
H29	0.485254	0.271393	0.764633	0.017*
C30	0.38241 (12)	0.35517 (12)	0.8767 (3)	0.0141 (4)
H30A	0.415288	0.372920	0.797704	0.021*
H30B	0.409292	0.334255	0.983132	0.021*
H30C	0.353484	0.394892	0.911121	0.021*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Br1	0.01469 (10)	0.01104 (11)	0.02134 (12)	0.00220 (8)	0.00010 (8)	0.00060 (9)
Br2	0.01600 (11)	0.01336 (11)	0.03052 (14)	−0.00353 (9)	−0.00431 (9)	0.00033 (10)
N1	0.0122 (9)	0.0133 (9)	0.0125 (9)	−0.0003 (7)	0.0011 (7)	−0.0007 (7)
N2	0.0124 (9)	0.0125 (9)	0.0139 (9)	0.0013 (7)	0.0008 (7)	0.0013 (7)
C1	0.0123 (10)	0.0140 (11)	0.0091 (10)	0.0009 (8)	0.0015 (8)	−0.0006 (8)
C2	0.0107 (9)	0.0133 (11)	0.0087 (10)	0.0006 (8)	0.0022 (7)	0.0001 (8)
C3	0.0093 (10)	0.0146 (11)	0.0130 (11)	0.0022 (8)	0.0013 (8)	0.0003 (8)
C4	0.0125 (10)	0.0105 (11)	0.0134 (11)	0.0031 (8)	0.0032 (8)	0.0009 (8)
C5	0.0139 (10)	0.0150 (11)	0.0147 (11)	−0.0033 (8)	0.0025 (8)	−0.0007 (9)
C6	0.0101 (10)	0.0167 (12)	0.0138 (11)	−0.0008 (8)	−0.0007 (8)	0.0004 (9)
C7	0.0110 (10)	0.0140 (11)	0.0112 (10)	0.0016 (8)	0.0018 (8)	−0.0003 (8)
C8	0.0143 (10)	0.0145 (11)	0.0100 (10)	0.0010 (8)	0.0022 (8)	0.0016 (8)
C9	0.0140 (10)	0.0124 (11)	0.0118 (11)	−0.0018 (8)	−0.0016 (8)	0.0029 (8)
C10	0.0155 (11)	0.0142 (12)	0.0168 (12)	0.0009 (9)	0.0013 (9)	0.0021 (9)
C11	0.0141 (11)	0.0240 (14)	0.0265 (14)	−0.0015 (10)	−0.0010 (9)	0.0084 (10)
C12	0.0206 (12)	0.0162 (12)	0.0276 (14)	−0.0068 (9)	−0.0081 (10)	0.0085 (10)
C13	0.0276 (13)	0.0118 (12)	0.0186 (12)	0.0006 (10)	−0.0049 (10)	0.0007 (9)
C14	0.0186 (11)	0.0173 (12)	0.0117 (11)	−0.0007 (9)	−0.0008 (9)	0.0009 (9)
C15	0.0136 (10)	0.0135 (11)	0.0196 (12)	0.0031 (9)	0.0001 (8)	0.0025 (9)
Br3	0.01343 (11)	0.01599 (12)	0.02968 (14)	−0.00320 (9)	−0.00745 (9)	−0.00083 (10)
Br4	0.00940 (9)	0.01911 (12)	0.01489 (11)	0.00257 (8)	−0.00061 (7)	0.00171 (9)
N3	0.0095 (8)	0.0123 (9)	0.0144 (9)	0.0008 (7)	0.0009 (7)	0.0002 (7)
N4	0.0118 (8)	0.0124 (9)	0.0115 (9)	−0.0006 (7)	0.0006 (7)	−0.0003 (7)
C16	0.0103 (9)	0.0123 (11)	0.0086 (10)	−0.0001 (8)	0.0014 (7)	−0.0022 (8)
C17	0.0093 (9)	0.0130 (11)	0.0118 (10)	0.0001 (8)	−0.0001 (8)	−0.0011 (8)
C18	0.0129 (10)	0.0097 (11)	0.0181 (11)	0.0004 (8)	0.0005 (8)	0.0005 (8)
C19	0.0092 (9)	0.0125 (11)	0.0157 (11)	−0.0023 (8)	−0.0007 (8)	−0.0007 (8)
C20	0.0094 (9)	0.0182 (12)	0.0106 (11)	0.0021 (8)	−0.0009 (8)	0.0026 (8)
C21	0.0126 (10)	0.0126 (11)	0.0116 (10)	0.0027 (8)	0.0018 (8)	0.0012 (8)
C22	0.0108 (9)	0.0135 (11)	0.0105 (10)	−0.0001 (8)	0.0033 (8)	−0.0021 (8)
C23	0.0118 (10)	0.0130 (11)	0.0086 (10)	−0.0018 (8)	0.0020 (8)	−0.0004 (8)
C24	0.0098 (9)	0.0140 (11)	0.0097 (10)	0.0013 (8)	−0.0011 (7)	−0.0027 (8)
C25	0.0145 (10)	0.0133 (11)	0.0119 (11)	−0.0014 (8)	0.0019 (8)	−0.0041 (8)
C26	0.0171 (11)	0.0143 (11)	0.0145 (11)	0.0034 (9)	−0.0001 (8)	−0.0024 (9)
C27	0.0129 (11)	0.0204 (13)	0.0199 (12)	0.0051 (9)	−0.0023 (9)	−0.0043 (10)
C28	0.0117 (10)	0.0217 (13)	0.0182 (12)	−0.0011 (9)	0.0021 (9)	−0.0051 (9)
C29	0.0148 (10)	0.0128 (11)	0.0136 (11)	−0.0014 (8)	0.0008 (8)	−0.0003 (8)
C30	0.0153 (10)	0.0123 (11)	0.0141 (11)	−0.0022 (8)	−0.0007 (8)	−0.0022 (8)

Geometric parameters (Å, º) top

Br1—C4	1.894 (2)	Br3—C19	1.888 (2)
Br2—C5	1.895 (2)	Br4—C20	1.891 (2)
N1—C1	1.321 (3)	N3—C16	1.321 (3)
N1—C2	1.364 (3)	N3—C17	1.360 (3)
N2—C8	1.313 (3)	N4—C23	1.326 (3)
N2—C7	1.371 (3)	N4—C22	1.367 (3)
C1—C8	1.453 (3)	C16—C23	1.439 (3)
C1—C9	1.491 (3)	C16—C24	1.495 (3)
C2—C7	1.411 (3)	C17—C22	1.412 (3)
C2—C3	1.418 (3)	C17—C18	1.413 (3)
C3—C4	1.365 (3)	C18—C19	1.369 (3)
C3—H3	0.9500	C18—H18	0.9500
C4—C5	1.422 (3)	C19—C20	1.426 (3)
C5—C6	1.373 (3)	C20—C21	1.367 (3)
C6—C7	1.413 (3)	C21—C22	1.419 (3)
C6—H6	0.9500	C21—H21	0.9500
C8—C15	1.503 (3)	C23—C30	1.500 (3)
C9—C14	1.396 (3)	C24—C29	1.396 (3)
C9—C10	1.398 (3)	C24—C25	1.398 (3)
C10—C11	1.385 (3)	C25—C26	1.392 (3)
C10—H10	0.9500	C25—H25	0.9500
C11—C12	1.392 (4)	C26—C27	1.388 (3)
C11—H11	0.9500	C26—H26	0.9500
C12—C13	1.386 (4)	C27—C28	1.389 (3)
C12—H12	0.9500	C27—H27	0.9500
C13—C14	1.388 (3)	C28—C29	1.394 (3)
C13—H13	0.9500	C28—H28	0.9500
C14—H14	0.9500	C29—H29	0.9500
C15—H15A	0.9800	C30—H30A	0.9800
C15—H15B	0.9800	C30—H30B	0.9800
C15—H15C	0.9800	C30—H30C	0.9800

C1—N1—C2	117.45 (18)	C16—N3—C17	118.01 (19)
C8—N2—C7	117.97 (19)	C23—N4—C22	118.16 (19)
N1—C1—C8	121.4 (2)	N3—C16—C23	121.41 (19)
N1—C1—C9	114.73 (19)	N3—C16—C24	115.12 (19)
C8—C1—C9	123.8 (2)	C23—C16—C24	123.47 (19)
N1—C2—C7	121.3 (2)	N3—C17—C22	120.86 (19)
N1—C2—C3	119.08 (19)	N3—C17—C18	119.2 (2)
C7—C2—C3	119.7 (2)	C22—C17—C18	119.91 (19)
C4—C3—C2	120.05 (19)	C19—C18—C17	119.9 (2)
C4—C3—H3	120.0	C19—C18—H18	120.1
C2—C3—H3	120.0	C17—C18—H18	120.1
C3—C4—C5	120.1 (2)	C18—C19—C20	120.4 (2)
C3—C4—Br1	119.14 (16)	C18—C19—Br3	118.16 (17)
C5—C4—Br1	120.71 (17)	C20—C19—Br3	121.42 (16)
C6—C5—C4	120.8 (2)	C21—C20—C19	120.49 (19)
C6—C5—Br2	118.79 (16)	C21—C20—Br4	119.46 (17)
C4—C5—Br2	120.38 (17)	C19—C20—Br4	120.05 (16)
C5—C6—C7	119.6 (2)	C20—C21—C22	120.0 (2)
C5—C6—H6	120.2	C20—C21—H21	120.0
C7—C6—H6	120.2	C22—C21—H21	120.0
N2—C7—C2	120.7 (2)	N4—C22—C17	120.51 (19)
N2—C7—C6	119.68 (19)	N4—C22—C21	120.1 (2)
C2—C7—C6	119.6 (2)	C17—C22—C21	119.3 (2)
N2—C8—C1	121.0 (2)	N4—C23—C16	120.68 (19)
N2—C8—C15	116.12 (19)	N4—C23—C30	115.88 (19)
C1—C8—C15	122.9 (2)	C16—C23—C30	123.34 (19)
C14—C9—C10	119.0 (2)	C29—C24—C25	119.3 (2)
C14—C9—C1	123.8 (2)	C29—C24—C16	122.4 (2)
C10—C9—C1	117.2 (2)	C25—C24—C16	118.25 (19)
C11—C10—C9	120.6 (2)	C26—C25—C24	120.4 (2)
C11—C10—H10	119.7	C26—C25—H25	119.8
C9—C10—H10	119.7	C24—C25—H25	119.8
C10—C11—C12	120.0 (2)	C27—C26—C25	120.0 (2)
C10—C11—H11	120.0	C27—C26—H26	120.0
C12—C11—H11	120.0	C25—C26—H26	120.0
C13—C12—C11	119.8 (2)	C26—C27—C28	119.9 (2)
C13—C12—H12	120.1	C26—C27—H27	120.0
C11—C12—H12	120.1	C28—C27—H27	120.0
C12—C13—C14	120.3 (2)	C27—C28—C29	120.3 (2)
C12—C13—H13	119.8	C27—C28—H28	119.9
C14—C13—H13	119.8	C29—C28—H28	119.9
C13—C14—C9	120.3 (2)	C28—C29—C24	120.1 (2)
C13—C14—H14	119.9	C28—C29—H29	120.0
C9—C14—H14	119.9	C24—C29—H29	120.0
C8—C15—H15A	109.5	C23—C30—H30A	109.5
C8—C15—H15B	109.5	C23—C30—H30B	109.5
H15A—C15—H15B	109.5	H30A—C30—H30B	109.5
C8—C15—H15C	109.5	C23—C30—H30C	109.5
H15A—C15—H15C	109.5	H30A—C30—H30C	109.5
H15B—C15—H15C	109.5	H30B—C30—H30C	109.5

C2—N1—C1—C8	1.7 (3)	C17—N3—C16—C23	4.2 (3)
C2—N1—C1—C9	−174.23 (19)	C17—N3—C16—C24	−175.61 (19)
C1—N1—C2—C7	2.7 (3)	C16—N3—C17—C22	1.2 (3)
C1—N1—C2—C3	−177.9 (2)	C16—N3—C17—C18	178.5 (2)
N1—C2—C3—C4	−177.5 (2)	N3—C17—C18—C19	−176.5 (2)
C7—C2—C3—C4	1.8 (3)	C22—C17—C18—C19	0.7 (3)
C2—C3—C4—C5	1.0 (3)	C17—C18—C19—C20	−0.8 (3)
C2—C3—C4—Br1	−177.87 (16)	C17—C18—C19—Br3	178.43 (17)
C3—C4—C5—C6	−2.5 (3)	C18—C19—C20—C21	0.4 (3)
Br1—C4—C5—C6	176.45 (17)	Br3—C19—C20—C21	−178.83 (17)
C3—C4—C5—Br2	176.60 (17)	C18—C19—C20—Br4	−179.61 (17)
Br1—C4—C5—Br2	−4.5 (3)	Br3—C19—C20—Br4	1.2 (3)
C4—C5—C6—C7	0.9 (3)	C19—C20—C21—C22	0.1 (3)
Br2—C5—C6—C7	−178.19 (17)	Br4—C20—C21—C22	−179.92 (16)
C8—N2—C7—C2	0.5 (3)	C23—N4—C22—C17	3.5 (3)
C8—N2—C7—C6	−179.5 (2)	C23—N4—C22—C21	−178.8 (2)
N1—C2—C7—N2	−4.1 (3)	N3—C17—C22—N4	−5.3 (3)
C3—C2—C7—N2	176.6 (2)	C18—C17—C22—N4	177.4 (2)
N1—C2—C7—C6	175.9 (2)	N3—C17—C22—C21	177.0 (2)
C3—C2—C7—C6	−3.4 (3)	C18—C17—C22—C21	−0.3 (3)
C5—C6—C7—N2	−177.9 (2)	C20—C21—C22—N4	−177.9 (2)
C5—C6—C7—C2	2.0 (3)	C20—C21—C22—C17	−0.2 (3)
C7—N2—C8—C1	3.9 (3)	C22—N4—C23—C16	1.9 (3)
C7—N2—C8—C15	−176.87 (19)	C22—N4—C23—C30	−174.46 (19)
N1—C1—C8—N2	−5.3 (3)	N3—C16—C23—N4	−6.1 (3)
C9—C1—C8—N2	170.3 (2)	C24—C16—C23—N4	173.75 (19)
N1—C1—C8—C15	175.5 (2)	N3—C16—C23—C30	170.0 (2)
C9—C1—C8—C15	−8.9 (3)	C24—C16—C23—C30	−10.1 (3)
N1—C1—C9—C14	−134.7 (2)	N3—C16—C24—C29	138.6 (2)
C8—C1—C9—C14	49.4 (3)	C23—C16—C24—C29	−41.3 (3)
N1—C1—C9—C10	43.5 (3)	N3—C16—C24—C25	−37.6 (3)
C8—C1—C9—C10	−132.4 (2)	C23—C16—C24—C25	142.5 (2)
C14—C9—C10—C11	0.4 (3)	C29—C24—C25—C26	1.5 (3)
C1—C9—C10—C11	−177.8 (2)	C16—C24—C25—C26	177.9 (2)
C9—C10—C11—C12	0.6 (4)	C24—C25—C26—C27	−0.6 (3)
C10—C11—C12—C13	−0.9 (4)	C25—C26—C27—C28	−1.0 (3)
C11—C12—C13—C14	0.3 (4)	C26—C27—C28—C29	1.7 (4)
C12—C13—C14—C9	0.7 (4)	C27—C28—C29—C24	−0.7 (3)
C10—C9—C14—C13	−1.1 (3)	C25—C24—C29—C28	−0.9 (3)
C1—C9—C14—C13	177.1 (2)	C16—C24—C29—C28	−177.1 (2)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C6—H6···Br3ⁱ	0.95	2.91	3.784 (2)	154
C6—H6···Br4ⁱ	0.95	3.09	3.834 (2)	136
C15—H15B···Br1ⁱⁱ	0.98	3.13	4.044 (2)	155
C21—H21···Br1	0.95	3.05	3.741 (2)	131
C13—H13···N3ⁱⁱⁱ	0.95	2.62	3.495 (3)	152
C30—H30B···N3^iv	0.98	2.87	3.231 (3)	103
C28—H28···N1^v	0.95	2.68	3.568 (3)	156

Symmetry codes: (i) −x, y+1/2, −z+1/2; (ii) x, −y+3/2, z−1/2; (iii) x, y+1, z; (iv) x, −y+1/2, z+1/2; (v) −x+1, y−1/2, −z+3/2.

Acknowledgements

This work was supported by a CCSU–AAUP grant.

References

Farrugia, L. J. (2012). J. Appl. Cryst. 45, 849–854. Web of Science CrossRef CAS IUCr Journals Google Scholar
Hübschle, C. B., Sheldrick, G. M. & Dittrich, B. (2011). J. Appl. Cryst. 44, 1281–1284. Web of Science CrossRef IUCr Journals Google Scholar
Lassagne, F., Chevallier, F., Roisnel, T., Dorcet, V. & Mongin, F. (2015). J. Synth. Org. Chem. 47, 2680–2689. CAS Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Parhi, A. K., Zhang, Y., Saionz, K. W., Pradhan, P., Kaul, M., Trivedi, K., Pilch, D. S. & LaVoie, E. J. (2013). Bioorg. Med. Chem. Lett. 23, 4968–4974. Web of Science CrossRef CAS PubMed Google Scholar
Rigaku OD (2024). CrysAlis PRO. Rigaku Oxford Diffraction Ltd, Yarnton, Oxfordshire, England Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Singh, D. P., Deivedi, S. K., Hashim, S. R. & Singhal, R. G. (2010). Pharmaceuticals 3, 2416–2425. CrossRef CAS PubMed Google Scholar
Tang, X., Zhou, G., Zhan, W., Hu, D., Zhou, R., Sun, N., Chen, S., Wu, W. & Xue, W. (2022). RCS Adv. 12, 2399–2407. CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
