Pyridinium tri­bromido­stannate(II)

Henkel, F.; Reuter, H.

doi:10.1107/S2414314626010187

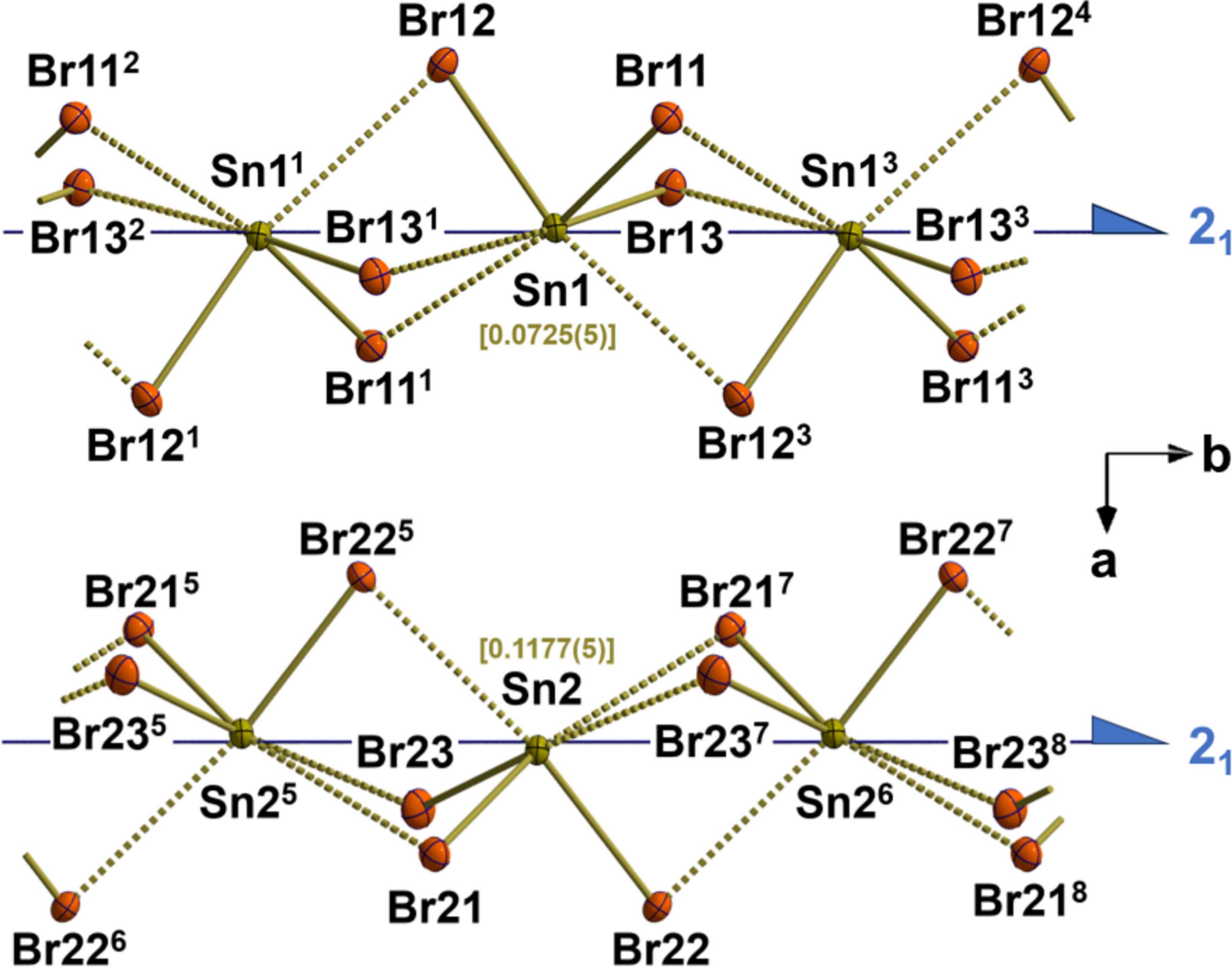

Figure 3
Side-view on the twofold screw axis causing the tetrel bond formation in case of Sn1 (top) and Sn2 (bottom) with their distances from the screw axis in square brackets. Tin-bromine bonds of the first coordination spheres are drawn as solid sticks, those characterizing the tetrel bonds are visualized as dashed sticks. [Symmetry codes: (1) $[{3\over 2}]$ − x, − $[{1\over 2}]$ + y, $[{1\over 2}]$ − z; (2) x, −1 + y, z; (3) $[{3\over 2}]$ − x, $[{1\over 2}]$ + y, $[{1\over 2}]$ − z; (4) x, 1 + y, z; (5) $[{1\over 2}]$ − x, − $[{1\over 2}]$ + y, $[{1\over 2}]$ − z; (6) x, −1 + y, z; (7) $[{1\over 2}]$ − x, $[{1\over 2}]$ + y, $[{1\over 2}]$ − z; (8) x, 1 + y, z.]

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 10| October 2026| x261018

https://doi.org/10.1107/S2414314626010187
