2-Oxo-2H-chromen-7-yl penta­noate

N'Gouan, A.J.; Bazié, H.; Goulizan Bi, S.D.; Djandé, A.; Kakou-Yao, R.; Lecomte, C.

doi:10.1107/S241431462500937X

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 10| October 2025| x250937

https://doi.org/10.1107/S241431462500937X

Open

access

2-Oxo-2H-chromen-7-yl pentanoate

A. J. N'Gouan,^a ^* H. Bazié,^b S. D. Goulizan Bi,^a A. Djandé,^c R. Kakou-Yao ^a and C. Lecomte ^d

^aLaboratory of Material, Sciences, Environnement and Solar Energy, Research Team: Crystallography and Molecular Physics, University Félix Houphouêt-Boigny, 22 BP 582 Abidjan 22, Côte d'Ivoire, ^bLaboratory of Molecular Chemistry and Materials, Research Team: Organic Chemistry and Phytochemistry, University Joseph KI-ZERBO, 03 BP 7021, Ouagadougou 03, Burkina Faso, ^cLaboratory of Molecular Chemistry and Materials, Research Team:, Organic Chemistry and Phytochemistry, University Joseph KI-ZERBO, 03 BP 7021, Ouagadougou 03, Burkina Faso, and ^dCRM2, CNRS-Université de Lorraine, Vandoeuvre-lès-Nancy CEDEX BP 70239, France
^*Correspondence e-mail: [email protected]

Edited by I. Brito, University of Antofagasta, Chile (Received 15 September 2025; accepted 23 October 2025; online 28 October 2025)

In the title compound, C₁₄H₁₄O₄, the dihedral angle between the coumarin nucleus and the pentanoate moiety is 62.20 (7)°. The coumarin moiety is planar as usual, with a maximum deviation from the least-squares plane of 0.081 (2) Å. In the crystal, molecules are linked by C—H⋯O hydrogen bonds into centrosymmetric dimers with an R₂²(8) graph-set motif, and the cohesion of the crystal is also supported by π–π interactions with a centroid–centroid distance of 3.9342 (8) Å. A Hirshfeld surface analysis revealed that 44.6% of the intermolecular interactions are from H⋯H contacts, 28.2% are from ⋯O/O⋯H contacts and 16.3% are from H⋯C/C⋯H.

Keywords: crystal structure; hydrogen bond; coumarins; Hirshfeld surface.

CCDC reference: 2497524

Structure description

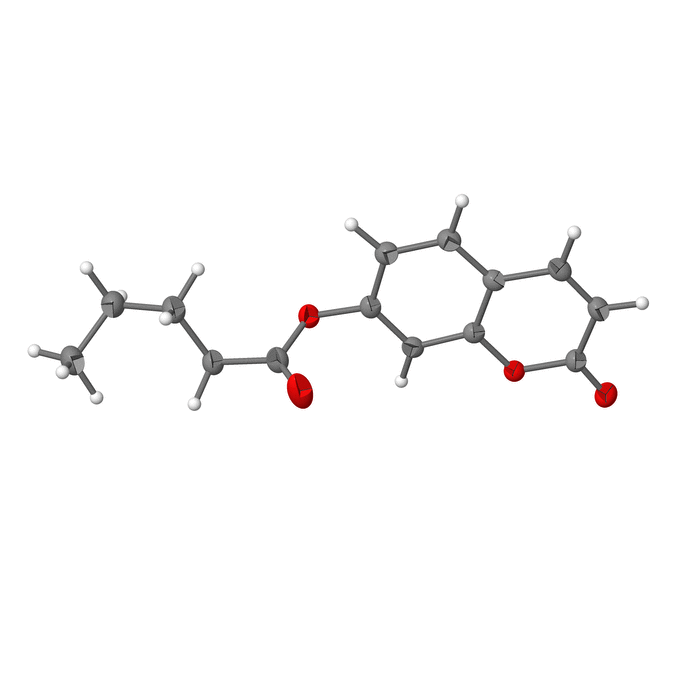

The molecule of the title compound (Fig. 1) has a coumarin moiety at the C7 position and a pentanoate one at the O3 position. The dihedral angle between the coumarin nucleus and the pentanoate moiety is 62.20 (7)°. The coumarin moiety is planar with a maximum deviation from the least-squares plane of 0.081 (2) Å for atom O1. The bond distances and bond angles in the coumarin moiety are normal and are in good agreement with analogous structures (Rajalakshmi et al., 1999 ; Anand Solomon et al., 2003 ; Usman et al., 2002 ; Krishna et al., 2003 ; Kant et al., 2004 ). The double-bond character of C1—O1 in the pyrone and C10—O4 in the pentanoate groups is confirmed by their distances of 1.2099 (15) and 1.2013 (16) Å, respectively. An inspection of the bond lengths shows that there is a slight asymmetry of the electronic distribution around the pyrone ring: the C1—C2 [1.4531 (17) Å] and C2—C3 [1.3441 (18) Å] bond lengths are respectively longer and shorter, than those excepted for a C_ar—C_ar bond. This suggests that the electron density is preferentially located in the C2—C3 bond of the pyrone ring, as seen in other coumarin derivatives (Bationo et al., 2024 ; Gomes et al., 2016 ; Ouédraogo et al., 2018 ). In addition, the bond angles, O2—C9—C8 and C3—C4—C5, at the junction of the pyrone and benzene rings are, respectively, smaller [116.5 (1)°] and greater [123.7 (1)°] than 120°. This phenomenon has also been observed in some analogous coumarins (Kanwal et al., 2007 ).

Figure 1
The title compound with displacement ellipsoids drawn at the 50% probability level. H atoms are shown as spheres of arbitrary radius.

A view down along the [010] axis (Fig. 2) shows that in the crystal, molecules are linked by C—O⋯H hydrogen bonds (Table 1) into centrosymmetric dimers with an R₂²(8) graph-set motif (Etter et al., 1990 ; Bernstein et al., 1995 ). The cohesion of the crystal is also further supported by π–π interactions [Cg1⋯Cg1ⁱ = 3.9342 (8) Å where Cg1 is the centroid of the C4–C9 ring; symmetry code: (i) 1 − x, 1 − y, 1 − z]. Another weak hydrogen bond interaction is observed (C3—H3⋯O4; Table 2, Fig. 2). The intermolecular interactions were quantified using Hirshfeld surface analysis in order to visualize and understand them (Fig. 3). The two-dimensional fingerprint plots were generated with CrystalExplorer 17 (Spackman et al., 2021 ) to show the contribution of different interactions to the crystal cohesion (Fig. 4). Thus, 44.6% of the intermolecular interactions are from H⋯H contacts, 28.2% are from H⋯O/O⋯H contacts and 16.3% are from H⋯C/C⋯H.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C3—H3⋯O4ⁱ	0.95	2.37	3.243 (2)	153
C8—H8⋯O2ⁱⁱ	0.94	2.45	3.378 (2)	167
Symmetry codes: (i) ; (ii) $[-x, y+{\script{1\over 2}}, -z+{\script{1\over 2}}]$ .

Table 2
Experimental details

Crystal data
Chemical formula	C₁₄H₁₄O₄
M_r	246.25
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	296
a, b, c (Å)	14.067 (2), 5.6449 (8), 15.400 (2)
β (°)	97.885 (5)
V (Å³)	1211.3 (3)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.10
Crystal size (mm)	0.23 × 0.12 × 0.10

Data collection
Diffractometer	Enraf–Nonius CAD4
No. of measured, independent and observed [I > 2σ(I)] reflections	75215, 4059, 3178
R_int	0.052
(sin θ/λ)_max (Å⁻¹)	0.737

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.052, 0.154, 1.08
No. of reflections	4059
No. of parameters	219
H-atom treatment	All H-atom parameters refined
Δρ_max, Δρ_min (e Å⁻³)	0.42, −0.32
Computer programs: COLLECT (Nonius, 1997 ), DENZO/SCALEPACK (Otwinowski & Minor, 1997 ), SHELXT2018/2 (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ), CAMERON (Watkin et al., 1996 ) and CRYSTALS (Betteridge et al., 2003 ).

Figure 2
Part of the crystal structure viewed along the [010] direction. Hydrogen bonds are shown as dashed lines.

Figure 3
The Hirshfeld surface mapped over d_norm to visualize the intermolecular contacts in the title compound.

Figure 4
Fingerprint plots for the title compound showing (a) C⋯C, (b) H⋯H, (c) O⋯H/H⋯O and (d) C⋯H/H⋯C interactions. The outline of the full fingerprint is shown in grey. d_i is the closest internal distance from a given point on the Hirshfeld surface and d_e is the closest external contact.

Synthesis and crystallization

The title compound was synthesized by O-acylation of umbelliferone with valeryl chloride (reagent) in the presence of diethyl ether as a solvent and pyridine as a base. To a solution of valeryl chloride (0.74 ml, 6.17 mmol, 1 equiv.) in dried diethyl ether (16 ml) were added dried pyridine (2.31 ml, 4.7 equiv.) and 7-hydroxycoumarin (1 g, 6.17 mmol, 1 equiv.) in small portions over 30 min, with vigorous stirring. The reaction mixture was left stirring at room temperature for 3 h. The resulting mixture was next poured in a separating funnel containing 40 ml of chloroform and washed with diluted hydrochloric acid solution until the pH was 2–3. The organic layer was extracted, washed with water to neutrality, dried with magnesium sulfate and the solvent removed in vacuo. The resulting crude product was washed with petroleum ether and recrystallized from chloroform/n-hexane (1:3); the title compound, was thus obtained as a white powder (1.17 g, 77% yield). Colourless crystals suitable for single-crystal X-ray diffraction analysis were then formed from an acetone solution, after the solvent was left to evaporate slowly at room temperature. The melting point (338–340 K) was measured in open capillaries with a Cole-Parmer Stuart MP-800D Series- Melting Point S apparatus.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Structural data

CCDC reference: 2497524

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S241431462500937X/bx4035sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S241431462500937X/bx4035Isup3.hkl

Supporting information file. DOI: https://doi.org/10.1107/S241431462500937X/bx4035Isup3.cml

checkCIF report

Computing details top

2-Oxo-2H-chromen-7-yl pentanoate top

Crystal data top

C₁₄H₁₄O₄	F(000) = 520
M_r = 246.25	D_x = 1.350 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 14.067 (2) Å	Cell parameters from 4060 reflections
b = 5.6449 (8) Å	θ = 2.9–31.6°
c = 15.400 (2) Å	µ = 0.10 mm⁻¹
β = 97.885 (5)°	T = 296 K
V = 1211.3 (3) Å³	Prism, white
Z = 4	0.23 × 0.12 × 0.10 mm

Data collection top

Enraf–Nonius CAD4 diffractometer	R_int = 0.052
ω/2θ scans	θ_max = 31.6°, θ_min = 2.9°
75215 measured reflections	h = −20→19
4059 independent reflections	k = −8→8
3178 reflections with I > 2σ(I)	l = −22→22

Refinement top

Refinement on F²	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.052	Hydrogen site location: difference Fourier map
wR(F²) = 0.154	All H-atom parameters refined
S = 1.08	w = 1/[σ²(F_o²) + (0.082P)² + 0.3497P] where P = (F_o² + 2F_c²)/3
4059 reflections	(Δ/σ)_max < 0.001
219 parameters	Δρ_max = 0.42 e Å⁻³
0 restraints	Δρ_min = −0.32 e Å⁻³

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
O2	0.39242 (6)	0.89521 (15)	0.55349 (5)	0.02545 (18)
O3	0.67996 (6)	0.44508 (16)	0.59537 (6)	0.02665 (19)
O1	0.25834 (7)	1.09807 (17)	0.51875 (7)	0.0345 (2)
O4	0.73985 (7)	0.7127 (2)	0.69647 (7)	0.0460 (3)
C9	0.44175 (8)	0.7035 (2)	0.59192 (7)	0.0229 (2)
C8	0.53766 (8)	0.6840 (2)	0.57977 (7)	0.0242 (2)
C2	0.25031 (8)	0.7636 (2)	0.61120 (8)	0.0282 (2)
C6	0.54497 (9)	0.3126 (2)	0.66098 (7)	0.0261 (2)
C7	0.58668 (8)	0.4856 (2)	0.61403 (7)	0.0239 (2)
C1	0.29628 (8)	0.9302 (2)	0.55824 (8)	0.0268 (2)
C4	0.39670 (8)	0.5355 (2)	0.63897 (7)	0.0235 (2)
C5	0.45001 (9)	0.3398 (2)	0.67415 (7)	0.0259 (2)
C3	0.29744 (8)	0.5745 (2)	0.64863 (8)	0.0269 (2)
C11	0.84651 (9)	0.5030 (2)	0.61245 (9)	0.0301 (3)
C10	0.75243 (9)	0.5724 (2)	0.64053 (8)	0.0295 (2)
C12	0.88245 (10)	0.2667 (3)	0.65340 (11)	0.0386 (3)
C13	0.96766 (11)	0.1684 (3)	0.61273 (12)	0.0428 (3)
C14	1.05507 (11)	0.3292 (3)	0.62324 (13)	0.0453 (4)
H6	0.5857 (12)	0.171 (3)	0.6822 (11)	0.035 (4)*
H11A	0.8386 (13)	0.497 (3)	0.5494 (12)	0.039 (5)*
H5	0.4193 (12)	0.219 (3)	0.7078 (10)	0.028 (4)*
H12A	0.8271 (16)	0.147 (4)	0.6451 (14)	0.054 (6)*
H2	0.1840 (14)	0.795 (3)	0.6158 (12)	0.043 (5)*
H14A	1.1069 (16)	0.245 (4)	0.5961 (14)	0.058 (6)*
H3	0.2666 (12)	0.460 (3)	0.6822 (10)	0.030 (4)*
H11B	0.8947 (13)	0.636 (3)	0.6294 (12)	0.040 (5)*
H12B	0.9014 (14)	0.299 (3)	0.7148 (13)	0.042 (5)*
H8	0.5655 (13)	0.798 (3)	0.5427 (12)	0.041 (5)*
H13A	0.9496 (15)	0.138 (4)	0.5470 (14)	0.056 (6)*
H14B	1.0754 (16)	0.369 (4)	0.6879 (15)	0.061 (6)*
H14C	1.0362 (16)	0.494 (4)	0.5950 (15)	0.065 (6)*
H13B	0.9906 (15)	0.010 (4)	0.6454 (14)	0.059 (6)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
O2	0.0241 (4)	0.0240 (4)	0.0288 (4)	0.0003 (3)	0.0057 (3)	0.0025 (3)
O3	0.0233 (4)	0.0290 (4)	0.0277 (4)	0.0005 (3)	0.0038 (3)	−0.0046 (3)
O1	0.0304 (5)	0.0319 (5)	0.0415 (5)	0.0054 (4)	0.0056 (4)	0.0066 (4)
O4	0.0295 (5)	0.0629 (7)	0.0458 (6)	−0.0041 (5)	0.0054 (4)	−0.0286 (5)
C9	0.0245 (5)	0.0233 (5)	0.0207 (4)	−0.0005 (4)	0.0025 (4)	−0.0015 (4)
C8	0.0250 (5)	0.0244 (5)	0.0235 (5)	−0.0020 (4)	0.0050 (4)	−0.0015 (4)
C2	0.0230 (5)	0.0333 (6)	0.0289 (5)	−0.0013 (4)	0.0056 (4)	0.0003 (4)
C6	0.0280 (5)	0.0270 (5)	0.0228 (5)	0.0003 (4)	0.0013 (4)	0.0007 (4)
C7	0.0231 (5)	0.0275 (5)	0.0211 (4)	−0.0004 (4)	0.0029 (4)	−0.0034 (4)
C1	0.0240 (5)	0.0279 (5)	0.0283 (5)	0.0013 (4)	0.0036 (4)	−0.0010 (4)
C4	0.0242 (5)	0.0256 (5)	0.0205 (4)	−0.0027 (4)	0.0029 (4)	−0.0002 (4)
C5	0.0277 (5)	0.0271 (5)	0.0225 (5)	−0.0023 (4)	0.0026 (4)	0.0020 (4)
C3	0.0256 (5)	0.0310 (6)	0.0245 (5)	−0.0045 (4)	0.0048 (4)	0.0002 (4)
C11	0.0243 (5)	0.0333 (6)	0.0329 (6)	0.0010 (4)	0.0053 (4)	−0.0003 (5)
C10	0.0248 (5)	0.0343 (6)	0.0290 (5)	0.0003 (4)	0.0028 (4)	−0.0033 (5)
C12	0.0275 (6)	0.0398 (7)	0.0491 (8)	0.0013 (5)	0.0072 (6)	0.0072 (6)
C13	0.0301 (6)	0.0366 (7)	0.0618 (10)	0.0018 (5)	0.0068 (6)	−0.0019 (7)
C14	0.0283 (7)	0.0473 (8)	0.0608 (10)	−0.0009 (6)	0.0083 (6)	−0.0030 (7)

Geometric parameters (Å, º) top

O2—C9	1.3750 (14)	C4—C3	1.4414 (16)
O2—C1	1.3787 (14)	C5—H5	0.991 (16)
O3—C10	1.3583 (15)	C3—H3	0.966 (17)
O3—C7	1.4002 (14)	C11—C10	1.4997 (17)
O1—C1	1.2099 (15)	C11—C12	1.531 (2)
O4—C10	1.2013 (16)	C11—H11A	0.962 (18)
C9—C8	1.3916 (16)	C11—H11B	1.020 (19)
C9—C4	1.3972 (15)	C12—C13	1.531 (2)
C8—C7	1.3810 (16)	C12—H12A	1.03 (2)
C8—H8	0.976 (19)	C12—H12B	0.965 (19)
C2—C3	1.3441 (18)	C13—C14	1.519 (2)
C2—C1	1.4531 (17)	C13—H13A	1.02 (2)
C2—H2	0.96 (2)	C13—H13B	1.06 (2)
C6—C5	1.3869 (17)	C14—H14A	1.01 (2)
C6—C7	1.3921 (16)	C14—H14B	1.02 (2)
C6—H6	1.011 (17)	C14—H14C	1.05 (2)
C4—C5	1.4014 (16)

C9—O2—C1	122.05 (9)	C4—C3—H3	117.8 (10)
C10—O3—C7	117.85 (9)	C10—C11—C12	111.32 (11)
O2—C9—C8	116.47 (10)	C10—C11—H11A	108.3 (11)
O2—C9—C4	121.30 (10)	C12—C11—H11A	111.9 (11)
C8—C9—C4	122.22 (10)	C10—C11—H11B	108.4 (10)
C7—C8—C9	117.08 (10)	C12—C11—H11B	111.4 (10)
C7—C8—H8	122.5 (11)	H11A—C11—H11B	105.3 (15)
C9—C8—H8	120.0 (11)	O4—C10—O3	122.82 (12)
C3—C2—C1	121.55 (11)	O4—C10—C11	127.00 (12)
C3—C2—H2	122.8 (12)	O3—C10—C11	110.13 (11)
C1—C2—H2	115.6 (12)	C13—C12—C11	112.33 (12)
C5—C6—C7	118.76 (11)	C13—C12—H12A	109.5 (12)
C5—C6—H6	123.7 (10)	C11—C12—H12A	108.7 (12)
C7—C6—H6	117.5 (10)	C13—C12—H12B	110.1 (11)
C8—C7—C6	122.92 (11)	C11—C12—H12B	105.7 (11)
C8—C7—O3	119.14 (10)	H12A—C12—H12B	110.5 (17)
C6—C7—O3	117.74 (10)	C14—C13—C12	114.08 (14)
O1—C1—O2	116.98 (11)	C14—C13—H13A	107.0 (12)
O1—C1—C2	126.11 (11)	C12—C13—H13A	111.3 (12)
O2—C1—C2	116.90 (10)	C14—C13—H13B	105.4 (12)
C9—C4—C5	118.60 (10)	C12—C13—H13B	108.5 (12)
C9—C4—C3	117.68 (10)	H13A—C13—H13B	110.3 (17)
C5—C4—C3	123.72 (11)	C13—C14—H14A	107.2 (13)
C6—C5—C4	120.39 (11)	C13—C14—H14B	110.5 (13)
C6—C5—H5	119.8 (9)	H14A—C14—H14B	112.8 (17)
C4—C5—H5	119.8 (9)	C13—C14—H14C	109.3 (13)
C2—C3—C4	120.33 (11)	H14A—C14—H14C	113.8 (18)
C2—C3—H3	121.9 (10)	H14B—C14—H14C	103.3 (18)

C1—O2—C9—C8	177.80 (10)	C8—C9—C4—C5	−0.70 (16)
C1—O2—C9—C4	−0.89 (16)	O2—C9—C4—C3	−2.21 (16)
O2—C9—C8—C7	−176.65 (9)	C8—C9—C4—C3	179.17 (10)
C4—C9—C8—C7	2.03 (16)	C7—C6—C5—C4	1.46 (17)
C9—C8—C7—C6	−1.66 (17)	C9—C4—C5—C6	−1.10 (17)
C9—C8—C7—O3	173.10 (9)	C3—C4—C5—C6	179.04 (10)
C5—C6—C7—C8	−0.04 (17)	C1—C2—C3—C4	1.71 (18)
C5—C6—C7—O3	−174.88 (10)	C9—C4—C3—C2	1.74 (17)
C10—O3—C7—C8	78.01 (14)	C5—C4—C3—C2	−178.40 (11)
C10—O3—C7—C6	−106.95 (12)	C7—O3—C10—O4	1.68 (19)
C9—O2—C1—O1	−176.56 (10)	C7—O3—C10—C11	179.37 (10)
C9—O2—C1—C2	4.23 (16)	C12—C11—C10—O4	100.31 (17)
C3—C2—C1—O1	176.21 (12)	C12—C11—C10—O3	−77.26 (14)
C3—C2—C1—O2	−4.67 (17)	C10—C11—C12—C13	169.11 (12)
O2—C9—C4—C5	177.92 (10)	C11—C12—C13—C14	60.59 (19)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C3—H3···O4ⁱ	0.95	2.37	3.243 (2)	153
C8—H8···O2ⁱⁱ	0.94	2.45	3.378 (2)	167

Symmetry codes: (i) −x, −y, −z; (ii) −x, y+1/2, −z+1/2.

Acknowledgements

The authors are grateful to the Spectropôle Service of the Faculty of Sciences and Techniques (Aix-Marseille, France) for the use of the diffractometer.
