rac-4,5-trans-Dibromo-9,9-dichloro-cis-bicyclo[6.1.0]nonane

Heiner Detert ^a ^* and Dieter Schollmeyer ^a

^aUniversity of Mainz, Department of Chemistry, Duesbergweg 10-14, 55099 Mainz, Germany
^*Correspondence e-mail: [email protected]

Edited by M. Bolte, Goethe-Universität Frankfurt, Germany (Received 12 May 2025; accepted 24 June 2025; online 27 June 2025)

The crystal structure of the title tetrahalogenated bicyclononane, C₉H₁₂Br₂Cl₂, is reported. The molecule adopts a distorted twist-chair conformation. The cyclopropane ring is almost parallel to the plane formed by the four methylene carbon atoms.

Keywords: crystal structure; tetrahalogenated bicyclononane.

CCDC reference: 2466895

Structure description

The title compound, C₉H₁₂Br₂Cl₂ (Fig. 1), was prepared as part of a project focusing on medium-sized bicyclic cycloalkynes (Meier et al., 1987 ; Detert & Meier, 1997 ). Both enantiomers [(S,S) and (R,R-)] occupy the same positions in the crystal, resulting in disorder on C1 and C2, but the ratio is 0.638 (9)/0.362 (9). The eight-membered ring adopts a distorted twist-chair conformation and the annulated cyclopropane group is in an exo-position. The four methylene carbons (C3, C4, C7, C8) lie in a common plane. This plane is nearly parallel to the cyclopropane ring, their normals enclose a small angle of only 0.5 (3)°. The bond lengths of the bromine-bound carbon atoms are significantly different: C1—C8: 1.487 (7) Å; C2—C3: 1.567 (7) Å. Furthermore, the C—C—C bond angles are opened to 120.5 (5)° (C2—C8—C1) and even 121.8 (5)° (C1—C2—C3). The same holds for the minor occupied sites. The packing is shown in Fig. 2.

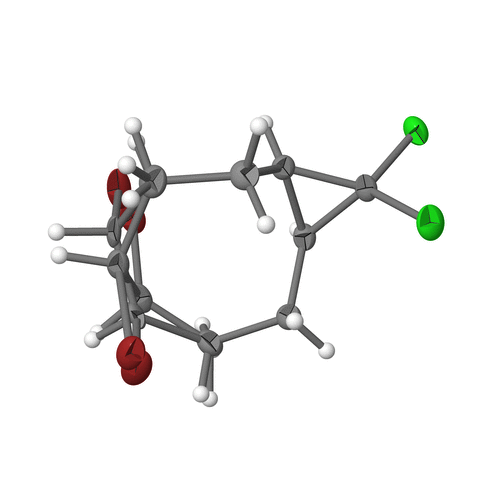

Figure 1
View (Spek, 2009

) of the title compound. Displacement ellipsoids are drawn at the 50% probability level. The minor occupied component is drawn with dashed lines.

Figure 2
Partial packing diagram (Spek, 2009

), viewed along the a-axis direction. The minor occupied component is omitted.

Synthesis and crystallization

The title compound, first mentioned by Fray (1963 ), was prepared by careful addition of bromine to 9.9-dichlorobicyclo[6.1.0]non-4-ene. Crystals were grown by slow evaporation of a solution in chloroform and propanol-2 to yield colorless crystals with a m.p. of 336–340 K. The annotation of the NMR signals follows IUPAC nomenclature. ¹H-NMR (200 MHz, CDCl₃): 9.1 (bs, 1 H, OH), 2.75 (t, 2 H, J = 6.1 Hz), 2.37 (t, 2 H, J = 6 Hz), 2.20-1.95 (m, 6 H, 3,4,7-H), 1.80 (m, 4 H, 8,9-H); ¹³C-NMR (100 MHz, CDCl₃): 160.3 (C=N), 84.9, 83.4 (C-5, C-6), 26.1, 24.3, 23.9 (C-3,8,9), 19.6, 18.3 (C-4, 7).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 1.

Table 1
Experimental details

Crystal data
Chemical formula	C₉H₁₂Br₂Cl₂
M_r	350.91
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	120
a, b, c (Å)	7.2027 (3), 22.1157 (10), 7.5534 (3)
β (°)	105.517 (3)
V (Å³)	1159.35 (9)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	7.41
Crystal size (mm)	0.50 × 0.46 × 0.13

Data collection
Diffractometer	Stoe IPDS 2T
Absorption correction	Integration [X-RED32 (Stoe & Cie, 2020 ) absorption correction by Gaussian integration]
T_min, T_max	0.069, 0.358
No. of measured, independent and observed [I > 2σ(I)] reflections	6364, 2766, 2469
R_int	0.034
(sin θ/λ)_max (Å⁻¹)	0.659

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.040, 0.100, 1.19
No. of reflections	2766
No. of parameters	155
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.60, −0.40
Computer programs: X-AREA WinXpose, Recipe and Integrate (Stoe & Cie, 2020), SHELXT2014 (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ) and PLATON (Spek, 2009 ).

Structural data

CCDC reference: 2466895

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S2414314625005735/bt4172sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625005735/bt4172Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314625005735/bt4172Isup3.cml

checkCIF report

Computing details top

rac-4,5-trans-Dibromo-9,9-dichloro-cis-bicyclo[6.1.0]nonane top

Crystal data top

C₉H₁₂Br₂Cl₂	F(000) = 680
M_r = 350.91	D_x = 2.010 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 7.2027 (3) Å	Cell parameters from 9471 reflections
b = 22.1157 (10) Å	θ = 2.8–28.4°
c = 7.5534 (3) Å	µ = 7.41 mm⁻¹
β = 105.517 (3)°	T = 120 K
V = 1159.35 (9) Å³	Plate, colorless
Z = 4	0.50 × 0.46 × 0.13 mm

Data collection top

Stoe IPDS 2T diffractometer	2766 independent reflections
Radiation source: sealed X-ray tube, 12x0.4mm long-fine focus	2469 reflections with I > 2σ(I)
Detector resolution: 6.67 pixels mm^-1	R_int = 0.034
rotation method, ω scans	θ_max = 27.9°, θ_min = 2.9°
Absorption correction: integration [X-Red32 (Stoe & Cie, 2020) absorption correction by Gaussian integration]	h = −9→9
T_min = 0.069, T_max = 0.358	k = −29→29
6364 measured reflections	l = −9→9

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.040	H-atom parameters constrained
wR(F²) = 0.100	w = 1/[σ²(F_o²) + (0.0367P)² + 2.8083P] where P = (F_o² + 2F_c²)/3
S = 1.19	(Δ/σ)_max = 0.001
2766 reflections	Δρ_max = 0.60 e Å⁻³
155 parameters	Δρ_min = −0.39 e Å⁻³
0 restraints
