4-[(E)-2-(4-{(E)-2-[4-((E)-2-{4-[(E)-2-(4-Cyanophenyl)ethen­yl]phenyl}ethen­yl)-2,5-bis(octyl­oxy)phenyl]ethen­yl}phenyl)ethen­yl]benzo­nitrile

Detert, H.; Schollmeyer, D.

doi:10.1107/S2414314626009120

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 9| September 2026| x260912

https://doi.org/10.1107/S2414314626009120

Open

access

4-[(E)-2-(4-{(E)-2-[4-((E)-2-{4-[(E)-2-(4-Cyanophenyl)ethenyl]phenyl}ethenyl)-2,5-bis(octyloxy)phenyl]ethenyl}phenyl)ethenyl]benzonitrile

Heiner Detert ^a ^* and Dieter Schollmeyer ^a

^aUniversity of Mainz, Department of Chemistry, Duesbergweg 10-14, 55099 Mainz, Germany
^*Correspondence e-mail: [email protected]

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 27 August 2026; accepted 1 September 2026; online 18 September 2026)

The complete molecule of the title compound, C₅₆H₆₀N₂O₂, which was prepared via a Horner olefination, is generated by a crystallographic centre of symmetry. Whereas the terminal cyanostilbene units are almost planar, the central dioctoxybenzene unit is substantially tilted [dihedral angle = 51.68 (8)°], which limits conjugation. van der Waals forces between the alkyl chains connect the molecules, arranged in layers lying parallel to the ac plane.

Keywords: crystal structure; phenylene vinylene; stilbene; oligomer.

CCDC reference: 2584677

Structure description

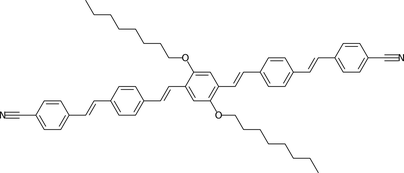

The title compound, C₅₆H₆₀N₂O₂ (I), is a linear para-oligophenylene-vinylene (OPV). It was prepared as part of a project on organic fluorophors with increased electron affinity (Detert & Sugiono, 2000 ; Stalmach & Detert, 2000 ; Detert & Schmitt, 2004 ). The structure of three related cyano-oligo-phenylenevinylenes with five benzene rings have been reported earlier (Gill et al. 1996 ; Detert et al. 2001 ) and the crystal structure of the unsubstituted 5-ring OPV has also been reported (van Hutten et al. 1999 ). Two molecules of (I) fill the monoclinic unit cell. The centrosymmetric molecules are composed of two terminal and almost planar stilbene units (ring 1 and 2) connected to a twisted divinylbenzene moiety (ring 3) (Fig. 1). The terminal cyano groups and central octyloxy chains result formally in an electronic donor–acceptor–donor (DAD) structure. The key torsion angles of the stilbene unit are C9—C12—C13—C14 = −178.79 (15)°, C8—C9—C12—C13 = 179.36 (16)° and C19—C14—C13—C12 = 178.27 (16)° and the dihedral angle between the C6–C12 and the C14–C19 aromatic rings is 6.03 (8)°. Ring 2 (C6–C11) and the vinylene unit subtend a torsion angle C7—C6—C5—C4 of −151.99 (17)° and the torsion angle between this vinylene unit and the central ring 3 (C5—C4—C3—C1ⁱ) [symmetry code: (i) 1 − x, 1 − y, 1–z) amounts to 156.00 (16)°. The dihedral angle between the central ring and the C6–C12 ring is 51.68 (8)°. Whereas the first methylene groups show a gauche conformation about the C21—C22 bond [O20—C21—C22—C23 = 60.83 (19)°], the rest of the octyl chain is perfectly all-anti configured.

Figure 1

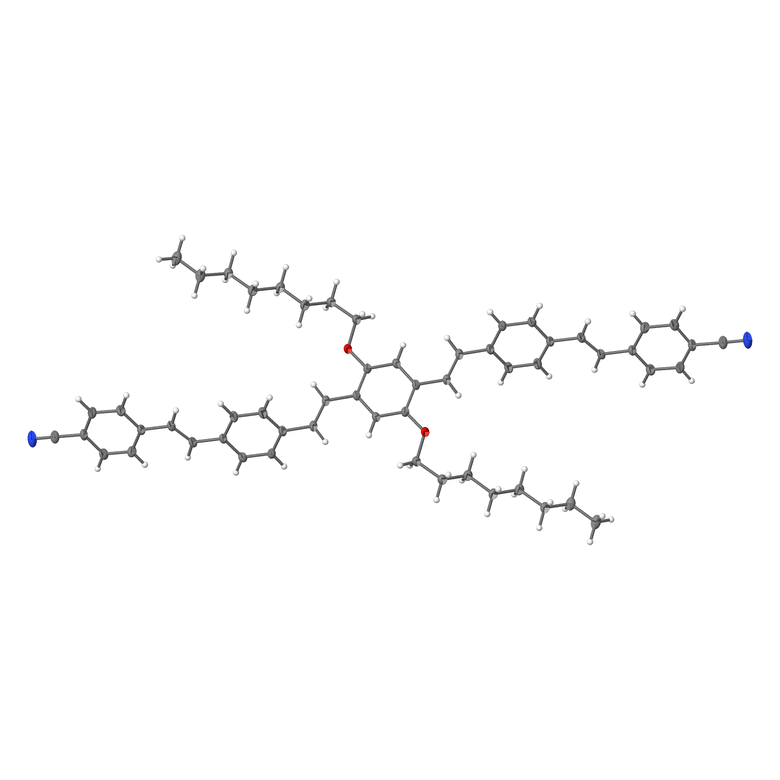

The molecular structure of (I) with displacement ellipsoids drawn at the 50% probability level. Symmetry code: (a) 1 − x, 1 − y, 1 − z.

In the extended structure of (I), the molecules are arranged in alternating layers lying parallel to the ac plane (Fig. 2). The rings 1 and 2 are almost parallel to the ac-plane whereas the central ring is tilted: the dihedral angle between the central rings 3 and 3′ of the alternating layers amounts to 71.50 (7)°. The alkyl chains connect parallel layers of molecules, along the b axis, one chain interacts with the chains of molecules above and one with those below, forming aliphatic layers between the conjugated segments, also lying roughly parallel to the ac plane.

Figure 2
Part of the packing diagram of (I) viewed along the c-axis direction. Hydrogen atoms omitted for clarity.

Synthesis and crystallization

A solution of potassium-t-butylate (336 mg, 3 mmol) and 60 mg 18-crown-6 in 30 ml of anhydrous tetrahydrofuran (THF) was purged with nitrogen and a solution of 594 mg (1 mmol) 1,4-bis(4-formylphenylethenyl)-2,5-dioctyloxybenzene (Detert et al. 2001). 2 mmol (506 mg) p-cyanobenzyl phosphonate in 15 ml of anhydrous THF was added dropwise over 15 min. Stirring was continued for 16 h before the reaction mixture was poured into 150 ml of 0.5 N hydrochloric acid. The product was isolated by filtration, the residue was washed with 100 ml of water/methanol (2/1) dried in vacuum and recrystallized from chloroform solution by adding methanol to the hot solution in 0.66 g (83%) yield. Recrystallization for single crystals was from the mixed solvents of chloroform and 2-propanol. Bright yellow crystals with m.p. = 481 K. MS (FD): 793 (100) [M⁺], 396.5 (1) [M²⁺]; IR (KBr): ν = 3010, 2908, 2840, 2220, 1590, 1582, 1502, 1480, 1453, 1408, 1248, 1195, 1019, 957, 850, 830, 820 cm⁻¹; ¹H-NMR (CDCl₃, 400 MHz): δ = 0.88 (t, J = 6.4 Hz, 6 H, CH₃), 1.25–1.45 (m, 20 H, CH₂), 1.56 (qui, J = 7.5 Hz, 4 H, CH₂), 1.87 (qui, J = 7.5 Hz, 4 H, CH₂), 4.07 (t, J = 6 Hz, 4 H, OCH₂), 7.06 (d, J = 16.4 Hz, 2 H, vin), 7.11 (s, 2 H), 7.13 (d, J = 16 Hz, 2 H, vin), 7.19 (d, J = 16.4 Hz, 2 H, vin), 7.53 (d, J = 16 Hz, 2 H, vin), 7.52 (AA'BB', 8 H), 7.59 (AA'BB', 8 H); ¹³C-NMR (CDCl₃, 100 MHz): δ = 14.1 (CH₃), 22.7, 26.3, 29.3, 29.4, 29.5, 31.8 (CH₂), 69.6 (OCH₂), 110.5, 110.7, 119.0 (CN), 124.1, 126.4 (CH vin), 126.8, 127.0, 127.3 (CH ar), 138.3, 132.0 (CH vin), 132.5 (CH ar), 135.4, 138.5, 141.9, 151.3 (Cq). UV-Vis l max = 434 nm (dichloromethane, log ɛ = 4.93), fluorescence: λ_max = 485 nm (cyclohexane, Φ = 0.53), λ_max = 521 (acetonitrile).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 1.

Table 1
Experimental details

Crystal data
Chemical formula	C₅₆H₆₀N₂O₂
M_r	793.06
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	120
a, b, c (Å)	22.0613 (7), 11.1029 (3), 9.1280 (3)
β (°)	96.004 (3)
V (Å³)	2223.59 (12)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	0.07
Crystal size (mm)	0.26 × 0.15 × 0.05

Data collection
Diffractometer	Stoe IPDS 2T
Absorption correction	–
No. of measured, independent and observed [I > 2σ(I)] reflections	14627, 5254, 3801
R_int	0.060
(sin θ/λ)_max (Å⁻¹)	0.658

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.056, 0.150, 1.10
No. of reflections	5254
No. of parameters	272
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.32, −0.23
Computer programs: X-AREA WinXpose, X-AREA Recipe and X-AREA Integrate (Stoe & Cie, 2020 ), SHELXT2014 (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ) and PLATON (Spek, 2009 ).

Structural data

CCDC reference: 2584677

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S2414314626009120/hb4571sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314626009120/hb4571Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314626009120/hb4571Isup3.cml

checkCIF report

Computing details top

4-[(E)-2-(4-{(E)-2-[4-((E)-2-{4-[(E)-2-(4-Cyanophenyl)ethenyl]phenyl}ethenyl)-2,5-bis(octyloxy)phenyl]ethenyl}phenyl)ethenyl]benzonitrile top

Crystal data top

C₅₆H₆₀N₂O₂	F(000) = 852
M_r = 793.06	D_x = 1.184 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 22.0613 (7) Å	Cell parameters from 10876 reflections
b = 11.1029 (3) Å	θ = 2.9–28.4°
c = 9.1280 (3) Å	µ = 0.07 mm⁻¹
β = 96.004 (3)°	T = 120 K
V = 2223.59 (12) Å³	Plate, yellow
Z = 2	0.26 × 0.15 × 0.05 mm

Data collection top

Stoe IPDS 2T diffractometer	R_int = 0.060
Detector resolution: 6.67 pixels mm^-1	θ_max = 27.9°, θ_min = 2.9°
rotation method, ω scans	h = −28→28
14627 measured reflections	k = −14→14
5254 independent reflections	l = −11→10
3801 reflections with I > 2σ(I)

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.056	H-atom parameters constrained
wR(F²) = 0.150	w = 1/[σ²(F_o²) + (0.0575P)² + 0.8682P] where P = (F_o² + 2F_c²)/3
S = 1.10	(Δ/σ)_max = 0.001
5254 reflections	Δρ_max = 0.32 e Å⁻³
272 parameters	Δρ_min = −0.23 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Hydrogen atoms attached to carbon atoms were placed at calculated positions and were refined in the riding-model approximation with C—H = 0.95–0.99 Å, and with U_iso(H) = 1.2 U_eq(C).

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.54781 (7)	0.57938 (15)	0.53929 (17)	0.0239 (3)
C2	0.51135 (7)	0.59457 (15)	0.40744 (17)	0.0250 (3)
H2	0.519388	0.659476	0.344480	0.030*
C3	0.46279 (7)	0.51606 (14)	0.36499 (17)	0.0231 (3)
C4	0.42353 (7)	0.53272 (14)	0.22687 (17)	0.0234 (3)
H4	0.383510	0.500323	0.221817	0.028*
C5	0.43916 (7)	0.58960 (15)	0.10723 (17)	0.0243 (3)
H5	0.479187	0.621900	0.111866	0.029*
C6	0.39939 (7)	0.60616 (14)	−0.03081 (17)	0.0227 (3)
C7	0.42449 (7)	0.61702 (15)	−0.16410 (18)	0.0253 (3)
H7	0.467510	0.621205	−0.163772	0.030*
C8	0.38796 (7)	0.62187 (15)	−0.29725 (17)	0.0249 (3)
H8	0.406367	0.628526	−0.386451	0.030*
C9	0.32444 (7)	0.61709 (13)	−0.30210 (16)	0.0212 (3)
C10	0.29919 (7)	0.61295 (15)	−0.16739 (17)	0.0253 (3)
H10	0.256141	0.613619	−0.167190	0.030*
C11	0.33561 (7)	0.60793 (15)	−0.03533 (17)	0.0255 (3)
H11	0.317221	0.605628	0.054207	0.031*
C12	0.28738 (7)	0.61536 (14)	−0.44523 (17)	0.0227 (3)
H12	0.308816	0.618492	−0.530154	0.027*
C13	0.22659 (7)	0.60985 (14)	−0.46871 (16)	0.0232 (3)
H13	0.204763	0.608294	−0.384361	0.028*
C14	0.19060 (7)	0.60598 (14)	−0.61326 (17)	0.0222 (3)
C15	0.21729 (8)	0.60958 (17)	−0.74565 (18)	0.0305 (4)
H15	0.260282	0.617067	−0.743152	0.037*
C16	0.18224 (8)	0.60242 (17)	−0.87991 (18)	0.0314 (4)
H16	0.201187	0.605442	−0.968637	0.038*
C17	0.11929 (7)	0.59082 (15)	−0.88546 (18)	0.0257 (3)
C18	0.09147 (7)	0.58874 (16)	−0.75575 (19)	0.0296 (4)
H18	0.048438	0.581748	−0.758965	0.036*
C19	0.12712 (7)	0.59699 (16)	−0.62128 (18)	0.0282 (4)
H19	0.107929	0.596498	−0.532842	0.034*
O20	0.59453 (5)	0.65600 (11)	0.58728 (12)	0.0294 (3)
C21	0.61954 (8)	0.72790 (17)	0.47691 (19)	0.0312 (4)
H21A	0.588076	0.782783	0.429117	0.037*
H21B	0.634359	0.675574	0.400389	0.037*
C22	0.67179 (8)	0.79956 (16)	0.55458 (19)	0.0297 (4)
H22A	0.655559	0.851893	0.629142	0.036*
H22B	0.688589	0.852632	0.481586	0.036*
C23	0.72361 (7)	0.72408 (15)	0.63057 (19)	0.0280 (4)
H23A	0.741249	0.673462	0.556451	0.034*
H23B	0.707294	0.669872	0.703115	0.034*
C24	0.77349 (7)	0.80304 (16)	0.70892 (18)	0.0275 (4)
H24A	0.790550	0.854940	0.635149	0.033*
H24B	0.755105	0.856283	0.779200	0.033*
C25	0.82516 (7)	0.73201 (15)	0.79204 (19)	0.0276 (4)
H25A	0.844567	0.680762	0.721451	0.033*
H25B	0.808084	0.678287	0.863937	0.033*
C26	0.87357 (7)	0.81255 (15)	0.87348 (18)	0.0271 (3)
H26A	0.889982	0.867307	0.801669	0.033*
H26B	0.854171	0.862822	0.945071	0.033*
C27	0.92614 (8)	0.74288 (17)	0.9551 (2)	0.0321 (4)
H27A	0.909921	0.688541	1.027633	0.039*
H27B	0.945598	0.692386	0.883831	0.039*
C28	0.97400 (8)	0.82510 (19)	1.0348 (2)	0.0376 (4)
H28A	0.989332	0.880827	0.964013	0.056*
H28B	1.007783	0.776397	1.081085	0.056*
H28C	0.955712	0.871022	1.110644	0.056*
C29	0.08398 (8)	0.57799 (16)	−1.02704 (19)	0.0302 (4)
N30	0.05706 (8)	0.56627 (16)	−1.14068 (18)	0.0424 (4)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0224 (7)	0.0294 (8)	0.0190 (7)	−0.0037 (6)	−0.0026 (6)	0.0007 (6)
C2	0.0266 (8)	0.0299 (8)	0.0175 (7)	−0.0036 (6)	−0.0029 (6)	0.0040 (6)
C3	0.0227 (7)	0.0296 (8)	0.0161 (7)	−0.0010 (6)	−0.0023 (6)	0.0017 (6)
C4	0.0223 (7)	0.0277 (8)	0.0189 (7)	−0.0030 (6)	−0.0048 (6)	0.0006 (6)
C5	0.0238 (7)	0.0286 (8)	0.0188 (7)	−0.0017 (6)	−0.0047 (6)	0.0003 (6)
C6	0.0266 (8)	0.0228 (7)	0.0173 (7)	−0.0009 (6)	−0.0038 (6)	0.0010 (6)
C7	0.0213 (7)	0.0323 (8)	0.0212 (8)	−0.0025 (6)	−0.0034 (6)	0.0036 (6)
C8	0.0255 (8)	0.0307 (8)	0.0181 (7)	−0.0019 (6)	−0.0001 (6)	0.0023 (6)
C9	0.0243 (7)	0.0212 (7)	0.0170 (7)	−0.0002 (6)	−0.0030 (6)	0.0005 (6)
C10	0.0219 (7)	0.0345 (9)	0.0186 (7)	0.0039 (6)	−0.0014 (6)	0.0017 (6)
C11	0.0256 (8)	0.0338 (9)	0.0166 (7)	0.0039 (6)	0.0006 (6)	0.0000 (6)
C12	0.0271 (8)	0.0247 (7)	0.0157 (7)	0.0003 (6)	−0.0013 (6)	0.0007 (6)
C13	0.0261 (8)	0.0280 (8)	0.0149 (7)	−0.0003 (6)	−0.0010 (6)	0.0006 (6)
C14	0.0240 (7)	0.0237 (7)	0.0178 (7)	−0.0002 (6)	−0.0032 (6)	0.0011 (6)
C15	0.0233 (8)	0.0467 (10)	0.0210 (8)	−0.0053 (7)	−0.0002 (6)	−0.0013 (7)
C16	0.0306 (9)	0.0463 (10)	0.0168 (8)	−0.0042 (8)	−0.0001 (6)	0.0001 (7)
C17	0.0283 (8)	0.0266 (8)	0.0202 (8)	0.0004 (6)	−0.0071 (6)	0.0009 (6)
C18	0.0212 (7)	0.0400 (9)	0.0264 (8)	0.0013 (7)	−0.0037 (6)	0.0022 (7)
C19	0.0255 (8)	0.0381 (9)	0.0204 (8)	0.0015 (7)	0.0006 (6)	0.0017 (7)
O20	0.0315 (6)	0.0366 (7)	0.0183 (5)	−0.0139 (5)	−0.0067 (5)	0.0048 (5)
C21	0.0318 (9)	0.0371 (9)	0.0224 (8)	−0.0114 (7)	−0.0071 (7)	0.0078 (7)
C22	0.0305 (8)	0.0323 (9)	0.0250 (8)	−0.0084 (7)	−0.0037 (7)	0.0055 (7)
C23	0.0272 (8)	0.0297 (8)	0.0257 (8)	−0.0050 (7)	−0.0035 (7)	0.0001 (7)
C24	0.0268 (8)	0.0308 (8)	0.0236 (8)	−0.0057 (7)	−0.0034 (6)	−0.0006 (7)
C25	0.0255 (8)	0.0300 (8)	0.0262 (8)	−0.0021 (7)	−0.0019 (6)	−0.0018 (7)
C26	0.0265 (8)	0.0304 (8)	0.0234 (8)	−0.0025 (7)	−0.0025 (6)	−0.0009 (7)
C27	0.0272 (8)	0.0358 (9)	0.0316 (9)	0.0034 (7)	−0.0046 (7)	−0.0047 (7)
C28	0.0276 (8)	0.0458 (11)	0.0373 (10)	0.0022 (8)	−0.0061 (7)	−0.0069 (8)
C29	0.0296 (8)	0.0333 (9)	0.0257 (9)	0.0041 (7)	−0.0066 (7)	−0.0008 (7)
N30	0.0448 (9)	0.0499 (10)	0.0288 (8)	0.0090 (8)	−0.0138 (7)	−0.0058 (7)

Geometric parameters (Å, º) top

C1—O20	1.3726 (18)	C17—C18	1.389 (2)
C1—C2	1.386 (2)	C17—C29	1.445 (2)
C1—C3ⁱ	1.408 (2)	C18—C19	1.390 (2)
C2—C3	1.404 (2)	C18—H18	0.9500
C2—H2	0.9500	C19—H19	0.9500
C3—C4	1.465 (2)	O20—C21	1.4398 (19)
C4—C5	1.337 (2)	C21—C22	1.514 (2)
C4—H4	0.9500	C21—H21A	0.9900
C5—C6	1.470 (2)	C21—H21B	0.9900
C5—H5	0.9500	C22—C23	1.525 (2)
C6—C7	1.394 (2)	C22—H22A	0.9900
C6—C11	1.404 (2)	C22—H22B	0.9900
C7—C8	1.387 (2)	C23—C24	1.525 (2)
C7—H7	0.9500	C23—H23A	0.9900
C8—C9	1.398 (2)	C23—H23B	0.9900
C8—H8	0.9500	C24—C25	1.522 (2)
C9—C10	1.403 (2)	C24—H24A	0.9900
C9—C12	1.467 (2)	C24—H24B	0.9900
C10—C11	1.378 (2)	C25—C26	1.525 (2)
C10—H10	0.9500	C25—H25A	0.9900
C11—H11	0.9500	C25—H25B	0.9900
C12—C13	1.337 (2)	C26—C27	1.522 (2)
C12—H12	0.9500	C26—H26A	0.9900
C13—C14	1.468 (2)	C26—H26B	0.9900
C13—H13	0.9500	C27—C28	1.522 (2)
C14—C19	1.398 (2)	C27—H27A	0.9900
C14—C15	1.399 (2)	C27—H27B	0.9900
C15—C16	1.381 (2)	C28—H28A	0.9800
C15—H15	0.9500	C28—H28B	0.9800
C16—C17	1.391 (2)	C28—H28C	0.9800
C16—H16	0.9500	C29—N30	1.148 (2)

O20—C1—C2	123.36 (14)	C18—C19—C14	121.47 (15)
O20—C1—C3ⁱ	115.85 (13)	C18—C19—H19	119.3
C2—C1—C3ⁱ	120.76 (14)	C14—C19—H19	119.3
C1—C2—C3	121.39 (15)	C1—O20—C21	116.76 (12)
C1—C2—H2	119.3	O20—C21—C22	107.00 (13)
C3—C2—H2	119.3	O20—C21—H21A	110.3
C2—C3—C1ⁱ	117.86 (14)	C22—C21—H21A	110.3
C2—C3—C4	121.64 (14)	O20—C21—H21B	110.3
C1ⁱ—C3—C4	120.50 (14)	C22—C21—H21B	110.3
C5—C4—C3	125.64 (14)	H21A—C21—H21B	108.6
C5—C4—H4	117.2	C21—C22—C23	114.96 (15)
C3—C4—H4	117.2	C21—C22—H22A	108.5
C4—C5—C6	125.26 (14)	C23—C22—H22A	108.5
C4—C5—H5	117.4	C21—C22—H22B	108.5
C6—C5—H5	117.4	C23—C22—H22B	108.5
C7—C6—C11	117.50 (14)	H22A—C22—H22B	107.5
C7—C6—C5	120.22 (14)	C22—C23—C24	111.55 (14)
C11—C6—C5	122.25 (14)	C22—C23—H23A	109.3
C8—C7—C6	121.38 (15)	C24—C23—H23A	109.3
C8—C7—H7	119.3	C22—C23—H23B	109.3
C6—C7—H7	119.3	C24—C23—H23B	109.3
C7—C8—C9	120.97 (15)	H23A—C23—H23B	108.0
C7—C8—H8	119.5	C25—C24—C23	113.70 (14)
C9—C8—H8	119.5	C25—C24—H24A	108.8
C8—C9—C10	117.51 (14)	C23—C24—H24A	108.8
C8—C9—C12	119.47 (14)	C25—C24—H24B	108.8
C10—C9—C12	123.02 (14)	C23—C24—H24B	108.8
C11—C10—C9	121.30 (15)	H24A—C24—H24B	107.7
C11—C10—H10	119.3	C24—C25—C26	112.89 (14)
C9—C10—H10	119.3	C24—C25—H25A	109.0
C10—C11—C6	121.14 (15)	C26—C25—H25A	109.0
C10—C11—H11	119.4	C24—C25—H25B	109.0
C6—C11—H11	119.4	C26—C25—H25B	109.0
C13—C12—C9	126.83 (14)	H25A—C25—H25B	107.8
C13—C12—H12	116.6	C27—C26—C25	113.53 (15)
C9—C12—H12	116.6	C27—C26—H26A	108.9
C12—C13—C14	125.77 (14)	C25—C26—H26A	108.9
C12—C13—H13	117.1	C27—C26—H26B	108.9
C14—C13—H13	117.1	C25—C26—H26B	108.9
C19—C14—C15	117.81 (14)	H26A—C26—H26B	107.7
C19—C14—C13	119.59 (14)	C28—C27—C26	112.59 (16)
C15—C14—C13	122.60 (14)	C28—C27—H27A	109.1
C16—C15—C14	121.17 (15)	C26—C27—H27A	109.1
C16—C15—H15	119.4	C28—C27—H27B	109.1
C14—C15—H15	119.4	C26—C27—H27B	109.1
C15—C16—C17	120.13 (15)	H27A—C27—H27B	107.8
C15—C16—H16	119.9	C27—C28—H28A	109.5
C17—C16—H16	119.9	C27—C28—H28B	109.5
C18—C17—C16	119.93 (15)	H28A—C28—H28B	109.5
C18—C17—C29	121.06 (15)	C27—C28—H28C	109.5
C16—C17—C29	118.99 (15)	H28A—C28—H28C	109.5
C17—C18—C19	119.47 (15)	H28B—C28—H28C	109.5
C17—C18—H18	120.3	N30—C29—C17	178.4 (2)
C19—C18—H18	120.3

O20—C1—C2—C3	−177.93 (15)	C12—C13—C14—C19	178.27 (16)
C3ⁱ—C1—C2—C3	0.1 (3)	C12—C13—C14—C15	−1.0 (3)
C1—C2—C3—C1ⁱ	−0.1 (3)	C19—C14—C15—C16	−1.1 (3)
C1—C2—C3—C4	179.06 (15)	C13—C14—C15—C16	178.19 (17)
C2—C3—C4—C5	24.8 (3)	C14—C15—C16—C17	−0.3 (3)
C1ⁱ—C3—C4—C5	−156.00 (16)	C15—C16—C17—C18	1.2 (3)
C3—C4—C5—C6	−179.83 (15)	C15—C16—C17—C29	−177.20 (16)
C4—C5—C6—C7	−151.99 (17)	C16—C17—C18—C19	−0.7 (3)
C4—C5—C6—C11	26.0 (3)	C29—C17—C18—C19	177.69 (16)
C11—C6—C7—C8	−3.9 (2)	C17—C18—C19—C14	−0.7 (3)
C5—C6—C7—C8	174.14 (15)	C15—C14—C19—C18	1.6 (3)
C6—C7—C8—C9	0.6 (3)	C13—C14—C19—C18	−177.68 (15)
C7—C8—C9—C10	2.9 (2)	C2—C1—O20—C21	−21.7 (2)
C7—C8—C9—C12	−176.47 (15)	C3ⁱ—C1—O20—C21	160.09 (15)
C8—C9—C10—C11	−3.0 (2)	C1—O20—C21—C22	−177.28 (14)
C12—C9—C10—C11	176.31 (15)	O20—C21—C22—C23	60.83 (19)
C9—C10—C11—C6	−0.3 (3)	C21—C22—C23—C24	−178.65 (14)
C7—C6—C11—C10	3.8 (2)	C22—C23—C24—C25	177.60 (14)
C5—C6—C11—C10	−174.23 (15)	C23—C24—C25—C26	−178.22 (14)
C8—C9—C12—C13	179.35 (16)	C24—C25—C26—C27	−179.01 (14)
C10—C9—C12—C13	0.0 (3)	C25—C26—C27—C28	179.70 (15)
C9—C12—C13—C14	−178.79 (15)

Symmetry code: (i) −x+1, −y+1, −z+1.

References

Detert, H. & Schmitt, V. (2004). J. Phys. Org. Chem. 17, 105–108. Google Scholar
Detert, H., Schollmeier, D. & Sugiono, E. (2001). Eur. J. Org. Chem. pp. 2927–2938. CrossRef Google Scholar
Detert, H. & Sugiono, E. (2000). J. Phys. Org. Chem. 13, 587–590. CrossRef CAS Google Scholar
Gill, R. E., van Hutten, P., Meetsma, A. & Hadziioannou, G. (1996). Chem. Mater. 8, 1341–1346. CrossRef CAS Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spek, A. L. (2009). Acta Cryst. D65, 148–155. Web of Science CrossRef CAS IUCr Journals Google Scholar
Stalmach, U. & Detert, H. (2000). J. Prakt. Chem. 342, 10–16. CrossRef CAS Google Scholar
Stoe & Cie (2020). X-AREA WinXpose, X-AREA Recipe and X-AREA Integrate. Stoe & Cie, Darmstadt, Germany. Google Scholar
van Hutten, P. F., Wildeman, J., Meetsma, A. & Hadziioannou, G. (1999). J. Am. Chem. Soc. 121, 5910–5918. CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
