[(1,2,5,6-η)-Cyclo­octa-1,5-diene]bis­(1-methyl-3-propylimidazol-2-yl­idene-κC)iridium(I) tetra­fluorido­borate

Kienle, B.N.; Gau, M.; Albert, D.R.; Rajaseelan, E.

doi:10.1107/S2414314626001896

metal-organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 2| February 2026| x260189

https://doi.org/10.1107/S2414314626001896

Open

access

[(1,2,5,6-η)-Cycloocta-1,5-diene]bis(1-methyl-3-propylimidazol-2-ylidene-κC)iridium(I) tetrafluoridoborate

Benedikt N. Kienle,^a Michael Gau,^b Daniel R. Albert ^c and Edward Rajaseelan ^c ^*

^aLancaster Country Day School. 725 Hamilton Road, Lancaster, PA 17603, USA, ^bDepartment of Chemistry, University of Pennsylvania, Philadelphia, PA 19104, USA, and ^cDepartment of Chemistry, Millersville University, Millersville, PA 17551, USA
^*Correspondence e-mail: [email protected]

Edited by M. Weil, Vienna University of Technology, Austria (Received 16 February 2026; accepted 19 February 2026; online 24 February 2026)

In the title complex [Ir(C₈H₁₂)(C₇H₁₂N₂)₂]BF₄, the central Ir^I atom of the cationic complex has a distorted square-planar coordination environment, formed by a bidentate cycloocta-1,5-diene (COD) ligand, and two N-heterocyclic carbene ligands. Non-classical hydrogen-bonding interactions between the [BF₄]⁻ anion and the N-heterocyclic carbenes on three distinct cationic iridium(I) complexes serve to establish the orientation of the [BF₄]⁻ anion in the extended structure.

Keywords: crystal structure; bis N-heterocyclic carbenes; iridium; complex salt.

CCDC reference: 2532047

Structure description

N-heterocyclic carbenes (NHCs) have emerged as excellent alternative ligands for phosphines to synthesize active metal complexes in homogeneous catalysis (Cazin, 2013 ; de Frémont et al., 2009 ; Diez-González et al., 2009 ; Rovis & Nolan, 2013 ; Ruff et al., 2016 ; Zuo et al., 2014 ). The use of these complexes as catalysts for the transfer hydrogenation of several unsaturated substrates has also been studied and reported (Albrecht et al., 2002 ; Gnanamgari et al., 2007 ; Hillier et al., 2001 ). The NHC ligands can be tuned sterically and electronically by having different substituents (wing tips) on the nitrogen atoms (Gusev, 2009 ). Though many imidazole-based NHC iridium complexes have been synthesized and structurally characterized (Herrmann et al., 2006 ; Wang & Lin 1998 ; Chianese et al., 2004 ), fewer structures of complexes with smaller wing-tip substituents have been reported. We continue to synthesize new imidazole and triazole-based NHC complexes of rhodium and iridium to study the effect of different substituents on the NHCs and the other ligands coordinating to the metal in transfer hydrogenation reactions (Nichol et al., 2009 , 2010 , 2011 , 2012 ; Idrees et al., 2017a ,b ; Rood et al., 2021 ; Rushlow et al., 2021 ; Newman et al., 2021 ; Castaldi et al., 2021 ; Maynard et al., 2023 ; Lerch et al., 2024 , 2025 ). Here we report the structure of an iridium complex with two identical imidazole-based monodentate carbene ligands.

The molecular structure of the title complex, [Ir(C₈H₁₂)(C₇H₁₂N₂)][BF₄], (3), comprises an Ir^I cation complex and a tetrafluoridoborate counter-anion, illustrated in Fig. 1. No solvent molecules are present in the crystal structure. The coordination environment of the central Ir^I atom of the cationic complex is distorted square-planar, defined by a bidentate cycloocta-1,5-diene (COD) ligand, and two NHC ligands. The carbene atoms, C1 and C8, deviate from the expected sp² hybridization in that the N1—C1—N2 and the N4—C8—N3 bond angles in the imidazole-based carbenes are 103.9 (2) and 104.1 (2)°, respectively. Other selected bond lengths and angles in the structure are: Ir1—C1(NHC) 2.052 (2) Å, Ir1—C8(NHC) 2.052 (2) Å, and C1—Ir1—C8 is 94.62 (9)°. Non-classical C—H⋯F hydrogen-bonding interactions between the NHCs of the iridium cation and the tetrafluoridoborate anion are summarized in Table 1. Notably, each [BF₄]⁻ anion interacts with three separate cations as shown in Fig. 2. The crystal packing diagram of the complex is shown in Fig. 3, with the stabilizing H⋯F interactions shown as dotted orange lines. Two of the hydrogen-bonding interactions are with C—H groups of the NHC ring with the third interaction occurring with the propyl wing tip of the NHC.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C2—H2⋯F4ⁱ	0.95	2.53 (1)	3.380 (3)	150 (1)
C3—H3⋯F3ⁱⁱ	0.95	2.53 (1)	3.336 (3)	143 (1)
C12—H12b⋯F1	0.99	2.51 (1)	3.354 (3)	144 (1)
Symmetry codes: (i) ; (ii) .

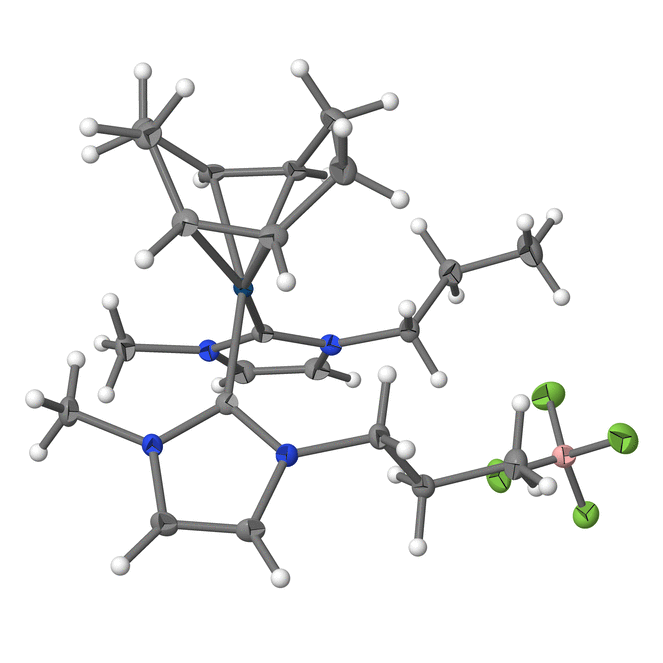

Figure 1
Molecular structure of the title compound (3) with displacement ellipsoids drawn at the 50% probability level.

Figure 2
The title compound (3) showing the C—H⋯F hydrogen bonds (dotted orange lines) accepted by one [BF₄]⁻ anion and the NHCs of three distinct iridium cations.

Figure 3
Packing diagram of the title compound shown along [100] with hydrogen-bonding interactions shown as dotted orange lines.

Synthesis and crystallization

The synthesis scheme is shown in Fig. 4. All compounds used in the syntheses were obtained from Sigma-Aldrich and Strem and used as received; all syntheses were performed under a nitrogen atmosphere. NMR spectra were recorded at room temperature in CDCl₃ on a 400 MHz (operating at 100 MHz for ¹³C) Varian spectrometer and referenced to the residual solvent peak (δ in p.p.m.).

Figure 4
Reaction scheme for the synthesis of the title compound (3).

1-Methyl-3-propylimidazolium bromide (1) was synthesized by refluxing 1-methyl imidazole and 1-bromopropane in toluene for 48 h under nitrogen.

[(1,2,5,6-η)-Cycloocta-1,5-diene](1-methyl-3-propylimidazol-2-ylidene)chloridoiridium (2): Imidazolium bromide (1) (0.061 g, 0.298 mmol) and Ag₂O (0.034 g, 0.149 mmol) were stirred at room temperature in the dark for 1 h in CH₂Cl₂ (10 ml). The mixture was then filtered through Celite into [Ir(cod)Cl]₂ (0.100 g, 0.149 mmol), and stirred again in the dark for 1.5 h. The resulting solution was filtered through Celite and the solvent was removed under reduced pressure in a rotary evaporator. The yellow solid product (2) was dried under vacuum. Yield: 0.130 g (95%). ¹H NMR: δ 6.82 (s, 1H, N—C₄H), 6.80 (s, 1 H, N—C₅H), 4.57 (s, 3H, N—CH₃), 4.37 (m, 2 H, CH of COD), 4.29 (m, 2H, CH of COD), 4.09 (t, 2H, N—CH₂ of propyl), 1.97 (m, 2 H, CH₂ of propyl), 1.85–1.60 (m, 8H, CH₂ of COD), 1.01 (t, 3H, CH₃ of propyl). ¹³C NMR: δ 180.11 (Ir—C), 121.59 (N—C₄H), 119.84 (N—C₅H), 84.16, 84.06 (CH of COD), 51.16 (N—CH₃), 37.46 (N—CH₂ of Pr), 33.76,33.39,29.76,29.40 (CH₂ of COD), 24.25 (CH₂ of propyl), 11.40 (CH₃ of propyl).

[(1,2,5,6-η)-Cycloocta-1,5-diene]bis(1-methyl-3-propyl-imidazol-2-ylidene)iridium(I) tetrafluoridoborate (3): Imidazolium bromide (1) (0.055 g, 0.269 mmol) and Ag₂O (0.031 g, 0.135 mmol) were stirred at room temperature in the dark for 1 h in CH₂Cl₂ (10 ml). The mixture was then filtered through Celite into a flask containing 0.124 g (0.269 mmol) of (2), in 10 ml of CH₂Cl₂. The solution was stirred in the dark for 1.5 h. The resulting mixture was filtered through Celite and the solvent was removed under reduced pressure. The rust-orange solid product (3) was dried under vacuum. Compound (3) was crystallized in the form of orange blocks suitable for data collection by slow diffusion of pentane into a CH₂Cl₂ solution. Yield: 0.170 g (99%). ¹H NMR: δ 7.10–7.00 (m, 4H, N—C₄H, N—C₅H), 4.39, 4.37 (m, 6H, N—CH₃), 4.22–4.15 (m, 4H, CH of COD), 3.96 (m, 4H, N—CH₂ of propyl), 3.82 (m, 2 H, CH₂ of COD), 3.76 (2.04 (m, 4H, CH₂ of propyl), 1.94–1.87 (m, 8H, CH₂ of COD), 1.02 (m, 6H, CH₃ of propyl). ¹³C NMR: δ 176.19, 176.16 (Ir—C), 123.56, 123.34 (N—C₄H), 120.78, 120.39 (N—C₅H), 76.09, 75.27, 74.45 (CH of COD), 52.05,51.37 (N—CH₃), 38.12, 37.98 (N—CH₂ of propyl), 32.99, 31.40, 31.31, 29.69 (CH₂ of COD), 23.72, 23.50 (CH₂ of propyl), 11.38, 11.29 (CH₃ of propyl).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Table 2
Experimental details

Crystal data
Chemical formula	[Ir(C₈H₁₂)(C₇H₁₂N₂)₂]BF₄
M_r	635.59
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	100
a, b, c (Å)	8.0252 (2), 12.1221 (3), 12.2566 (3)
α, β, γ (°)	87.486 (2), 83.233 (2), 87.913 (2)
V (Å³)	1182.32 (5)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	5.71
Crystal size (mm)	0.13 × 0.08 × 0.03

Data collection
Diffractometer	Rigaku XtaLAB Synergy-S
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2025 )
T_min, T_max	0.582, 1.000
No. of measured, independent and observed [I ≥ 2u(I)] reflections	36081, 5869, 5452
R_int	0.050
(sin θ/λ)_max (Å⁻¹)	0.667

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.020, 0.042, 1.02
No. of reflections	5869
No. of parameters	293
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	1.32, −0.89
Computer programs: CrysAlis PRO (Rigaku OD, 2025), SHELXT (Sheldrick, 2015 ), OLEX2.refine (Bourhis et al., 2015 ), OLEX2 (Dolomanov et al., 2009 ) and publCIF (Westrip, 2010 ).

Structural data

CCDC reference: 2532047

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314626001896/wm4245sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314626001896/wm4245Isup2.hkl

checkCIF report

Computing details top

[(1,2,5,6-η)-Cycloocta-1,5-diene]bis(1-methyl-3-propylimidazol-2-ylidene-κC)iridium(I) tetrafluoridoborate top

Crystal data top

[Ir(C₈H₁₂)(C₇H₁₂N₂)₂]·BF₄	Z = 2
M_r = 635.59	F(000) = 626.581
Triclinic, P1	D_x = 1.785 Mg m⁻³
a = 8.0252 (2) Å	Mo Kα radiation, λ = 0.71073 Å
b = 12.1221 (3) Å	Cell parameters from 26079 reflections
c = 12.2566 (3) Å	θ = 3.6–28.3°
α = 87.486 (2)°	µ = 5.71 mm⁻¹
β = 83.233 (2)°	T = 100 K
γ = 87.913 (2)°	Plate, orange
V = 1182.32 (5) Å³	0.13 × 0.08 × 0.03 mm

Data collection top

Rigaku XtaLAB Synergy-S diffractometer	5869 independent reflections
Radiation source: micro-focus sealed X-ray tube, PhotonJet (Mo) X-ray Source	5452 reflections with I ≥ 2u(I)
Mirror monochromator	R_int = 0.050
Detector resolution: 10.0 pixels mm^-1	θ_max = 28.3°, θ_min = 3.2°
ω scans	h = −10→10
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2025)	k = −16→16
T_min = 0.582, T_max = 1.000	l = −16→16
36081 measured reflections

Refinement top

Refinement on F²	0 restraints
Least-squares matrix: full	56 constraints
R[F² > 2σ(F²)] = 0.020	H-atom parameters constrained
wR(F²) = 0.042	w = 1/[σ²(F_o²) + (0.016P)² + 0.6194P] where P = (F_o² + 2F_c²)/3
S = 1.02	(Δ/σ)_max = 0.0004
5869 reflections	Δρ_max = 1.32 e Å⁻³
293 parameters	Δρ_min = −0.89 e Å⁻³

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Ir1	0.549050 (11)	0.715665 (7)	0.205112 (7)	0.01026 (3)
N1	0.3239 (3)	0.81530 (16)	0.03638 (17)	0.0141 (4)
N2	0.3191 (3)	0.92069 (16)	0.17287 (17)	0.0137 (4)
N3	0.2859 (3)	0.53777 (16)	0.26516 (17)	0.0144 (4)
N4	0.3082 (3)	0.63481 (16)	0.40447 (17)	0.0138 (4)
C1	0.3824 (3)	0.82161 (19)	0.1357 (2)	0.0124 (5)
C2	0.2255 (3)	0.9081 (2)	0.0126 (2)	0.0174 (5)
H2	0.1709 (3)	0.9222 (2)	−0.0515 (2)	0.0209 (6)*
C3	0.2230 (3)	0.9741 (2)	0.0983 (2)	0.0165 (5)
H3	0.1663 (3)	1.0440 (2)	0.1062 (2)	0.0198 (6)*
C4	0.3724 (4)	0.7291 (2)	−0.0423 (2)	0.0209 (6)
H4a	0.442 (2)	0.7607 (4)	−0.1062 (7)	0.0313 (8)*
H4b	0.436 (2)	0.6698 (8)	−0.0072 (5)	0.0313 (8)*
H4c	0.2714 (4)	0.6993 (11)	−0.0662 (12)	0.0313 (8)*
C5	0.3494 (3)	0.9661 (2)	0.2778 (2)	0.0165 (5)
H5a	0.4475 (3)	0.9267 (2)	0.3050 (2)	0.0197 (6)*
H5b	0.3764 (3)	1.0451 (2)	0.2655 (2)	0.0197 (6)*
C6	0.1984 (3)	0.9556 (2)	0.3646 (2)	0.0175 (5)
H6a	0.1013 (3)	0.9977 (2)	0.3391 (2)	0.0210 (6)*
H6b	0.1683 (3)	0.8770 (2)	0.3750 (2)	0.0210 (6)*
C7	0.2352 (4)	0.9989 (2)	0.4742 (2)	0.0234 (6)
H7a	0.242 (2)	1.0795 (3)	0.4679 (5)	0.0351 (9)*
H7b	0.1450 (13)	0.9784 (14)	0.5318 (4)	0.0351 (9)*
H7c	0.3422 (12)	0.9666 (12)	0.4932 (8)	0.0351 (9)*
C8	0.3667 (3)	0.62583 (19)	0.2968 (2)	0.0139 (5)
C9	0.1781 (3)	0.4938 (2)	0.3517 (2)	0.0188 (5)
H9	0.1081 (3)	0.4326 (2)	0.3498 (2)	0.0225 (6)*
C10	0.1919 (3)	0.5546 (2)	0.4383 (2)	0.0177 (5)
H10	0.1330 (3)	0.5448 (2)	0.5098 (2)	0.0213 (6)*
C11	0.3069 (3)	0.4958 (2)	0.1546 (2)	0.0204 (5)
H11a	0.2387 (18)	0.5413 (10)	0.1076 (4)	0.0306 (8)*
H11b	0.4254 (5)	0.4985 (14)	0.1243 (6)	0.0306 (8)*
H11c	0.271 (2)	0.4192 (5)	0.1575 (3)	0.0306 (8)*
C12	0.3632 (3)	0.71348 (19)	0.4791 (2)	0.0157 (5)
H12a	0.4511 (3)	0.75974 (19)	0.4386 (2)	0.0188 (6)*
H12b	0.2672 (3)	0.76281 (19)	0.5054 (2)	0.0188 (6)*
C13	0.4323 (4)	0.6551 (2)	0.5773 (2)	0.0217 (6)
H13a	0.3412 (4)	0.6151 (2)	0.6222 (2)	0.0260 (7)*
H13b	0.5206 (4)	0.6002 (2)	0.5510 (2)	0.0260 (7)*
C14	0.5052 (4)	0.7364 (3)	0.6477 (2)	0.0307 (7)
H14a	0.6003 (17)	0.7725 (13)	0.6047 (6)	0.0461 (10)*
H14b	0.4189 (9)	0.7923 (10)	0.6717 (15)	0.0461 (10)*
H14c	0.544 (2)	0.6971 (4)	0.7122 (9)	0.0461 (10)*
C15	0.7544 (3)	0.7682 (2)	0.0800 (2)	0.0160 (5)
H15	0.7161 (3)	0.8000 (2)	0.0101 (2)	0.0192 (6)*
C16	0.7361 (3)	0.8405 (2)	0.1663 (2)	0.0167 (5)
H16	0.6881 (3)	0.9150 (2)	0.1465 (2)	0.0200 (6)*
C17	0.8466 (3)	0.8414 (2)	0.2566 (2)	0.0218 (6)
H17a	0.9543 (3)	0.8748 (2)	0.2271 (2)	0.0261 (7)*
H17b	0.7922 (3)	0.8889 (2)	0.3151 (2)	0.0261 (7)*
C18	0.8840 (3)	0.7260 (2)	0.3081 (2)	0.0217 (6)
H18a	0.9871 (3)	0.6938 (2)	0.2677 (2)	0.0261 (7)*
H18b	0.9050 (3)	0.7337 (2)	0.3853 (2)	0.0261 (7)*
C19	0.7406 (3)	0.6479 (2)	0.3053 (2)	0.0158 (5)
H19	0.6938 (3)	0.6179 (2)	0.3795 (2)	0.0189 (6)*
C20	0.7253 (3)	0.5773 (2)	0.2198 (2)	0.0152 (5)
H20	0.6704 (3)	0.5065 (2)	0.2450 (2)	0.0183 (6)*
C21	0.8430 (3)	0.5686 (2)	0.1151 (2)	0.0177 (5)
H21a	0.9445 (3)	0.5247 (2)	0.1308 (2)	0.0213 (6)*
H21b	0.7874 (3)	0.5285 (2)	0.0614 (2)	0.0213 (6)*
C22	0.8961 (3)	0.6809 (2)	0.0635 (2)	0.0187 (5)
H22a	0.9303 (3)	0.6735 (2)	−0.0162 (2)	0.0224 (6)*
H22b	0.9943 (3)	0.7052 (2)	0.0970 (2)	0.0224 (6)*
F1	−0.0053 (2)	0.77004 (14)	0.62832 (14)	0.0317 (4)
F2	0.0743 (2)	0.66988 (13)	0.77507 (15)	0.0325 (4)
F3	−0.1646 (2)	0.77746 (13)	0.79418 (14)	0.0270 (4)
F4	0.0893 (2)	0.85740 (13)	0.76949 (15)	0.0312 (4)
B1	−0.0009 (4)	0.7694 (2)	0.7411 (3)	0.0189 (6)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Ir1	0.01091 (5)	0.01099 (5)	0.00872 (5)	−0.00063 (3)	−0.00122 (3)	0.00178 (3)
N1	0.0173 (10)	0.0140 (10)	0.0115 (10)	0.0022 (8)	−0.0040 (8)	−0.0007 (8)
N2	0.0163 (10)	0.0121 (9)	0.0128 (10)	0.0013 (8)	−0.0026 (8)	0.0003 (8)
N3	0.0131 (10)	0.0158 (10)	0.0142 (11)	−0.0031 (8)	−0.0006 (8)	−0.0003 (8)
N4	0.0135 (10)	0.0154 (10)	0.0123 (10)	−0.0015 (8)	−0.0009 (8)	0.0030 (8)
C1	0.0128 (11)	0.0122 (11)	0.0117 (12)	−0.0021 (9)	0.0003 (9)	0.0016 (9)
C2	0.0201 (13)	0.0170 (12)	0.0153 (13)	0.0021 (10)	−0.0059 (10)	0.0045 (9)
C3	0.0177 (12)	0.0127 (11)	0.0187 (13)	0.0022 (10)	−0.0030 (10)	0.0047 (9)
C4	0.0283 (14)	0.0195 (12)	0.0156 (13)	0.0017 (11)	−0.0045 (11)	−0.0061 (10)
C5	0.0188 (12)	0.0158 (12)	0.0154 (13)	−0.0004 (10)	−0.0039 (10)	−0.0036 (9)
C6	0.0170 (12)	0.0210 (12)	0.0146 (13)	0.0009 (10)	−0.0021 (10)	−0.0018 (10)
C7	0.0271 (15)	0.0263 (14)	0.0165 (14)	−0.0004 (12)	0.0001 (11)	−0.0040 (11)
C8	0.0125 (11)	0.0145 (11)	0.0150 (12)	0.0013 (9)	−0.0030 (9)	0.0003 (9)
C9	0.0144 (12)	0.0202 (12)	0.0212 (14)	−0.0061 (10)	0.0011 (10)	0.0013 (10)
C10	0.0125 (12)	0.0216 (12)	0.0179 (13)	−0.0047 (10)	0.0026 (10)	0.0049 (10)
C11	0.0235 (14)	0.0205 (13)	0.0182 (14)	−0.0037 (11)	−0.0039 (11)	−0.0054 (10)
C12	0.0199 (13)	0.0145 (11)	0.0127 (12)	−0.0017 (10)	−0.0015 (10)	−0.0004 (9)
C13	0.0267 (14)	0.0240 (13)	0.0143 (13)	0.0012 (11)	−0.0032 (11)	0.0012 (10)
C14	0.0352 (17)	0.0383 (17)	0.0205 (15)	−0.0042 (14)	−0.0089 (13)	−0.0038 (12)
C15	0.0164 (12)	0.0173 (12)	0.0129 (12)	−0.0044 (10)	0.0031 (9)	0.0047 (9)
C16	0.0141 (12)	0.0145 (11)	0.0210 (14)	−0.0036 (10)	−0.0002 (10)	0.0028 (10)
C17	0.0189 (13)	0.0240 (13)	0.0230 (15)	−0.0072 (11)	−0.0020 (11)	−0.0039 (11)
C18	0.0171 (13)	0.0306 (14)	0.0185 (14)	−0.0003 (11)	−0.0061 (10)	−0.0009 (11)
C19	0.0151 (12)	0.0197 (12)	0.0125 (12)	0.0025 (10)	−0.0041 (9)	0.0039 (9)
C20	0.0134 (11)	0.0140 (11)	0.0173 (13)	0.0037 (9)	−0.0010 (9)	0.0056 (9)
C21	0.0210 (13)	0.0154 (12)	0.0160 (13)	0.0032 (10)	0.0000 (10)	−0.0003 (9)
C22	0.0171 (12)	0.0223 (13)	0.0152 (13)	−0.0021 (10)	0.0041 (10)	0.0010 (10)
F1	0.0382 (10)	0.0414 (10)	0.0159 (9)	−0.0028 (8)	−0.0038 (7)	−0.0016 (7)
F2	0.0374 (10)	0.0181 (8)	0.0413 (11)	0.0067 (7)	−0.0056 (8)	0.0030 (7)
F3	0.0254 (9)	0.0300 (8)	0.0252 (9)	0.0002 (7)	−0.0009 (7)	−0.0036 (7)
F4	0.0335 (9)	0.0217 (8)	0.0412 (11)	−0.0053 (7)	−0.0136 (8)	−0.0047 (7)
B1	0.0215 (15)	0.0158 (13)	0.0195 (16)	0.0017 (12)	−0.0041 (12)	0.0010 (11)

Geometric parameters (Å, º) top

Ir1—C1	2.052 (2)	C11—H11a	0.9800
Ir1—C8	2.052 (2)	C11—H11b	0.9800
Ir1—C15	2.207 (2)	C11—H11c	0.9800
Ir1—C16	2.169 (2)	C12—H12a	0.9900
Ir1—C19	2.193 (2)	C12—H12b	0.9900
Ir1—C20	2.170 (2)	C12—C13	1.520 (4)
N1—C1	1.361 (3)	C13—H13a	0.9900
N1—C2	1.392 (3)	C13—H13b	0.9900
N1—C4	1.464 (3)	C13—C14	1.515 (4)
N2—C1	1.363 (3)	C14—H14a	0.9800
N2—C3	1.388 (3)	C14—H14b	0.9800
N2—C5	1.470 (3)	C14—H14c	0.9800
N3—C8	1.362 (3)	C15—H15	1.0000
N3—C9	1.387 (3)	C15—C16	1.395 (4)
N3—C11	1.458 (3)	C15—C22	1.527 (3)
N4—C8	1.356 (3)	C16—H16	1.0000
N4—C10	1.388 (3)	C16—C17	1.498 (4)
N4—C12	1.464 (3)	C17—H17a	0.9900
C2—H2	0.9500	C17—H17b	0.9900
C2—C3	1.346 (4)	C17—C18	1.543 (4)
C3—H3	0.9500	C18—H18a	0.9900
C4—H4a	0.9800	C18—H18b	0.9900
C4—H4b	0.9800	C18—C19	1.521 (4)
C4—H4c	0.9800	C19—H19	1.0000
C5—H5a	0.9900	C19—C20	1.401 (4)
C5—H5b	0.9900	C20—H20	1.0000
C5—C6	1.520 (3)	C20—C21	1.506 (3)
C6—H6a	0.9900	C21—H21a	0.9900
C6—H6b	0.9900	C21—H21b	0.9900
C6—C7	1.528 (4)	C21—C22	1.529 (3)
C7—H7a	0.9800	C22—H22a	0.9900
C7—H7b	0.9800	C22—H22b	0.9900
C7—H7c	0.9800	F1—B1	1.387 (4)
C9—H9	0.9500	F2—B1	1.398 (3)
C9—C10	1.336 (4)	F3—B1	1.398 (3)
C10—H10	0.9500	F4—B1	1.389 (3)

C8—Ir1—C1	94.62 (9)	H11c—C11—H11b	109.5
C15—Ir1—C1	90.86 (9)	H12a—C12—N4	109.28 (12)
C15—Ir1—C8	163.45 (9)	H12b—C12—N4	109.28 (13)
C16—Ir1—C1	87.71 (9)	H12b—C12—H12a	107.9
C16—Ir1—C8	158.51 (10)	C13—C12—N4	111.7 (2)
C16—Ir1—C15	37.16 (9)	C13—C12—H12a	109.28 (14)
C19—Ir1—C1	162.51 (9)	C13—C12—H12b	109.28 (14)
C19—Ir1—C8	91.27 (9)	H13a—C13—C12	109.38 (14)
C19—Ir1—C15	88.08 (9)	H13b—C13—C12	109.38 (14)
C19—Ir1—C16	80.93 (9)	H13b—C13—H13a	108.0
C20—Ir1—C1	158.75 (10)	C14—C13—C12	111.3 (2)
C20—Ir1—C8	89.27 (9)	C14—C13—H13a	109.38 (16)
C20—Ir1—C15	80.19 (9)	C14—C13—H13b	109.38 (16)
C20—Ir1—C16	96.27 (9)	H14a—C14—C13	109.5
C20—Ir1—C19	37.46 (10)	H14b—C14—C13	109.5
C2—N1—C1	111.5 (2)	H14b—C14—H14a	109.5
C4—N1—C1	125.1 (2)	H14c—C14—C13	109.5
C4—N1—C2	123.1 (2)	H14c—C14—H14a	109.5
C3—N2—C1	111.2 (2)	H14c—C14—H14b	109.5
C5—N2—C1	124.7 (2)	H15—C15—Ir1	114.29 (7)
C5—N2—C3	124.1 (2)	C16—C15—Ir1	69.96 (13)
C9—N3—C8	111.2 (2)	C16—C15—H15	114.29 (15)
C11—N3—C8	124.8 (2)	C22—C15—Ir1	112.56 (15)
C11—N3—C9	124.1 (2)	C22—C15—H15	114.29 (14)
C10—N4—C8	110.9 (2)	C22—C15—C16	123.6 (2)
C12—N4—C8	126.0 (2)	C15—C16—Ir1	72.87 (14)
C12—N4—C10	123.1 (2)	H16—C16—Ir1	113.77 (7)
N1—C1—Ir1	128.01 (17)	H16—C16—C15	113.77 (15)
N2—C1—Ir1	127.76 (18)	C17—C16—Ir1	109.60 (17)
N2—C1—N1	103.9 (2)	C17—C16—C15	125.5 (2)
H2—C2—N1	126.78 (14)	C17—C16—H16	113.77 (14)
C3—C2—N1	106.4 (2)	H17a—C17—C16	108.74 (14)
C3—C2—H2	126.78 (15)	H17b—C17—C16	108.74 (14)
C2—C3—N2	107.0 (2)	H17b—C17—H17a	107.6
H3—C3—N2	126.50 (13)	C18—C17—C16	114.0 (2)
H3—C3—C2	126.50 (15)	C18—C17—H17a	108.74 (14)
H4a—C4—N1	109.5	C18—C17—H17b	108.74 (15)
H4b—C4—N1	109.5	H18a—C18—C17	109.11 (14)
H4b—C4—H4a	109.5	H18b—C18—C17	109.11 (15)
H4c—C4—N1	109.5	H18b—C18—H18a	107.8
H4c—C4—H4a	109.5	C19—C18—C17	112.5 (2)
H4c—C4—H4b	109.5	C19—C18—H18a	109.11 (14)
H5a—C5—N2	109.17 (12)	C19—C18—H18b	109.11 (14)
H5b—C5—N2	109.17 (12)	C18—C19—Ir1	112.43 (16)
H5b—C5—H5a	107.9	H19—C19—Ir1	113.86 (6)
C6—C5—N2	112.2 (2)	H19—C19—C18	113.86 (14)
C6—C5—H5a	109.17 (14)	C20—C19—Ir1	70.35 (14)
C6—C5—H5b	109.17 (13)	C20—C19—C18	124.7 (2)
H6a—C6—C5	109.38 (14)	C20—C19—H19	113.86 (14)
H6b—C6—C5	109.38 (13)	C19—C20—Ir1	72.20 (14)
H6b—C6—H6a	108.0	H20—C20—Ir1	113.57 (6)
C7—C6—C5	111.3 (2)	H20—C20—C19	113.57 (14)
C7—C6—H6a	109.38 (14)	C21—C20—Ir1	110.01 (16)
C7—C6—H6b	109.38 (14)	C21—C20—C19	126.2 (2)
H7a—C7—C6	109.5	C21—C20—H20	113.57 (13)
H7b—C7—C6	109.5	H21a—C21—C20	108.94 (13)
H7b—C7—H7a	109.5	H21b—C21—C20	108.94 (14)
H7c—C7—C6	109.5	H21b—C21—H21a	107.8
H7c—C7—H7a	109.5	C22—C21—C20	113.2 (2)
H7c—C7—H7b	109.5	C22—C21—H21a	108.94 (14)
N3—C8—Ir1	127.60 (18)	C22—C21—H21b	108.94 (15)
N4—C8—Ir1	128.11 (18)	C21—C22—C15	111.8 (2)
N4—C8—N3	104.1 (2)	H22a—C22—C15	109.26 (14)
H9—C9—N3	126.73 (14)	H22a—C22—C21	109.26 (14)
C10—C9—N3	106.5 (2)	H22b—C22—C15	109.26 (14)
C10—C9—H9	126.73 (15)	H22b—C22—C21	109.26 (15)
C9—C10—N4	107.3 (2)	H22b—C22—H22a	107.9
H10—C10—N4	126.35 (14)	F2—B1—F1	109.0 (2)
H10—C10—C9	126.35 (15)	F3—B1—F1	109.5 (2)
H11a—C11—N3	109.5	F3—B1—F2	108.8 (2)
H11b—C11—N3	109.5	F4—B1—F1	110.8 (2)
H11b—C11—H11a	109.5	F4—B1—F2	109.6 (2)
H11c—C11—N3	109.5	F4—B1—F3	109.1 (2)
H11c—C11—H11a	109.5

Ir1—C1—N1—C2	−174.0 (2)	N3—C9—C10—N4	−0.2 (2)
Ir1—C1—N1—C4	−0.6 (3)	N4—C8—N3—C9	0.6 (2)
Ir1—C1—N2—C3	173.9 (2)	N4—C8—N3—C11	179.58 (18)
Ir1—C1—N2—C5	−5.6 (2)	N4—C12—C13—C14	174.2 (2)
Ir1—C8—N3—C9	176.1 (2)	C1—N1—C2—C3	0.3 (2)
Ir1—C8—N3—C11	−4.9 (3)	C1—N2—C3—C2	−0.1 (2)
Ir1—C8—N4—C10	−176.2 (2)	C1—N2—C5—C6	−103.8 (2)
Ir1—C8—N4—C12	0.8 (3)	C2—C3—N2—C5	179.42 (19)
Ir1—C15—C16—C17	102.20 (15)	C3—N2—C5—C6	76.8 (2)
Ir1—C15—C22—C21	14.39 (19)	C3—C2—N1—C4	−173.1 (2)
Ir1—C16—C15—C22	−104.36 (13)	C8—N3—C9—C10	−0.2 (2)
Ir1—C16—C17—C18	36.38 (18)	C8—N4—C10—C9	0.6 (2)
Ir1—C19—C18—C17	9.70 (19)	C8—N4—C12—C13	−121.2 (3)
Ir1—C19—C20—C21	102.15 (14)	C9—C10—N4—C12	−176.5 (2)
Ir1—C20—C19—C18	−104.21 (14)	C10—N4—C12—C13	55.5 (2)
Ir1—C20—C21—C22	38.70 (19)	C10—C9—N3—C11	−179.2 (2)
N1—C1—N2—C3	0.3 (2)	C15—C16—C17—C18	−46.2 (3)
N1—C1—N2—C5	−179.22 (17)	C15—C22—C21—C20	−35.1 (3)
N1—C2—C3—N2	−0.2 (2)	C16—C15—C22—C21	94.6 (3)
N2—C1—N1—C2	−0.4 (2)	C16—C17—C18—C19	−30.8 (2)
N2—C1—N1—C4	172.96 (18)	C17—C16—C15—C22	−2.2 (3)
N2—C5—C6—C7	177.7 (2)	C17—C18—C19—C20	90.7 (2)
N3—C8—N4—C10	−0.7 (2)	C18—C19—C20—C21	−2.1 (3)
N3—C8—N4—C12	176.34 (17)	C19—C20—C21—C22	−43.4 (3)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C2—H2···F4ⁱ	0.95	2.53 (1)	3.380 (3)	150 (1)
C3—H3···F3ⁱⁱ	0.95	2.53 (1)	3.336 (3)	143 (1)
C12—H12b···F1	0.99	2.51 (1)	3.354 (3)	144 (1)

Symmetry codes: (i) x, y, z−1; (ii) −x, −y+2, −z+1.

Acknowledgements

BK was supported by Lancaster Country Day School under the mentorship of Todd Trout.

References

Albrecht, M., Miecznikowski, J. R., Samuel, A., Faller, J. W. & Crabtree, R. H. (2002). Organometallics 21, 3596–3604. CSD CrossRef Google Scholar
Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2015). Acta Cryst. A71, 59–75. Web of Science CrossRef IUCr Journals Google Scholar
Castaldi, K. T., Astashkin, A. V., Albert, D. R. & Rajaseelan, E. (2021). IUCrData 6, x211142. Google Scholar
Cazin, C. S. J. (2013). Dalton Trans. 42, 7254. Web of Science CrossRef Google Scholar
Chianese, A. R., Kovacevic, A., Zeglis, B. M., Faller, J. W. & Crabtree, R. H. (2004). Organometallics 23, 2461–2468. CSD CrossRef Google Scholar
de Frémont, P., Marion, N. & Nolan, S. P. (2009). Coord. Chem. Rev. 253, 862–892. Google Scholar
Díez-González, S., Marion, N. & Nolan, S. P. (2009). Chem. Rev. 109, 3612–3676. Web of Science PubMed Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Gnanamgari, D., Moores, A., Rajaseelan, E. & Crabtree, R. H. (2007). Organometallics 26, 1226–1230. CrossRef Google Scholar
Gusev, D. G. (2009). Organometallics 28, 6458–6461. CrossRef Google Scholar
Herrmann, W. A., Schütz, J., Frey, G. D. & Herdtweck, E. (2006). Organometallics 25, 2437–2448. CSD CrossRef Google Scholar
Hillier, A. C., Lee, H. M., Stevens, E. D. & Nolan, S. P. (2001). Organometallics 20, 4246–4252. CSD CrossRef Google Scholar
Idrees, K. B., Astashkin, A. V. & Rajaseelan, E. (2017b). IUCrData 2, x171081. Google Scholar
Idrees, K. B., Rutledge, W. J., Roberts, S. A. & Rajaseelan, E. (2017a). IUCrData 2, x171411. Google Scholar
Lerch, T. G., Albert, D. R., Gau, M. & Rajaseelan, E. (2025). Acta Cryst. E81, 350–357. CSD CrossRef IUCr Journals Google Scholar
Lerch, T. G., Gau, M., Albert, D. R. & Rajaseelan, E. (2024). IUCrData 9, x240060. Google Scholar
Maynard, A., Gau, M., Albert, D. R. & Rajaseelan, E. (2023). IUCrData 8, x230903. Google Scholar
Newman, E. B., Astashkin, A. V., Albert, D. R. & Rajaseelan, E. (2021). IUCrData 6, x210836. Google Scholar
Nichol, G. S., Rajaseelan, J., Anna, L. J. & Rajaseelan, E. (2009). Eur. J. Inorg. Chem. pp. 4320–4328. Web of Science CSD CrossRef Google Scholar
Nichol, G. S., Rajaseelan, J., Walton, D. P. & Rajaseelan, E. (2011). Acta Cryst. E67, m1860–m1861. Web of Science CSD CrossRef IUCr Journals Google Scholar
Nichol, G. S., Stasiw, D., Anna, L. J. & Rajaseelan, E. (2010). Acta Cryst. E66, m1114. Web of Science CSD CrossRef IUCr Journals Google Scholar
Nichol, G. S., Walton, D. P., Anna, L. J. & Rajaseelan, E. (2012). Acta Cryst. E68, m158–m159. Web of Science CSD CrossRef IUCr Journals Google Scholar
Rigaku OD (2025). CrysAlis PRO Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Rood, J., Subedi, C. B., Risell, J. P., Astashkin, A. V. & Rajaseelan, E. (2021). IUCrData 6, x210597. Google Scholar
Rovis, T. & Nolan, S. (2013). Synlett 24, 1188–1189. CrossRef Google Scholar
Ruff, A., Kirby, C., Chan, B. C. & O'Connor, A. R. (2016). Organometallics 35, 327–335. CSD CrossRef Google Scholar
Rushlow, J., Astashkin, A. V., Albert, D. R. & Rajaseelan, E. (2021). IUCrData 6, x210811. Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Wang, H. M. J. & Lin, I. J. B. (1998). Organometallics 17, 972–975. CSD CrossRef Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar
Zuo, W., Tauer, S., Prokopchuk, D. E. & Morris, R. H. (2014). Organometallics 33, 5791–5801. CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
