Orthorhombic polymorph of 4-(2,2′:6′,2′′-terpyridin-4′-yl)aniline

Edwards, N.; Zheng, S.-L.

doi:10.1107/S2414314626001069

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 2| February 2026| x260106

https://doi.org/10.1107/S2414314626001069

Open

access

Orthorhombic polymorph of 4-(2,2′:6′,2′′-terpyridin-4′-yl)aniline

Nicola Edwards ^a ^* and Shao-Liang Zheng ^b

^aDepartment of Chemistry, University of St. Joseph, West Hartford, CT, 06032, USA, and ^bDepartment of Chemistry and Chemical Biology, Harvard University, Cambridge, MA, 02138, USA
^*Correspondence e-mail: [email protected]

Edited by R. J. Butcher, Howard University, USA (Received 22 September 2025; accepted 2 February 2026; online 10 February 2026)

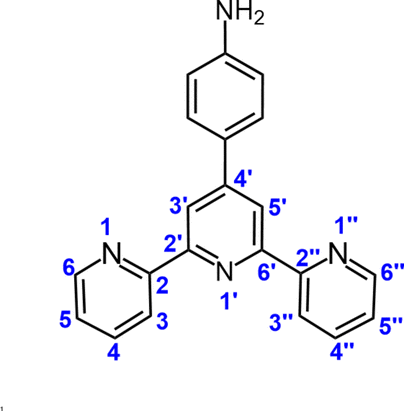

Crystallographic data for the title compound, C₂₁H₁₆N₄, are reported herein. The compound was recrystallized from a methanol/acetonitrile solvent system at 298 K. It crystallizes in the Pca2₁ space group at 100 K compared to the previously reported monoclinic polymorph and displays intermolecular hydrogen bonding, through N—H⋯N contacts, and π–π interactions. None of the rings in the structure is coplanar – dihedral angles defined by atoms of the peripheral rings with the central pyridine range from −7.1 (3) to 29.8 (3)°.

Keywords: crystal structure; aniline; terpyridine.

CCDC reference: 2527593

Structure description

Amines, a class of compounds that possess at least one C—N bond, are indispensable in organic chemistry. They are utilized extensively as starting materials and reagents in the synthesis of compounds involving reductive amination, nucleophilic substitution and amide coupling reactions (Afanasyev et al., 2019 ; Dunetz et al., 2016 ; Mondal & Malakar, 2020 ). Amines are key moieties in biologically active compounds such as antihistamines, antidepressants and antipsychotics and hence these moieties are featured in a vast number of studies in medicinal and pharmaceutical chemistry (George et al., 2026 ; Qurrat-ul-ain et al., 2024 ). Expansion of synthetic methodologies for amines has led to a plethora of new structures with a host of chemical and physical properties (Li et al., 2016 ; Salvatore et al., 2001 ; Umar & Luo, 2023 ; Afanasenko et al., 2025 ). Amines are also used as building blocks in the synthesis of polymers, sensors and as catalysts (Tanaka, 2023 ; Froidevaux et al., 2016 ). The properties of amines are due in part to their ability to engage in hydrogen bonding and other intermolecular interactions, and hence there is keen interest in the structural characterization of amines.

The single-crystal X-ray analysis of the title compound, C₂₁H₁₆N₄, in the space group Pca2₁, is reported herein. This compound was recrystallized from a methanol/acetonitrile solvent system at 298 K. This moiety is known for its ability to coordinate metals and is featured in molecules that serve as ligands, polymers and catalysts (Schubert et al. 2011a ,b ; Winter & Schubert, 2020 ; Kainat et al., 2024 ).

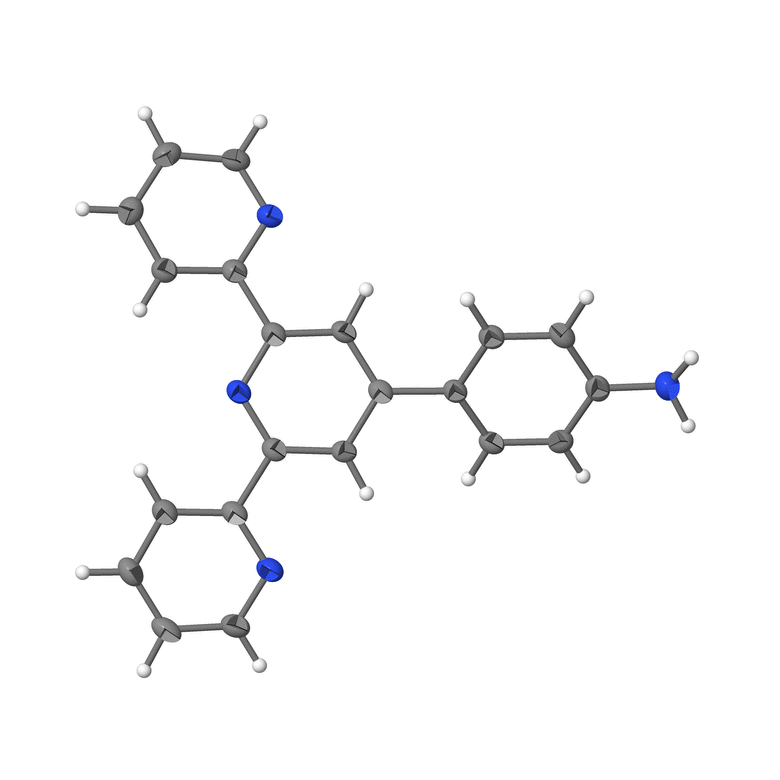

The molecular structure of the title compound is shown in Fig. 1. It features the 2,2′:6′,2′′ terpyridine moiety in the trans trans conformation with respect to the pyridyl nitrogen atoms. The degree of coplanarity of the rings was determined by dihedral angles formed by atoms of the peripheral rings with atoms in the central pyridine ring. The dihedral angles formed by atoms C9—C10—C11—N3, N1—C5—C6—C7 and C9—C8—C16—C21 were determined to be −7.1 (3), 11.8 (3) and 29.8 (3)° respectively indicating that none of the rings is coplanar; the greatest deviation from planarity evidenced by benzene ring bearing the amino group and the central pyridine.

Figure 1
Perspective view of the title compound with the atom-numbering scheme showing 50% probability displacement ellipsoids.

In the crystal, molecules are linked by intermolecular N—H⋯N interactions, forming a three-dimensional network (Table 1, Figs. 2 and 3). In addition, the structure includes π–π interactions (Figs. 2 and 3) with the distances between two pyridine ring planes being 3.6273 (19) Å [slippage = 1.451 (3) Å] and 3.417 (2) Å [slippage = 1.893 (3) Å].

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N4—H4B⋯N3ⁱ	0.96 (3)	2.72 (3)	3.154 (3)	108.4 (19)
Symmetry code: (i) $[-x+1, -y+1, z+{\script{1\over 2}}]$ .

Figure 2
The unit cell showing the intermolecular N—H⋯N and π–π interactions.

Figure 3
The three-dimensional supramolecular architecture formed through intermolecular N—H⋯N and π–π interactions.

Crystals of this compound were previously obtained from a chloroform–methanol solution by Storrier and co-workers, and single-crystal X-ray data in the P2₁/c space group were reported (Storrier et al., 1997 ). Two crystallographically independent molecules were found in the asymmetric unit of the previous data set. These molecules differ primarily in the orientation of one pyridine ring (Fig. 4a), with a maximum distance between equivalent atoms (Max·D), calculated using Mercury (Macrae et al., 2020 ), of up to 1.0697 Å. In contrast, the current data set contains only one crystallographically independent molecule in the asymmetric unit. This molecule overlaps well with one of the two molecules from the previous data set (Fig. 4b, Max·D = 0.2102 Å), but shows poor overlap with the other due to a different orientation of one of the pyridine rings (Fig. 4c, Max·D = 1.1220 Å).

Figure 4
(A) The overlap of the two crystallographically independent molecules of the title compound in the unit cell reported by Storrier et al. (1997

) (B and C) The overlap of the crystallographically independent molecule in the asymmetric unit in this data set and the two crystallographically independent molecules of the title compound in the asymmetric unit reported by Storrier et al. (1997

) calculated using Mercury (Macrae et al., 2020

The title compound is used as a means of introducing the 2,2′:6′,2′′-terpyridine moiety in larger architectures (Trigo-López et al., 2016 ; Constable et al., 2014 ; Lainé et al., 2002 ; Perales et al., 2020 ; Dong et al., 2019 ). This moiety is known for its ability to coordinate metals and is featured in molecules that serve as ligands, polymers and catalysts (Schubert et al. 2011a,b; Winter & Schubert, 2020; Kainat et al., 2024).

Synthesis and crystallization

4-(2,2′:6′,2′′-Terpyridin-4′-yl)aniline was purchased from Sigma Aldrich (CAS:178265–65-1) C₂₁H₁₆N₄ and used as received. Dark-brown crystals were obtained upon the evaporation of a concentrated solution of the compound in an acetonitrile/methanol solvent system at 298 K. These crystals were characterized by single-crystal X-ray diffraction.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Table 2
Experimental details

Crystal data
Chemical formula	C₂₁H₁₆N₄
M_r	324.38
Crystal system, space group	Orthorhombic, Pca2₁
Temperature (K)	100
a, b, c (Å)	11.3105 (4), 17.3565 (5), 7.9110 (2)
V (Å³)	1553.01 (8)
Z	4
Radiation type	Cu Kα
μ (mm⁻¹)	0.67
Crystal size (mm)	0.14 × 0.12 × 0.10

Data collection
Diffractometer	Bruker D8 goniometer with Photon III-C14 area detector
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 ).
T_min, T_max	0.735, 0.864
No. of measured, independent and observed [I > 2σ(I)] reflections	46277, 2730, 2660
R_int	0.043
(sin θ/λ)_max (Å⁻¹)	0.596

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.028, 0.077, 1.09
No. of reflections	2730
No. of parameters	234
No. of restraints	1
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.14, −0.15
Absolute structure	Flack x determined using 1188 quotients [(I⁺)−(I⁻)]/[(I⁺)+(I⁻)] (Parsons et al., 2013 )
Absolute structure parameter	0.0 (2)
Computer programs: APEX5 (Bruker, 2023 ), SAINT (Bruker, 2019 ), SHELXT2019 (Sheldrick, 2015a ), SHELXL2019 (Sheldrick, 2015b ) and SHELXTL (Sheldrick, 2008 ).

Structural data

CCDC reference: 2527593

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314626001069/bv4057sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314626001069/bv4057Isup3.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314626001069/bv4057Isup3.cml

checkCIF report

Computing details top

4-(2,2':6',2''-Terpyridin-4'-yl)aniline top

Crystal data top

C₂₁H₁₆N₄	D_x = 1.387 Mg m⁻³
M_r = 324.38	Cu Kα radiation, λ = 1.54178 Å
Orthorhombic, Pca2₁	Cell parameters from 9698 reflections
a = 11.3105 (4) Å	θ = 4.7–66.5°
b = 17.3565 (5) Å	µ = 0.67 mm⁻¹
c = 7.9110 (2) Å	T = 100 K
V = 1553.01 (8) Å³	Plate, colorless
Z = 4	0.14 × 0.12 × 0.10 mm
F(000) = 680

Data collection top

Bruker D8 goniometer with Photon III-C14 area detector diffractometer	2660 reflections with I > 2σ(I)
Radiation source: IµS microfocus tube	R_int = 0.043
ω and phi scans	θ_max = 66.7°, θ_min = 2.6°
Absorption correction: multi-scan (SADABS; Krause et al., 2015).	h = −11→13
T_min = 0.735, T_max = 0.864	k = −20→20
46277 measured reflections	l = −9→9
2730 independent reflections

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F² > 2σ(F²)] = 0.028	w = 1/[σ²(F_o²) + (0.0442P)² + 0.2595P] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.077	(Δ/σ)_max < 0.001
S = 1.09	Δρ_max = 0.14 e Å⁻³
2730 reflections	Δρ_min = −0.15 e Å⁻³
234 parameters	Absolute structure: Flack x determined using 1188 quotients [(I⁺)-(I^-)]/[(I⁺)+(I^-)] (Parsons et al., 2013)
1 restraint	Absolute structure parameter: 0.0 (2)
Primary atom site location: dual

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refinement of F² against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F², conventional R-factors R are based on F, with F set to zero for negative F². The threshold expression of F² > 2sigma(F²) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F² are statistically about twice as large as those based on F, and R- factors based on all data will be even larger. All non-H atoms were located in difference-Fourier maps, and then refined anisotropically. .

Analysis of the absolute structure using likelihood methods (Hooft, et al., 2008) was performed using PLATON (Spek, 2009). The results also indicated that the absolute structure had been correctly assigned. The method calculated that the probability that the structure is inverted is 0.2E-10.

The carbon-bound H atoms were placed in calculated positions and refined isotropically using the riding model, with C—H distances ranging from 0.95 Å and U_iso(H) set to 1.2 U_eq(C). The nitrogen-bound H atoms were were located in difference-Fourier maps, and then refined freely.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
N1	0.69467 (15)	0.86075 (10)	0.3804 (2)	0.0272 (4)
N2	0.39690 (14)	0.82007 (9)	0.5146 (2)	0.0240 (4)
N3	0.14473 (15)	0.70669 (10)	0.6424 (2)	0.0301 (4)
N4	0.75980 (19)	0.44154 (11)	0.9566 (3)	0.0364 (5)
H4A	0.822 (3)	0.4522 (15)	1.026 (4)	0.048 (8)*
H4B	0.715 (2)	0.3956 (17)	0.976 (4)	0.052 (8)*
C1	0.7536 (2)	0.91333 (12)	0.2907 (3)	0.0299 (5)
H1	0.834151	0.903192	0.264762	0.036*
C2	0.70507 (19)	0.98175 (13)	0.2328 (3)	0.0314 (5)
H2	0.750727	1.017411	0.169298	0.038*
C3	0.5876 (2)	0.99629 (13)	0.2710 (3)	0.0317 (5)
H3	0.551174	1.042731	0.234521	0.038*
C4	0.52393 (19)	0.94264 (12)	0.3625 (3)	0.0278 (5)
H4	0.443089	0.951447	0.388699	0.033*
C5	0.58030 (17)	0.87523 (11)	0.4158 (3)	0.0242 (4)
C6	0.51511 (17)	0.81394 (11)	0.5090 (3)	0.0235 (4)
C7	0.57655 (15)	0.75270 (12)	0.5821 (3)	0.0245 (4)
H7	0.660335	0.750702	0.574948	0.029*
C8	0.51507 (17)	0.69450 (11)	0.6657 (3)	0.0234 (4)
C9	0.39189 (17)	0.70053 (11)	0.6684 (3)	0.0238 (4)
H9	0.345844	0.662200	0.723321	0.029*
C10	0.33687 (16)	0.76277 (11)	0.5906 (3)	0.0237 (4)
C11	0.20508 (16)	0.76825 (11)	0.5855 (3)	0.0248 (4)
C12	0.14940 (17)	0.83300 (12)	0.5207 (3)	0.0282 (4)
H12	0.194414	0.875495	0.480903	0.034*
C13	0.02703 (18)	0.83466 (12)	0.5151 (3)	0.0311 (5)
H13	−0.013144	0.878785	0.473220	0.037*
C14	−0.03546 (17)	0.77184 (12)	0.5706 (3)	0.0308 (5)
H14	−0.119402	0.771222	0.566808	0.037*
C15	0.02704 (18)	0.70949 (13)	0.6322 (3)	0.0321 (5)
H15	−0.016465	0.665894	0.669645	0.039*
C16	0.57716 (17)	0.62892 (11)	0.7449 (3)	0.0242 (4)
C17	0.69150 (17)	0.63765 (12)	0.8096 (3)	0.0257 (4)
H17	0.728850	0.686605	0.803817	0.031*
C18	0.7511 (2)	0.57657 (12)	0.8817 (3)	0.0277 (4)
H18	0.828548	0.584060	0.925107	0.033*
C19	0.69869 (18)	0.50378 (12)	0.8915 (3)	0.0282 (4)
C20	0.58456 (18)	0.49475 (11)	0.8264 (3)	0.0293 (5)
H20	0.547567	0.445650	0.830645	0.035*
C21	0.52508 (17)	0.55630 (11)	0.7561 (3)	0.0264 (4)
H21	0.447071	0.549060	0.714568	0.032*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
N1	0.0226 (8)	0.0295 (9)	0.0293 (9)	−0.0012 (7)	−0.0001 (7)	−0.0010 (7)
N2	0.0207 (8)	0.0242 (8)	0.0272 (9)	0.0013 (6)	−0.0004 (7)	−0.0043 (7)
N3	0.0220 (9)	0.0302 (9)	0.0381 (10)	0.0005 (7)	0.0006 (8)	−0.0025 (8)
N4	0.0314 (10)	0.0337 (10)	0.0441 (12)	0.0050 (9)	−0.0015 (9)	0.0077 (9)
C1	0.0229 (10)	0.0368 (11)	0.0301 (12)	−0.0040 (9)	0.0009 (9)	−0.0005 (9)
C2	0.0333 (11)	0.0323 (11)	0.0286 (12)	−0.0071 (8)	0.0015 (9)	0.0026 (10)
C3	0.0357 (12)	0.0276 (10)	0.0317 (12)	0.0004 (8)	−0.0013 (9)	0.0014 (9)
C4	0.0252 (10)	0.0279 (10)	0.0302 (12)	−0.0003 (8)	−0.0001 (8)	−0.0017 (9)
C5	0.0227 (10)	0.0261 (10)	0.0237 (11)	−0.0014 (7)	−0.0015 (8)	−0.0044 (8)
C6	0.0216 (10)	0.0243 (9)	0.0245 (10)	0.0003 (7)	−0.0009 (9)	−0.0049 (8)
C7	0.0182 (8)	0.0266 (9)	0.0287 (10)	−0.0003 (8)	−0.0010 (9)	−0.0035 (8)
C8	0.0214 (10)	0.0238 (10)	0.0250 (10)	0.0005 (7)	−0.0014 (8)	−0.0061 (8)
C9	0.0208 (10)	0.0241 (10)	0.0266 (10)	−0.0023 (7)	0.0007 (8)	−0.0032 (8)
C10	0.0214 (9)	0.0240 (10)	0.0257 (10)	0.0007 (7)	−0.0007 (8)	−0.0060 (8)
C11	0.0208 (9)	0.0271 (10)	0.0264 (10)	0.0006 (7)	−0.0008 (8)	−0.0071 (8)
C12	0.0243 (10)	0.0290 (11)	0.0313 (11)	0.0019 (8)	−0.0014 (9)	−0.0031 (9)
C13	0.0255 (10)	0.0344 (11)	0.0334 (11)	0.0073 (8)	−0.0044 (9)	−0.0041 (10)
C14	0.0196 (10)	0.0388 (12)	0.0338 (12)	0.0023 (8)	−0.0012 (9)	−0.0106 (9)
C15	0.0223 (10)	0.0340 (12)	0.0401 (13)	−0.0024 (8)	0.0010 (9)	−0.0031 (10)
C16	0.0214 (10)	0.0251 (10)	0.0260 (10)	0.0017 (7)	0.0015 (8)	−0.0016 (8)
C17	0.0236 (11)	0.0248 (10)	0.0286 (11)	−0.0008 (7)	0.0004 (9)	−0.0033 (8)
C18	0.0216 (9)	0.0328 (10)	0.0286 (11)	0.0025 (8)	−0.0025 (8)	−0.0024 (9)
C19	0.0272 (10)	0.0301 (11)	0.0272 (11)	0.0049 (8)	0.0035 (9)	0.0016 (9)
C20	0.0261 (11)	0.0250 (10)	0.0367 (12)	−0.0017 (7)	0.0030 (9)	0.0016 (9)
C21	0.0197 (9)	0.0281 (10)	0.0315 (11)	0.0000 (7)	−0.0001 (8)	−0.0027 (8)

Geometric parameters (Å, º) top

N1—C1	1.335 (3)	C8—C16	1.477 (3)
N1—C5	1.347 (3)	C9—C10	1.391 (3)
N2—C6	1.342 (2)	C9—H9	0.9500
N2—C10	1.346 (3)	C10—C11	1.494 (2)
N3—C15	1.334 (3)	C11—C12	1.386 (3)
N3—C11	1.346 (3)	C12—C13	1.385 (3)
N4—C19	1.382 (3)	C12—H12	0.9500
N4—H4A	0.91 (3)	C13—C14	1.372 (3)
N4—H4B	0.96 (3)	C13—H13	0.9500
C1—C2	1.386 (3)	C14—C15	1.381 (3)
C1—H1	0.9500	C14—H14	0.9500
C2—C3	1.386 (3)	C15—H15	0.9500
C2—H2	0.9500	C16—C21	1.394 (3)
C3—C4	1.382 (3)	C16—C17	1.399 (3)
C3—H3	0.9500	C17—C18	1.380 (3)
C4—C5	1.398 (3)	C17—H17	0.9500
C4—H4	0.9500	C18—C19	1.398 (3)
C5—C6	1.490 (3)	C18—H18	0.9500
C6—C7	1.396 (3)	C19—C20	1.399 (3)
C7—C8	1.393 (3)	C20—C21	1.380 (3)
C7—H7	0.9500	C20—H20	0.9500
C8—C9	1.397 (3)	C21—H21	0.9500

C1—N1—C5	117.55 (18)	C9—C10—C11	120.52 (17)
C6—N2—C10	117.31 (17)	N3—C11—C12	122.48 (17)
C15—N3—C11	117.18 (17)	N3—C11—C10	116.52 (17)
C19—N4—H4A	116.8 (17)	C12—C11—C10	120.98 (18)
C19—N4—H4B	116.7 (17)	C13—C12—C11	118.87 (19)
H4A—N4—H4B	119 (3)	C13—C12—H12	120.6
N1—C1—C2	124.3 (2)	C11—C12—H12	120.6
N1—C1—H1	117.9	C14—C13—C12	119.20 (19)
C2—C1—H1	117.9	C14—C13—H13	120.4
C3—C2—C1	117.7 (2)	C12—C13—H13	120.4
C3—C2—H2	121.2	C13—C14—C15	118.17 (18)
C1—C2—H2	121.2	C13—C14—H14	120.9
C4—C3—C2	119.4 (2)	C15—C14—H14	120.9
C4—C3—H3	120.3	N3—C15—C14	124.1 (2)
C2—C3—H3	120.3	N3—C15—H15	118.0
C3—C4—C5	119.0 (2)	C14—C15—H15	118.0
C3—C4—H4	120.5	C21—C16—C17	117.72 (18)
C5—C4—H4	120.5	C21—C16—C8	121.52 (18)
N1—C5—C4	122.12 (19)	C17—C16—C8	120.75 (18)
N1—C5—C6	116.40 (17)	C18—C17—C16	121.30 (19)
C4—C5—C6	121.43 (18)	C18—C17—H17	119.3
N2—C6—C7	122.87 (18)	C16—C17—H17	119.3
N2—C6—C5	116.93 (17)	C17—C18—C19	120.7 (2)
C7—C6—C5	120.18 (17)	C17—C18—H18	119.7
C8—C7—C6	120.03 (16)	C19—C18—H18	119.7
C8—C7—H7	120.0	N4—C19—C18	121.0 (2)
C6—C7—H7	120.0	N4—C19—C20	120.7 (2)
C7—C8—C9	116.78 (18)	C18—C19—C20	118.18 (19)
C7—C8—C16	121.52 (18)	C21—C20—C19	120.78 (19)
C9—C8—C16	121.69 (18)	C21—C20—H20	119.6
C10—C9—C8	119.84 (18)	C19—C20—H20	119.6
C10—C9—H9	120.1	C20—C21—C16	121.32 (19)
C8—C9—H9	120.1	C20—C21—H21	119.3
N2—C10—C9	123.10 (17)	C16—C21—H21	119.3
N2—C10—C11	116.37 (17)

C5—N1—C1—C2	0.4 (3)	C15—N3—C11—C10	−177.32 (18)
N1—C1—C2—C3	0.0 (3)	N2—C10—C11—N3	172.02 (19)
C1—C2—C3—C4	−0.6 (3)	C9—C10—C11—N3	−7.1 (3)
C2—C3—C4—C5	0.6 (3)	N2—C10—C11—C12	−6.3 (3)
C1—N1—C5—C4	−0.3 (3)	C9—C10—C11—C12	174.62 (19)
C1—N1—C5—C6	177.18 (18)	N3—C11—C12—C13	0.3 (3)
C3—C4—C5—N1	−0.2 (3)	C10—C11—C12—C13	178.51 (18)
C3—C4—C5—C6	−177.60 (19)	C11—C12—C13—C14	−1.2 (3)
C10—N2—C6—C7	−2.0 (3)	C12—C13—C14—C15	0.8 (3)
C10—N2—C6—C5	176.47 (17)	C11—N3—C15—C14	−1.4 (3)
N1—C5—C6—N2	−166.66 (18)	C13—C14—C15—N3	0.5 (4)
C4—C5—C6—N2	10.9 (3)	C7—C8—C16—C21	−149.1 (2)
N1—C5—C6—C7	11.8 (3)	C9—C8—C16—C21	29.8 (3)
C4—C5—C6—C7	−170.62 (19)	C7—C8—C16—C17	30.1 (3)
N2—C6—C7—C8	−0.1 (3)	C9—C8—C16—C17	−150.9 (2)
C5—C6—C7—C8	−178.45 (19)	C21—C16—C17—C18	0.2 (3)
C6—C7—C8—C9	1.2 (3)	C8—C16—C17—C18	−179.0 (2)
C6—C7—C8—C16	−179.86 (19)	C16—C17—C18—C19	0.2 (3)
C7—C8—C9—C10	−0.3 (3)	C17—C18—C19—N4	177.0 (2)
C16—C8—C9—C10	−179.25 (19)	C17—C18—C19—C20	0.0 (3)
C6—N2—C10—C9	2.9 (3)	N4—C19—C20—C21	−177.7 (2)
C6—N2—C10—C11	−176.15 (17)	C18—C19—C20—C21	−0.7 (3)
C8—C9—C10—N2	−1.8 (3)	C19—C20—C21—C16	1.1 (3)
C8—C9—C10—C11	177.20 (17)	C17—C16—C21—C20	−0.9 (3)
C15—N3—C11—C12	0.9 (3)	C8—C16—C21—C20	178.3 (2)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N4—H4B···N3ⁱ	0.96 (3)	2.72 (3)	3.154 (3)	108.4 (19)

Symmetry code: (i) −x+1, −y+1, z+1/2.

Funding information

The authors acknowledge the support to the X-ray core facility from the Major Research Instrumentation (MRI) Program of the National Science Foundation (NSF) under award No. 2216066.

References

Afanasenko, A., Deak, N., October, J., Sole, R. & Barta, K. (2025). Green Chem. 27, 5947–5981. Web of Science CrossRef Google Scholar
Afanasyev, O. I., Kuchuk, E., Usanov, D. L. & Chusov, D. (2019). Chem. Rev. 119, 11857–11911. Web of Science CrossRef CAS PubMed Google Scholar
Bruker (2019). SAINT Bruker AXS, Madison, Wisconsin. Google Scholar
Bruker (2023). APEX5 Bruker AXS, Madison, Wisconsin. Google Scholar
Constable, E. C., Housecroft, C. E., Schneider, G. E., Zampese, J. A., Bolink, H. J., Pertegás, A. & Roldan-Carmona, C. (2014). Dalton Trans. 43, 4653–4667. Web of Science CSD CrossRef PubMed Google Scholar
Dong, C., Yuan, J., Hoffmann, H. & Hao, J. (2019). New J. Chem. 43, 19355–19364. Web of Science CrossRef Google Scholar
Dunetz, J. R., Magano, J. & Weisenburger, G. A. (2016). Org. Process Res. Dev. 20, 140–177. Web of Science CrossRef Google Scholar
Froidevaux, V., Negrell, C., Caillol, S., Pascault, J.-P. & Boutevin, B. (2016). Chem. Rev. 116, 14181–14224. Web of Science CrossRef PubMed Google Scholar
George, N., Akhtar, M. J., Balushi, K. A., Sabahi, B. A. & Khan, S. A. (2026). Eur. J. Med. Chem. 302, 18381. Web of Science CrossRef Google Scholar
Kainat, S. F., Hawsawi, M. B., Mughal, E. U., Naeem, N., Almohyawi, A. M., Altass, H. M., Hussein, E. M., Sadiq, A., Moussa, Z., Abd-El-Aziz, A. S. & Ahmed, S. A. (2024). RSC Adv. 14, 21464–21537. Web of Science CrossRef CAS PubMed Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Lainé, P. P., Bedioui, F., Ochsenbein, P., Marvaud, V., Bonin, M. & Amouyal, E. (2002). J. Am. Chem. Soc. 124, 1364–1377. Web of Science PubMed Google Scholar
Li, B., Sortais, J.-B. & Darcel, C. (2016). RSC Adv. 6, 57603–57625. Web of Science CrossRef Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Mondal, S. & Malakar, S. (2020). Tetrahedron 76, 131662. Web of Science CrossRef Google Scholar
Parsons, S., Flack, H. D. & Wagner, T. (2013). Acta Cryst. B69, 249–259. Web of Science CSD CrossRef CAS IUCr Journals Google Scholar
Perales, D., Ford, S. A., Salpage, S. R., Collins, T. S., Zeller, M., Hanson, K. & Bart, S. C. (2020). Inorg. Chem. 59, 11910–11914. Web of Science CSD CrossRef PubMed Google Scholar
Qurrat-ul-ain, R., Ur Rahman, M., Javed, H. M., Hassan, S., Munir, T. & Asghar, R. (2024). Inorg. Chem. Commun. 170, 113396. Google Scholar
Salvatore, R. N., Yoon, C. H. & Jung, K. W. (2001). Tetrahedron 57, 7785–7811. Web of Science CrossRef Google Scholar
Schubert, U. S., Winter, A. & Newkome, G. R. (2011a). Chemistry and Properties of Terpyridine Transition Metal Ion Complexes. In Terpyridine-Based Materials edited by U. S. Schubert, A. Winter and G. R. Newkome, pp. 65–127. Weinheim: Wiley–VCH Verlag GmbH & Co. KGaA. Google Scholar
Schubert, U. S., Winter, A. & Newkome, G. R. (2011b). Terpyridine Metal Complexes and their Biomedical Relevance. In Terpyridine-Based Materials edited by U. S. Schubert, A. Winter and G. R. Newkome, pp. 319–397. Weinheim: Wiley–VCH Verlag GmbH & Co. KGaA. Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Storrier, G. D., Colbran, S. B. & Craig, D. C. (1997). J. Chem. Soc. Dalton Trans. pp. 3011–3028. CSD CrossRef Web of Science Google Scholar
Tanaka, F. (2023). Chem. Rec. 23, e202200207. Web of Science CrossRef PubMed Google Scholar
Trigo-López, M., Muñoz, A., Ibeas, S., Serna, F., García, F. C. & García, J. M. (2016). Sens. Actuators B Chem. 226, 118–126. Google Scholar
Umar, Q. & Luo, M. (2023). Reactions 4, 117–147. Web of Science CrossRef Google Scholar
Winter, A. & Schubert, U. S. (2020). ChemCatChem 12, 2890–2941. Web of Science CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 2| February 2026| x260106

https://doi.org/10.1107/S2414314626001069

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

organic compounds\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

Orthorhombic polymorph of 4-(2,2′:6′,2′′-terpyridin-4′-yl)aniline

Structure description

Synthesis and crystallization

Refinement

Structural data

Funding information

References

organic compounds
