2-{(E)-[(2-Hy­droxy-1-phenyl­eth­yl)imino]­meth­yl}-4-[(E)-(4-methyl­phen­yl)diazen­yl]phenol

Ati, M.H.; Saleh, B.A.; Al-Fartosy, A.J.M.; El-Hiti, G.A.; Kariuki, B.M.

doi:10.1107/S2414314625005991

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 7| July 2025| x250599

https://doi.org/10.1107/S2414314625005991

Open

access

2-{(E)-[(2-Hydroxy-1-phenylethyl)imino]methyl}-4-[(E)-(4-methylphenyl)diazenyl]phenol

Mohammad H. Ati,^a Basil A. Saleh,^a ^* Adnan J. M. Al-Fartosy,^a Gamal A. El-Hiti ^b ‡ and Benson M. Kariuki ^c

^aDepartment of Chemistry, College of Science, University of Basrah, Basrah 61004, Iraq, ^bDepartment of Optometry, College of Applied Medical Sciences, King Saud, University, Riyadh 11433, Saudi Arabia, and ^cSchool of Chemistry, Cardiff University, Main Building, Park Place, Cardiff CF10, 3AT, United Kingdom
^*Correspondence e-mail: [email protected]

Edited by L. Van Meervelt, Katholieke Universiteit Leuven, Belgium (Received 1 July 2025; accepted 3 July 2025; online 8 July 2025)

In the title compound, C₂₂H₂₁N₃O₂, an intramolecular O—H⋯N hydrogen bond is observed between the phenol and methanimine groups of the molecule. The 2-phenylethan-1-ol part is disordered over two orientations [occupancies 0.566 (17) and 0.434 (17)]. In the crystal, disordered intermolecular O—H⋯O hydrogen bonds between adjacent molecules form chains parallel to the b axis.

Keywords: crystal structure; Schiff base.

CCDC reference: 2469543

Structure description

Primary amines react with azo compounds, along with aldehydes or ketones, to yield azo-Schiff bases (Su et al., 2015 ). Azo-Schiff bases serve as chelating ligands in coordination chemistry, where they form complexes with different metal ions that can be applied in catalysis and materials science (Kargar et al., 2022 ). Studies in the pharmaceutical sector have shown that azo-Schiff bases possess significant biological activities, including antimicrobial (da Silva et al., 2011 ), antioxidant (Hameed et al., 2017 ), and anticancer (El-Sonbati et al., 2015 ) effects. Their potential for interaction with biological targets like enzymes and DNA has paved the way for new drug development approaches (Kaswan, 2023 ). Moreover, the ability of the azo group to function as a free radical scavenger boosts its potential in addressing oxidative stress-related disorders (Su et al., 2015). This work details the synthesis and crystal structure of an azo-Schiff base.

The asymmetric unit of the crystal structure comprises one molecule of the title compound (Fig. 1). The molecule consists of a (tolyldiazenyl)phenol segment (C1-C12/C22/N1/N2/O1) linked to a 2-phenylethan-1-ol segment (C14–C21/O2) by a methanimine group (C13, N3). The (tolyldiazenyl)phenol and methanimine segments are almost co-planar [torsion angle C8—C9—C13—N3 is 178.9 (3)°]. The 2-phenylethan-1-ol part is disordered over two orientations [occupancies 0.566 (17) for component containing O2, and 0.434 (17) for component containing O2A]. The interplanar angle between the rings C1–C6 and C7–C12 is 1.39 (18)°, between rings C1–C6 and C16–C21 62.0 (5)°, and between rings C1–C6 and C16A–C21A 62.4 (5)°.

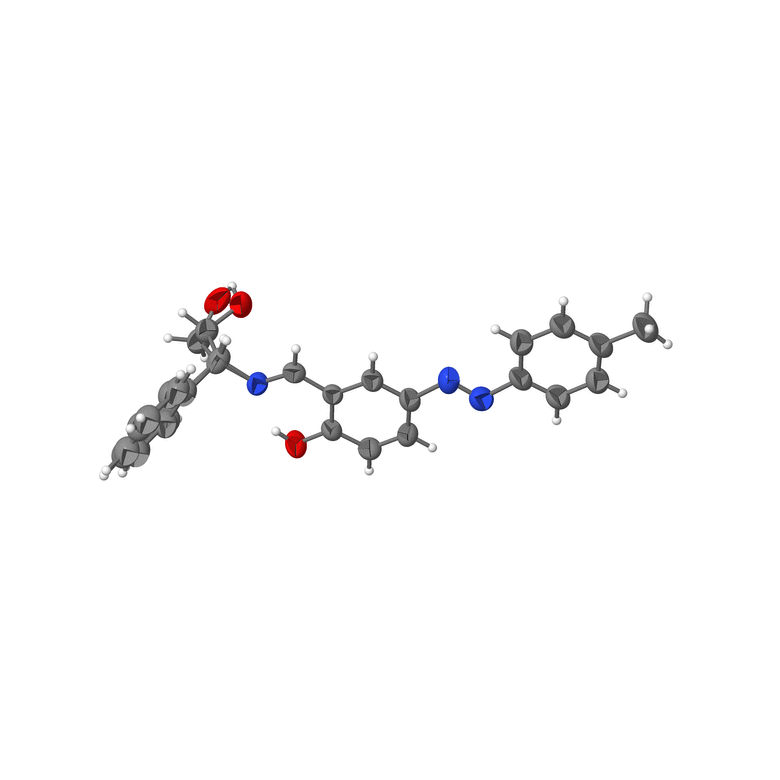

Figure 1
An ORTEP representation of the title compound showing 50% probability ellipsoids. Only the major component of the disordered 2-phenylethan-1-ol segment is shown.

An intramolecular O1—H1⋯N3 hydrogen bond occurs between the phenol and methanimine groups (Table 1). The two positions of the 2-phenylethan-1-ol moiety allow two alternative O—H⋯O hydrogen bonds to be formed with adjacent molecules in the crystal packing (Table 1), one of which forms chains of molecules propagating parallel to the b axis. The other hydrogen bond links pairs of molecules within the chain perpendicular to the direction of chain propagation.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O2—H2A⋯O1ⁱ	0.82	2.00	2.745 (10)	151
O1—H1⋯N3	0.82	1.88	2.605 (4)	147
O2A—H2B⋯O2ⁱⁱ	0.82	2.14	2.88 (2)	149
Symmetry codes: (i) ; (ii) .

Synthesis and crystallization

A solution of 4-toluidine (0.214 g, 2 mmol) in concentrated HCl (2 ml) and H₂O (5 ml) was cooled to 273–278 K. Sodium nitrite (0.14 g, 2 mmol) in H₂O (0.5 ml) was added dropwise over 10 minutes. The mixture was stirred for 30 minutes at 273–278 K, followed by the addition of salicylaldehyde (0.244 g, 2 mmol), H₂O (4 ml), NaOH (0.08 g, 2.0 mmol), and Na₂CO₃ (0.74 g, 7.0 mmol). The mixture was then stirred for 1 h at 273–278 K. The crude azo product was filtered, washed with H₂O, and dried at 298 K under vacuum. A solution of D-phenylglycinol (0.137 g, 1.0 mmol) in MeOH (20 ml) was added to a solution of the azo product (0.240 g, 1.0 mmol) in MeOH (20 ml). The mixture was refluxed for 3 h, and the solid obtained was removed by filtration, dried, and crystallized from ethanol solution to give yellow needles of the title compound in 54.1% yield, m.p. 463–465 K. (KBr) ν (cm⁻¹): 3178, 2979, 1615, 1495, 1372. ¹H NMR (400 MHz, DMSO; δ p.p.m.): 14.44 (s, 1H), 8.80 (s, 1H), 8.11 (d, J = 2.6 Hz, 1H), 7.92 (dd, J = 8.9, 2.6 Hz, 1H), 7.74 (d, J = 8.1 Hz, 2H), 7.45–7.32 (m, 7H), 7.01 (d, J = 8.9 Hz, 1H), 5.22 (s, 1H), 4.57 (dd, J = 8.3, 4.4 Hz, 1H), 3.73 (m, 2H), 2.39 (s, 3H). ¹³C NMR (100 MHz, DMSO; δ p.p.m.): 166.6, 165.9, 150.5, 144.2, 141.2, 140.2, 130.4, 129.7, 129.1, 128.1, 127.5, 126.5, 121.7, 119.2, 118.5, 74.0, 66.3, 21.5. The absolute configuration of C15 is R.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. The 2-phenylethan-1-ol part of the molecule is disordered and was modeled as two components with occupancies refining to 0.566 (17) and 0.434 (17).

Table 2
Experimental details

Crystal data
Chemical formula	C₂₂H₂₁N₃O₂
M_r	359.42
Crystal system, space group	Monoclinic, I2
Temperature (K)	293
a, b, c (Å)	14.7749 (8), 6.0051 (3), 22.3625 (12)
β (°)	108.080 (6)
V (Å³)	1886.14 (18)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.08
Crystal size (mm)	0.28 × 0.25 × 0.20

Data collection
Diffractometer	SuperNova, Dual, Cu at home/near, Atlas
Absorption correction	Gaussian (CrysAlis PRO; Rigaku OD, 2024 $[Rigaku OD (2024). CrysAlis PRO CCD. Rigaku Oxford Diffraction, Yarnton, England.]$ )
T_min, T_max	0.514, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	15526, 4696, 3546
R_int	0.024
(sin θ/λ)_max (Å⁻¹)	0.698

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.054, 0.148, 1.07
No. of reflections	4696
No. of parameters	318
No. of restraints	450
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.28, −0.17
Absolute structure	Flack x determined using 1258 quotients [(I⁺)−(I⁻)]/[(I⁺)+(I⁻)] (Parsons et al., 2013 )
Absolute structure parameter	0.1 (5)
Computer programs: CrysAlis PRO CCD (Rigaku OD,2024 $[Rigaku OD (2024). CrysAlis PRO CCD. Rigaku Oxford Diffraction, Yarnton, England.]$ )), CrysAlis PRO (Rigaku OD, 2023 $[Rigaku OD (2023). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England.]$ ), SHELXT (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ), Mercury (Macrae et al., 2020 ) and publCIF (Westrip, 2010 ).

Structural data

CCDC reference: 2469543

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314625005991/vm4068sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625005991/vm4068Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314625005991/vm4068Isup3.cml

checkCIF report

Computing details top

2-{(E)-[(2-Hydroxy-1-phenylethyl)imino]methyl}-4-[(E)-(4-methylphenyl)diazenyl]phenol top

Crystal data top

C₂₂H₂₁N₃O₂	F(000) = 760
M_r = 359.42	D_x = 1.266 Mg m⁻³
Monoclinic, I2	Mo Kα radiation, λ = 0.71073 Å
a = 14.7749 (8) Å	Cell parameters from 6820 reflections
b = 6.0051 (3) Å	θ = 2.9–27.5°
c = 22.3625 (12) Å	µ = 0.08 mm⁻¹
β = 108.080 (6)°	T = 293 K
V = 1886.14 (18) Å³	Block, orange
Z = 4	0.28 × 0.25 × 0.20 mm

Data collection top

SuperNova, Dual, Cu at home/near, Atlas diffractometer	3546 reflections with I > 2σ(I)
Detector resolution: 10.5082 pixels mm^-1	R_int = 0.024
ω scans	θ_max = 29.7°, θ_min = 2.8°
Absorption correction: gaussian (CrysAlisPro; Rigaku OD, 2024)	h = −20→20
T_min = 0.514, T_max = 1.000	k = −8→7
15526 measured reflections	l = −30→30
4696 independent reflections

Refinement top

Refinement on F²	Hydrogen site location: inferred from neighbouring sites
Least-squares matrix: full	H-atom parameters constrained
R[F² > 2σ(F²)] = 0.054	w = 1/[σ²(F_o²) + (0.0466P)² + 1.3125P] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.148	(Δ/σ)_max < 0.001
S = 1.07	Δρ_max = 0.28 e Å⁻³
4696 reflections	Δρ_min = −0.17 e Å⁻³
318 parameters	Absolute structure: Flack x determined using 1258 quotients [(I⁺)-(I^-)]/[(I⁺)+(I^-)] (Parsons et al., 2013)
450 restraints	Absolute structure parameter: 0.1 (5)

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Non-hydrogen atoms were refined with anisotropic displacement parameters. In the final cycles of refinement, hydrogen atom geometry was idealized, and a riding model was used with U_iso set at 1.2 or 1.5 times the value of U_eq for the atom to which the hydrogen atoms are bonded.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq	Occ. (<1)
C1	0.6053 (2)	0.3897 (6)	0.62137 (17)	0.0589 (9)
C2	0.6836 (3)	0.4712 (7)	0.66603 (18)	0.0658 (10)
H2	0.681939	0.612038	0.682988	0.079*
C3	0.7648 (3)	0.3448 (7)	0.68589 (19)	0.0678 (10)
H3	0.817801	0.401195	0.716574	0.081*
C4	0.7697 (2)	0.1358 (7)	0.66138 (17)	0.0613 (9)
C5	0.6900 (3)	0.0521 (7)	0.61597 (18)	0.0647 (10)
H5	0.692188	−0.088654	0.599117	0.078*
C6	0.6068 (3)	0.1773 (7)	0.59551 (18)	0.0654 (10)
H6	0.553136	0.121343	0.565295	0.078*
C7	0.3730 (2)	0.5987 (6)	0.54591 (16)	0.0541 (8)
C8	0.2943 (2)	0.5117 (6)	0.50225 (15)	0.0516 (7)
H8	0.298040	0.370315	0.486231	0.062*
C9	0.2087 (2)	0.6284 (5)	0.48102 (14)	0.0459 (6)
C10	0.2030 (2)	0.8452 (6)	0.50522 (16)	0.0553 (8)
C11	0.2834 (3)	0.9315 (6)	0.55060 (18)	0.0654 (10)
H11	0.280349	1.071206	0.567794	0.078*
C12	0.3664 (2)	0.8122 (6)	0.56994 (17)	0.0611 (9)
H12	0.419441	0.873684	0.599499	0.073*
C13	0.1282 (2)	0.5278 (6)	0.43591 (15)	0.0502 (7)
H13	0.134933	0.386246	0.420945	0.060*
C14	−0.0997 (7)	0.4207 (18)	0.4027 (6)	0.064 (2)	0.566 (17)
H14A	−0.128781	0.544663	0.417697	0.077*	0.566 (17)
H14B	−0.149973	0.335661	0.373353	0.077*	0.566 (17)
C15	−0.0319 (7)	0.510 (2)	0.3689 (4)	0.057 (2)	0.566 (17)
H15	−0.005627	0.382549	0.352299	0.069*	0.566 (17)
C16	−0.0758 (10)	0.669 (2)	0.3152 (4)	0.0572 (19)	0.566 (17)
C17	−0.0684 (10)	0.637 (2)	0.2553 (5)	0.066 (2)	0.566 (17)
H17	−0.039330	0.508395	0.247036	0.079*	0.566 (17)
C18	−0.1031 (9)	0.791 (2)	0.2075 (5)	0.074 (2)	0.566 (17)
H18	−0.096249	0.766965	0.168079	0.089*	0.566 (17)
C19	−0.1473 (8)	0.9778 (19)	0.2189 (5)	0.070 (2)	0.566 (17)
H19	−0.170095	1.082938	0.187252	0.084*	0.566 (17)
C20	−0.1585 (9)	1.011 (2)	0.2771 (6)	0.078 (2)	0.566 (17)
H20	−0.192024	1.134716	0.283963	0.093*	0.566 (17)
C21	−0.1202 (11)	0.863 (2)	0.3253 (5)	0.070 (2)	0.566 (17)
H21	−0.124083	0.893000	0.365174	0.084*	0.566 (17)
N3	0.04729 (18)	0.6253 (5)	0.41539 (12)	0.0517 (6)	0.566 (17)
O2	−0.0510 (6)	0.2833 (14)	0.4543 (5)	0.087 (3)	0.566 (17)
H2A	−0.089839	0.214465	0.466496	0.131*	0.566 (17)
C14A	−0.1148 (9)	0.483 (3)	0.3978 (8)	0.068 (3)	0.434 (17)
H14C	−0.114683	0.596685	0.428563	0.082*	0.434 (17)
H14D	−0.176288	0.484100	0.365402	0.082*	0.434 (17)
C15A	−0.0353 (9)	0.525 (3)	0.3690 (5)	0.058 (3)	0.434 (17)
H15A	−0.015932	0.382088	0.355769	0.070*	0.434 (17)
C16A	−0.0695 (12)	0.674 (3)	0.3122 (5)	0.059 (3)	0.434 (17)
C17A	−0.0522 (11)	0.607 (2)	0.2573 (6)	0.066 (3)	0.434 (17)
H17A	−0.020482	0.473357	0.256443	0.080*	0.434 (17)
C18A	−0.0823 (10)	0.738 (2)	0.2036 (4)	0.070 (3)	0.434 (17)
H18A	−0.070788	0.693030	0.166851	0.084*	0.434 (17)
C19A	−0.1298 (9)	0.937 (2)	0.2048 (5)	0.066 (3)	0.434 (17)
H19A	−0.149919	1.025228	0.168929	0.080*	0.434 (17)
C20A	−0.1470 (10)	1.005 (2)	0.2598 (6)	0.072 (3)	0.434 (17)
H20A	−0.178745	1.137755	0.260600	0.086*	0.434 (17)
C21A	−0.1169 (12)	0.873 (3)	0.3134 (5)	0.069 (3)	0.434 (17)
H21A	−0.128439	0.918086	0.350193	0.083*	0.434 (17)
N3A	0.04729 (18)	0.6253 (5)	0.41539 (12)	0.0517 (6)	0.434 (17)
O2A	−0.0972 (11)	0.2732 (18)	0.4266 (4)	0.093 (3)	0.434 (17)
H2B	−0.072975	0.288871	0.464641	0.140*	0.434 (17)
N1	0.5240 (2)	0.5375 (5)	0.60296 (15)	0.0645 (8)
N2	0.4553 (2)	0.4536 (6)	0.56411 (14)	0.0628 (8)
O1	0.12420 (19)	0.9622 (5)	0.48643 (15)	0.0800 (9)
H1	0.084660	0.895236	0.458203	0.120*
C22	0.8598 (3)	0.0019 (8)	0.6838 (2)	0.0820 (13)
H22A	0.906649	0.083753	0.715575	0.123*
H22B	0.883322	−0.026996	0.649024	0.123*
H22C	0.846987	−0.136700	0.700952	0.123*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0540 (18)	0.059 (2)	0.069 (2)	0.0148 (16)	0.0266 (17)	0.0177 (17)
C2	0.064 (2)	0.061 (2)	0.072 (2)	0.0097 (18)	0.0208 (18)	0.0055 (18)
C3	0.056 (2)	0.074 (3)	0.071 (2)	0.0041 (18)	0.0172 (18)	0.009 (2)
C4	0.0563 (19)	0.064 (2)	0.070 (2)	0.0158 (18)	0.0288 (17)	0.0193 (19)
C5	0.063 (2)	0.063 (2)	0.072 (2)	0.0086 (18)	0.0259 (18)	0.0100 (19)
C6	0.0529 (19)	0.075 (3)	0.068 (2)	0.0034 (18)	0.0181 (17)	0.009 (2)
C7	0.0480 (16)	0.061 (2)	0.0542 (17)	0.0068 (14)	0.0177 (14)	0.0086 (15)
C8	0.0478 (16)	0.0506 (18)	0.0579 (18)	0.0077 (14)	0.0186 (14)	0.0008 (15)
C9	0.0434 (15)	0.0446 (16)	0.0511 (15)	0.0034 (13)	0.0168 (12)	0.0031 (13)
C10	0.0503 (18)	0.0476 (19)	0.0631 (19)	0.0072 (14)	0.0107 (15)	0.0028 (16)
C11	0.066 (2)	0.048 (2)	0.073 (2)	0.0039 (17)	0.0084 (18)	−0.0097 (18)
C12	0.0508 (18)	0.063 (2)	0.061 (2)	−0.0018 (16)	0.0057 (15)	−0.0031 (17)
C13	0.0519 (17)	0.0467 (17)	0.0565 (17)	0.0032 (14)	0.0232 (14)	0.0023 (14)
C14	0.052 (4)	0.062 (5)	0.080 (4)	0.002 (3)	0.021 (3)	−0.002 (4)
C15	0.048 (3)	0.064 (4)	0.061 (3)	−0.007 (3)	0.019 (3)	−0.008 (3)
C16	0.044 (3)	0.073 (4)	0.055 (3)	−0.009 (3)	0.015 (3)	−0.010 (3)
C17	0.056 (4)	0.078 (4)	0.064 (4)	−0.001 (3)	0.018 (3)	−0.010 (3)
C18	0.070 (4)	0.091 (5)	0.061 (3)	−0.009 (4)	0.019 (3)	−0.012 (4)
C19	0.066 (4)	0.084 (5)	0.058 (4)	−0.008 (4)	0.015 (4)	−0.006 (4)
C20	0.074 (4)	0.083 (4)	0.071 (5)	0.002 (4)	0.016 (4)	−0.002 (4)
C21	0.066 (4)	0.077 (4)	0.063 (4)	−0.001 (3)	0.014 (3)	−0.003 (4)
N3	0.0447 (12)	0.0554 (15)	0.0544 (13)	0.0008 (12)	0.0144 (11)	−0.0056 (13)
O2	0.056 (4)	0.102 (4)	0.093 (5)	−0.015 (3)	0.006 (4)	0.047 (4)
C14A	0.051 (4)	0.081 (6)	0.076 (5)	−0.007 (5)	0.024 (4)	0.010 (5)
C15A	0.049 (4)	0.062 (4)	0.062 (4)	−0.004 (4)	0.015 (4)	−0.011 (4)
C16A	0.045 (4)	0.073 (4)	0.059 (4)	−0.008 (4)	0.013 (4)	−0.011 (4)
C17A	0.058 (5)	0.083 (5)	0.058 (4)	−0.003 (4)	0.018 (4)	−0.013 (4)
C18A	0.069 (5)	0.082 (5)	0.059 (4)	−0.003 (4)	0.020 (4)	−0.019 (4)
C19A	0.066 (5)	0.080 (5)	0.054 (4)	0.000 (4)	0.020 (4)	−0.014 (4)
C20A	0.069 (4)	0.084 (4)	0.063 (5)	0.002 (4)	0.023 (4)	−0.008 (5)
C21A	0.065 (4)	0.080 (5)	0.060 (5)	0.004 (4)	0.016 (4)	−0.010 (4)
N3A	0.0447 (12)	0.0554 (15)	0.0544 (13)	0.0008 (12)	0.0144 (11)	−0.0056 (13)
O2A	0.093 (7)	0.115 (6)	0.054 (5)	−0.053 (5)	−0.005 (4)	0.018 (4)
N1	0.0606 (18)	0.0615 (19)	0.0714 (19)	0.0025 (15)	0.0206 (15)	0.0031 (16)
N2	0.0498 (15)	0.077 (2)	0.0577 (16)	0.0032 (14)	0.0118 (13)	0.0020 (16)
O1	0.0621 (16)	0.0603 (16)	0.098 (2)	0.0228 (14)	−0.0036 (14)	−0.0209 (15)
C22	0.061 (2)	0.086 (3)	0.101 (3)	0.027 (2)	0.029 (2)	0.021 (3)

Geometric parameters (Å, º) top

C1—C2	1.363 (5)	C16—C17	1.391 (8)
C1—C6	1.403 (5)	C17—C18	1.384 (9)
C1—N1	1.448 (4)	C17—H17	0.9300
C2—C3	1.373 (5)	C18—C19	1.361 (9)
C2—H2	0.9300	C18—H18	0.9300
C3—C4	1.380 (6)	C19—C20	1.377 (9)
C3—H3	0.9300	C19—H19	0.9300
C4—C5	1.389 (5)	C20—C21	1.376 (9)
C4—C22	1.502 (5)	C20—H20	0.9300
C5—C6	1.392 (5)	C21—H21	0.9300
C5—H5	0.9300	O2—H2A	0.8200
C6—H6	0.9300	C14A—O2A	1.400 (11)
C7—C8	1.369 (5)	C14A—C15A	1.526 (10)
C7—C12	1.405 (5)	C14A—H14C	0.9700
C7—N2	1.448 (4)	C14A—H14D	0.9700
C8—C9	1.394 (4)	C15A—N3A	1.463 (9)
C8—H8	0.9300	C15A—C16A	1.507 (8)
C9—C10	1.422 (5)	C15A—H15A	0.9800
C9—C13	1.432 (4)	C16A—C17A	1.3900
C10—O1	1.312 (4)	C16A—C21A	1.3900
C10—C11	1.400 (5)	C17A—C18A	1.3900
C11—C12	1.370 (5)	C17A—H17A	0.9300
C11—H11	0.9300	C18A—C19A	1.3900
C12—H12	0.9300	C18A—H18A	0.9300
C13—N3A	1.281 (4)	C19A—C20A	1.3900
C13—N3	1.281 (4)	C19A—H19A	0.9300
C13—H13	0.9300	C20A—C21A	1.3900
C14—O2	1.419 (10)	C20A—H20A	0.9300
C14—C15	1.526 (8)	C21A—H21A	0.9300
C14—H14A	0.9700	O2A—H2B	0.8200
C14—H14B	0.9700	N1—N2	1.221 (4)
C15—N3	1.475 (7)	O1—H1	0.8200
C15—C16	1.517 (8)	C22—H22A	0.9600
C15—H15	0.9800	C22—H22B	0.9600
C16—C21	1.387 (8)	C22—H22C	0.9600

C2—C1—C6	120.7 (3)	C16—C17—H17	119.0
C2—C1—N1	115.4 (4)	C19—C18—C17	119.4 (8)
C6—C1—N1	123.9 (4)	C19—C18—H18	120.3
C1—C2—C3	119.7 (4)	C17—C18—H18	120.3
C1—C2—H2	120.1	C18—C19—C20	120.2 (8)
C3—C2—H2	120.1	C18—C19—H19	119.9
C2—C3—C4	121.5 (4)	C20—C19—H19	119.9
C2—C3—H3	119.2	C21—C20—C19	120.2 (8)
C4—C3—H3	119.2	C21—C20—H20	119.9
C3—C4—C5	118.9 (3)	C19—C20—H20	119.9
C3—C4—C22	120.3 (4)	C20—C21—C16	121.1 (8)
C5—C4—C22	120.8 (4)	C20—C21—H21	119.5
C4—C5—C6	120.4 (4)	C16—C21—H21	119.5
C4—C5—H5	119.8	C13—N3—C15	119.0 (6)
C6—C5—H5	119.8	C14—O2—H2A	109.5
C5—C6—C1	118.7 (4)	O2A—C14A—C15A	106.6 (10)
C5—C6—H6	120.6	O2A—C14A—H14C	110.4
C1—C6—H6	120.6	C15A—C14A—H14C	110.4
C8—C7—C12	118.5 (3)	O2A—C14A—H14D	110.4
C8—C7—N2	115.1 (3)	C15A—C14A—H14D	110.4
C12—C7—N2	126.4 (3)	H14C—C14A—H14D	108.6
C7—C8—C9	122.1 (3)	N3A—C15A—C16A	109.9 (9)
C7—C8—H8	119.0	N3A—C15A—C14A	110.6 (10)
C9—C8—H8	119.0	C16A—C15A—C14A	110.7 (10)
C8—C9—C10	119.0 (3)	N3A—C15A—H15A	108.5
C8—C9—C13	119.7 (3)	C16A—C15A—H15A	108.5
C10—C9—C13	121.3 (3)	C14A—C15A—H15A	108.5
O1—C10—C11	120.2 (3)	C17A—C16A—C21A	120.0
O1—C10—C9	121.3 (3)	C17A—C16A—C15A	117.9 (8)
C11—C10—C9	118.5 (3)	C21A—C16A—C15A	122.1 (8)
C12—C11—C10	120.7 (3)	C18A—C17A—C16A	120.0
C12—C11—H11	119.6	C18A—C17A—H17A	120.0
C10—C11—H11	119.6	C16A—C17A—H17A	120.0
C11—C12—C7	121.2 (3)	C17A—C18A—C19A	120.0
C11—C12—H12	119.4	C17A—C18A—H18A	120.0
C7—C12—H12	119.4	C19A—C18A—H18A	120.0
N3A—C13—C9	122.5 (3)	C20A—C19A—C18A	120.0
N3—C13—C9	122.5 (3)	C20A—C19A—H19A	120.0
N3—C13—H13	118.7	C18A—C19A—H19A	120.0
C9—C13—H13	118.7	C21A—C20A—C19A	120.0
O2—C14—C15	111.1 (7)	C21A—C20A—H20A	120.0
O2—C14—H14A	109.4	C19A—C20A—H20A	120.0
C15—C14—H14A	109.4	C20A—C21A—C16A	120.0
O2—C14—H14B	109.4	C20A—C21A—H21A	120.0
C15—C14—H14B	109.4	C16A—C21A—H21A	120.0
H14A—C14—H14B	108.0	C13—N3A—C15A	123.1 (8)
N3—C15—C16	108.1 (7)	C14A—O2A—H2B	109.5
N3—C15—C14	108.4 (7)	N2—N1—C1	112.5 (3)
C16—C15—C14	115.3 (8)	N1—N2—C7	113.1 (3)
N3—C15—H15	108.3	C10—O1—H1	109.5
C16—C15—H15	108.3	C4—C22—H22A	109.5
C14—C15—H15	108.3	C4—C22—H22B	109.5
C21—C16—C17	117.1 (7)	H22A—C22—H22B	109.5
C21—C16—C15	120.6 (7)	C4—C22—H22C	109.5
C17—C16—C15	122.2 (8)	H22A—C22—H22C	109.5
C18—C17—C16	121.9 (8)	H22B—C22—H22C	109.5
C18—C17—H17	119.0

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
O2—H2A···O1ⁱ	0.82	2.00	2.745 (10)	151
O1—H1···N3	0.82	1.88	2.605 (4)	147
O2A—H2B···O2ⁱⁱ	0.82	2.14	2.88 (2)	149

Symmetry codes: (i) −x, y−1, −z+1; (ii) −x, y, −z+1.

Footnotes

‡Additional corresponding author, e-mail: [email protected].

Acknowledgements

We thank Cardiff University and the University of Basrah for technical support.

Funding information

Funding for this research was provided by: University of Basrah; Cardiff University.

References

da Silva, C. M., da Silva, D. L., Modolo, L. V., Alves, R. B., de Resende, M. A. & Martins, C. V. B. de Fátima (2011). J. Adv. Res. 2, 1–8. CrossRef Google Scholar
El-Sonbati, A. Z., El-Bindary, A. A., Diab, M. A., Mohamed, G. G. & Morgan, S. M. (2015). Spectrochim. Acta A Mol. Biomol. Spectrosc. 137, 1126–1135. Web of Science PubMed Google Scholar
Hameed, A., al-Rashida, M., Uroos, M., Abid Ali, S. & Khan, K. M. (2017). Expert Opin. Ther. Pat. 27, 63–79. Web of Science CrossRef CAS PubMed Google Scholar
Kargar, H., Fallah-Mehrjardi, M., Behjatmanesh-Ardakani, R., Bahadori, M., Moghadam, M., Ashfaq, M., Munawar, K. S. & Tahir, M. N. (2022). Polyhedron 213, 115622. CrossRef Google Scholar
Kaswan, P. (2023). Inorg. Chim. Acta 556, 121610. CrossRef Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Parsons, S., Flack, H. D. & Wagner, T. (2013). Acta Cryst. B69, 249–259. Web of Science CSD CrossRef CAS IUCr Journals Google Scholar
Rigaku OD (2023). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Rigaku OD (2024). CrysAlis PRO CCD. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Su, R., Lü, L., Zheng, S., Jin, Y. & An, S. (2015). Chem. Res. Chin. Univ. 31, 60–64. CrossRef CAS Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
