{α,α′-Bis[(tert-but­yl)(6-meth­oxy­pyridin-2-yl)phosphino]-o-xylene}(η2-N-methyl­maleinimide)palladium(0) toluene hemisolvate

Müller, S.; Spannenberg, A.; Neumann, H.; Franke, R.; Beller, M.

doi:10.1107/S2414314625005085

metal-organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 6| June 2025| x250508

https://doi.org/10.1107/S2414314625005085

Open

access

{α,α′-Bis[(tert-butyl)(6-methoxypyridin-2-yl)phosphino]-o-xylene}(η²-N-methylmaleinimide)palladium(0) toluene hemisolvate

Stefan Müller,^a,^b Anke Spannenberg,^c Helfried Neumann,^c ^* Robert Franke ^a,^b and Matthias Beller ^c

^aEvonik Oxeno GmbH, Paul-Baumann-Str. 1, 45772 Marl, Germany, ^bLehrstuhl für Theoretische Chemie, Ruhr-Universität Bochum, 44780 Bochum, Germany, and ^cLeibniz-Institut für Katalyse e. V., Albert-Einstein-Str. 29a, 18059 Rostock, Germany
^*Correspondence e-mail: [email protected]

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 24 April 2025; accepted 4 June 2025; online 12 June 2025)

The solvated title compound, [Pd(C₅H₅NO₂)(C₂₈H₃₈N₂O₂P₂)]·0.5C₇H₈, consists of a palladium(0) atom coordinated by a chelating α,α′-bis[(tert-butyl)(6-methoxypyridin-2-yl)phosphino]o-xylene ligand and an η²-coordinating N-methylmaleinimide molecule to generate a 16 electron complex in which the metal atom has a pseudo-square-planar coordination environment. The co-crystallized toluene solvent molecule is disordered about an inversion centre by symmetry. Weak C—H⋯O and C—H⋯N hydrogen bonds connect the components in the extended structure.

Keywords: crystal structure; chelating ligand; palladium(0) complex; diphosphine ligand.

CCDC reference: 2456579

Structure description

The parent ligand α,α′-bis(di-tert-butylphosphino)-o-xylene shows a high activity in the palladium-catalysed methoxycarbonylation of olefins and is used in the Lucite Alpha process, where, on the hundred-thousand-tonne scale, ethylene is methoxycarbonylated to methyl propionate (Eastham et al., 2004 ). The substitution of one tert-butyl group by pyridyl gives α,α′-bis[2-pyridyl(tert-butyl)phosphino]-o-xylene, which shows a much higher activity in the palladium-catalysed methoxycarbonylation than the parent ligand (Dong et al., 2017 ). Here, a palladium complex with α,α′-bis[(tert-butyl(6-methoxypyridin-2-yl)phosphino]-o-xylene, C₂₈H₃₈N₂O₂P₂, is described, in which the metal is additionally η²-coordinated by the double bond of N-methylmaleinimide, C₅H₅NO₂. Thus, the central palladium atom has an oxidation number of 0 and exists as a 16-electron complex with pseudo-square-planar coordination environment. Since the phosphine ligand can exist as two diastereomers consisting of the meso and the racemic forms, the palladium complex can also occur in meso and racemic forms. The meso form has a mirror plane and the phosphorous atoms are identical giving only one signal in the ³¹P NMR spectrum, while the racemic form is asymmetric. Consequently, the phosphorous atoms in the latter form can couple with each other, showing two doublets in the ³¹P NMR spectrum. The racemic diastereomer is the major product of the ligand and the crystals arise in racemic form: in the arbitrarily chosen asymmetric molecule (Fig. 1), both the P atoms have R configurations. The dihedral angles between the central C2–C7 ring and pendant N1/C9–C13 and N2/C19–C23 rings are 30.92 (10) and 68.65 (10)°, respectively. The C29–C32/N3 ring of the N-methylmaleinimide ligand and the Pd1/C30/C31 grouping subtend a dihedral angle of 73.49 (14)°. Selected geometrical data are listed in Table 1. In the crystal, weak C—H⋯O and C—H⋯N hydrogen bonds (Table 2) link the molecules.

Table 1
Selected geometric parameters (Å, °)

Pd1—C30	2.1174 (17)	Pd1—P1	2.2965 (4)
Pd1—C31	2.1343 (17)	Pd1—P2	2.3058 (4)

C30—Pd1—C31	39.36 (7)	C30—Pd1—P2	149.41 (5)
C30—Pd1—P1	107.67 (5)	C31—Pd1—P2	111.69 (5)
C31—Pd1—P1	146.86 (5)	P1—Pd1—P2	101.314 (15)

Table 2
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C3—H3⋯O4ⁱ	0.95	2.54	3.480 (2)	172
C12—H12⋯O3ⁱⁱ	0.95	2.37	3.281 (3)	161
C38—H38⋯N2ⁱⁱⁱ	0.95	2.60	3.462 (5)	151
Symmetry codes: (i) ; (ii) ; (iii) .

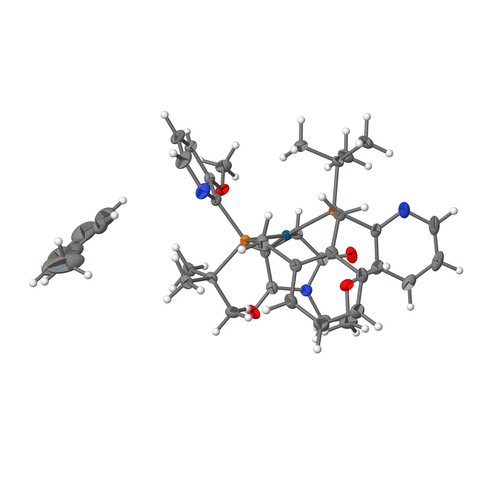

Figure 1
The molecular structure of the title compound. Displacement ellipsoids correspond to 30% probability level. Hydrogen atoms are omitted for clarity. The toluene solvent molecule is shown with one of its possible orientations.

Synthesis and crystallization

17.98 mg (0.0845 mmol) of [(η³-allyl)-η⁵-cyclopentadienyl]palladium complex was dissolved in 3 ml of absolute heptane and the red solution was filtrated over Celite into a 25 ml flask. A solution made of 42 mg (0.0845 mmol) of the ligand α,α′-bis[(tert-butyl)(6-methoxypyridin-2-yl)phosphino]-o-xylene and 9.29 mg (0.0845 mmol) N-methylmaleinimide in 7 ml of heptane were added slowly to the deep-red filtrate. The reaction solution was decolourized to pale pink, and a bright-yellow precipitate was formed. After 2 days the reaction solution was decantated and the white solid was washed three times with 5 ml heptane each. After drying in a vacuum, 42 mg (70%) of a white solid was obtained. A phosphorous NMR of the complex was recorded using toluene-d₈ as a solvent.

³¹P NMR (121 Hz, toluene-d₈) δ 26.10 (s), 23.71 (d, J = 27.7 Hz), 23.04 (d, J = 27.6 Hz).

The singlet signal is associated with the meso form of the palladium complex, while the two doublets belong to the racemic title complex. Since the NMR solution was slightly cloudy, 0.8 ml of toluene-d₈ were added and the solution was filtrated over Celite. The clear solution was transferred under argon into a 4 ml vial, which was located in a bigger Schlenk flask filled with glass sticks. After closing by a septum, 10 ml of pentane were added via syringe into the larger Schlenk flask and the septum was replaced by a stopper. After 3 days, tiny crystals of the title compound, suitable for X-ray analysis, were formed by diffusion of pentane into the toluene phase.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3. H30 and H31 could be found from the difference-Fourier map and were refined freely. AFIX 66 and DFIX commands in SHELXL were used to optimize the geometry of the half-occupied toluene molecule and the SIMU instruction was included to equalize the displacement parameters of their non-hydrogen atoms (C34–C40).

Table 3
Experimental details

Crystal data
Chemical formula	[Pd(C₅H₅NO₂)(C₂₈H₃₈N₂O₂P₂)]·0.5C₇H₈
M_r	760.11
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	150
a, b, c (Å)	9.5548 (2), 10.7020 (3), 18.4654 (5)
α, β, γ (°)	74.0508 (10), 86.9998 (10), 76.0888 (9)
V (Å³)	1762.06 (8)
Z	2
Radiation type	Cu Kα
μ (mm⁻¹)	5.45
Crystal size (mm)	0.19 × 0.08 × 0.03

Data collection
Diffractometer	Bruker APEXII CCD
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.42, 0.85
No. of measured, independent and observed [I > 2σ(I)] reflections	27460, 6223, 5975
R_int	0.030
(sin θ/λ)_max (Å⁻¹)	0.596

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.022, 0.057, 1.06
No. of reflections	6223
No. of parameters	456
No. of restraints	43
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.38, −0.32
Computer programs: APEX2 (Bruker, 2014 ), SAINT (Bruker, 2013 ), SHELXT (Sheldrick, 2015a ), SHELXL2019/1 (Sheldrick, 2015b ), XP in SHELXTL (Sheldrick, 2008 ) and publCIF (Westrip, 2010 ).

Structural data

CCDC reference: 2456579

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314625005085/hb4516sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625005085/hb4516Isup2.hkl

checkCIF report

Computing details top

(α,α'-Bis[(tert-butyl)(6-methoxypyridin-2-yl)phosphino]-o-xylene}(η²-N-methylmaleinimide)palladium(0) toluene hemisolvate top

Crystal data top

[Pd(C₅H₅NO₂)(C₂₈H₃₈N₂O₂P₂)]·0.5C₇H₈	Z = 2
M_r = 760.11	F(000) = 790
Triclinic, P1	D_x = 1.433 Mg m⁻³
a = 9.5548 (2) Å	Cu Kα radiation, λ = 1.54178 Å
b = 10.7020 (3) Å	Cell parameters from 9834 reflections
c = 18.4654 (5) Å	θ = 2.5–66.6°
α = 74.0508 (10)°	µ = 5.45 mm⁻¹
β = 86.9998 (10)°	T = 150 K
γ = 76.0888 (9)°	Plate, colourless
V = 1762.06 (8) Å³	0.19 × 0.08 × 0.03 mm

Data collection top

Bruker APEXII CCD diffractometer	6223 independent reflections
Radiation source: microfocus	5975 reflections with I > 2σ(I)
Multilayer monochromator	R_int = 0.030
φ and ω scans	θ_max = 66.7°, θ_min = 2.5°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −10→11
T_min = 0.42, T_max = 0.85	k = −12→12
27460 measured reflections	l = −21→21

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.022	H atoms treated by a mixture of independent and constrained refinement
wR(F²) = 0.057	w = 1/[σ²(F_o²) + (0.0327P)² + 0.6517P] where P = (F_o² + 2F_c²)/3
S = 1.06	(Δ/σ)_max = 0.001
6223 reflections	Δρ_max = 0.38 e Å⁻³
456 parameters	Δρ_min = −0.32 e Å⁻³
43 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq	Occ. (<1)
C1	0.93696 (19)	0.27389 (19)	0.26501 (10)	0.0219 (4)
H1A	1.038026	0.265442	0.248101	0.026*
H1B	0.911415	0.351279	0.286668	0.026*
C2	0.92856 (19)	0.14923 (19)	0.32643 (10)	0.0208 (4)
C3	1.0378 (2)	0.0339 (2)	0.33169 (11)	0.0264 (4)
H3	1.112812	0.034881	0.295842	0.032*
C4	1.0385 (2)	−0.0822 (2)	0.38842 (13)	0.0317 (4)
H4	1.112981	−0.160168	0.390936	0.038*
C5	0.9305 (2)	−0.0842 (2)	0.44141 (12)	0.0329 (5)
H5	0.930161	−0.163591	0.480292	0.039*
C6	0.8230 (2)	0.0302 (2)	0.43723 (11)	0.0271 (4)
H6	0.750048	0.028730	0.474249	0.033*
C7	0.81861 (19)	0.14829 (19)	0.37994 (10)	0.0209 (4)
C8	0.70393 (19)	0.27224 (19)	0.38093 (10)	0.0217 (4)
H8A	0.748903	0.349664	0.366498	0.026*
H8B	0.670427	0.263624	0.433334	0.026*
C9	0.9288 (2)	0.18911 (19)	0.13448 (10)	0.0227 (4)
C10	0.9108 (2)	0.0574 (2)	0.15543 (11)	0.0271 (4)
C11	0.9976 (2)	−0.0365 (2)	0.12297 (13)	0.0359 (5)
H11	0.988207	−0.126339	0.136391	0.043*
C12	1.0977 (2)	0.0040 (3)	0.07083 (13)	0.0403 (5)
H12	1.158779	−0.057616	0.047661	0.048*
C13	1.1076 (2)	0.1352 (3)	0.05293 (13)	0.0397 (5)
H13	1.176471	0.162079	0.016699	0.048*
C14	0.8098 (3)	−0.1042 (2)	0.24477 (16)	0.0447 (6)
H14A	0.788263	−0.149860	0.208870	0.067*
H14B	0.737396	−0.107416	0.284441	0.067*
H14C	0.905612	−0.148857	0.267321	0.067*
C15	0.8384 (2)	0.47990 (18)	0.12717 (11)	0.0239 (4)
C16	0.9905 (2)	0.5028 (2)	0.12827 (12)	0.0314 (4)
H16A	1.058980	0.435590	0.109059	0.047*
H16B	1.017764	0.495027	0.180035	0.047*
H16C	0.992061	0.592304	0.096426	0.047*
C17	0.7880 (2)	0.5048 (2)	0.04594 (12)	0.0339 (5)
H17A	0.790373	0.596066	0.017312	0.051*
H17B	0.689335	0.493195	0.045913	0.051*
H17C	0.852119	0.440888	0.022626	0.051*
C18	0.7345 (2)	0.5786 (2)	0.16348 (14)	0.0365 (5)
H18A	0.737224	0.670312	0.135890	0.055*
H18B	0.763806	0.561504	0.216044	0.055*
H18C	0.636309	0.566724	0.161636	0.055*
C19	0.47054 (19)	0.48686 (18)	0.32103 (11)	0.0217 (4)
C20	0.3886 (2)	0.58387 (18)	0.26075 (11)	0.0233 (4)
C21	0.3500 (2)	0.7168 (2)	0.26300 (13)	0.0299 (4)
H21	0.297344	0.784371	0.222513	0.036*
C22	0.3900 (2)	0.7482 (2)	0.32514 (14)	0.0373 (5)
H22	0.366071	0.838214	0.327934	0.045*
C23	0.4650 (3)	0.6476 (2)	0.38326 (15)	0.0406 (5)
H23	0.488761	0.670010	0.426669	0.049*
C24	0.3017 (2)	0.6378 (2)	0.13411 (12)	0.0342 (5)
H24A	0.207408	0.693147	0.141900	0.051*
H24B	0.292520	0.592165	0.095883	0.051*
H24C	0.370151	0.694553	0.117083	0.051*
C25	0.4107 (2)	0.22225 (18)	0.37693 (10)	0.0211 (4)
C26	0.2622 (2)	0.2889 (2)	0.33945 (11)	0.0278 (4)
H26A	0.190948	0.241256	0.366123	0.042*
H26B	0.266164	0.285940	0.286793	0.042*
H26C	0.234534	0.382210	0.341447	0.042*
C27	0.4047 (2)	0.2302 (2)	0.45863 (11)	0.0276 (4)
H27A	0.389840	0.323658	0.459359	0.041*
H27B	0.495543	0.177977	0.484686	0.041*
H27C	0.324687	0.193929	0.484133	0.041*
C28	0.4531 (2)	0.07631 (19)	0.37335 (11)	0.0283 (4)
H28A	0.549613	0.033947	0.395548	0.042*
H28B	0.453223	0.073754	0.320696	0.042*
H28C	0.383498	0.028081	0.401506	0.042*
C29	0.5627 (2)	0.1729 (2)	0.07110 (10)	0.0238 (4)
C30	0.5027 (2)	0.29784 (19)	0.09226 (10)	0.0207 (4)
C31	0.39618 (19)	0.27265 (19)	0.14840 (10)	0.0208 (4)
C32	0.3922 (2)	0.13104 (19)	0.16241 (10)	0.0229 (4)
C33	0.5262 (3)	−0.0605 (2)	0.11249 (14)	0.0378 (5)
H33A	0.450360	−0.073669	0.083619	0.057*
H33B	0.530729	−0.119478	0.163797	0.057*
H33C	0.619208	−0.081624	0.088129	0.057*
N1	1.02564 (19)	0.22701 (19)	0.08374 (10)	0.0318 (4)
N2	0.5060 (2)	0.51956 (18)	0.38144 (10)	0.0316 (4)
N3	0.49423 (18)	0.07741 (16)	0.11534 (9)	0.0249 (3)
O1	0.80689 (16)	0.03170 (14)	0.20648 (9)	0.0319 (3)
O2	0.35302 (15)	0.54032 (13)	0.20356 (8)	0.0267 (3)
O3	0.65229 (16)	0.15087 (16)	0.02391 (8)	0.0345 (3)
O4	0.31817 (16)	0.06561 (16)	0.20498 (8)	0.0327 (3)
P1	0.81919 (4)	0.30985 (4)	0.18162 (2)	0.01687 (9)
P2	0.54364 (4)	0.31042 (4)	0.31899 (2)	0.01620 (9)
Pd1	0.58477 (2)	0.29018 (2)	0.19811 (2)	0.01527 (5)
H30	0.500 (3)	0.380 (3)	0.0561 (15)	0.040 (7)*
H31	0.316 (3)	0.330 (3)	0.1550 (14)	0.033 (6)*
C34	0.0369 (5)	0.4754 (5)	0.5408 (3)	0.0581 (15)	0.5
C35	0.1062 (5)	0.5331 (4)	0.4767 (4)	0.060 (3)	0.5
H35	0.200799	0.544515	0.480700	0.072*	0.5
C36	0.0370 (7)	0.5742 (5)	0.4069 (3)	0.089 (2)	0.5
H36	0.084303	0.613630	0.363106	0.107*	0.5
C37	−0.1015 (7)	0.5575 (5)	0.4011 (3)	0.089 (3)	0.5
H37	−0.148770	0.585542	0.353366	0.106*	0.5
C38	−0.1707 (5)	0.4997 (5)	0.4652 (3)	0.0645 (16)	0.5
H38	−0.265348	0.488339	0.461220	0.077*	0.5
C39	−0.1015 (5)	0.4587 (4)	0.5350 (3)	0.061 (3)	0.5
H39	−0.148854	0.419223	0.578814	0.074*	0.5
C40	0.1089 (12)	0.4269 (10)	0.6172 (6)	0.103 (4)	0.5
H40A	0.042980	0.389700	0.654788	0.155*	0.5
H40B	0.196761	0.357626	0.616414	0.155*	0.5
H40C	0.133824	0.501869	0.630119	0.155*	0.5

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0191 (9)	0.0263 (9)	0.0203 (9)	−0.0080 (7)	−0.0011 (7)	−0.0037 (7)
C2	0.0181 (9)	0.0250 (9)	0.0190 (9)	−0.0058 (7)	−0.0041 (7)	−0.0038 (7)
C3	0.0178 (9)	0.0324 (10)	0.0274 (10)	−0.0033 (7)	0.0005 (7)	−0.0078 (8)
C4	0.0232 (10)	0.0272 (10)	0.0382 (11)	0.0018 (8)	−0.0024 (8)	−0.0044 (9)
C5	0.0288 (11)	0.0294 (10)	0.0308 (11)	−0.0038 (8)	−0.0027 (8)	0.0056 (8)
C6	0.0206 (9)	0.0344 (10)	0.0220 (9)	−0.0055 (8)	0.0005 (7)	−0.0014 (8)
C7	0.0177 (9)	0.0261 (9)	0.0193 (9)	−0.0053 (7)	−0.0032 (6)	−0.0062 (7)
C8	0.0197 (9)	0.0274 (9)	0.0191 (9)	−0.0043 (7)	−0.0004 (7)	−0.0092 (7)
C9	0.0190 (9)	0.0262 (9)	0.0202 (9)	0.0012 (7)	−0.0015 (7)	−0.0073 (7)
C10	0.0246 (10)	0.0284 (10)	0.0268 (10)	0.0001 (8)	−0.0044 (7)	−0.0097 (8)
C11	0.0337 (11)	0.0308 (11)	0.0410 (12)	0.0052 (9)	−0.0069 (9)	−0.0158 (9)
C12	0.0326 (12)	0.0479 (14)	0.0365 (12)	0.0119 (10)	−0.0020 (9)	−0.0231 (10)
C13	0.0295 (11)	0.0528 (14)	0.0324 (11)	0.0020 (10)	0.0090 (9)	−0.0160 (10)
C14	0.0527 (15)	0.0245 (11)	0.0551 (15)	−0.0122 (10)	0.0019 (11)	−0.0055 (10)
C15	0.0202 (9)	0.0211 (9)	0.0272 (10)	−0.0064 (7)	0.0038 (7)	−0.0008 (7)
C16	0.0257 (10)	0.0325 (11)	0.0341 (11)	−0.0142 (8)	0.0024 (8)	0.0000 (8)
C17	0.0323 (11)	0.0350 (11)	0.0278 (11)	−0.0122 (9)	−0.0026 (8)	0.0067 (8)
C18	0.0367 (12)	0.0205 (10)	0.0486 (13)	−0.0057 (8)	0.0117 (10)	−0.0062 (9)
C19	0.0191 (9)	0.0207 (9)	0.0266 (9)	−0.0040 (7)	0.0042 (7)	−0.0099 (7)
C20	0.0212 (9)	0.0209 (9)	0.0278 (10)	−0.0053 (7)	0.0056 (7)	−0.0071 (7)
C21	0.0288 (10)	0.0205 (9)	0.0395 (12)	−0.0036 (8)	0.0067 (8)	−0.0096 (8)
C22	0.0375 (12)	0.0239 (10)	0.0564 (14)	−0.0057 (9)	0.0075 (10)	−0.0232 (10)
C23	0.0432 (13)	0.0380 (12)	0.0502 (14)	−0.0044 (10)	−0.0023 (10)	−0.0317 (11)
C24	0.0393 (12)	0.0258 (10)	0.0308 (11)	−0.0025 (8)	−0.0102 (9)	0.0006 (8)
C25	0.0216 (9)	0.0240 (9)	0.0187 (9)	−0.0087 (7)	0.0029 (7)	−0.0047 (7)
C26	0.0204 (9)	0.0356 (11)	0.0272 (10)	−0.0105 (8)	0.0023 (7)	−0.0053 (8)
C27	0.0294 (10)	0.0348 (10)	0.0201 (9)	−0.0112 (8)	0.0056 (7)	−0.0074 (8)
C28	0.0349 (11)	0.0240 (10)	0.0270 (10)	−0.0121 (8)	0.0017 (8)	−0.0043 (8)
C29	0.0238 (9)	0.0329 (10)	0.0180 (9)	−0.0094 (8)	−0.0015 (7)	−0.0098 (7)
C30	0.0230 (9)	0.0239 (9)	0.0155 (8)	−0.0068 (7)	−0.0047 (7)	−0.0037 (7)
C31	0.0159 (9)	0.0262 (9)	0.0212 (9)	−0.0026 (7)	−0.0032 (7)	−0.0092 (7)
C32	0.0207 (9)	0.0306 (10)	0.0206 (9)	−0.0088 (7)	−0.0014 (7)	−0.0096 (7)
C33	0.0478 (14)	0.0267 (11)	0.0427 (13)	−0.0076 (9)	0.0027 (10)	−0.0172 (9)
N1	0.0263 (9)	0.0379 (10)	0.0278 (9)	−0.0016 (7)	0.0059 (7)	−0.0093 (7)
N2	0.0337 (9)	0.0321 (9)	0.0324 (9)	−0.0027 (7)	−0.0032 (7)	−0.0182 (7)
N3	0.0278 (8)	0.0246 (8)	0.0264 (8)	−0.0092 (6)	0.0039 (6)	−0.0115 (7)
O1	0.0336 (8)	0.0201 (7)	0.0396 (8)	−0.0038 (6)	0.0051 (6)	−0.0071 (6)
O2	0.0333 (7)	0.0175 (6)	0.0255 (7)	0.0008 (5)	−0.0056 (5)	−0.0045 (5)
O3	0.0344 (8)	0.0497 (9)	0.0267 (7)	−0.0140 (7)	0.0114 (6)	−0.0206 (7)
O4	0.0329 (8)	0.0432 (8)	0.0292 (7)	−0.0227 (7)	0.0070 (6)	−0.0110 (6)
P1	0.0154 (2)	0.0181 (2)	0.0162 (2)	−0.00396 (15)	0.00148 (15)	−0.00328 (16)
P2	0.0158 (2)	0.0173 (2)	0.0159 (2)	−0.00310 (15)	0.00078 (15)	−0.00596 (16)
Pd1	0.01458 (7)	0.01625 (7)	0.01513 (7)	−0.00324 (5)	0.00050 (4)	−0.00487 (5)
C34	0.044 (3)	0.030 (2)	0.102 (4)	−0.007 (2)	−0.013 (3)	−0.020 (3)
C35	0.051 (5)	0.035 (4)	0.101 (5)	−0.015 (4)	0.030 (4)	−0.029 (4)
C36	0.122 (5)	0.047 (3)	0.092 (5)	−0.008 (4)	0.039 (5)	−0.026 (3)
C37	0.129 (7)	0.053 (5)	0.087 (5)	−0.003 (5)	−0.014 (5)	−0.038 (4)
C38	0.077 (4)	0.045 (3)	0.078 (4)	−0.002 (3)	−0.014 (3)	−0.036 (3)
C39	0.042 (4)	0.042 (4)	0.103 (5)	−0.001 (4)	−0.013 (4)	−0.029 (4)
C40	0.118 (8)	0.045 (4)	0.144 (8)	−0.016 (5)	−0.085 (7)	−0.007 (5)

Geometric parameters (Å, º) top

C1—C2	1.511 (2)	C22—C23	1.378 (4)
C1—P1	1.8528 (18)	C22—H22	0.9500
C1—H1A	0.9900	C23—N2	1.341 (3)
C1—H1B	0.9900	C23—H23	0.9500
C2—C3	1.396 (3)	C24—O2	1.434 (2)
C2—C7	1.404 (3)	C24—H24A	0.9800
C3—C4	1.386 (3)	C24—H24B	0.9800
C3—H3	0.9500	C24—H24C	0.9800
C4—C5	1.384 (3)	C25—C27	1.531 (3)
C4—H4	0.9500	C25—C26	1.532 (3)
C5—C6	1.383 (3)	C25—C28	1.535 (3)
C5—H5	0.9500	C25—P2	1.8779 (18)
C6—C7	1.401 (3)	C26—H26A	0.9800
C6—H6	0.9500	C26—H26B	0.9800
C7—C8	1.508 (2)	C26—H26C	0.9800
C8—P2	1.8564 (18)	C27—H27A	0.9800
C8—H8A	0.9900	C27—H27B	0.9800
C8—H8B	0.9900	C27—H27C	0.9800
C9—N1	1.334 (3)	C28—H28A	0.9800
C9—C10	1.405 (3)	C28—H28B	0.9800
C9—P1	1.8427 (19)	C28—H28C	0.9800
C10—O1	1.357 (3)	C29—O3	1.219 (2)
C10—C11	1.391 (3)	C29—N3	1.395 (2)
C11—C12	1.379 (4)	C29—C30	1.471 (3)
C11—H11	0.9500	C30—C31	1.432 (3)
C12—C13	1.376 (4)	Pd1—C30	2.1174 (17)
C12—H12	0.9500	Pd1—C31	2.1343 (17)
C13—N1	1.339 (3)	C30—H30	0.95 (3)
C13—H13	0.9500	C31—C32	1.475 (3)
C14—O1	1.427 (3)	C31—H31	0.88 (3)
C14—H14A	0.9800	C32—O4	1.219 (2)
C14—H14B	0.9800	C32—N3	1.397 (2)
C14—H14C	0.9800	C33—N3	1.449 (3)
C15—C17	1.532 (3)	C33—H33A	0.9800
C15—C16	1.533 (3)	C33—H33B	0.9800
C15—C18	1.538 (3)	C33—H33C	0.9800
C15—P1	1.8687 (18)	Pd1—P1	2.2965 (4)
C16—H16A	0.9800	Pd1—P2	2.3058 (4)
C16—H16B	0.9800	C34—C35	1.3900
C16—H16C	0.9800	C34—C39	1.3900
C17—H17A	0.9800	C34—C40	1.503 (8)
C17—H17B	0.9800	C35—C36	1.3900
C17—H17C	0.9800	C35—H35	0.9500
C18—H18A	0.9800	C36—C37	1.3900
C18—H18B	0.9800	C36—H36	0.9500
C18—H18C	0.9800	C37—C38	1.3900
C19—N2	1.339 (3)	C37—H37	0.9500
C19—C20	1.413 (3)	C38—C39	1.3900
C19—P2	1.8593 (18)	C38—H38	0.9500
C20—O2	1.353 (2)	C39—H39	0.9500
C20—C21	1.393 (3)	C40—H40A	0.9800
C21—C22	1.376 (3)	C40—H40B	0.9800
C21—H21	0.9500	C40—H40C	0.9800

C2—C1—P1	115.20 (13)	C27—C25—C28	111.00 (16)
C2—C1—H1A	108.5	C26—C25—C28	109.01 (16)
P1—C1—H1A	108.5	C27—C25—P2	113.04 (13)
C2—C1—H1B	108.5	C26—C25—P2	107.15 (12)
P1—C1—H1B	108.5	C28—C25—P2	107.33 (12)
H1A—C1—H1B	107.5	C25—C26—H26A	109.5
C3—C2—C7	119.52 (17)	C25—C26—H26B	109.5
C3—C2—C1	118.43 (17)	H26A—C26—H26B	109.5
C7—C2—C1	121.98 (17)	C25—C26—H26C	109.5
C4—C3—C2	121.02 (18)	H26A—C26—H26C	109.5
C4—C3—H3	119.5	H26B—C26—H26C	109.5
C2—C3—H3	119.5	C25—C27—H27A	109.5
C5—C4—C3	119.93 (19)	C25—C27—H27B	109.5
C5—C4—H4	120.0	H27A—C27—H27B	109.5
C3—C4—H4	120.0	C25—C27—H27C	109.5
C6—C5—C4	119.41 (19)	H27A—C27—H27C	109.5
C6—C5—H5	120.3	H27B—C27—H27C	109.5
C4—C5—H5	120.3	C25—C28—H28A	109.5
C5—C6—C7	121.84 (18)	C25—C28—H28B	109.5
C5—C6—H6	119.1	H28A—C28—H28B	109.5
C7—C6—H6	119.1	C25—C28—H28C	109.5
C6—C7—C2	118.26 (17)	H28A—C28—H28C	109.5
C6—C7—C8	119.43 (17)	H28B—C28—H28C	109.5
C2—C7—C8	122.14 (16)	O3—C29—N3	123.79 (19)
C7—C8—P2	116.59 (13)	O3—C29—C30	129.50 (18)
C7—C8—H8A	108.1	N3—C29—C30	106.70 (16)
P2—C8—H8A	108.1	C31—C30—C29	107.62 (16)
C7—C8—H8B	108.1	C31—C30—Pd1	70.96 (10)
P2—C8—H8B	108.1	C29—C30—Pd1	111.37 (12)
H8A—C8—H8B	107.3	C31—C30—H30	125.4 (16)
N1—C9—C10	121.87 (18)	C29—C30—H30	119.0 (16)
N1—C9—P1	119.68 (15)	Pd1—C30—H30	112.6 (16)
C10—C9—P1	118.41 (14)	C30—C31—C32	107.13 (16)
O1—C10—C11	124.5 (2)	C30—C31—Pd1	69.68 (10)
O1—C10—C9	116.40 (17)	C32—C31—Pd1	110.84 (12)
C11—C10—C9	119.1 (2)	C30—C31—H31	126.7 (16)
C12—C11—C10	118.4 (2)	C32—C31—H31	118.1 (16)
C12—C11—H11	120.8	Pd1—C31—H31	114.6 (16)
C10—C11—H11	120.8	O4—C32—N3	122.77 (18)
C13—C12—C11	118.9 (2)	O4—C32—C31	130.48 (18)
C13—C12—H12	120.5	N3—C32—C31	106.75 (16)
C11—C12—H12	120.5	N3—C33—H33A	109.5
N1—C13—C12	123.7 (2)	N3—C33—H33B	109.5
N1—C13—H13	118.2	H33A—C33—H33B	109.5
C12—C13—H13	118.2	N3—C33—H33C	109.5
O1—C14—H14A	109.5	H33A—C33—H33C	109.5
O1—C14—H14B	109.5	H33B—C33—H33C	109.5
H14A—C14—H14B	109.5	C9—N1—C13	118.1 (2)
O1—C14—H14C	109.5	C19—N2—C23	118.76 (19)
H14A—C14—H14C	109.5	C29—N3—C32	111.78 (16)
H14B—C14—H14C	109.5	C29—N3—C33	123.69 (17)
C17—C15—C16	110.28 (16)	C32—N3—C33	124.53 (17)
C17—C15—C18	108.77 (17)	C10—O1—C14	118.36 (17)
C16—C15—C18	108.78 (17)	C20—O2—C24	118.15 (15)
C17—C15—P1	108.17 (14)	C9—P1—C1	98.98 (8)
C16—C15—P1	114.86 (13)	C9—P1—C15	107.32 (9)
C18—C15—P1	105.75 (13)	C1—P1—C15	102.25 (8)
C15—C16—H16A	109.5	C9—P1—Pd1	112.72 (6)
C15—C16—H16B	109.5	C1—P1—Pd1	119.64 (6)
H16A—C16—H16B	109.5	C15—P1—Pd1	114.18 (6)
C15—C16—H16C	109.5	C8—P2—C19	98.06 (8)
H16A—C16—H16C	109.5	C8—P2—C25	106.08 (8)
H16B—C16—H16C	109.5	C19—P2—C25	102.72 (8)
C15—C17—H17A	109.5	C8—P2—Pd1	117.16 (6)
C15—C17—H17B	109.5	C19—P2—Pd1	112.36 (6)
H17A—C17—H17B	109.5	C25—P2—Pd1	117.81 (6)
C15—C17—H17C	109.5	C30—Pd1—C31	39.36 (7)
H17A—C17—H17C	109.5	C30—Pd1—P1	107.67 (5)
H17B—C17—H17C	109.5	C31—Pd1—P1	146.86 (5)
C15—C18—H18A	109.5	C30—Pd1—P2	149.41 (5)
C15—C18—H18B	109.5	C31—Pd1—P2	111.69 (5)
H18A—C18—H18B	109.5	P1—Pd1—P2	101.314 (15)
C15—C18—H18C	109.5	C35—C34—C39	120.0
H18A—C18—H18C	109.5	C35—C34—C40	121.8 (6)
H18B—C18—H18C	109.5	C39—C34—C40	118.2 (6)
N2—C19—C20	121.18 (17)	C34—C35—C36	120.0
N2—C19—P2	116.31 (14)	C34—C35—H35	120.0
C20—C19—P2	122.42 (14)	C36—C35—H35	120.0
O2—C20—C21	124.05 (18)	C35—C36—C37	120.0
O2—C20—C19	116.89 (16)	C35—C36—H36	120.0
C21—C20—C19	119.06 (18)	C37—C36—H36	120.0
C22—C21—C20	118.6 (2)	C38—C37—C36	120.0
C22—C21—H21	120.7	C38—C37—H37	120.0
C20—C21—H21	120.7	C36—C37—H37	120.0
C21—C22—C23	119.22 (19)	C39—C38—C37	120.0
C21—C22—H22	120.4	C39—C38—H38	120.0
C23—C22—H22	120.4	C37—C38—H38	120.0
N2—C23—C22	123.1 (2)	C38—C39—C34	120.0
N2—C23—H23	118.4	C38—C39—H39	120.0
C22—C23—H23	118.4	C34—C39—H39	120.0
O2—C24—H24A	109.5	C34—C40—H40A	109.5
O2—C24—H24B	109.5	C34—C40—H40B	109.5
H24A—C24—H24B	109.5	H40A—C40—H40B	109.5
O2—C24—H24C	109.5	C34—C40—H40C	109.5
H24A—C24—H24C	109.5	H40A—C40—H40C	109.5
H24B—C24—H24C	109.5	H40B—C40—H40C	109.5
C27—C25—C26	109.17 (16)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C3—H3···O4ⁱ	0.95	2.54	3.480 (2)	172
C12—H12···O3ⁱⁱ	0.95	2.37	3.281 (3)	161
C38—H38···N2ⁱⁱⁱ	0.95	2.60	3.462 (5)	151

Symmetry codes: (i) x+1, y, z; (ii) −x+2, −y, −z; (iii) x−1, y, z.

References

Bruker (2013). SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Bruker (2014). APEX2 . Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Dong, K., Fang, X., Gülak, S., Franke, R., Spannenberg, A., Neumann, H., Jackstell, R. & Beller, M. (2017). Nat. Commun. 8, 14117–14124. CSD CrossRef PubMed Google Scholar
Eastham, G. R., Cameron, P. A., Tooze, R. P., Cavell, K. J., Edwards, P. G. & Coleman, D. L. (2004). World Patent. WO2004014552A1. Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
