2-Amino-6-nitro-1,3-benzo­thia­zol-3-ium 3-carb­oxy-4-hy­droxy­benzene-1-sulfonate

Tsemeugne, J.; Djossu, D.F.K.; Schollmeyer, D.; Mkounga, P.

doi:10.1107/S241431462500478X

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 5| May 2025| x250478

https://doi.org/10.1107/S241431462500478X

Open

access

2-Amino-6-nitro-1,3-benzothiazol-3-ium 3-carboxy-4-hydroxybenzene-1-sulfonate

Joseph Tsemeugne,^a ^* Didier Forest Kouganou Djossu,^a Dieter Schollmeyer ^b and Pierre Mkounga ^a

^aLaboratory of Natural Products and Applied Organic Synthesis (LANAPOS), Department of Organic Chemistry, Faculty of Science, University of Yaounde I, PO Box 812 Yaounde, Republic of , Cameroon, and ^bDepartment of Chemistry, University of Mainz, Duesbergweg 10-14, 55099 Mainz, Germany
^*Correspondence e-mail: [email protected]

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 15 May 2025; accepted 26 May 2025; online 30 May 2025)

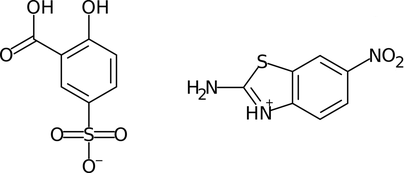

In the title salt, C₇H₆N₃O₂S⁺·C₇H₅O₆S⁻, the cation is protonated at the thiazole N atom and the dihedral angle between the nitro group and its attached benzene ring is 3.6 (4)°. In the anion, the sulfonate group is deprotonated and the dihedral angle between the carboxylic acid grouping and its attached ring is 7.1 (4)° and an intramolecular O—H⋯O hydrogen bond occurs. In the crystal, cation-to-anion N—H⋯O and anion-to-anion O—H⋯O hydrogen bonds link the component ions into (101) sheets. Aromatic π–π stacking and weak C—H⋯O and C—H⋯S interactions also occur.

Keywords: crystal structure; salt; hydrogen bonding.

CCDC reference: 2431842

Structure description

Salicylic acid and benzothiazole derivatives are present in several skeletons with different biological activities (Pavle et al., 2015 ; Ekinci et al., 2011 ; Yadav et al., 2023 ; Djuidje et al., 2022 ). The assembly of several pharmacophores within a single skeleton, known as hybrid molecules (Shaveta et al., 2016 ), is an emerging approach to drug design. The association of pharmacophores into one molecule can be achieved through the creation of strong σ bonds or by the formation of ionic bonds through the synthesis of salts (Singh et al., 2022 ). The formulation of drugs in salt form has the advantage of improving the solubility of the active ingredient in the physiological fluids (Gupta et al., 2018 ), as well as solving problems of stability, toxicity, and low absorption (Sekhon, 2011 ). Salts of benzothiazole derivatives possess auxin-like activity (Giannella et al., 1971 ), while salts of salicylic acid are used in the flavoring of foods, sweets, beverages and pharmaceuticals (Ekinci et al., 2011).

The combination of salicylic acid and 2-aminobenzothiazole fragments could lead to a hybrid salt that combines the biological potentials of the different fragments and we now describe the structure of the title molecular salt, C₇H₆N₃O₂S⁺·C₇H₅O₆S⁻ (Fig. 1). The cation is protonated at the thiazole N23 atom and the dihedral angle between the N24/O26/O27 nitro group and its attached C15–C20 benzene ring is 3.6 (4)°. In the anion, the S9/O10/O11/O12 sulfonate group is deprotonated and the dihedral angle between the C7/O13/O14 carboxylic acid grouping and its attached C1–C6 ring is 7.1 (2)°. An intramolecular O8—H8⋯O13 hydrogen bond (Table 1) occurs in the anion. The cation and anion in the asymmetric unit lie in approximately the same plane with a dihedral angle between the best planes through the ring systems of 10.75 (12)°.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O8—H8⋯O13	0.81 (5)	1.94 (5)	2.631 (4)	143 (5)
O14—H144⋯O12ⁱ	0.87 (5)	1.70 (5)	2.564 (3)	168 (5)
N23—H23⋯O11	0.82 (5)	1.95 (5)	2.682 (4)	150 (4)
N25—H25A⋯O11	0.89 (5)	2.20 (5)	2.920 (4)	138 (4)
N25—H25A⋯O13ⁱⁱ	0.89 (5)	2.42 (5)	2.964 (4)	119 (4)
N25—H25B⋯O10ⁱⁱⁱ	0.90 (5)	2.19 (5)	2.967 (4)	144 (4)
N25—H25B⋯O26^iv	0.90 (5)	2.51 (5)	3.177 (4)	132 (4)
C3—H3⋯S21^v	0.95	2.85	3.670 (4)	145
C6—H6⋯O8^vi	0.95	2.60	3.446 (4)	149
C20—H20⋯O14	0.95	2.50	3.413 (4)	160
Symmetry codes: (i) $[x-{\script{1\over 2}}, -y+{\script{1\over 2}}, z-{\script{1\over 2}}]$ ; (ii) $[x+{\script{1\over 2}}, -y+{\script{1\over 2}}, z+{\script{1\over 2}}]$ ; (iii) ; (iv) $[x+{\script{1\over 2}}, -y+{\script{3\over 2}}, z+{\script{1\over 2}}]$ ; (v) ; (vi) $[-x+{\script{3\over 2}}, y+{\script{1\over 2}}, -z+{\script{1\over 2}}]$ .

Figure 1
The asymmetric unit of the title compound with displacement ellipsoids drawn at the 50% probability level.

In the crystal (Fig. 2), anion-to-anion O14—H144⋯O12 hydrogen bonds link the anions into [10 $[\overline{1}]$ ] chains and cation-to-anion N—H⋯O links generate (10 $[\overline{1}]$ ) sheets. Aromatic π–π stacking with a centroid–centroid distance of 3.7043 (18) Å and a slippage of 0.862 Å occurs between the centroids of the C1–C6 and C15–C20 benzene rings and weak C—H⋯O and C—H⋯S interactions also occur.

Figure 2
Part of the packing diagram viewed along b-axis direction. Hydrogen bonds are shown with dashed lines. Hydrogen atoms attached to carbon atoms are omitted for clarity.

Synthesis and crystallization

A mixture of 5 ml of an ethanolic solution of 2-amino-6-nitrobenzothiazole (0.975 g, 5 mmol) and 5 ml of an ethanolic solution of sulfosalicylic acid (1.225 g, 5 mmol) was refluxed for 2 h. The yellow crystalline precipitate was collected on a filter and recrystallized from ethanol solution to give 1.951 g (98%) of the title salt in the form of yellow blocks. For spectroscopic and analytical details, see Djossu et al. (2025 ).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Table 2
Experimental details

Crystal data
Chemical formula	C₇H₆N₃O₂S⁺·C₇H₅O₆S⁻
M_r	413.38
Crystal system, space group	Monoclinic, P2₁/n
Temperature (K)	120
a, b, c (Å)	7.8421 (3), 12.3037 (5), 16.0821 (6)
β (°)	96.081 (3)
V (Å³)	1542.98 (10)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.40
Crystal size (mm)	0.15 × 0.08 × 0.05

Data collection
Diffractometer	Stoe IPDS 2T
Absorption correction	Integration (X-RED; Stoe & Cie, 2020 )
T_min, T_max	0.952, 0.977
No. of measured, independent and observed [I > 2σ(I)] reflections	7249, 3652, 2894
R_int	0.036
(sin θ/λ)_max (Å⁻¹)	0.659

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.060, 0.147, 1.16
No. of reflections	3652
No. of parameters	259
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.52, −0.54
Computer programs: X-AREA WinXpose, Recipe and Integrate (Stoe & Cie, 2020), SHELXT2014 (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ) and PLATON (Spek, 2009 ).

Structural data

CCDC reference: 2431842

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S241431462500478X/hb4518sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S241431462500478X/hb4518Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S241431462500478X/hb4518Isup3.cml

checkCIF report

Computing details top

2-Amino-6-nitro-1,3-benzothiazol-3-ium 3-carboxy-4-hydroxybenzene-1-sulfonate top

Crystal data top

C₇H₆N₃O₂S⁺·C₇H₅O₆S⁻	F(000) = 848
M_r = 413.38	D_x = 1.779 Mg m⁻³
Monoclinic, P2₁/n	Mo Kα radiation, λ = 0.71073 Å
a = 7.8421 (3) Å	Cell parameters from 7727 reflections
b = 12.3037 (5) Å	θ = 2.8–28.4°
c = 16.0821 (6) Å	µ = 0.40 mm⁻¹
β = 96.081 (3)°	T = 120 K
V = 1542.98 (10) Å³	Block, yellow
Z = 4	0.15 × 0.08 × 0.05 mm

Data collection top

Stoe IPDS 2T diffractometer	3652 independent reflections
Radiation source: sealed X-ray tube, 12x0.4mm long-fine focus	2894 reflections with I > 2σ(I)
Detector resolution: 6.67 pixels mm^-1	R_int = 0.036
rotation method, ω scans	θ_max = 28.0°, θ_min = 2.8°
Absorption correction: integration (X-RED; Stoe & Cie, 2020)	h = −10→10
T_min = 0.952, T_max = 0.977	k = −16→14
7249 measured reflections	l = −21→19

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.060	H atoms treated by a mixture of independent and constrained refinement
wR(F²) = 0.147	w = 1/[σ²(F_o²) + (0.0372P)² + 5.2258P] where P = (F_o² + 2F_c²)/3
S = 1.16	(Δ/σ)_max < 0.001
3652 reflections	Δρ_max = 0.52 e Å⁻³
259 parameters	Δρ_min = −0.54 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Hydrogen atoms attached to carbon atoms were placed at calculated positions and were refined in the riding-model approximation with C—H = 0.99 Å and U_iso(H) = 1.2 U_eq(C).

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.6518 (4)	0.0838 (3)	0.2698 (2)	0.0158 (6)
C2	0.6533 (4)	−0.0250 (3)	0.2968 (2)	0.0192 (7)
C3	0.7293 (4)	−0.0523 (3)	0.3765 (2)	0.0195 (7)
H3	0.731183	−0.125786	0.394662	0.023*
C4	0.8015 (4)	0.0278 (3)	0.4288 (2)	0.0182 (7)
H4	0.849399	0.009402	0.483748	0.022*
C5	0.8050 (4)	0.1353 (3)	0.4021 (2)	0.0159 (6)
C6	0.7324 (4)	0.1627 (3)	0.3226 (2)	0.0166 (6)
H6	0.737463	0.235728	0.303905	0.020*
C7	0.5593 (4)	0.1147 (3)	0.1885 (2)	0.0178 (6)
O8	0.5814 (3)	−0.1059 (2)	0.24785 (17)	0.0249 (6)
H8	0.544 (6)	−0.083 (4)	0.202 (3)	0.037*
S9	0.89932 (10)	0.23678 (7)	0.46895 (5)	0.01698 (19)
O10	1.0829 (3)	0.2334 (2)	0.46593 (17)	0.0284 (6)
O11	0.8229 (3)	0.3393 (2)	0.44040 (16)	0.0271 (6)
O12	0.8540 (3)	0.2077 (2)	0.55230 (15)	0.0253 (6)
O13	0.4885 (3)	0.0483 (2)	0.13908 (15)	0.0218 (5)
O14	0.5567 (3)	0.2203 (2)	0.17555 (15)	0.0225 (5)
H144	0.494 (6)	0.238 (4)	0.129 (3)	0.034*
C15	0.3114 (4)	0.5144 (3)	0.1841 (2)	0.0215 (7)
H15	0.266975	0.475166	0.135708	0.026*
C16	0.2677 (4)	0.6222 (3)	0.1932 (2)	0.0201 (7)
C17	0.3252 (4)	0.6844 (3)	0.2627 (2)	0.0197 (7)
H17	0.293611	0.758544	0.267279	0.024*
C18	0.4311 (4)	0.6325 (3)	0.3250 (2)	0.0186 (7)
C19	0.4790 (4)	0.5237 (3)	0.3160 (2)	0.0178 (6)
C20	0.4201 (4)	0.4638 (3)	0.2456 (2)	0.0206 (7)
H20	0.453567	0.390245	0.239810	0.025*
S21	0.52666 (11)	0.68751 (7)	0.41888 (6)	0.0212 (2)
C22	0.6366 (4)	0.5670 (3)	0.4408 (2)	0.0178 (6)
N23	0.5936 (4)	0.4905 (2)	0.38293 (18)	0.0174 (6)
H23	0.639 (5)	0.431 (4)	0.389 (3)	0.026*
N24	0.1552 (4)	0.6738 (2)	0.12574 (18)	0.0210 (6)
N25	0.7462 (4)	0.5524 (3)	0.50724 (19)	0.0223 (6)
H25A	0.793 (6)	0.487 (4)	0.515 (3)	0.033*
H25B	0.779 (6)	0.612 (4)	0.537 (3)	0.033*
O26	0.1226 (3)	0.7708 (2)	0.13176 (16)	0.0264 (6)
O27	0.0987 (3)	0.6171 (2)	0.06582 (16)	0.0267 (6)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0164 (14)	0.0157 (15)	0.0157 (14)	−0.0001 (12)	0.0034 (11)	−0.0020 (12)
C2	0.0161 (15)	0.0190 (17)	0.0228 (16)	−0.0018 (12)	0.0035 (12)	−0.0061 (13)
C3	0.0197 (16)	0.0137 (15)	0.0252 (17)	−0.0016 (12)	0.0027 (13)	0.0022 (13)
C4	0.0187 (15)	0.0192 (17)	0.0165 (15)	0.0022 (12)	0.0007 (12)	−0.0002 (12)
C5	0.0168 (15)	0.0133 (15)	0.0177 (15)	−0.0004 (11)	0.0020 (12)	−0.0020 (12)
C6	0.0169 (15)	0.0131 (15)	0.0202 (15)	−0.0008 (12)	0.0036 (12)	−0.0001 (12)
C7	0.0162 (15)	0.0206 (17)	0.0171 (15)	0.0012 (12)	0.0044 (12)	−0.0009 (13)
O8	0.0319 (14)	0.0145 (12)	0.0270 (13)	−0.0026 (10)	−0.0033 (11)	−0.0019 (10)
S9	0.0175 (4)	0.0133 (4)	0.0195 (4)	0.0008 (3)	−0.0009 (3)	−0.0015 (3)
O10	0.0186 (12)	0.0311 (15)	0.0353 (14)	−0.0030 (11)	0.0022 (10)	−0.0080 (12)
O11	0.0351 (14)	0.0142 (12)	0.0294 (14)	0.0026 (10)	−0.0090 (11)	−0.0037 (10)
O12	0.0298 (14)	0.0267 (14)	0.0189 (12)	−0.0043 (11)	0.0009 (10)	−0.0006 (10)
O13	0.0251 (13)	0.0188 (12)	0.0207 (12)	−0.0002 (10)	−0.0009 (10)	−0.0058 (10)
O14	0.0307 (13)	0.0174 (12)	0.0177 (11)	−0.0008 (10)	−0.0052 (10)	0.0026 (9)
C15	0.0224 (17)	0.0212 (18)	0.0214 (16)	−0.0033 (13)	0.0048 (13)	−0.0024 (13)
C16	0.0167 (15)	0.0218 (17)	0.0222 (16)	−0.0003 (13)	0.0036 (12)	0.0093 (13)
C17	0.0185 (15)	0.0155 (16)	0.0255 (17)	0.0000 (12)	0.0047 (13)	0.0027 (13)
C18	0.0159 (15)	0.0151 (16)	0.0251 (17)	−0.0012 (12)	0.0042 (12)	0.0007 (13)
C19	0.0159 (15)	0.0172 (16)	0.0211 (16)	−0.0006 (12)	0.0055 (12)	0.0032 (12)
C20	0.0219 (16)	0.0163 (16)	0.0244 (17)	−0.0028 (13)	0.0065 (13)	0.0008 (13)
S21	0.0220 (4)	0.0147 (4)	0.0261 (4)	0.0025 (3)	−0.0006 (3)	−0.0024 (3)
C22	0.0168 (15)	0.0143 (16)	0.0234 (16)	−0.0008 (12)	0.0072 (12)	0.0021 (13)
N23	0.0167 (13)	0.0122 (13)	0.0234 (14)	0.0018 (10)	0.0028 (11)	−0.0002 (11)
N24	0.0197 (14)	0.0214 (15)	0.0226 (14)	−0.0009 (11)	0.0049 (11)	0.0023 (12)
N25	0.0228 (15)	0.0196 (15)	0.0240 (15)	0.0018 (12)	−0.0002 (12)	−0.0015 (12)
O26	0.0306 (14)	0.0211 (13)	0.0277 (13)	0.0056 (11)	0.0037 (11)	0.0016 (10)
O27	0.0275 (13)	0.0300 (15)	0.0225 (12)	−0.0020 (11)	0.0020 (10)	−0.0013 (11)

Geometric parameters (Å, º) top

C1—C6	1.397 (4)	C15—C20	1.384 (5)
C1—C2	1.407 (5)	C15—H15	0.9500
C1—C7	1.477 (4)	C16—C17	1.389 (5)
C2—O8	1.354 (4)	C16—N24	1.468 (4)
C2—C3	1.396 (5)	C17—C18	1.388 (5)
C3—C4	1.377 (5)	C17—H17	0.9500
C3—H3	0.9500	C18—C19	1.402 (5)
C4—C5	1.393 (5)	C18—S21	1.748 (4)
C4—H4	0.9500	C19—N23	1.388 (4)
C5—C6	1.384 (4)	C19—C20	1.389 (5)
C5—S9	1.759 (3)	C20—H20	0.9500
C6—H6	0.9500	S21—C22	1.732 (3)
C7—O13	1.230 (4)	C22—N25	1.312 (5)
C7—O14	1.316 (4)	C22—N23	1.341 (4)
O8—H8	0.81 (5)	N23—H23	0.82 (5)
S9—O10	1.446 (3)	N24—O26	1.226 (4)
S9—O11	1.450 (3)	N24—O27	1.233 (4)
S9—O12	1.467 (3)	N25—H25A	0.89 (5)
O14—H144	0.87 (5)	N25—H25B	0.90 (5)
C15—C16	1.382 (5)

C6—C1—C2	119.0 (3)	C16—C15—H15	120.1
C6—C1—C7	120.5 (3)	C20—C15—H15	120.1
C2—C1—C7	120.4 (3)	C15—C16—C17	123.5 (3)
O8—C2—C3	117.9 (3)	C15—C16—N24	118.2 (3)
O8—C2—C1	122.0 (3)	C17—C16—N24	118.3 (3)
C3—C2—C1	120.0 (3)	C18—C17—C16	116.5 (3)
C4—C3—C2	119.8 (3)	C18—C17—H17	121.8
C4—C3—H3	120.1	C16—C17—H17	121.8
C2—C3—H3	120.1	C17—C18—C19	120.7 (3)
C3—C4—C5	120.7 (3)	C17—C18—S21	127.9 (3)
C3—C4—H4	119.6	C19—C18—S21	111.3 (3)
C5—C4—H4	119.6	N23—C19—C20	127.4 (3)
C6—C5—C4	119.8 (3)	N23—C19—C18	111.1 (3)
C6—C5—S9	119.8 (3)	C20—C19—C18	121.4 (3)
C4—C5—S9	120.4 (2)	C15—C20—C19	118.1 (3)
C5—C6—C1	120.5 (3)	C15—C20—H20	120.9
C5—C6—H6	119.7	C19—C20—H20	120.9
C1—C6—H6	119.7	C22—S21—C18	90.16 (16)
O13—C7—O14	123.7 (3)	N25—C22—N23	124.3 (3)
O13—C7—C1	123.1 (3)	N25—C22—S21	123.5 (3)
O14—C7—C1	113.1 (3)	N23—C22—S21	112.2 (3)
C2—O8—H8	111 (4)	C22—N23—C19	115.1 (3)
O10—S9—O11	113.18 (17)	C22—N23—H23	118 (3)
O10—S9—O12	111.24 (16)	C19—N23—H23	127 (3)
O11—S9—O12	111.68 (16)	O26—N24—O27	123.4 (3)
O10—S9—C5	108.34 (16)	O26—N24—C16	118.4 (3)
O11—S9—C5	106.91 (15)	O27—N24—C16	118.1 (3)
O12—S9—C5	105.01 (15)	C22—N25—H25A	118 (3)
C7—O14—H144	112 (3)	C22—N25—H25B	116 (3)
C16—C15—C20	119.8 (3)	H25A—N25—H25B	125 (4)

C6—C1—C2—O8	−178.3 (3)	C20—C15—C16—N24	178.6 (3)
C7—C1—C2—O8	4.6 (5)	C15—C16—C17—C18	−0.3 (5)
C6—C1—C2—C3	2.3 (5)	N24—C16—C17—C18	180.0 (3)
C7—C1—C2—C3	−174.9 (3)	C16—C17—C18—C19	1.4 (5)
O8—C2—C3—C4	−179.0 (3)	C16—C17—C18—S21	179.1 (3)
C1—C2—C3—C4	0.5 (5)	C17—C18—C19—N23	176.1 (3)
C2—C3—C4—C5	−2.3 (5)	S21—C18—C19—N23	−1.9 (3)
C3—C4—C5—C6	1.2 (5)	C17—C18—C19—C20	−1.2 (5)
C3—C4—C5—S9	−179.4 (3)	S21—C18—C19—C20	−179.2 (3)
C4—C5—C6—C1	1.6 (5)	C16—C15—C20—C19	1.4 (5)
S9—C5—C6—C1	−177.8 (2)	N23—C19—C20—C15	−177.1 (3)
C2—C1—C6—C5	−3.3 (5)	C18—C19—C20—C15	−0.3 (5)
C7—C1—C6—C5	173.9 (3)	C17—C18—S21—C22	−174.8 (3)
C6—C1—C7—O13	178.8 (3)	C19—C18—S21—C22	3.1 (3)
C2—C1—C7—O13	−4.1 (5)	C18—S21—C22—N25	177.7 (3)
C6—C1—C7—O14	−3.0 (4)	C18—S21—C22—N23	−3.6 (3)
C2—C1—C7—O14	174.2 (3)	N25—C22—N23—C19	−178.1 (3)
C6—C5—S9—O10	−99.3 (3)	S21—C22—N23—C19	3.3 (4)
C4—C5—S9—O10	81.3 (3)	C20—C19—N23—C22	176.2 (3)
C6—C5—S9—O11	23.0 (3)	C18—C19—N23—C22	−0.9 (4)
C4—C5—S9—O11	−156.4 (3)	C15—C16—N24—O26	−176.6 (3)
C6—C5—S9—O12	141.7 (3)	C17—C16—N24—O26	3.1 (4)
C4—C5—S9—O12	−37.6 (3)	C15—C16—N24—O27	3.3 (4)
C20—C15—C16—C17	−1.1 (5)	C17—C16—N24—O27	−177.0 (3)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
O8—H8···O13	0.81 (5)	1.94 (5)	2.631 (4)	143 (5)
O14—H144···O12ⁱ	0.87 (5)	1.70 (5)	2.564 (3)	168 (5)
N23—H23···O11	0.82 (5)	1.95 (5)	2.682 (4)	150 (4)
N25—H25A···O11	0.89 (5)	2.20 (5)	2.920 (4)	138 (4)
N25—H25A···O13ⁱⁱ	0.89 (5)	2.42 (5)	2.964 (4)	119 (4)
N25—H25B···O10ⁱⁱⁱ	0.90 (5)	2.19 (5)	2.967 (4)	144 (4)
N25—H25B···O26^iv	0.90 (5)	2.51 (5)	3.177 (4)	132 (4)
C3—H3···S21^v	0.95	2.85	3.670 (4)	145
C6—H6···O8^vi	0.95	2.60	3.446 (4)	149
C20—H20···O14	0.95	2.50	3.413 (4)	160

Symmetry codes: (i) x−1/2, −y+1/2, z−1/2; (ii) x+1/2, −y+1/2, z+1/2; (iii) −x+2, −y+1, −z+1; (iv) x+1/2, −y+3/2, z+1/2; (v) x, y−1, z; (vi) −x+3/2, y+1/2, −z+1/2.

References

Djossu, F. K. D., Tsemeugne, J., Mbarga, P. E., Tamokou, J. D. D., Matsuete, T. G., Tsamo, T. A., Sielinou, T. V., Mmutlane, E. M., Mkounga, P., Schollmeyer, D., Sopbué, F. E. & Nkengfack Augustin, A. E. (2025). Fut. Med. Chem. (submitted March 2025). Google Scholar
Djuidje, E. N., Barbari, R., Baldisserotto, A., Durini, E., Sciabica, S., Balzarini, J., Liekens, S., Vertuani, S. & Manfredini, S. (2022). Antioxidants 11, 407. CrossRef PubMed Google Scholar
Ekinci, D., Şentürk, M., Küfrevioğlu, Ö. İ. & Öİ, (2011). Expert Opin. Ther. Pat. 21, 1831–1841. Google Scholar
Giannella, M., Gualtieri, F. & Melchiorre, C. (1971). Phytochemistry 10, 539–544. CrossRef CAS Google Scholar
Gupta, D., Bhatia, D., Dave, V., Sutariya, V. & Varghese Gupta, S. (2018). Molecules 23, 1719. CrossRef PubMed Google Scholar
Pavle, R., Slavimir, V., Nenad, S., Dušan, S., Ivan, I., Darko, L., Dušica, R. & Nebojša, R. (2015). Acta Fac. Med. Naissensis 32, 259-265. Google Scholar
Sekhon, B. S. (2011). Asian J. Pharm. Biol. Res. 01, 395–411. CAS Google Scholar
Shaveta, , Mishra, S. & Singh, P. (2016). Eur. J. Med. Chem. 124, 500–536. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Singh, A. K., Kumar, A., Singh, H., Sonawane, P., Paliwal, H., Thareja, S., Pathak, P., Grishina, M., Jaremko, M., Emwas, A.-H., et al. (2022). Pharmaceuticals 15, 1071. CrossRef PubMed Google Scholar
Spek, A. L. (2009). Acta Cryst. D65, 148–155. Web of Science CrossRef CAS IUCr Journals Google Scholar
Stoe & Cie (2020). X-RED and X-AREA. Stoe & Cie, Darmstadt, Germany. Google Scholar
Yadav, K. P., Rahman, M. A., Nishad, S., Maurya, S. K., Anas, M. & Mujahid, M. (2023). Intelligent Pharmacy 01, 122–132. CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
