metal-organic compounds
Bis[5-(anthracen-9-ylmethyl)-1,5,9-triazacyclododecan-1-ium] tetrachloridozincate
aFaculty of Pharmaceutical Sciences, Shonan University of Medical Sciences, 16-48, Kamishinano, Totsuka-ku, Yokohama, 244-0806, Japan, and bCollege of Pharmacy, Kinjo Gakuin University, 2-1723 Omori, Moriyamaku, Nagoya, 463-8521, Japan
*Correspondence e-mail: h-kurosaki@kinjo-u.ac.jp

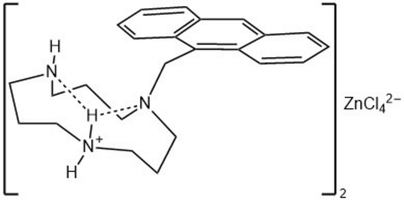

A crystalline salt comprising two monoprotonated polyamine ligands and one tetrachlorozincate(II) anion was prepared, (C24H32N3)2[ZnCl4], and its was analyzed and compared with those of structurally related compounds bearing different macrocyclic frameworks and pendant arms. The protonated nitrogen atoms engaged in intramolecular hydrogen bonding with other nitrogen atoms within the macrocyclic ring. In the crystal, the pendant anthracene groups participated in intermolecular π–π and C—H⋯π interactions, contributing to crystal cohesion.
Keywords: crystal structure; polyamine; [12]aneN3; anthracene.
CCDC reference: 2445226
![[Scheme 3D1]](bx4034scheme3D1.gif)
![[Scheme 1]](bx4034scheme1.gif)
Structure description
The title complex is a salt comprising two monoprotonated cationic molecules of 1-(anthracen-9-ylmethyl)-1,5,9-triazacyclododecane (Ant-[12]aneN3, 1) and a zinc tetrachloride ion (see Fig. 1 for chemical structure). Ant-[12]aneN3 was designed as a ligand for DNA photocleavage by connecting the 1,5,9-triazacyclododecane ([12]aneN3, 2) moiety as the ligand for the zinc(II) ion with an anthracene molecule as the photosensitizing species through a methylene spacer (Ichimaru et al., 2025
). The zinc complex of [12]aneN3 is known as a model compound for the active center of the zinc enzyme carbonic anhydrase (Kimura et al., 1990
). In the crystal of [12]aneN3 with zinc thiocyanate [ZnII–2](SCN)2, three nitrogen atoms of the polyamine ring and two thiocyanate ions are coordinated to the zinc(II) ion (Kimura et al., 1992
). In contrast with [ZnII–2](SCN)2, in which none of the nitrogen atoms in the polyamine ring is protonated, one of the nitrogen atoms of Ant-[12]aneN3 is monoprotonated ([1·H]+) in the title complex and the nitrogen atoms of the polyamine ring are not chelated to the zinc(II) ion. Hubsch-Weber and Youinou synthesized 1-benzyl-1,5,9-triazacyclododecane (3) and reported the of the diprotonated cation ([3·H2]2+) formed via the reaction of 3 with Zn(ClO4)2·6H2O (Hubsch-Weber & Youinou, 1997
). The crystal structures of ligands 1 and 3 bearing different pendant substituents exhibit interesting differences. The structural features of the title complex are described below in comparison with those of [3·H2]2+.
![]() | Figure 1 Chemical structures of the compounds referred to in the text. |
The 1·H]+ molecules (designated as molecules A and B) and one tetrachlorozincate(II) (ZnCl42−) anion, without solvent molecules or additional counter-ions. The presence of ZnCl42−, which is commonly formed in reactions involving zinc chloride (ZnCl2) (Al-Resayes et al., 2017), confirms that both ligands are monoprotonated, consistent with the observed electron density (Fig. 2
). Molecules A and B are conformational isomers and contain three types of nitrogen atoms: tertiary nitrogen atoms (N1 and N4), protonated secondary nitrogen atoms (N2 and N5), and nonprotonated secondary nitrogen atoms (N3 and N6). The structural overlay diagram (Fig. 2
) reveals that A and B are nonsuperimposable. Despite exhibiting opposite chiral conformations, A and B are not true enantiomers owing to differences in the nitrogen atom geometries and the centrosymmetric P21/c.
![]() | Figure 2 The cations (molecules A and B) of the title compound, with displacement ellipsoids drawn at the 50% probability level, and their overlay diagram. Carbon-bound hydrogen atoms are omitted for clarity. In the overlay diagram, molecule B is shown in green. |
A key factor influencing the nitrogen atom geometry is the hydrogen-bonding network (Fig. 3). The H2A and H5A atoms bonded to protonated N2 and N5 form hydrogen bonds with Cl1. The distances between H2A and H5A and the acceptor, i.e., N2—H2A⋯Cl1 and N5—H5A⋯Cl1, are nearly equal, i.e., 2.39 (3) and 2.42 (3) Å, respectively (Table 1
). The other H atoms hydrogen bonded to N2 and N5, respectively, are each oriented toward the inner pore of the macrocycle. The H2B and H5B atoms form hydrogen bonds with the nitrogen atoms of the rings forming the pores. The hydrogen-bond geometries within the macrocycle are different for molecules A and B. Specifically, the distances between these hydrogen atoms and the acceptor are 2.21 (3) Å (N2—H2B⋯N1) and 2.05 (3) Å (N2—H2B⋯N3) in molecule A and 1.77 (4) Å (N5—H5B⋯N4) and 2.59 (3) Å (N5—H5B⋯N6) in molecule B.
|
![]() | Figure 3 Intermolecular and intramolecular hydrogen-bond interactions of the title complex with displacement ellipsoids drawn at the 50% probability level. Carbon-bound hydrogen atoms are omitted for clarity. Hydrogen-bond interactions are shown as dotted lines. (a) ORTEP-style diagram showing the hydrogen bonds; (b) schematic showing the donor⋯acceptor distances of the hydrogen bonds. |
The nonprotonated secondary nitrogen atom exhibits A and B, the nonprotonated secondary nitrogen atom functions as a strong hydrogen-bonding acceptor group. In molecule B, the tertiary nitrogen atom does not function as a hydrogen-bonding acceptor. In 3, there is no nonprotonated secondary nitrogen atom. The basicity of the tertiary nitrogen atom, which is substituted by a benzyl group as the pendant arm, is slightly impaired. Hence, none of the four hydrogen atoms bonded to the nitrogen atoms are pointing outward in the macrocycle and hence do not form hydrogen bonds. Compared with those in molecule A in the title compound, the distances between nitrogen atoms in 3 are longer. Therefore, as mentioned above, nitrogen protonation and hydrogen bond formation affect the geometry of nitrogen atoms in the macrocycles.
while the tertiary nitrogen atom is slightly less basic owing to the presence of the pendant arm. Within the macrocycle of moleculesThe pendant anthracene moiety also affects the spatial arrangement of the macrocycle. As shown in Fig. 4, the benzyl group is directed away from the macrocyclic cavity in 3. Meanwhile, in molecules A and B, the anthracene moieties are positioned above the macrocyclic ring, partially overlapping the cavity. Although this orientation may be sterically disfavored in isolated molecules, it facilitates intermolecular π–π interactions in the crystal, contributing to structural cohesion.
![]() | Figure 4 Dihedral angles of the macrocyclic structure and pendant arm i ball-and-stick models. H atoms and counter-anions are omitted for clarity. |
As shown in Fig. 5, two types of aromatic interactions are observed in the crystal: a parallel displaced π–π stacking interaction and a T-shaped C—H⋯π interaction. The face-to-face π–π stacking occurs between the anthracene rings, with a centroid-to-centroid distance of 3.432 (3) Å, which is typical for aromatic stacking interactions. Meanwhile, in the T-shaped interaction, the C—H group from one anthracene unit (C33—H33) points toward the centroid of a neighboring aromatic ring, with a H⋯centroid distance of 2.90 Å and a C—H⋯centroid angle of 170°, respectively. These interactions further stabilize the packing structure by linking adjacent ligands via directional noncovalent forces.
![]() | Figure 5 Schematic of the T-shaped and parallel displaced π–π interactions with displacement ellipsoids drawn at the 50% probability level. The tetrachlorozincate ions are omitted for clarity. The π–π interactions are shown as green dotted lines. |
Previously, we reported the II–4(Cl)](NO3) containing 1-(anthracen-9-ylmethyl)-1,4,7,10-tetraazacyclododecane (Ant-[12]aneN4, 4), which is an analog of Ant-[12]aneN3 (Ichimaru et al., 2024). The polyamine ring of Ant-[12]aneN4 is 1,4,7,10-tetraazacyclododecane (cyclen, [12]aneN4, 5), which chelates the zinc(II) ion with a counter-anion molecule to form a five-coordinate structure (Ichimaru et al., 2021
), similar to that formed in the {[ZnII–5(H2O)](ClO4)2} complex. Therefore, the (9-anthracenyl)methyl pendant arm does not completely inhibit the of the zinc(II) ion but reduces the basicity of the bound nitrogen atom; therefore, the polyamine ring of Ant-[12]aneN3 cannot chelate zinc(II). The protonation of the secondary nitrogen atoms may be related to the synthesis conditions of the complex, which will be the subject of a future study. Ant-[12]aneN3 and its analogs exhibit DNA photocleavage activity (Ichimaru et al., 2025
). Thus, the of the title compound will contribute to the design of polyamine derivatives with DNA photocleavage activity.
Synthesis and crystallization
Ant-[12]aneN3 was synthesized using a previously reported synthetic method (Ichimaru et al., 2025). Then, Ant-[12]aneN3 (72.4 mg, 0.20 mmol) was dissolved in MeOH (10 ml), and a MeOH solution of ZnCl2 (27.2 mg, 0.20 mmol, 1.0 eq.) was added dropwise. The reaction mixture was stirred at 296 K for 30 min. Subsequently, the particles in the reaction mixture were filtered out and the filtrate was allowed to stand at 296 K. Colorless crystals suitable for X-ray crystallography were obtained (12.6 mg).
Refinement
Crystal data, data collection and structure .
|
Structural data
CCDC reference: 2445226
https://doi.org/10.1107/S2414314625003566/bx4034sup1.cif
contains datablock I. DOI:Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625003566/bx4034Isup2.hkl
(C24H32N3)2[ZnCl4] | F(000) = 1968 |
Mr = 932.22 | Dx = 1.343 Mg m−3 |
Monoclinic, P21/c | Cu Kα radiation, λ = 1.54184 Å |
a = 14.0683 (2) Å | Cell parameters from 30005 reflections |
b = 18.4885 (2) Å | θ = 2.5–68.2° |
c = 17.7569 (2) Å | µ = 3.18 mm−1 |
β = 93.407 (1)° | T = 100 K |
V = 4610.44 (10) Å3 | Block, colourless |
Z = 4 | 0.69 × 0.58 × 0.37 mm |
Rigaku XtaLAB Synergy-i diffractometer | 7651 reflections with I > 2σ(I) |
Detector resolution: 10.0 pixels mm-1 | Rint = 0.119 |
ω scans | θmax = 68.3°, θmin = 3.2° |
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2022) | h = −16→16 |
Tmin = 0.332, Tmax = 1.000 | k = −22→22 |
47324 measured reflections | l = −21→21 |
8409 independent reflections |
Refinement on F2 | 0 restraints |
Least-squares matrix: full | Hydrogen site location: mixed |
R[F2 > 2σ(F2)] = 0.050 | H atoms treated by a mixture of independent and constrained refinement |
wR(F2) = 0.138 | w = 1/[σ2(Fo2) + (0.0947P)2 + 1.017P] where P = (Fo2 + 2Fc2)/3 |
S = 1.03 | (Δ/σ)max = 0.001 |
8409 reflections | Δρmax = 0.86 e Å−3 |
552 parameters | Δρmin = −1.13 e Å−3 |
Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes. |
Refinement. All hydrogen atoms were located by a geometrical calculation, and were not refined. |
x | y | z | Uiso*/Ueq | ||
Zn1 | 0.46001 (2) | 0.20693 (2) | 0.19895 (2) | 0.01677 (11) | |
Cl1 | 0.55113 (3) | 0.31066 (3) | 0.18017 (3) | 0.01971 (14) | |
Cl2 | 0.54601 (4) | 0.14222 (3) | 0.28563 (3) | 0.02533 (15) | |
Cl3 | 0.42573 (4) | 0.15296 (3) | 0.08674 (3) | 0.02855 (15) | |
Cl4 | 0.32647 (4) | 0.25051 (4) | 0.24458 (4) | 0.03857 (18) | |
N1 | 0.78988 (11) | 0.40868 (9) | 0.34143 (10) | 0.0153 (4) | |
N2 | 0.62966 (12) | 0.31644 (10) | 0.35733 (11) | 0.0167 (4) | |
H2A | 0.6069 (19) | 0.3133 (14) | 0.3101 (17) | 0.020* | |
N4 | 0.16050 (12) | 0.44481 (10) | 0.13858 (10) | 0.0191 (4) | |
N3 | 0.58552 (13) | 0.46271 (11) | 0.38661 (11) | 0.0218 (4) | |
H3 | 0.6011 (19) | 0.5012 (15) | 0.4113 (16) | 0.026* | |
N5 | 0.37799 (14) | 0.40949 (11) | 0.11131 (12) | 0.0248 (4) | |
H5A | 0.412 (2) | 0.3820 (16) | 0.1427 (17) | 0.030* | |
C8 | 1.05304 (15) | 0.38679 (11) | 0.52527 (12) | 0.0177 (4) | |
C3 | 1.00339 (14) | 0.41464 (11) | 0.45784 (12) | 0.0164 (4) | |
N6 | 0.25947 (16) | 0.31225 (11) | 0.04973 (13) | 0.0311 (5) | |
H6A | 0.280 (2) | 0.2656 (17) | 0.0744 (17) | 0.037* | |
C27 | 0.12560 (14) | 0.57593 (12) | 0.02968 (12) | 0.0168 (4) | |
C17 | 0.78007 (15) | 0.27801 (12) | 0.30566 (12) | 0.0196 (4) | |
H17A | 0.742780 | 0.284477 | 0.257072 | 0.024* | |
H17B | 0.820600 | 0.234627 | 0.301190 | 0.024* | |
C9 | 1.00241 (15) | 0.36980 (11) | 0.58776 (12) | 0.0183 (4) | |
H9 | 1.035900 | 0.352497 | 0.632187 | 0.022* | |
C32 | 0.12851 (14) | 0.65100 (12) | 0.01011 (12) | 0.0178 (4) | |
C33 | 0.07136 (15) | 0.70005 (12) | 0.04626 (13) | 0.0191 (4) | |
H33 | 0.072757 | 0.749748 | 0.032763 | 0.023* | |
C34 | 0.01216 (14) | 0.67736 (12) | 0.10192 (12) | 0.0178 (4) | |
C26 | 0.06735 (14) | 0.55201 (11) | 0.08693 (12) | 0.0167 (4) | |
C15 | 0.85342 (14) | 0.40437 (11) | 0.51996 (12) | 0.0166 (4) | |
C10 | 0.90386 (15) | 0.37747 (11) | 0.58698 (12) | 0.0182 (4) | |
C7 | 1.15404 (15) | 0.37664 (12) | 0.52681 (13) | 0.0205 (5) | |
H7 | 1.186529 | 0.358397 | 0.571253 | 0.025* | |
C18 | 0.71181 (14) | 0.26554 (12) | 0.36792 (13) | 0.0191 (4) | |
H18A | 0.688588 | 0.214989 | 0.366044 | 0.023* | |
H18B | 0.745279 | 0.273759 | 0.417812 | 0.023* | |
C40 | 0.20365 (15) | 0.49277 (12) | 0.19707 (12) | 0.0211 (5) | |
H40A | 0.167530 | 0.488501 | 0.243042 | 0.025* | |
H40B | 0.198152 | 0.543422 | 0.179265 | 0.025* | |
C6 | 1.20429 (15) | 0.39260 (12) | 0.46599 (14) | 0.0233 (5) | |
H6 | 1.271325 | 0.385754 | 0.468051 | 0.028* | |
C16 | 0.84377 (14) | 0.34406 (12) | 0.32025 (12) | 0.0193 (4) | |
H16A | 0.892254 | 0.332690 | 0.361237 | 0.023* | |
H16B | 0.877559 | 0.354842 | 0.274219 | 0.023* | |
C4 | 1.06014 (16) | 0.43059 (12) | 0.39552 (13) | 0.0214 (5) | |
H4 | 1.030037 | 0.449344 | 0.350350 | 0.026* | |
C39 | 0.00988 (14) | 0.60255 (12) | 0.12308 (12) | 0.0178 (4) | |
C5 | 1.15606 (16) | 0.41958 (13) | 0.39925 (14) | 0.0249 (5) | |
H5 | 1.191243 | 0.430122 | 0.356554 | 0.030* | |
C1 | 0.84957 (14) | 0.45874 (12) | 0.38912 (12) | 0.0184 (4) | |
H1A | 0.808182 | 0.497413 | 0.407569 | 0.022* | |
H1B | 0.896243 | 0.481913 | 0.357203 | 0.022* | |
C28 | 0.18310 (15) | 0.52714 (13) | −0.01105 (13) | 0.0230 (5) | |
H28 | 0.181781 | 0.476861 | −0.000126 | 0.028* | |
C11 | 0.85266 (16) | 0.35898 (12) | 0.65105 (12) | 0.0211 (5) | |
H11 | 0.886482 | 0.341973 | 0.695456 | 0.025* | |
C14 | 0.75149 (15) | 0.41009 (12) | 0.52152 (13) | 0.0198 (4) | |
H14 | 0.715822 | 0.427661 | 0.478224 | 0.024* | |
C24 | 0.75139 (15) | 0.44651 (13) | 0.27301 (12) | 0.0208 (5) | |
H24A | 0.720427 | 0.410091 | 0.238828 | 0.025* | |
H24B | 0.805675 | 0.466880 | 0.247003 | 0.025* | |
C2 | 0.90331 (15) | 0.42452 (11) | 0.45650 (12) | 0.0171 (4) | |
C25 | 0.06714 (15) | 0.47286 (12) | 0.10799 (13) | 0.0221 (5) | |
H25A | 0.019521 | 0.465160 | 0.146063 | 0.026* | |
H25B | 0.046666 | 0.444344 | 0.062697 | 0.026* | |
C23 | 0.67998 (15) | 0.50741 (12) | 0.28372 (13) | 0.0229 (5) | |
H23A | 0.707626 | 0.540917 | 0.322612 | 0.028* | |
H23B | 0.671824 | 0.534822 | 0.235875 | 0.028* | |
C13 | 0.70502 (15) | 0.39089 (12) | 0.58360 (13) | 0.0230 (5) | |
H13 | 0.637615 | 0.394703 | 0.582601 | 0.028* | |
C22 | 0.58215 (15) | 0.48423 (12) | 0.30667 (13) | 0.0229 (5) | |
H22A | 0.536715 | 0.524729 | 0.298272 | 0.027* | |
H22B | 0.559228 | 0.443081 | 0.274863 | 0.027* | |
C41 | 0.30848 (15) | 0.47594 (12) | 0.21743 (13) | 0.0224 (5) | |
H41A | 0.333025 | 0.510583 | 0.256417 | 0.027* | |
H41B | 0.313504 | 0.426768 | 0.239370 | 0.027* | |
C19 | 0.54923 (16) | 0.30574 (12) | 0.40748 (13) | 0.0217 (5) | |
H19A | 0.572372 | 0.312149 | 0.460812 | 0.026* | |
H19B | 0.524010 | 0.255965 | 0.401348 | 0.026* | |
C42 | 0.37033 (16) | 0.48012 (12) | 0.14998 (14) | 0.0247 (5) | |
H42A | 0.342912 | 0.516192 | 0.113654 | 0.030* | |
H42B | 0.434843 | 0.496813 | 0.167280 | 0.030* | |
C31 | 0.18959 (16) | 0.67461 (14) | −0.04690 (13) | 0.0248 (5) | |
H31 | 0.191748 | 0.724407 | −0.059867 | 0.030* | |
C30 | 0.24436 (17) | 0.62644 (15) | −0.08251 (13) | 0.0300 (5) | |
H30 | 0.285970 | 0.642839 | −0.119129 | 0.036* | |
C48 | 0.14675 (17) | 0.37239 (12) | 0.17049 (14) | 0.0264 (5) | |
H48A | 0.102066 | 0.376442 | 0.211299 | 0.032* | |
H48B | 0.208517 | 0.355368 | 0.193596 | 0.032* | |
C29 | 0.23957 (17) | 0.55202 (15) | −0.06519 (13) | 0.0297 (5) | |
H29 | 0.276435 | 0.518632 | −0.091806 | 0.036* | |
C21 | 0.49365 (16) | 0.43702 (13) | 0.41228 (13) | 0.0251 (5) | |
H21A | 0.442352 | 0.469514 | 0.392019 | 0.030* | |
H21B | 0.495189 | 0.439670 | 0.468020 | 0.030* | |
C35 | −0.04748 (15) | 0.72853 (13) | 0.13690 (14) | 0.0240 (5) | |
H35 | −0.044708 | 0.778104 | 0.123145 | 0.029* | |
C38 | −0.05485 (15) | 0.58351 (14) | 0.17951 (13) | 0.0243 (5) | |
H38 | −0.058174 | 0.534624 | 0.195604 | 0.029* | |
C12 | 0.75582 (16) | 0.36524 (12) | 0.64987 (13) | 0.0237 (5) | |
H12 | 0.722666 | 0.352532 | 0.693034 | 0.028* | |
C20 | 0.47057 (15) | 0.35996 (13) | 0.38765 (13) | 0.0253 (5) | |
H20A | 0.412100 | 0.344286 | 0.411429 | 0.030* | |
H20B | 0.456840 | 0.359443 | 0.332317 | 0.030* | |
C37 | −0.11152 (16) | 0.63378 (15) | 0.21047 (14) | 0.0303 (6) | |
H37 | −0.154334 | 0.619112 | 0.246967 | 0.036* | |
C47 | 0.10856 (19) | 0.31524 (13) | 0.11422 (16) | 0.0331 (6) | |
H47A | 0.116035 | 0.267111 | 0.138281 | 0.040* | |
H47B | 0.039524 | 0.323683 | 0.103886 | 0.040* | |
C36 | −0.10783 (17) | 0.70738 (15) | 0.18932 (15) | 0.0306 (6) | |
H36 | −0.147488 | 0.741841 | 0.211757 | 0.037* | |
C44 | 0.4117 (2) | 0.34162 (15) | −0.00535 (15) | 0.0367 (6) | |
H44A | 0.445088 | 0.302985 | 0.024402 | 0.044* | |
H44B | 0.442434 | 0.345915 | −0.053895 | 0.044* | |
C43 | 0.42329 (18) | 0.41288 (14) | 0.03737 (15) | 0.0324 (6) | |
H43A | 0.491896 | 0.423946 | 0.046224 | 0.039* | |
H43B | 0.393744 | 0.452343 | 0.006416 | 0.039* | |
C46 | 0.15522 (19) | 0.31325 (13) | 0.03995 (16) | 0.0336 (6) | |
H46A | 0.133398 | 0.269654 | 0.011539 | 0.040* | |
H46B | 0.134975 | 0.356188 | 0.009777 | 0.040* | |
C45 | 0.3076 (2) | 0.31969 (15) | −0.02110 (16) | 0.0388 (7) | |
H45A | 0.274505 | 0.356748 | −0.053256 | 0.047* | |
H45B | 0.304482 | 0.273162 | −0.048731 | 0.047* | |
H2B | 0.6497 (19) | 0.3654 (15) | 0.3679 (15) | 0.027 (7)* | |
H5B | 0.316 (3) | 0.3846 (18) | 0.1000 (19) | 0.050 (9)* |
U11 | U22 | U33 | U12 | U13 | U23 | |
Zn1 | 0.00583 (17) | 0.02313 (18) | 0.02092 (18) | −0.00015 (10) | −0.00275 (12) | 0.00075 (11) |
Cl1 | 0.0113 (3) | 0.0272 (3) | 0.0203 (3) | −0.00513 (18) | −0.00231 (19) | 0.00106 (19) |
Cl2 | 0.0225 (3) | 0.0232 (3) | 0.0285 (3) | 0.0029 (2) | −0.0130 (2) | 0.0000 (2) |
Cl3 | 0.0288 (3) | 0.0325 (3) | 0.0231 (3) | −0.0076 (2) | −0.0086 (2) | −0.0018 (2) |
Cl4 | 0.0118 (3) | 0.0508 (4) | 0.0543 (4) | 0.0088 (2) | 0.0114 (3) | 0.0089 (3) |
N1 | 0.0086 (8) | 0.0215 (9) | 0.0158 (8) | 0.0000 (7) | −0.0012 (6) | 0.0000 (7) |
N2 | 0.0090 (9) | 0.0244 (10) | 0.0163 (9) | −0.0008 (7) | −0.0020 (7) | −0.0011 (7) |
N4 | 0.0133 (9) | 0.0207 (9) | 0.0221 (9) | −0.0003 (7) | −0.0085 (7) | 0.0023 (7) |
N3 | 0.0172 (9) | 0.0255 (10) | 0.0222 (10) | 0.0029 (8) | −0.0036 (7) | −0.0023 (8) |
N5 | 0.0188 (10) | 0.0267 (10) | 0.0282 (11) | 0.0045 (8) | −0.0049 (8) | −0.0022 (9) |
C8 | 0.0137 (10) | 0.0183 (10) | 0.0208 (11) | −0.0005 (8) | −0.0023 (8) | −0.0047 (8) |
C3 | 0.0124 (10) | 0.0182 (10) | 0.0184 (10) | −0.0036 (8) | −0.0015 (8) | −0.0036 (8) |
N6 | 0.0337 (12) | 0.0259 (11) | 0.0319 (12) | 0.0046 (9) | −0.0121 (9) | −0.0027 (9) |
C27 | 0.0065 (9) | 0.0288 (11) | 0.0147 (10) | 0.0014 (8) | −0.0040 (7) | −0.0018 (8) |
C17 | 0.0101 (10) | 0.0259 (11) | 0.0222 (11) | 0.0028 (8) | −0.0047 (8) | −0.0070 (9) |
C9 | 0.0146 (10) | 0.0218 (11) | 0.0177 (10) | 0.0026 (8) | −0.0070 (8) | −0.0020 (8) |
C32 | 0.0086 (10) | 0.0295 (12) | 0.0149 (10) | −0.0015 (8) | −0.0025 (8) | 0.0012 (8) |
C33 | 0.0121 (10) | 0.0240 (11) | 0.0203 (11) | −0.0023 (8) | −0.0056 (8) | 0.0003 (9) |
C34 | 0.0067 (9) | 0.0267 (11) | 0.0195 (10) | 0.0000 (8) | −0.0041 (8) | −0.0027 (9) |
C26 | 0.0073 (9) | 0.0245 (11) | 0.0174 (10) | −0.0004 (8) | −0.0065 (7) | 0.0014 (8) |
C15 | 0.0126 (10) | 0.0189 (10) | 0.0181 (10) | −0.0006 (8) | −0.0022 (8) | −0.0041 (8) |
C10 | 0.0159 (10) | 0.0187 (10) | 0.0198 (10) | 0.0002 (8) | −0.0016 (8) | −0.0045 (8) |
C7 | 0.0146 (11) | 0.0217 (11) | 0.0246 (11) | 0.0015 (8) | −0.0039 (8) | −0.0034 (9) |
C18 | 0.0104 (10) | 0.0216 (11) | 0.0247 (11) | −0.0005 (8) | −0.0043 (8) | −0.0009 (9) |
C40 | 0.0175 (11) | 0.0249 (11) | 0.0201 (11) | 0.0003 (9) | −0.0049 (8) | −0.0007 (9) |
C6 | 0.0106 (10) | 0.0282 (12) | 0.0311 (12) | −0.0006 (8) | 0.0001 (8) | −0.0042 (10) |
C16 | 0.0094 (10) | 0.0285 (11) | 0.0199 (10) | −0.0005 (8) | 0.0008 (8) | −0.0034 (9) |
C4 | 0.0179 (11) | 0.0253 (11) | 0.0208 (11) | −0.0046 (8) | −0.0011 (8) | −0.0004 (9) |
C39 | 0.0061 (9) | 0.0299 (11) | 0.0168 (10) | −0.0013 (8) | −0.0051 (7) | 0.0001 (9) |
C5 | 0.0176 (11) | 0.0301 (12) | 0.0276 (12) | −0.0046 (9) | 0.0057 (9) | −0.0016 (10) |
C1 | 0.0134 (10) | 0.0231 (11) | 0.0181 (10) | −0.0022 (8) | −0.0044 (8) | −0.0006 (8) |
C28 | 0.0174 (11) | 0.0305 (12) | 0.0204 (11) | 0.0063 (9) | −0.0044 (8) | −0.0022 (9) |
C11 | 0.0198 (11) | 0.0246 (11) | 0.0188 (11) | 0.0009 (8) | −0.0006 (9) | −0.0012 (9) |
C14 | 0.0136 (10) | 0.0240 (11) | 0.0212 (11) | 0.0011 (8) | −0.0029 (8) | −0.0033 (9) |
C24 | 0.0144 (10) | 0.0315 (12) | 0.0158 (10) | −0.0030 (9) | −0.0029 (8) | 0.0025 (9) |
C2 | 0.0133 (10) | 0.0189 (10) | 0.0187 (10) | −0.0028 (8) | −0.0030 (8) | −0.0037 (8) |
C25 | 0.0117 (10) | 0.0253 (11) | 0.0284 (12) | −0.0017 (8) | −0.0062 (8) | 0.0031 (9) |
C23 | 0.0202 (11) | 0.0240 (11) | 0.0238 (11) | −0.0014 (9) | −0.0056 (9) | 0.0058 (9) |
C13 | 0.0128 (10) | 0.0292 (12) | 0.0268 (12) | 0.0000 (9) | 0.0006 (8) | −0.0059 (9) |
C22 | 0.0171 (11) | 0.0247 (11) | 0.0261 (12) | 0.0056 (9) | −0.0044 (9) | 0.0026 (9) |
C41 | 0.0178 (11) | 0.0227 (11) | 0.0253 (11) | −0.0001 (8) | −0.0104 (9) | −0.0020 (9) |
C19 | 0.0148 (11) | 0.0269 (11) | 0.0237 (11) | −0.0037 (8) | 0.0040 (9) | −0.0021 (9) |
C42 | 0.0146 (11) | 0.0251 (11) | 0.0332 (13) | 0.0008 (9) | −0.0077 (9) | −0.0035 (10) |
C31 | 0.0198 (11) | 0.0357 (13) | 0.0188 (11) | −0.0056 (10) | 0.0014 (9) | 0.0048 (10) |
C30 | 0.0188 (12) | 0.0525 (16) | 0.0193 (11) | −0.0043 (11) | 0.0050 (9) | 0.0005 (11) |
C48 | 0.0229 (12) | 0.0258 (12) | 0.0293 (12) | −0.0006 (9) | −0.0089 (9) | 0.0064 (10) |
C29 | 0.0193 (12) | 0.0505 (16) | 0.0194 (11) | 0.0099 (10) | 0.0016 (9) | −0.0047 (11) |
C21 | 0.0156 (11) | 0.0344 (12) | 0.0254 (12) | 0.0065 (9) | 0.0022 (9) | −0.0030 (10) |
C35 | 0.0108 (10) | 0.0296 (12) | 0.0309 (12) | 0.0003 (9) | −0.0045 (9) | −0.0075 (10) |
C38 | 0.0138 (11) | 0.0363 (13) | 0.0229 (11) | −0.0069 (9) | 0.0020 (9) | 0.0036 (10) |
C12 | 0.0210 (11) | 0.0286 (12) | 0.0221 (11) | 0.0010 (9) | 0.0054 (9) | −0.0021 (9) |
C20 | 0.0090 (10) | 0.0432 (14) | 0.0238 (11) | 0.0015 (9) | 0.0025 (8) | −0.0052 (10) |
C37 | 0.0127 (11) | 0.0551 (16) | 0.0234 (12) | −0.0068 (10) | 0.0037 (9) | −0.0056 (11) |
C47 | 0.0283 (14) | 0.0234 (12) | 0.0452 (16) | −0.0044 (10) | −0.0178 (11) | 0.0043 (11) |
C36 | 0.0122 (11) | 0.0476 (15) | 0.0320 (13) | 0.0008 (10) | 0.0016 (10) | −0.0160 (11) |
C44 | 0.0382 (15) | 0.0404 (15) | 0.0312 (13) | 0.0157 (12) | 0.0004 (11) | −0.0021 (12) |
C43 | 0.0255 (13) | 0.0375 (14) | 0.0341 (14) | 0.0078 (11) | 0.0026 (10) | 0.0018 (11) |
C46 | 0.0354 (15) | 0.0243 (12) | 0.0384 (15) | 0.0008 (10) | −0.0199 (12) | −0.0051 (11) |
C45 | 0.0469 (17) | 0.0366 (14) | 0.0319 (14) | 0.0092 (12) | −0.0064 (12) | −0.0101 (12) |
Zn1—Cl1 | 2.3416 (5) | C5—H5 | 0.9500 |
Zn1—Cl2 | 2.2456 (6) | C1—H1A | 0.9900 |
Zn1—Cl3 | 2.2550 (6) | C1—H1B | 0.9900 |
Zn1—Cl4 | 2.2396 (6) | C1—C2 | 1.515 (3) |
N1—C16 | 1.476 (3) | C28—H28 | 0.9500 |
N1—C1 | 1.481 (3) | C28—C29 | 1.363 (3) |
N1—C24 | 1.477 (3) | C11—H11 | 0.9500 |
N2—H2A | 0.88 (3) | C11—C12 | 1.366 (3) |
N2—C18 | 1.494 (3) | C14—H14 | 0.9500 |
N2—C19 | 1.494 (3) | C14—C13 | 1.362 (3) |
N2—H2B | 0.96 (3) | C24—H24A | 0.9900 |
N4—C40 | 1.469 (3) | C24—H24B | 0.9900 |
N4—C25 | 1.485 (3) | C24—C23 | 1.528 (3) |
N4—C48 | 1.471 (3) | C25—H25A | 0.9900 |
N3—H3 | 0.86 (3) | C25—H25B | 0.9900 |
N3—C22 | 1.472 (3) | C23—H23A | 0.9900 |
N3—C21 | 1.474 (3) | C23—H23B | 0.9900 |
N5—H5A | 0.87 (3) | C23—C22 | 1.520 (3) |
N5—C42 | 1.482 (3) | C13—H13 | 0.9500 |
N5—C43 | 1.494 (3) | C13—C12 | 1.422 (3) |
N5—H5B | 0.99 (4) | C22—H22A | 0.9900 |
C8—C3 | 1.445 (3) | C22—H22B | 0.9900 |
C8—C9 | 1.390 (3) | C41—H41A | 0.9900 |
C8—C7 | 1.432 (3) | C41—H41B | 0.9900 |
C3—C4 | 1.433 (3) | C41—C42 | 1.524 (3) |
C3—C2 | 1.419 (3) | C19—H19A | 0.9900 |
N6—H6A | 1.00 (3) | C19—H19B | 0.9900 |
N6—C46 | 1.467 (3) | C19—C20 | 1.519 (3) |
N6—C45 | 1.470 (4) | C42—H42A | 0.9900 |
C27—C32 | 1.432 (3) | C42—H42B | 0.9900 |
C27—C26 | 1.414 (3) | C31—H31 | 0.9500 |
C27—C28 | 1.436 (3) | C31—C30 | 1.358 (4) |
C17—H17A | 0.9900 | C30—H30 | 0.9500 |
C17—H17B | 0.9900 | C30—C29 | 1.413 (4) |
C17—C18 | 1.524 (3) | C48—H48A | 0.9900 |
C17—C16 | 1.528 (3) | C48—H48B | 0.9900 |
C9—H9 | 0.9500 | C48—C47 | 1.530 (3) |
C9—C10 | 1.393 (3) | C29—H29 | 0.9500 |
C32—C33 | 1.394 (3) | C21—H21A | 0.9900 |
C32—C31 | 1.434 (3) | C21—H21B | 0.9900 |
C33—H33 | 0.9500 | C21—C20 | 1.520 (3) |
C33—C34 | 1.394 (3) | C35—H35 | 0.9500 |
C34—C39 | 1.434 (3) | C35—C36 | 1.354 (4) |
C34—C35 | 1.431 (3) | C38—H38 | 0.9500 |
C26—C39 | 1.414 (3) | C38—C37 | 1.362 (4) |
C26—C25 | 1.510 (3) | C12—H12 | 0.9500 |
C15—C10 | 1.438 (3) | C20—H20A | 0.9900 |
C15—C14 | 1.440 (3) | C20—H20B | 0.9900 |
C15—C2 | 1.413 (3) | C37—H37 | 0.9500 |
C10—C11 | 1.424 (3) | C37—C36 | 1.413 (4) |
C7—H7 | 0.9500 | C47—H47A | 0.9900 |
C7—C6 | 1.358 (3) | C47—H47B | 0.9900 |
C18—H18A | 0.9900 | C47—C46 | 1.508 (4) |
C18—H18B | 0.9900 | C36—H36 | 0.9500 |
C40—H40A | 0.9900 | C44—H44A | 0.9900 |
C40—H40B | 0.9900 | C44—H44B | 0.9900 |
C40—C41 | 1.529 (3) | C44—C43 | 1.524 (4) |
C6—H6 | 0.9500 | C44—C45 | 1.530 (4) |
C6—C5 | 1.421 (3) | C43—H43A | 0.9900 |
C16—H16A | 0.9900 | C43—H43B | 0.9900 |
C16—H16B | 0.9900 | C46—H46A | 0.9900 |
C4—H4 | 0.9500 | C46—H46B | 0.9900 |
C4—C5 | 1.362 (3) | C45—H45A | 0.9900 |
C39—C38 | 1.437 (3) | C45—H45B | 0.9900 |
Cl2—Zn1—Cl1 | 104.88 (2) | H24A—C24—H24B | 107.2 |
Cl2—Zn1—Cl3 | 116.62 (2) | C23—C24—H24A | 108.0 |
Cl3—Zn1—Cl1 | 109.07 (2) | C23—C24—H24B | 108.0 |
Cl4—Zn1—Cl1 | 103.59 (2) | C3—C2—C1 | 121.01 (19) |
Cl4—Zn1—Cl2 | 111.91 (3) | C15—C2—C3 | 119.50 (19) |
Cl4—Zn1—Cl3 | 109.81 (3) | C15—C2—C1 | 119.46 (18) |
C16—N1—C1 | 111.67 (15) | N4—C25—C26 | 114.48 (17) |
C16—N1—C24 | 110.04 (16) | N4—C25—H25A | 108.6 |
C24—N1—C1 | 110.00 (16) | N4—C25—H25B | 108.6 |
H2A—N2—H2B | 109 (2) | C26—C25—H25A | 108.6 |
C18—N2—H2A | 108.2 (17) | C26—C25—H25B | 108.6 |
C18—N2—C19 | 116.70 (18) | H25A—C25—H25B | 107.6 |
C18—N2—H2B | 110.6 (16) | C24—C23—H23A | 108.3 |
C19—N2—H2A | 108.2 (17) | C24—C23—H23B | 108.3 |
C19—N2—H2B | 103.3 (17) | H23A—C23—H23B | 107.4 |
C40—N4—C25 | 111.55 (17) | C22—C23—C24 | 115.97 (19) |
C40—N4—C48 | 109.59 (17) | C22—C23—H23A | 108.3 |
C48—N4—C25 | 108.98 (17) | C22—C23—H23B | 108.3 |
C22—N3—H3 | 105.1 (19) | C14—C13—H13 | 119.5 |
C22—N3—C21 | 113.99 (17) | C14—C13—C12 | 121.0 (2) |
C21—N3—H3 | 108.2 (19) | C12—C13—H13 | 119.5 |
H5A—N5—H5B | 107 (3) | N3—C22—C23 | 110.91 (18) |
C42—N5—H5A | 105.6 (19) | N3—C22—H22A | 109.5 |
C42—N5—C43 | 114.6 (2) | N3—C22—H22B | 109.5 |
C42—N5—H5B | 114.6 (19) | C23—C22—H22A | 109.5 |
C43—N5—H5A | 109.9 (19) | C23—C22—H22B | 109.5 |
C43—N5—H5B | 105 (2) | H22A—C22—H22B | 108.0 |
C9—C8—C3 | 119.79 (19) | C40—C41—H41A | 109.0 |
C9—C8—C7 | 120.67 (19) | C40—C41—H41B | 109.0 |
C7—C8—C3 | 119.5 (2) | H41A—C41—H41B | 107.8 |
C4—C3—C8 | 116.70 (19) | C42—C41—C40 | 113.05 (18) |
C2—C3—C8 | 119.36 (19) | C42—C41—H41A | 109.0 |
C2—C3—C4 | 123.9 (2) | C42—C41—H41B | 109.0 |
C46—N6—H6A | 108.8 (17) | N2—C19—H19A | 109.7 |
C46—N6—C45 | 113.9 (2) | N2—C19—H19B | 109.7 |
C45—N6—H6A | 108.6 (18) | N2—C19—C20 | 109.97 (18) |
C32—C27—C28 | 117.50 (19) | H19A—C19—H19B | 108.2 |
C26—C27—C32 | 120.25 (19) | C20—C19—H19A | 109.7 |
C26—C27—C28 | 122.2 (2) | C20—C19—H19B | 109.7 |
H17A—C17—H17B | 107.8 | N5—C42—C41 | 112.34 (19) |
C18—C17—H17A | 109.0 | N5—C42—H42A | 109.1 |
C18—C17—H17B | 109.0 | N5—C42—H42B | 109.1 |
C18—C17—C16 | 112.73 (18) | C41—C42—H42A | 109.1 |
C16—C17—H17A | 109.0 | C41—C42—H42B | 109.1 |
C16—C17—H17B | 109.0 | H42A—C42—H42B | 107.9 |
C8—C9—H9 | 119.1 | C32—C31—H31 | 119.7 |
C8—C9—C10 | 121.74 (19) | C30—C31—C32 | 120.6 (2) |
C10—C9—H9 | 119.1 | C30—C31—H31 | 119.7 |
C27—C32—C31 | 119.6 (2) | C31—C30—H30 | 119.9 |
C33—C32—C27 | 119.57 (19) | C31—C30—C29 | 120.1 (2) |
C33—C32—C31 | 120.9 (2) | C29—C30—H30 | 119.9 |
C32—C33—H33 | 119.5 | N4—C48—H48A | 108.5 |
C32—C33—C34 | 121.0 (2) | N4—C48—H48B | 108.5 |
C34—C33—H33 | 119.5 | N4—C48—C47 | 115.2 (2) |
C33—C34—C39 | 120.0 (2) | H48A—C48—H48B | 107.5 |
C33—C34—C35 | 119.9 (2) | C47—C48—H48A | 108.5 |
C35—C34—C39 | 120.1 (2) | C47—C48—H48B | 108.5 |
C27—C26—C39 | 119.40 (19) | C28—C29—C30 | 121.3 (2) |
C27—C26—C25 | 119.39 (19) | C28—C29—H29 | 119.3 |
C39—C26—C25 | 121.22 (19) | C30—C29—H29 | 119.3 |
C10—C15—C14 | 116.9 (2) | N3—C21—H21A | 109.0 |
C2—C15—C10 | 120.49 (19) | N3—C21—H21B | 109.0 |
C2—C15—C14 | 122.59 (19) | N3—C21—C20 | 112.91 (18) |
C9—C10—C15 | 119.0 (2) | H21A—C21—H21B | 107.8 |
C9—C10—C11 | 121.20 (19) | C20—C21—H21A | 109.0 |
C11—C10—C15 | 119.75 (19) | C20—C21—H21B | 109.0 |
C8—C7—H7 | 119.4 | C34—C35—H35 | 119.5 |
C6—C7—C8 | 121.3 (2) | C36—C35—C34 | 121.0 (2) |
C6—C7—H7 | 119.4 | C36—C35—H35 | 119.5 |
N2—C18—C17 | 109.24 (17) | C39—C38—H38 | 119.2 |
N2—C18—H18A | 109.8 | C37—C38—C39 | 121.7 (2) |
N2—C18—H18B | 109.8 | C37—C38—H38 | 119.2 |
C17—C18—H18A | 109.8 | C11—C12—C13 | 119.5 (2) |
C17—C18—H18B | 109.8 | C11—C12—H12 | 120.2 |
H18A—C18—H18B | 108.3 | C13—C12—H12 | 120.2 |
N4—C40—H40A | 108.9 | C19—C20—C21 | 114.31 (18) |
N4—C40—H40B | 108.9 | C19—C20—H20A | 108.7 |
N4—C40—C41 | 113.36 (18) | C19—C20—H20B | 108.7 |
H40A—C40—H40B | 107.7 | C21—C20—H20A | 108.7 |
C41—C40—H40A | 108.9 | C21—C20—H20B | 108.7 |
C41—C40—H40B | 108.9 | H20A—C20—H20B | 107.6 |
C7—C6—H6 | 120.2 | C38—C37—H37 | 119.4 |
C7—C6—C5 | 119.6 (2) | C38—C37—C36 | 121.2 (2) |
C5—C6—H6 | 120.2 | C36—C37—H37 | 119.4 |
N1—C16—C17 | 112.66 (17) | C48—C47—H47A | 108.4 |
N1—C16—H16A | 109.1 | C48—C47—H47B | 108.4 |
N1—C16—H16B | 109.1 | H47A—C47—H47B | 107.4 |
C17—C16—H16A | 109.1 | C46—C47—C48 | 115.7 (2) |
C17—C16—H16B | 109.1 | C46—C47—H47A | 108.4 |
H16A—C16—H16B | 107.8 | C46—C47—H47B | 108.4 |
C3—C4—H4 | 119.1 | C35—C36—C37 | 119.7 (2) |
C5—C4—C3 | 121.8 (2) | C35—C36—H36 | 120.2 |
C5—C4—H4 | 119.1 | C37—C36—H36 | 120.2 |
C34—C39—C38 | 116.4 (2) | H44A—C44—H44B | 107.8 |
C26—C39—C34 | 119.74 (19) | C43—C44—H44A | 109.0 |
C26—C39—C38 | 123.9 (2) | C43—C44—H44B | 109.0 |
C6—C5—H5 | 119.5 | C43—C44—C45 | 113.1 (2) |
C4—C5—C6 | 121.0 (2) | C45—C44—H44A | 109.0 |
C4—C5—H5 | 119.5 | C45—C44—H44B | 109.0 |
N1—C1—H1A | 108.4 | N5—C43—C44 | 111.3 (2) |
N1—C1—H1B | 108.4 | N5—C43—H43A | 109.4 |
N1—C1—C2 | 115.45 (17) | N5—C43—H43B | 109.4 |
H1A—C1—H1B | 107.5 | C44—C43—H43A | 109.4 |
C2—C1—H1A | 108.4 | C44—C43—H43B | 109.4 |
C2—C1—H1B | 108.4 | H43A—C43—H43B | 108.0 |
C27—C28—H28 | 119.6 | N6—C46—C47 | 112.4 (2) |
C29—C28—C27 | 120.9 (2) | N6—C46—H46A | 109.1 |
C29—C28—H28 | 119.6 | N6—C46—H46B | 109.1 |
C10—C11—H11 | 119.4 | C47—C46—H46A | 109.1 |
C12—C11—C10 | 121.3 (2) | C47—C46—H46B | 109.1 |
C12—C11—H11 | 119.4 | H46A—C46—H46B | 107.9 |
C15—C14—H14 | 119.2 | N6—C45—C44 | 110.7 (2) |
C13—C14—C15 | 121.5 (2) | N6—C45—H45A | 109.5 |
C13—C14—H14 | 119.2 | N6—C45—H45B | 109.5 |
N1—C24—H24A | 108.0 | C44—C45—H45A | 109.5 |
N1—C24—H24B | 108.0 | C44—C45—H45B | 109.5 |
N1—C24—C23 | 117.27 (18) | H45A—C45—H45B | 108.1 |
N1—C1—C2—C3 | 107.8 (2) | C18—N2—C19—C20 | −178.05 (18) |
N1—C1—C2—C15 | −74.4 (2) | C18—C17—C16—N1 | −48.3 (2) |
N1—C24—C23—C22 | −70.9 (2) | C40—N4—C25—C26 | 47.8 (3) |
N2—C19—C20—C21 | −73.1 (2) | C40—N4—C48—C47 | −175.9 (2) |
N4—C40—C41—C42 | 57.9 (3) | C40—C41—C42—N5 | −91.1 (2) |
N4—C48—C47—C46 | 45.3 (3) | C16—N1—C1—C2 | −50.4 (2) |
N3—C21—C20—C19 | 52.1 (3) | C16—N1—C24—C23 | 170.11 (18) |
C8—C3—C4—C5 | 0.5 (3) | C16—C17—C18—N2 | 78.9 (2) |
C8—C3—C2—C15 | −2.4 (3) | C4—C3—C2—C15 | 177.4 (2) |
C8—C3—C2—C1 | 175.43 (18) | C4—C3—C2—C1 | −4.7 (3) |
C8—C9—C10—C15 | −0.6 (3) | C39—C34—C35—C36 | −1.1 (3) |
C8—C9—C10—C11 | 179.2 (2) | C39—C26—C25—N4 | −118.1 (2) |
C8—C7—C6—C5 | −0.3 (3) | C39—C38—C37—C36 | −1.2 (4) |
C3—C8—C9—C10 | 1.3 (3) | C1—N1—C16—C17 | 152.55 (18) |
C3—C8—C7—C6 | −0.1 (3) | C1—N1—C24—C23 | −66.5 (2) |
C3—C4—C5—C6 | −0.9 (3) | C28—C27—C32—C33 | 177.76 (19) |
C27—C32—C33—C34 | 0.8 (3) | C28—C27—C32—C31 | −1.7 (3) |
C27—C32—C31—C30 | 0.2 (3) | C28—C27—C26—C39 | −177.80 (18) |
C27—C26—C39—C34 | −0.7 (3) | C28—C27—C26—C25 | 1.8 (3) |
C27—C26—C39—C38 | 177.19 (19) | C14—C15—C10—C9 | 178.92 (19) |
C27—C26—C25—N4 | 62.3 (3) | C14—C15—C10—C11 | −0.9 (3) |
C27—C28—C29—C30 | 0.7 (3) | C14—C15—C2—C3 | −177.43 (19) |
C9—C8—C3—C4 | −179.67 (19) | C14—C15—C2—C1 | 4.7 (3) |
C9—C8—C3—C2 | 0.2 (3) | C14—C13—C12—C11 | −0.7 (3) |
C9—C8—C7—C6 | 179.6 (2) | C24—N1—C16—C17 | −85.0 (2) |
C9—C10—C11—C12 | −178.8 (2) | C24—N1—C1—C2 | −172.84 (18) |
C32—C27—C26—C39 | 1.9 (3) | C24—C23—C22—N3 | 74.9 (2) |
C32—C27—C26—C25 | −178.54 (17) | C2—C3—C4—C5 | −179.4 (2) |
C32—C27—C28—C29 | 1.3 (3) | C2—C15—C10—C9 | −1.6 (3) |
C32—C33—C34—C39 | 0.4 (3) | C2—C15—C10—C11 | 178.55 (19) |
C32—C33—C34—C35 | −178.52 (19) | C2—C15—C14—C13 | −179.4 (2) |
C32—C31—C30—C29 | 1.9 (3) | C25—N4—C40—C41 | −166.87 (18) |
C33—C32—C31—C30 | −179.3 (2) | C25—N4—C48—C47 | 61.7 (3) |
C33—C34—C39—C26 | −0.4 (3) | C25—C26—C39—C34 | 179.72 (17) |
C33—C34—C39—C38 | −178.47 (19) | C25—C26—C39—C38 | −2.4 (3) |
C33—C34—C35—C36 | 177.8 (2) | C22—N3—C21—C20 | 77.9 (2) |
C34—C39—C38—C37 | 0.7 (3) | C19—N2—C18—C17 | 172.51 (18) |
C34—C35—C36—C37 | 0.6 (3) | C42—N5—C43—C44 | −169.30 (19) |
C26—C27—C32—C33 | −1.9 (3) | C31—C32—C33—C34 | −179.75 (19) |
C26—C27—C32—C31 | 178.60 (19) | C31—C30—C29—C28 | −2.3 (4) |
C26—C27—C28—C29 | −179.0 (2) | C48—N4—C40—C41 | 72.4 (2) |
C26—C39—C38—C37 | −177.3 (2) | C48—N4—C25—C26 | 168.92 (19) |
C15—C10—C11—C12 | 1.0 (3) | C48—C47—C46—N6 | 49.2 (3) |
C15—C14—C13—C12 | 0.8 (3) | C21—N3—C22—C23 | −177.94 (19) |
C10—C15—C14—C13 | 0.0 (3) | C35—C34—C39—C26 | 178.47 (18) |
C10—C15—C2—C3 | 3.2 (3) | C35—C34—C39—C38 | 0.4 (3) |
C10—C15—C2—C1 | −174.74 (18) | C38—C37—C36—C35 | 0.5 (4) |
C10—C11—C12—C13 | −0.2 (3) | C43—N5—C42—C41 | 169.84 (18) |
C7—C8—C3—C4 | 0.0 (3) | C43—C44—C45—N6 | −59.0 (3) |
C7—C8—C3—C2 | 179.92 (19) | C46—N6—C45—C44 | 162.4 (2) |
C7—C8—C9—C10 | −178.36 (19) | C45—N6—C46—C47 | −172.6 (2) |
C7—C6—C5—C4 | 0.8 (3) | C45—C44—C43—N5 | 58.6 (3) |
D—H···A | D—H | H···A | D···A | D—H···A |
N2—H2A···Cl1 | 0.88 (3) | 2.39 (3) | 3.273 (2) | 176.6 (16) |
N5—H5A···Cl1 | 0.88 (3) | 2.42 (3) | 3.227 (2) | 153 (3) |
N2—H2B···N1 | 0.96 (3) | 2.21 (3) | 2.854 (2) | 124 (2) |
N2—H2B···N3 | 0.96 (3) | 2.05 (3) | 2.830 (3) | 137 (2) |
N5—H5B···N4 | 1.00 (4) | 2.59 (3) | 3.194 (3) | 120 (2) |
N5—H5B···N6 | 0.99 (4) | 1.77 (3) | 2.644 (3) | 145 (3) |
Funding information
Funding for this research was provided by: Japan Society for the Promotion of Science (grant No. JP23K14339 to Yoshimi Ichimaru).
References
Al-Resayes, S. I., Azam, M., Alam, M., Suresh Kumar, R. & Adil, S. F. (2017). J. Saudi Chem. Soc. 21, 481–486. CAS Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Hubsch-Weber, P. & Youinou, M.-T. (1997). Tetrahedron Lett. 38, 1911–1914. CAS Google Scholar
Ichimaru, Y., Kato, K., Kurosaki, H., Fujioka, H., Sakai, M., Yamaguchi, Y., Wanchun, J., Sugiura, K., Imai, M. & Koike, T. (2021). IUCr Data. 6, x210397. Google Scholar
Ichimaru, Y., Kato, K., Yamaguchi, Y., Sakamoto, T., Jin, W., Kurihara, M., Fujita, M., Otsuka, M. & Kurosaki, H. (2025). Chem. Pharm. Bull. 73, 103–107. CrossRef CAS Google Scholar
Ichimaru, Y., Sugiura, K., Kato, K., Kondo, Y., Kurihara, M., Jin, W., Imai, M. & Kurosaki, H. (2024). IUCr Data. 9, x240665. Google Scholar
Kimura, E., Koike, T., Shionoya, M. & Shiro, M. (1992). Chem. Lett. 21, 787–790. CrossRef Google Scholar
Kimura, E., Shiota, T., Koike, T., Shiro, M. & Kodama, M. (1990). J. Am. Chem. Soc. 112, 5805–5811. CSD CrossRef CAS Web of Science Google Scholar
Rigaku OD (2022). CrystAlis PRO. Rigaku Oxford Diffractioon, Yarnton, England. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
