Methyl 9-(4-methyl­benzene­sulfon­yl)-4-phenyl-9H-pyrido[3,4-b]indole-3-carboxyl­ate

Detert, H.; Dassonneville, B.; Schollmeyer, D.

doi:10.1107/S2414314626009570

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 11| Part 9| September 2026| x260957

https://doi.org/10.1107/S2414314626009570

Open

access

Methyl 9-(4-methylbenzenesulfonyl)-4-phenyl-9H-pyrido[3,4-b]indole-3-carboxylate

Heiner Detert,^a ^* Benjamin Dassonneville ^a and Dieter Schollmeyer ^a

^aUniversity of Mainz, Department of Chemistry, Duesbergweg 10-14, 55099 Mainz, Germany
^*Correspondence e-mail: [email protected]

Edited by M. Bolte, Goethe-Universität Frankfurt, Germany (Received 2 September 2026; accepted 14 September 2026; online 18 September 2026)

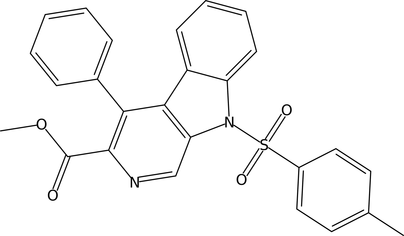

The title β-carboline, C₂₆H₂₀N₂O₄S, which was synthesized via 2 + 2+2-cycloaddition to an alkynylynamide, is presented. There is one molecule in the asymmetric unit. The tricyclic carbolin framework is essentially planar and subtends an angle of 68.43 (19)° with the attached phenyl ring. In the crystal, the molecules are arranged in a zigzag pattern in the ac plane. Neighbouring molecules are connected via a twofold screw axis or a C₂ axis parallel to the b axis or via a center of inversion.

Keywords: crystal structure; carboline; heterocycle; sulfonamide.

CCDC reference: 2587814

Structure description

The title compound, C₂₆H₂₀N₂O₄S (Fig. 1), was prepared in a project on carbolines (Letessier et al., 2012 , 2013 ; Letessier & Detert, 2012 ; Limbach et al., 2018 ) and indolothiopyranes (Dassonneville et al., 2011 , 2023 ).

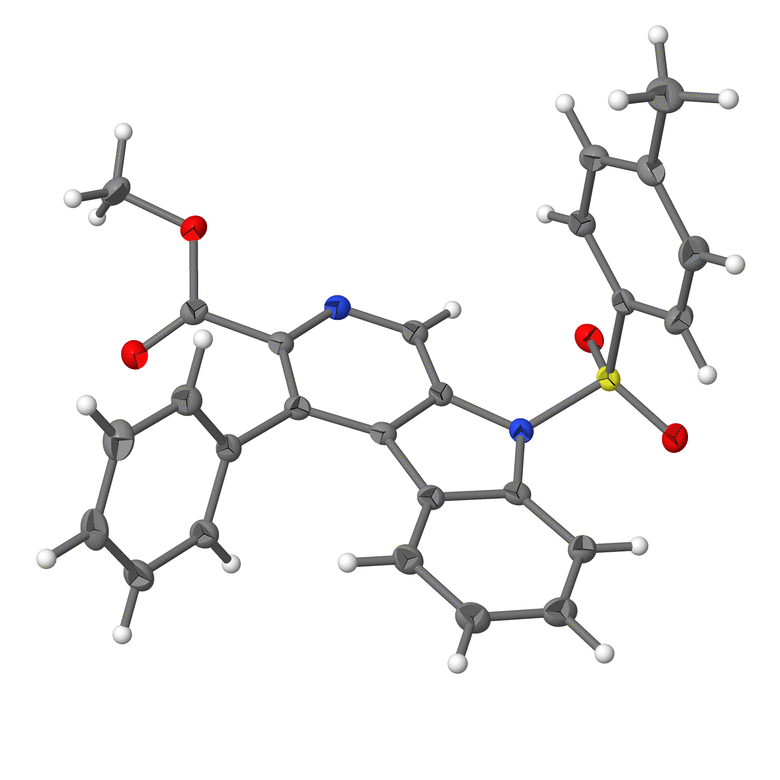

Figure 1
View of the title compound. Displacement ellipsoids are drawn at the 50% probability level (Spek, 2009

The rhodium-catalyzed 2 + 2 + 2 cycloaddition of alkynylynamides to nitriles (Nissen & Detert, 2011 ) gives two regioisomers, γ-carbolines and, like the title compound, β-carbolines. The tricyclic carbolin framework is essentially planar and subtends an angle of 68.43 (19)° with the attached phenyl ring. The torsion angle of carboline and ester group, O32—C30—C13—N12 amounts to −47.0 (2)° and the planes of carboline and tolyl ring subtend an angle of 83.28 (7)°. Eight molecules of the title compound fill the monoclinic unit cell.

In the crystal, the molecules are arranged in a zigzag pattern in the ac plane (Fig. 2). Neighbouring molecules are connected via a twofold screw axis or a C₂ axis parallel to the b axis or via a center of inversion. Further packing is characterized by alternating phenyl rings and ester groups along the b-axis direction.

Figure 2
Part of the packing diagram. View along b-axis direction (Spek, 2009

). Hydrogen atoms removed for clarity.

Synthesis and crystallization

2-Phenylethyn-1-yl-N-tosyl-N-ethynylaniline was prepared according to the literature (Dassonneville et al., 2023). In a dry Schlenk tube were dissolved 7.5 mg of BINAP [2,2′-bis(diphenylphosphino)-1,1′-binaphthyl] and 4.9 mg of Rh(COD)₂BF₄ in 3 ml of methylene chloride under argon. The mixture was stirred for 5 min, H₂ was introduced to activate the catalyst. After stirring for 30 min, the solvent was evaporated and the residue dissolved in 3 ml dichloromethane. To this solution was added the diyne (73.4 mg) and methyl cyanoformate (17.3 mg) and the mixture was stirred at 333 K. After the reaction was compete (TLC control), the solvent was removed and the residue was purified to give 61.2 mg of a mixture of the title compound and the γ-isomer. Isolation of the investigated β-carbolin as second fraction after repeated chromatography on silica with petroleum ether/ethyl acetate (9:1), R_f= 0.15. The compound was obtained as a white solid, m.p.= 484–485 K. Assignment of NMR signals follows IUPAC nomenclature and is based on two-dimensional NMR experiments. ¹H-NMR (400 MHz, CDCl₃, 298 K): δ = 9.74 (s, 1 H, 1-H), 8.38 (d, ³J_H,H = 8.4 Hz, 1 H, 8-H), 7.82 (d, ³J_H,H = 8.2 Hz, 2 H, 2-H, 6 H, tos), 7.53 (m, 4 H, 7-H, 3′-H, 4′-H, 5′-H), 7.17 (d, ³J_H,H = 7.6 Hz, 2 H, 2′-H, 6′-H), 7.10 (t, ³J_H,H = 7.4 Hz, 1 H, 6-H), 6.67 (d, ³J_H,H = 8.0 Hz, 1H, 6-H), 3.78 (s, 3 H, OCH₃), 2.33 (s, 3 H, CH₃); ¹³C-NMR (CDCl₃): δ = 166.2 (C_q C-10), 145.9 (C_q C-4 tos), 139.2 C_q C-8a); 136.0 C_q C-4), 135.5 (CH, C-1), 135.3 (C_q C-9a), 134.4 (C_q, C-1 tos), 133.0 (C_q C-4a), 131.8 (C_q C-1′), 130.1 (CH, C-3, C-5 tos), 130.0 (CH, C-7), 128.8 & 128.3 (CH, C-2′, C-3′, C-5′, C-6′), 128.5 (CH, C-4 tos), 126.7 (CH, C-2, C-5 tos), 124.2 (CHH, C-6), 124.1 (C_q, C-4 b), 123.7 (CH, C-5), 114.7 (CH, C-8), 52.6 (O—CH₃), 21.6 (CH₃ tos); IR (neat, ATR): 3005w, 1736vs, 1587w, 1421w, 1375vs, 1254s, 1173vs, 972s, 817w, 734vs, 696s, 661s cm⁻¹. FD–MS: m/z (%) = 4455.6 (100). [M]^+. C₂₆H₂₀N₂O₄S (461.13) calculated: C 68.41, H 4.42, N 6.14, S 7.02; found: C 68.27, H 4.42, N 6.12, S 7.03. Single crystals were grown by slow evaporation of a solution in ethyl acetate

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 1.

Table 1
Experimental details

Crystal data
Chemical formula	C₂₆H₂₀N₂O₄S
M_r	456.50
Crystal system, space group	Monoclinic, C2/c
Temperature (K)	120
a, b, c (Å)	21.2155 (10), 9.9487 (3), 21.5194 (9)
β (°)	107.842 (3)
V (Å³)	4323.6 (3)
Z	8
Radiation type	Mo Kα
μ (mm⁻¹)	0.19
Crystal size (mm)	0.21 × 0.21 × 0.12

Data collection
Diffractometer	Stoe IPDS 2T
No. of measured, independent and observed [I > 2σ(I)] reflections	9252, 5086, 4095
R_int	0.032
(sin θ/λ)_max (Å⁻¹)	0.658

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.047, 0.112, 1.07
No. of reflections	5086
No. of parameters	300
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.43, −0.42
Computer programs: X-AREA WinXpose, X-AREA Recipe and X-AREA Integrate (Stoe & Cie, 2020 ), SHELXT2014 (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ) and PLATON (Spek, 2009 ).

Structural data

CCDC reference: 2587814

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S2414314626009570/bt4207sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314626009570/bt4207Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314626009570/bt4207Isup3.cml

checkCIF report

Computing details top

Methyl 9-(4-methylbenzenesulfonyl)-4-phenyl-9H-pyrido[3,4-b]indole-3-carboxylate top

Crystal data top

C₂₆H₂₀N₂O₄S	F(000) = 1904
M_r = 456.50	D_x = 1.403 Mg m⁻³
Monoclinic, C2/c	Mo Kα radiation, λ = 0.71073 Å
a = 21.2155 (10) Å	Cell parameters from 9973 reflections
b = 9.9487 (3) Å	θ = 3.2–28.4°
c = 21.5194 (9) Å	µ = 0.19 mm⁻¹
β = 107.842 (3)°	T = 120 K
V = 4323.6 (3) Å³	Block, colorless
Z = 8	0.21 × 0.21 × 0.12 mm

Data collection top

Stoe IPDS 2T diffractometer	R_int = 0.032
Detector resolution: 6.67 pixels mm^-1	θ_max = 27.9°, θ_min = 3.2°
rotation method, ω scans	h = −27→21
9252 measured reflections	k = −11→13
5086 independent reflections	l = −28→28
4095 reflections with I > 2σ(I)

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.047	H-atom parameters constrained
wR(F²) = 0.112	w = 1/[σ²(F_o²) + (0.0367P)² + 9.0512P] where P = (F_o² + 2F_c²)/3
S = 1.07	(Δ/σ)_max = 0.001
5086 reflections	Δρ_max = 0.43 e Å⁻³
300 parameters	Δρ_min = −0.42 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Hydrogen atoms were placed at calculated positions and were refined in the riding-model approximation with C_aromatic–H = 0.95 Å and with U_iso(H) = 1.2 U_eq(C) or C_methyl–H = 0.98 Å and with U_iso(H) = 1.5 U_eq(C). The methyl groups were allowed to rotate but not to tip.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.43628 (9)	0.63823 (19)	0.57067 (8)	0.0176 (4)
C2	0.48132 (9)	0.70460 (19)	0.62341 (9)	0.0168 (4)
C3	0.49768 (9)	0.84527 (19)	0.63877 (9)	0.0180 (4)
C4	0.47465 (10)	0.9659 (2)	0.60650 (10)	0.0223 (4)
H4	0.441858	0.965309	0.564946	0.027*
C5	0.50013 (10)	1.0859 (2)	0.63573 (10)	0.0252 (4)
H5	0.484592	1.168352	0.614199	0.030*
C6	0.54853 (10)	1.0872 (2)	0.69666 (10)	0.0254 (4)
H6	0.564912	1.171112	0.716002	0.030*
C7	0.57338 (10)	0.9699 (2)	0.72976 (10)	0.0218 (4)
H7	0.606510	0.971564	0.771097	0.026*
C8	0.54752 (9)	0.84933 (19)	0.69960 (9)	0.0180 (4)
N9	0.56181 (7)	0.71532 (16)	0.72326 (7)	0.0174 (3)
C10	0.52207 (9)	0.62805 (19)	0.67500 (8)	0.0172 (4)
C11	0.51848 (9)	0.48836 (19)	0.67375 (9)	0.0202 (4)
H11	0.545559	0.437924	0.709489	0.024*
N12	0.47753 (8)	0.42496 (16)	0.62301 (8)	0.0204 (3)
C13	0.43767 (9)	0.49812 (19)	0.57382 (9)	0.0188 (4)
C14	0.39167 (9)	0.71401 (19)	0.51435 (9)	0.0179 (4)
C15	0.40138 (10)	0.7085 (2)	0.45318 (9)	0.0236 (4)
H15	0.436108	0.655121	0.447024	0.028*
C16	0.36047 (10)	0.7809 (2)	0.40129 (9)	0.0277 (4)
H16	0.367077	0.776250	0.359628	0.033*
C17	0.31007 (10)	0.8597 (2)	0.40996 (10)	0.0268 (4)
H17	0.282492	0.909921	0.374423	0.032*
C18	0.29982 (10)	0.8654 (2)	0.47059 (10)	0.0253 (4)
H18	0.265057	0.918961	0.476547	0.030*
C19	0.34049 (9)	0.7926 (2)	0.52250 (9)	0.0221 (4)
H19	0.333341	0.796404	0.563933	0.027*
S20	0.63546 (2)	0.66836 (5)	0.77386 (2)	0.01780 (11)
O21	0.65626 (7)	0.77486 (15)	0.82004 (6)	0.0240 (3)
O22	0.62633 (7)	0.53544 (15)	0.79476 (6)	0.0227 (3)
C23	0.68821 (9)	0.6622 (2)	0.72515 (8)	0.0181 (4)
C24	0.69120 (9)	0.5463 (2)	0.68989 (9)	0.0196 (4)
H24	0.664623	0.470560	0.691979	0.024*
C25	0.73339 (9)	0.5422 (2)	0.65162 (9)	0.0213 (4)
H25	0.735583	0.463408	0.627426	0.026*
C26	0.77254 (9)	0.6532 (2)	0.64856 (9)	0.0225 (4)
C27	0.76843 (10)	0.7683 (2)	0.68399 (10)	0.0264 (4)
H27	0.794930	0.844264	0.682083	0.032*
C28	0.72618 (10)	0.7737 (2)	0.72203 (9)	0.0243 (4)
H28	0.723345	0.852955	0.745653	0.029*
C29	0.81714 (11)	0.6503 (3)	0.60604 (10)	0.0311 (5)
H29A	0.832160	0.557958	0.603197	0.047*
H29B	0.855549	0.708319	0.624977	0.047*
H29C	0.792749	0.682566	0.562243	0.047*
C30	0.39117 (9)	0.41361 (19)	0.52160 (9)	0.0194 (4)
O31	0.33274 (7)	0.43197 (15)	0.49932 (7)	0.0267 (3)
O32	0.42403 (7)	0.31138 (15)	0.50485 (7)	0.0258 (3)
C33	0.38414 (11)	0.2172 (2)	0.45801 (10)	0.0274 (4)
H33A	0.365635	0.262088	0.415801	0.041*
H33B	0.348011	0.184149	0.473394	0.041*
H33C	0.411710	0.141355	0.453070	0.041*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0174 (8)	0.0187 (9)	0.0173 (8)	0.0021 (7)	0.0063 (7)	0.0008 (7)
C2	0.0165 (8)	0.0156 (9)	0.0190 (8)	0.0023 (7)	0.0067 (7)	0.0012 (7)
C3	0.0161 (8)	0.0180 (9)	0.0211 (8)	0.0003 (7)	0.0076 (7)	−0.0006 (7)
C4	0.0203 (9)	0.0197 (9)	0.0262 (9)	0.0014 (8)	0.0061 (7)	0.0031 (8)
C5	0.0235 (10)	0.0167 (10)	0.0356 (11)	0.0005 (8)	0.0096 (8)	0.0038 (8)
C6	0.0255 (10)	0.0172 (10)	0.0355 (11)	−0.0031 (8)	0.0123 (9)	−0.0034 (8)
C7	0.0193 (9)	0.0204 (10)	0.0260 (9)	−0.0019 (7)	0.0075 (7)	−0.0032 (8)
C8	0.0165 (8)	0.0178 (9)	0.0209 (8)	0.0020 (7)	0.0078 (7)	0.0006 (7)
N9	0.0160 (7)	0.0171 (8)	0.0180 (7)	0.0012 (6)	0.0036 (6)	0.0002 (6)
C10	0.0153 (8)	0.0191 (9)	0.0172 (8)	0.0009 (7)	0.0050 (7)	−0.0011 (7)
C11	0.0203 (9)	0.0177 (9)	0.0206 (9)	0.0046 (7)	0.0032 (7)	0.0024 (7)
N12	0.0209 (8)	0.0170 (8)	0.0217 (8)	0.0026 (6)	0.0041 (6)	−0.0004 (6)
C13	0.0175 (8)	0.0183 (9)	0.0200 (8)	0.0026 (7)	0.0050 (7)	−0.0012 (7)
C14	0.0179 (8)	0.0156 (9)	0.0190 (8)	−0.0017 (7)	0.0039 (7)	0.0011 (7)
C15	0.0216 (9)	0.0275 (11)	0.0230 (9)	−0.0004 (8)	0.0086 (7)	−0.0009 (8)
C16	0.0291 (11)	0.0346 (12)	0.0188 (9)	−0.0066 (9)	0.0063 (8)	0.0027 (8)
C17	0.0259 (10)	0.0252 (11)	0.0222 (9)	−0.0034 (8)	−0.0030 (8)	0.0088 (8)
C18	0.0211 (9)	0.0230 (10)	0.0288 (10)	0.0032 (8)	0.0032 (8)	0.0029 (8)
C19	0.0214 (9)	0.0232 (10)	0.0212 (9)	0.0019 (8)	0.0058 (7)	0.0005 (7)
S20	0.0159 (2)	0.0217 (2)	0.01493 (19)	0.00209 (17)	0.00344 (15)	−0.00003 (17)
O21	0.0219 (7)	0.0308 (8)	0.0178 (6)	0.0007 (6)	0.0040 (5)	−0.0048 (6)
O22	0.0220 (7)	0.0255 (8)	0.0208 (6)	0.0029 (6)	0.0071 (5)	0.0052 (6)
C23	0.0141 (8)	0.0229 (9)	0.0159 (8)	0.0018 (7)	0.0026 (6)	0.0000 (7)
C24	0.0186 (8)	0.0184 (9)	0.0215 (8)	0.0013 (7)	0.0057 (7)	0.0020 (7)
C25	0.0227 (9)	0.0215 (10)	0.0195 (8)	0.0042 (8)	0.0060 (7)	−0.0001 (7)
C26	0.0176 (9)	0.0292 (11)	0.0200 (8)	0.0019 (8)	0.0048 (7)	0.0012 (8)
C27	0.0223 (10)	0.0274 (11)	0.0303 (10)	−0.0078 (8)	0.0091 (8)	−0.0047 (8)
C28	0.0236 (9)	0.0236 (10)	0.0256 (9)	−0.0043 (8)	0.0074 (8)	−0.0073 (8)
C29	0.0272 (10)	0.0407 (13)	0.0299 (10)	0.0004 (10)	0.0155 (9)	−0.0013 (9)
C30	0.0232 (9)	0.0159 (9)	0.0195 (8)	−0.0001 (7)	0.0071 (7)	0.0013 (7)
O31	0.0205 (7)	0.0286 (8)	0.0278 (7)	0.0013 (6)	0.0029 (6)	−0.0053 (6)
O32	0.0236 (7)	0.0238 (8)	0.0265 (7)	0.0032 (6)	0.0023 (6)	−0.0087 (6)
C33	0.0331 (11)	0.0234 (10)	0.0235 (9)	0.0004 (9)	0.0053 (8)	−0.0068 (8)

Geometric parameters (Å, º) top

C1—C13	1.395 (3)	C17—C18	1.388 (3)
C1—C2	1.404 (3)	C17—H17	0.9500
C1—C14	1.493 (2)	C18—C19	1.388 (3)
C2—C10	1.404 (2)	C18—H18	0.9500
C2—C3	1.455 (3)	C19—H19	0.9500
C3—C4	1.398 (3)	S20—O21	1.4270 (15)
C3—C8	1.409 (3)	S20—O22	1.4290 (15)
C4—C5	1.380 (3)	S20—C23	1.7532 (18)
C4—H4	0.9500	C23—C28	1.385 (3)
C5—C6	1.396 (3)	C23—C24	1.393 (3)
C5—H5	0.9500	C24—C25	1.390 (3)
C6—C7	1.384 (3)	C24—H24	0.9500
C6—H6	0.9500	C25—C26	1.396 (3)
C7—C8	1.394 (3)	C25—H25	0.9500
C7—H7	0.9500	C26—C27	1.394 (3)
C8—N9	1.426 (2)	C26—C29	1.505 (3)
N9—C10	1.416 (2)	C27—C28	1.388 (3)
N9—S20	1.6741 (16)	C27—H27	0.9500
C10—C11	1.392 (3)	C28—H28	0.9500
C11—N12	1.328 (2)	C29—H29A	0.9800
C11—H11	0.9500	C29—H29B	0.9800
N12—C13	1.348 (2)	C29—H29C	0.9800
C13—C30	1.504 (3)	C30—O31	1.198 (2)
C14—C19	1.392 (3)	C30—O32	1.343 (2)
C14—C15	1.394 (3)	O32—C33	1.445 (2)
C15—C16	1.387 (3)	C33—H33A	0.9800
C15—H15	0.9500	C33—H33B	0.9800
C16—C17	1.384 (3)	C33—H33C	0.9800
C16—H16	0.9500

C13—C1—C2	115.56 (17)	C18—C17—H17	120.0
C13—C1—C14	122.85 (17)	C19—C18—C17	119.84 (19)
C2—C1—C14	121.57 (17)	C19—C18—H18	120.1
C10—C2—C1	119.05 (17)	C17—C18—H18	120.1
C10—C2—C3	107.20 (16)	C18—C19—C14	120.55 (18)
C1—C2—C3	133.75 (17)	C18—C19—H19	119.7
C4—C3—C8	119.05 (18)	C14—C19—H19	119.7
C4—C3—C2	133.65 (17)	O21—S20—O22	120.71 (8)
C8—C3—C2	107.30 (16)	O21—S20—N9	105.88 (8)
C5—C4—C3	119.20 (18)	O22—S20—N9	105.87 (8)
C5—C4—H4	120.4	O21—S20—C23	108.94 (9)
C3—C4—H4	120.4	O22—S20—C23	109.19 (9)
C4—C5—C6	120.57 (19)	N9—S20—C23	105.10 (8)
C4—C5—H5	119.7	C28—C23—C24	120.85 (17)
C6—C5—H5	119.7	C28—C23—S20	119.24 (15)
C7—C6—C5	122.02 (19)	C24—C23—S20	119.91 (15)
C7—C6—H6	119.0	C25—C24—C23	119.46 (18)
C5—C6—H6	119.0	C25—C24—H24	120.3
C6—C7—C8	116.89 (18)	C23—C24—H24	120.3
C6—C7—H7	121.6	C24—C25—C26	120.36 (18)
C8—C7—H7	121.6	C24—C25—H25	119.8
C7—C8—C3	122.24 (18)	C26—C25—H25	119.8
C7—C8—N9	128.91 (17)	C27—C26—C25	119.13 (18)
C3—C8—N9	108.77 (16)	C27—C26—C29	120.34 (19)
C10—N9—C8	107.32 (14)	C25—C26—C29	120.50 (19)
C10—N9—S20	122.20 (13)	C28—C27—C26	120.95 (19)
C8—N9—S20	123.16 (13)	C28—C27—H27	119.5
C11—C10—C2	120.63 (17)	C26—C27—H27	119.5
C11—C10—N9	130.02 (17)	C23—C28—C27	119.23 (19)
C2—C10—N9	109.34 (16)	C23—C28—H28	120.4
N12—C11—C10	120.56 (17)	C27—C28—H28	120.4
N12—C11—H11	119.7	C26—C29—H29A	109.5
C10—C11—H11	119.7	C26—C29—H29B	109.5
C11—N12—C13	118.96 (17)	H29A—C29—H29B	109.5
N12—C13—C1	125.19 (17)	C26—C29—H29C	109.5
N12—C13—C30	113.26 (17)	H29A—C29—H29C	109.5
C1—C13—C30	121.51 (17)	H29B—C29—H29C	109.5
C19—C14—C15	119.17 (18)	O31—C30—O32	124.50 (18)
C19—C14—C1	120.41 (16)	O31—C30—C13	125.10 (18)
C15—C14—C1	120.42 (17)	O32—C30—C13	110.37 (16)
C16—C15—C14	120.18 (19)	C30—O32—C33	115.91 (16)
C16—C15—H15	119.9	O32—C33—H33A	109.5
C14—C15—H15	119.9	O32—C33—H33B	109.5
C17—C16—C15	120.28 (18)	H33A—C33—H33B	109.5
C17—C16—H16	119.9	O32—C33—H33C	109.5
C15—C16—H16	119.9	H33A—C33—H33C	109.5
C16—C17—C18	119.98 (18)	H33B—C33—H33C	109.5
C16—C17—H17	120.0

C13—C1—C2—C10	−1.8 (2)	C13—C1—C14—C19	113.3 (2)
C14—C1—C2—C10	−179.94 (16)	C2—C1—C14—C19	−68.7 (2)
C13—C1—C2—C3	177.82 (19)	C13—C1—C14—C15	−67.7 (3)
C14—C1—C2—C3	−0.4 (3)	C2—C1—C14—C15	110.3 (2)
C10—C2—C3—C4	179.38 (19)	C19—C14—C15—C16	0.1 (3)
C1—C2—C3—C4	−0.2 (4)	C1—C14—C15—C16	−178.95 (19)
C10—C2—C3—C8	−0.5 (2)	C14—C15—C16—C17	0.5 (3)
C1—C2—C3—C8	179.86 (19)	C15—C16—C17—C18	−0.7 (3)
C8—C3—C4—C5	−1.6 (3)	C16—C17—C18—C19	0.4 (3)
C2—C3—C4—C5	178.54 (19)	C17—C18—C19—C14	0.2 (3)
C3—C4—C5—C6	0.3 (3)	C15—C14—C19—C18	−0.4 (3)
C4—C5—C6—C7	0.7 (3)	C1—C14—C19—C18	178.63 (18)
C5—C6—C7—C8	−0.4 (3)	C10—N9—S20—O21	−172.82 (14)
C6—C7—C8—C3	−1.0 (3)	C8—N9—S20—O21	40.91 (16)
C6—C7—C8—N9	−177.29 (18)	C10—N9—S20—O22	−43.55 (16)
C4—C3—C8—C7	2.0 (3)	C8—N9—S20—O22	170.18 (13)
C2—C3—C8—C7	−178.12 (16)	C10—N9—S20—C23	71.95 (16)
C4—C3—C8—N9	178.94 (16)	C8—N9—S20—C23	−74.32 (15)
C2—C3—C8—N9	−1.15 (19)	O21—S20—C23—C28	−19.10 (18)
C7—C8—N9—C10	179.08 (18)	O22—S20—C23—C28	−152.82 (15)
C3—C8—N9—C10	2.36 (19)	N9—S20—C23—C28	93.99 (16)
C7—C8—N9—S20	−30.4 (3)	O21—S20—C23—C24	161.28 (14)
C3—C8—N9—S20	152.88 (13)	O22—S20—C23—C24	27.56 (17)
C1—C2—C10—C11	0.6 (3)	N9—S20—C23—C24	−85.63 (16)
C3—C2—C10—C11	−179.05 (17)	C28—C23—C24—C25	0.6 (3)
C1—C2—C10—N9	−178.31 (15)	S20—C23—C24—C25	−179.74 (14)
C3—C2—C10—N9	2.00 (19)	C23—C24—C25—C26	0.1 (3)
C8—N9—C10—C11	178.48 (19)	C24—C25—C26—C27	−0.4 (3)
S20—N9—C10—C11	27.6 (3)	C24—C25—C26—C29	−178.65 (18)
C8—N9—C10—C2	−2.71 (19)	C25—C26—C27—C28	0.0 (3)
S20—N9—C10—C2	−153.57 (13)	C29—C26—C27—C28	178.26 (19)
C2—C10—C11—N12	1.6 (3)	C24—C23—C28—C27	−1.0 (3)
N9—C10—C11—N12	−179.73 (17)	S20—C23—C28—C27	179.36 (16)
C10—C11—N12—C13	−2.5 (3)	C26—C27—C28—C23	0.7 (3)
C11—N12—C13—C1	1.2 (3)	N12—C13—C30—O31	131.0 (2)
C11—N12—C13—C30	−176.58 (16)	C1—C13—C30—O31	−46.9 (3)
C2—C1—C13—N12	0.9 (3)	N12—C13—C30—O32	−47.0 (2)
C14—C1—C13—N12	179.06 (16)	C1—C13—C30—O32	135.12 (18)
C2—C1—C13—C30	178.56 (16)	O31—C30—O32—C33	−1.9 (3)
C14—C1—C13—C30	−3.3 (3)	C13—C30—O32—C33	176.09 (16)

References

Dassonneville, B., Hinkel, F. & Detert, H. (2023). Int. J. Org. Chem. 13, 16–39. CrossRef CAS Google Scholar
Dassonneville, B., Witulski, B. & Detert, H. (2011). Eur. J. Org. Chem. pp. 2836–2844. Web of Science CSD CrossRef Google Scholar
Letessier, J. & Detert, H. (2012). Synthesis pp. 290–296. Google Scholar
Letessier, J., Detert, H., Götz, K. & Opatz, T. (2012). Synthesis 44, 747–754. CAS Google Scholar
Letessier, J., Geffe, M., Schollmeyer, D. & Detert, H. (2013). Synthesis 45, 3173–3178. CAS Google Scholar
Limbach, D., Geffe, M. & Detert, H. (2018). ChemistrySelect pp 249–252. Google Scholar
Nissen, F. & Detert, H. (2011). Eur. J. Org. Chem. pp. 2845–2854. Web of Science CrossRef Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spek, A. L. (2009). Acta Cryst. D65, 148–155. Web of Science CrossRef CAS IUCr Journals Google Scholar
Stoe & Cie (2020). X-AREA WinXpose, X-AREA Recipe and X-AREA Integrate. Stoe & Cie, Darmstadt, Germany. Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
