5-{4-[(1R,3S,4S)-Neomenthyloxy]phenyl}-1H-tetrazole

Heiner Detert ^a ^* and Dieter Schollmeyer ^a

^aUniversity Mainz, Duesbergweg 10-14, 55099 Mainz, Germany
^*Correspondence e-mail: [email protected]

Edited by M. Bolte, Goethe-Universität Frankfurt, Germany (Received 12 January 2026; accepted 13 January 2026; online 16 January 2026)

The monoclinic unit cell of the title compound, C₁₇H₂₄N₄O, contains four molecules, two A and two B. In the extended structure, the two similar conformers are connected into A-ribbons and B-ribbons. Three hydrogen bonds connect the molecules within the ribbons, while π–π interactions between the phenyl and tetrazole moieties of different molecules [centroid–centroid distances of 3.5288 (11) and 3.6138 (11) Å] connect the A and B strands; the aromatic rings are nearly coplanar.

Keywords: crystal structure; heterocycle; hydrogen bonds.

CCDC reference: 2522581

Structure description

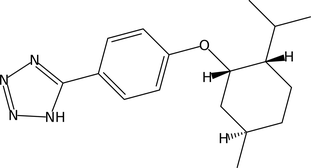

The title compound (Fig. 1) was prepared in a larger project on discotic liquid crystals (Rieth et al., 2018 ; Tober et al., 2019 ; Graschtat et al., 2025 ). The condensation of tetrazoles with cyanuric chloride leading to tristriazolotriazines was discovered by Huisgen (Huisgen et al., 1961 ) and successfully applied for the synthesis of liquid crystals (Cristiano et al., 2008 ; Rieth et al., 2020 ). The title compound, C₁₇H₂₄N₄O, was used as starting material for the synthesis of tris-(neomenthyloxyphenyl)-tristriazolotriazine (Herget et al., 2013 ). The monoclinic unit cell contains four molecules, two A and two B. A and B differ only slightly in their conformation, the main difference being the torsion angle at the neomenthoxy ether linkage. This angle (C6—C1—O11—C12) in A is −164.63 (15)° whereas in B the torsion angle amounts to −142.09 (16)°. In both molecules, the phenyl and tetrazole rings are nearly coplanar [dihedral angle: 6.99 (11)° in molecule A and 1.53 (11)° in molecule B] and the arylether group is only weakly bent [C13A—C12A—O11A—C1A = −169.86 (16)° and C13B—C12B—O11B—C1B = 168.60 (16)°]. The cyclohexane adopts a chair conformation with equatorial alkyl groups and an axial ether linkage. Molecules A and B are antiparallel and they are connected via π–π interactions between the phenyl and tetrazole moieties. These rings are almost parallel, dihedral angles between the least-squares planes are tetrazole A/phenyl B = 0.97 (10)° and tetrazole B/phenyl A = 8.05 (10)°. The distance between the centroids of phenyl A and tetrazole B rings is 3.5288 (11) Å and that between phenyl B and tetrazole A is 3.6138 (11) Å.

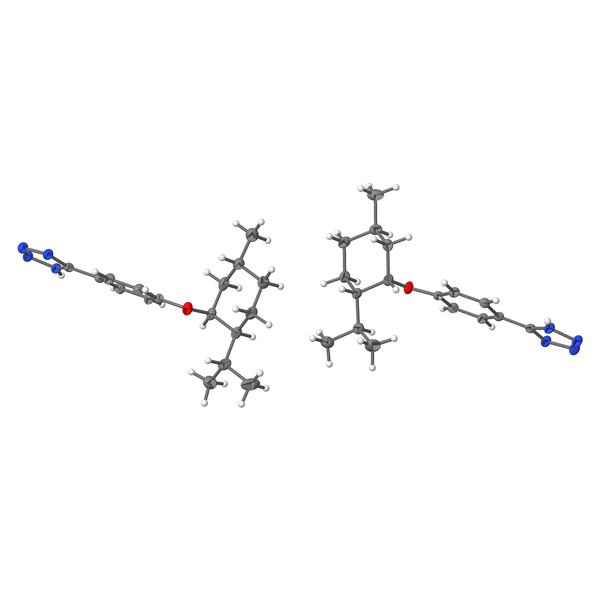

Figure 1
View of the title compound. Displacement ellipsoids are drawn at the 50% probability level. Only one of the two independent molecules is shown.

In the extended structure (Fig. 2), three hydrogen bonds connect A molecules into ribbons and, in a very similar manner, the B molecules into ribbons. Both ribbons run along the b-axis direction and they are nearly C2-symmetrical. In the strands, the molecules are geometrically connected via the 2₁ axis. The intermolecular hydrogen bonds are N22—H22⋯N19 with distances of N22A—H22A = 0.82 (3) Å, H22A⋯N19A = 2.08 (3) Å and N22A⋯N19A = 2.903 (3) Å, the bond is close to be linear: 177 (2)°. Two C—H⋯N bonds (C14—H14⋯N21, C16—H16⋯N21) are significantly longer and bent: C14A—H14A = 0.95 Å, H14A⋯N21A = 2.57 Å, C14A⋯N21A = 3.495 (3) Å, angle C—H⋯N = 165.2° and C16A—H16A = 0.95 Å, H16A⋯N20A = 2.51 Å, C16A⋯N20A = 3.423 (3) Å, angle C—H⋯N = 160.4° (for values for molecule B, see Table 1).

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N22A—H22A⋯N19Aⁱ	0.82 (3)	2.08 (3)	2.903 (3)	177 (2)
N22B—H22B⋯N19Bⁱⁱ	0.85 (3)	2.05 (3)	2.900 (3)	177 (3)
C14B—H14B⋯N21Bⁱⁱⁱ	0.95	2.55	3.493 (3)	170
C14A—H14A⋯N21A^iv	0.95	2.57	3.495 (3)	165
C16A—H16A⋯N20Aⁱ	0.95	2.51	3.423 (3)	160
C16B—H16B⋯N20Bⁱⁱ	0.95	2.43	3.357 (3)	167
Symmetry codes: (i) $[-x, y+{\script{1\over 2}}, -z]$ ; (ii) $[-x+3, y-{\script{1\over 2}}, -z+2]$ ; (iii) $[-x+3, y+{\script{1\over 2}}, -z+2]$ ; (iv) $[-x, y-{\script{1\over 2}}, -z]$ .

Figure 2
Partial packing diagram. View along the b-axis direction. Only hydrogen atoms involved in hydrogen bonds are shown.

Synthesis and crystallization

The two-step synthesis of the title compound was performed via Mitsunobu reaction of p-cyanophenol (0.1 mol) and (−)-menthol (0.12 mol) using diethyl azodicarboxylate (0.15 mol) and triphenylphosphine (0.15 mol) as coupling reagents in THF (180 ml) at 273 to 298 K. 150 ml of the solvent were evaporated, the residue extracted with toluene/petroleum ether 1/1 and purified by chromatography on silica gel using toluene as eluent to yield 13.6 g (53%) of a colorless oil. The nitrile (0.01 mol) in 30 ml toluene was added to 0.02 mol triethylammonium chloride and 0.02 mol sodium azide and the stirred mixture was heated to reflux for 104 h. Petroleum ether was added and the liquid supernatant was removed. The solid residue was dissolved in warm aqueous ethanol and carefully acidulated with conc. hydrochloric acid. After cooling on ice, the solid was isolated by suction filtration and recrystallized from ethanol to give colorless crystals with m.p. = 496 K (dec.).

NMR-data of the nitrile: ¹H-NMR (400 MHz, CDCl₃) 0.78 (d, J = 6.8 Hz, 6 H, CH₃) 0.94–1.13 (m, 3 H), 1.43–1.82 (m, 5 H), 2.03 (dq, J = 16 Hz, J′= 2.7 Hz, 1 H), 4.68 (m, 1 H), 6.90 (d, 2 H, 8 Hz) 7.54 (d, 2 H, J = 8 Hz). ¹³C-NMR (75 MHz, CDCl₃): 20.7, 21.0, 22.2, 24.8, 26.2, 34.8, 37.4, 47.6, 74.0, 103.1, 115.9 (2 C), 119.4, 134.1 (2 C), 161.7. MS: (EI): 256 (6%, M⁺), 82 (100%, C₆H₁₀^+.).

Analytical data of the title compound: IR (KBr): 2910, 2840, 2222, 1600, 1560, 1482,1450, 1370, 1240, 1075, 1042, 912 cm⁻¹; ¹H-NMR (400 MHz, CDCl₃ + DMSO-d₆, 20/1): δ = (7.87, d, 2 H, ph) (6.90, d, 2 H, ph), 5.5–3.0 (vbs, 1 N, NH), (4.64, "s", 1 H, 1-H neom), 2.00 (d, 1H), 1.68 (m, 2 H). 1.65–1.44 (m, 3 H), 1.1–0.87 (m, 3 H), 0.84 (d, 3 H, CH₃), 0.77–0.68 (2*d, isopropyl); ¹³C-NMR (100 MHz, CDCl₃ + DMSO-d₆, 20/1): δ = 160.12, 154.83, 128.52, 115.54, 73.12, 47.02. 387.02, 34.33, 28.80, 25.71, 20.63, 20.33; MS (FD): 792 (2%, M₂⁺), 395.6 (100%, M⁺).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Table 2
Experimental details

Crystal data
Chemical formula	C₁₇H₂₄N₄O
M_r	300.40
Crystal system, space group	Monoclinic, P2₁
Temperature (K)	120
a, b, c (Å)	9.0309 (2), 10.0456 (3), 18.3977 (5)
β (°)	97.431 (2)
V (Å³)	1655.04 (8)
Z	4
Radiation type	Cu Kα
μ (mm⁻¹)	0.61
Crystal size (mm)	0.44 × 0.27 × 0.17

Data collection
Diffractometer	Stoe Stadivari
No. of measured, independent and observed [I > 2σ(I)] reflections	12932, 5536, 5198
R_int	0.016
(sin θ/λ)_max (Å⁻¹)	0.601

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.031, 0.082, 1.02
No. of reflections	5536
No. of parameters	411
No. of restraints	1
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.15, −0.19
Absolute structure	Flack x determined using 2193 quotients [(I⁺)−(I⁻)]/[(I⁺)+(I⁻)] (Parsons et al., 2013 )
Absolute structure parameter	0.05 (19)
Computer programs: X-AREA WinXpose, Recipe and Integrate.0 (Stoe & Cie, 2020 ), SHELXT2014 (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ) and PLATON (Spek, 2009 ).

Structural data

CCDC reference: 2522581

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S2414314626000337/bt4195sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314626000337/bt4195Isup2.hkl

checkCIF report

Computing details top

5-{4-[(1R,3S,4S)-Neomenthyloxy]phenyl}-1H-tetrazole top

Crystal data top

C₁₇H₂₄N₄O	F(000) = 648
M_r = 300.40	D_x = 1.206 Mg m⁻³
Monoclinic, P2₁	Cu Kα radiation, λ = 1.54178 Å
a = 9.0309 (2) Å	Cell parameters from 26984 reflections
b = 10.0456 (3) Å	θ = 4.9–70.7°
c = 18.3977 (5) Å	µ = 0.61 mm⁻¹
β = 97.431 (2)°	T = 120 K
V = 1655.04 (8) Å³	Block, colorless
Z = 4	0.44 × 0.27 × 0.17 mm

Data collection top

Stoe Stadivari diffractometer	5198 reflections with I > 2σ(I)
Radiation source: microfocus tube	R_int = 0.016
Detector resolution: 13.33 pixels mm^-1	θ_max = 68.0°, θ_min = 4.9°
rotation method, ω scans	h = −10→8
12932 measured reflections	k = −12→12
5536 independent reflections	l = −21→22

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F² > 2σ(F²)] = 0.031	w = 1/[σ²(F_o²) + (0.0592P)²] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.082	(Δ/σ)_max < 0.001
S = 1.02	Δρ_max = 0.15 e Å⁻³
5536 reflections	Δρ_min = −0.19 e Å⁻³
411 parameters	Absolute structure: Flack x determined using 2193 quotients [(I⁺)-(I^-)]/[(I⁺)+(I^-)] (Parsons et al., 2013)
1 restraint	Absolute structure parameter: 0.05 (19)
Primary atom site location: dual

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Hydrogen atoms attached to carbons were placed at calculated positions and were refined in the riding-model approximation with C_aromatic–H = 0.95, C_methyl–H = 0.98, C_methylene–H = 0.99, C_tertiary–H = 1.00 Å, and with U_iso(H) = 1.5 U_eq(C_methyl) and with U_iso(H) = 1.2 U_eq(C) for the remaining C atoms. The methyl groups were allowed to rotate but not to tip. Hydrogen atoms attached to nitrogen were freely refined with isotropic displacement parameters.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1A	0.5825 (2)	0.5274 (2)	0.29693 (10)	0.0245 (4)
H1A	0.583779	0.611130	0.267577	0.029*
C2A	0.4743 (2)	0.5430 (2)	0.35327 (11)	0.0311 (5)
H2A	0.372802	0.559397	0.327434	0.037*
H2B	0.503618	0.621710	0.384210	0.037*
C3A	0.4701 (2)	0.4211 (3)	0.40236 (11)	0.0336 (5)
H3A	0.430777	0.344572	0.370894	0.040*
C4A	0.6280 (2)	0.3860 (2)	0.43740 (11)	0.0355 (5)
H4A	0.664539	0.456434	0.472887	0.043*
H4B	0.624801	0.301501	0.464859	0.043*
C5A	0.7369 (2)	0.3713 (2)	0.38170 (11)	0.0302 (5)
H5A	0.707952	0.293094	0.350269	0.036*
H5B	0.838055	0.354585	0.407798	0.036*
C6A	0.7414 (2)	0.49522 (19)	0.33302 (11)	0.0251 (4)
H6A	0.774833	0.571389	0.366128	0.030*
C7A	0.3674 (3)	0.4418 (3)	0.46051 (13)	0.0505 (7)
H7A	0.403677	0.516678	0.492015	0.076*
H7B	0.366004	0.360955	0.490250	0.076*
H7C	0.266139	0.461004	0.436801	0.076*
C8A	0.8528 (2)	0.4834 (2)	0.27747 (12)	0.0322 (5)
H8A	0.822754	0.405686	0.244945	0.039*
C9A	0.8538 (3)	0.6064 (3)	0.22948 (13)	0.0477 (6)
H9A	0.933180	0.598287	0.198140	0.072*
H9B	0.871610	0.685550	0.260548	0.072*
H9C	0.757108	0.614834	0.198788	0.072*
C10A	1.0118 (3)	0.4595 (3)	0.31413 (16)	0.0546 (7)
H10A	1.014628	0.378564	0.344000	0.082*
H10B	1.044682	0.535600	0.345468	0.082*
H10C	1.078438	0.448992	0.276476	0.082*
O11A	0.53885 (14)	0.41666 (13)	0.24847 (7)	0.0247 (3)
C12A	0.4188 (2)	0.4282 (2)	0.19580 (10)	0.0209 (4)
C13A	0.3723 (2)	0.3096 (2)	0.16065 (11)	0.0235 (4)
H13A	0.424115	0.229221	0.174203	0.028*
C14A	0.2515 (2)	0.30784 (19)	0.10629 (11)	0.0234 (4)
H14A	0.220190	0.226123	0.083240	0.028*
C15A	0.1751 (2)	0.4250 (2)	0.08493 (9)	0.0203 (4)
C16A	0.2240 (2)	0.54372 (19)	0.11908 (10)	0.0225 (4)
H16A	0.174227	0.624478	0.104304	0.027*
C17A	0.3442 (2)	0.5461 (2)	0.17429 (10)	0.0244 (4)
H17A	0.375490	0.627729	0.197368	0.029*
C18A	0.0477 (2)	0.42183 (19)	0.02680 (10)	0.0191 (4)
N19A	−0.01619 (19)	0.31316 (17)	−0.00471 (9)	0.0215 (4)
N20A	−0.12990 (18)	0.35638 (17)	−0.05509 (8)	0.0232 (4)
N21A	−0.13654 (18)	0.48508 (17)	−0.05528 (9)	0.0225 (4)
N22A	−0.02606 (18)	0.52685 (19)	−0.00412 (9)	0.0199 (4)
H22A	−0.014 (3)	0.608 (3)	−0.0001 (13)	0.021 (6)*
C1B	0.9115 (2)	0.4506 (2)	0.71274 (10)	0.0238 (4)
H1B	0.995759	0.385528	0.715363	0.029*
C2B	0.7796 (2)	0.38651 (19)	0.74236 (10)	0.0258 (4)
H2C	0.809383	0.359731	0.793965	0.031*
H2D	0.749666	0.305300	0.713677	0.031*
C3B	0.6469 (2)	0.4817 (2)	0.73827 (11)	0.0285 (4)
H3B	0.679123	0.561408	0.768874	0.034*
C4B	0.6058 (2)	0.5288 (2)	0.65946 (11)	0.0304 (5)
H4C	0.523248	0.593969	0.657567	0.036*
H4D	0.569917	0.451856	0.628417	0.036*
C5B	0.7376 (2)	0.5928 (2)	0.62863 (11)	0.0291 (5)
H5C	0.765557	0.675987	0.655890	0.035*
H5D	0.707064	0.616626	0.576635	0.035*
C6B	0.8740 (2)	0.5006 (2)	0.63389 (10)	0.0261 (4)
H6B	0.845263	0.421292	0.602306	0.031*
C7B	0.5149 (3)	0.4194 (3)	0.76912 (14)	0.0425 (6)
H7D	0.546085	0.390597	0.819692	0.064*
H7E	0.479181	0.342292	0.739219	0.064*
H7F	0.434461	0.484983	0.768353	0.064*
C8B	1.0097 (2)	0.5657 (3)	0.60540 (11)	0.0340 (5)
H8B	1.034735	0.647748	0.635275	0.041*
C9B	1.1473 (3)	0.4767 (3)	0.61509 (15)	0.0548 (7)
H9D	1.124336	0.392246	0.589452	0.082*
H9E	1.176890	0.459495	0.667379	0.082*
H9F	1.229293	0.521156	0.594664	0.082*
C10B	0.9761 (3)	0.6092 (3)	0.52553 (13)	0.0492 (7)
H10D	1.064929	0.651043	0.510099	0.074*
H10E	0.893426	0.673132	0.520477	0.074*
H10F	0.948229	0.531286	0.494696	0.074*
O11B	0.95890 (14)	0.56759 (14)	0.75611 (7)	0.0245 (3)
C12B	1.0721 (2)	0.5587 (2)	0.81188 (9)	0.0201 (4)
C13B	1.1269 (2)	0.6803 (2)	0.84092 (11)	0.0226 (4)
H13B	1.080327	0.760915	0.823272	0.027*
C14B	1.2479 (2)	0.68448 (19)	0.89494 (11)	0.0225 (4)
H14B	1.285838	0.767792	0.913345	0.027*
C15B	1.3148 (2)	0.5663 (2)	0.92267 (9)	0.0189 (4)
C16B	1.2553 (2)	0.44547 (19)	0.89608 (10)	0.0201 (4)
H16B	1.298066	0.364810	0.915915	0.024*
C17B	1.1349 (2)	0.4403 (2)	0.84129 (10)	0.0214 (4)
H17B	1.095384	0.356950	0.823855	0.026*
C18B	1.4446 (2)	0.57123 (19)	0.97906 (10)	0.0190 (4)
N19B	1.5107 (2)	0.67937 (17)	1.00894 (9)	0.0225 (4)
N20B	1.62635 (18)	0.63602 (17)	1.05854 (9)	0.0245 (4)
N21B	1.63188 (18)	0.50794 (16)	1.05952 (9)	0.0234 (4)
N22B	1.51881 (18)	0.46519 (18)	1.00996 (9)	0.0200 (4)
H22B	1.507 (3)	0.381 (3)	1.0051 (14)	0.040 (7)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1A	0.0255 (11)	0.0209 (10)	0.0253 (9)	0.0005 (7)	−0.0040 (8)	−0.0030 (8)
C2A	0.0252 (10)	0.0350 (11)	0.0308 (10)	0.0058 (8)	−0.0046 (8)	−0.0088 (9)
C3A	0.0248 (11)	0.0467 (13)	0.0290 (10)	−0.0043 (9)	0.0020 (8)	−0.0024 (10)
C4A	0.0308 (12)	0.0433 (12)	0.0308 (10)	−0.0023 (9)	−0.0021 (9)	0.0090 (9)
C5A	0.0236 (11)	0.0300 (11)	0.0350 (11)	0.0018 (8)	−0.0040 (8)	0.0067 (9)
C6A	0.0233 (10)	0.0210 (10)	0.0294 (10)	−0.0002 (7)	−0.0028 (8)	−0.0010 (8)
C7A	0.0356 (14)	0.082 (2)	0.0345 (12)	−0.0028 (13)	0.0052 (10)	−0.0052 (13)
C8A	0.0268 (11)	0.0306 (11)	0.0391 (12)	−0.0052 (8)	0.0033 (9)	−0.0045 (9)
C9A	0.0418 (15)	0.0646 (18)	0.0365 (12)	−0.0042 (11)	0.0040 (10)	0.0151 (12)
C10A	0.0286 (13)	0.0625 (18)	0.0742 (18)	0.0049 (11)	0.0125 (13)	0.0311 (15)
O11A	0.0261 (8)	0.0205 (7)	0.0255 (7)	0.0029 (6)	−0.0041 (5)	−0.0016 (6)
C12A	0.0198 (10)	0.0229 (10)	0.0197 (9)	−0.0006 (8)	0.0011 (7)	0.0003 (8)
C13A	0.0230 (11)	0.0182 (10)	0.0290 (10)	0.0018 (8)	0.0023 (8)	0.0038 (8)
C14A	0.0241 (10)	0.0177 (10)	0.0277 (10)	−0.0026 (8)	0.0009 (8)	−0.0019 (8)
C15A	0.0207 (10)	0.0199 (9)	0.0208 (9)	−0.0012 (8)	0.0044 (7)	0.0012 (8)
C16A	0.0261 (10)	0.0163 (9)	0.0244 (9)	0.0029 (7)	0.0008 (7)	0.0004 (7)
C17A	0.0273 (11)	0.0194 (10)	0.0251 (9)	−0.0003 (8)	−0.0014 (8)	−0.0048 (8)
C18A	0.0207 (10)	0.0165 (9)	0.0205 (9)	−0.0008 (7)	0.0046 (7)	0.0010 (8)
N19A	0.0219 (9)	0.0179 (8)	0.0239 (8)	−0.0014 (6)	−0.0003 (6)	0.0020 (6)
N20A	0.0242 (9)	0.0200 (9)	0.0244 (8)	−0.0017 (6)	−0.0004 (7)	0.0023 (7)
N21A	0.0221 (9)	0.0207 (9)	0.0242 (8)	−0.0022 (6)	0.0005 (7)	−0.0005 (6)
N22A	0.0206 (9)	0.0156 (9)	0.0230 (8)	−0.0011 (6)	0.0008 (6)	−0.0004 (6)
C1B	0.0218 (10)	0.0247 (11)	0.0240 (9)	0.0020 (8)	−0.0009 (7)	−0.0051 (8)
C2B	0.0316 (11)	0.0216 (9)	0.0233 (9)	−0.0008 (8)	0.0008 (8)	−0.0010 (7)
C3B	0.0252 (11)	0.0276 (10)	0.0337 (10)	−0.0010 (8)	0.0080 (8)	−0.0038 (8)
C4B	0.0195 (10)	0.0306 (10)	0.0401 (11)	0.0016 (7)	0.0000 (8)	0.0019 (9)
C5B	0.0254 (11)	0.0328 (12)	0.0277 (10)	−0.0017 (8)	−0.0024 (8)	0.0050 (8)
C6B	0.0206 (10)	0.0343 (11)	0.0227 (9)	−0.0038 (8)	0.0002 (7)	−0.0039 (8)
C7B	0.0365 (13)	0.0424 (13)	0.0519 (13)	−0.0044 (10)	0.0181 (11)	0.0010 (11)
C8B	0.0278 (12)	0.0478 (13)	0.0264 (10)	−0.0075 (10)	0.0037 (8)	−0.0071 (10)
C9B	0.0291 (14)	0.090 (2)	0.0480 (14)	0.0017 (13)	0.0137 (11)	−0.0001 (14)
C10B	0.0425 (15)	0.0715 (18)	0.0345 (12)	−0.0191 (12)	0.0087 (10)	0.0042 (12)
O11B	0.0235 (7)	0.0237 (7)	0.0242 (6)	0.0017 (6)	−0.0050 (5)	−0.0034 (6)
C12B	0.0171 (9)	0.0238 (10)	0.0199 (8)	−0.0001 (8)	0.0036 (7)	0.0009 (8)
C13B	0.0232 (11)	0.0174 (10)	0.0268 (10)	0.0012 (7)	0.0017 (8)	0.0037 (8)
C14B	0.0230 (10)	0.0167 (9)	0.0273 (10)	−0.0025 (7)	0.0016 (8)	0.0007 (8)
C15B	0.0178 (9)	0.0187 (9)	0.0206 (8)	−0.0017 (8)	0.0033 (7)	−0.0002 (8)
C16B	0.0209 (10)	0.0175 (9)	0.0223 (9)	0.0022 (7)	0.0038 (7)	0.0013 (7)
C17B	0.0222 (10)	0.0178 (9)	0.0242 (9)	−0.0028 (7)	0.0034 (7)	−0.0038 (7)
C18B	0.0191 (9)	0.0157 (9)	0.0227 (8)	0.0001 (8)	0.0044 (7)	0.0016 (8)
N19B	0.0215 (8)	0.0179 (8)	0.0266 (9)	−0.0015 (6)	−0.0025 (7)	0.0003 (6)
N20B	0.0237 (9)	0.0187 (9)	0.0292 (9)	−0.0006 (6)	−0.0038 (7)	0.0016 (7)
N21B	0.0226 (9)	0.0169 (9)	0.0289 (9)	−0.0012 (6)	−0.0038 (7)	0.0003 (6)
N22B	0.0193 (9)	0.0135 (9)	0.0260 (8)	−0.0017 (6)	−0.0011 (7)	−0.0007 (6)

Geometric parameters (Å, º) top

C1A—O11A	1.448 (2)	C1B—O11B	1.454 (2)
C1A—C2A	1.522 (3)	C1B—C2B	1.516 (3)
C1A—C6A	1.536 (3)	C1B—C6B	1.531 (3)
C1A—H1A	1.0000	C1B—H1B	1.0000
C2A—C3A	1.525 (3)	C2B—C3B	1.527 (3)
C2A—H2A	0.9900	C2B—H2C	0.9900
C2A—H2B	0.9900	C2B—H2D	0.9900
C3A—C7A	1.518 (3)	C3B—C7B	1.520 (3)
C3A—C4A	1.528 (3)	C3B—C4B	1.525 (3)
C3A—H3A	1.0000	C3B—H3B	1.0000
C4A—C5A	1.516 (3)	C4B—C5B	1.525 (3)
C4A—H4A	0.9900	C4B—H4C	0.9900
C4A—H4B	0.9900	C4B—H4D	0.9900
C5A—C6A	1.538 (3)	C5B—C6B	1.535 (3)
C5A—H5A	0.9900	C5B—H5C	0.9900
C5A—H5B	0.9900	C5B—H5D	0.9900
C6A—C8A	1.529 (3)	C6B—C8B	1.540 (3)
C6A—H6A	1.0000	C6B—H6B	1.0000
C7A—H7A	0.9800	C7B—H7D	0.9800
C7A—H7B	0.9800	C7B—H7E	0.9800
C7A—H7C	0.9800	C7B—H7F	0.9800
C8A—C9A	1.519 (3)	C8B—C9B	1.523 (4)
C8A—C10A	1.524 (3)	C8B—C10B	1.525 (3)
C8A—H8A	1.0000	C8B—H8B	1.0000
C9A—H9A	0.9800	C9B—H9D	0.9800
C9A—H9B	0.9800	C9B—H9E	0.9800
C9A—H9C	0.9800	C9B—H9F	0.9800
C10A—H10A	0.9800	C10B—H10D	0.9800
C10A—H10B	0.9800	C10B—H10E	0.9800
C10A—H10C	0.9800	C10B—H10F	0.9800
O11A—C12A	1.362 (2)	O11B—C12B	1.355 (2)
C12A—C13A	1.394 (3)	C12B—C17B	1.396 (3)
C12A—C17A	1.395 (3)	C12B—C13B	1.398 (3)
C13A—C14A	1.381 (3)	C13B—C14B	1.379 (3)
C13A—H13A	0.9500	C13B—H13B	0.9500
C14A—C15A	1.395 (3)	C14B—C15B	1.398 (3)
C14A—H14A	0.9500	C14B—H14B	0.9500
C15A—C16A	1.393 (3)	C15B—C16B	1.390 (3)
C15A—C18A	1.466 (3)	C15B—C18B	1.462 (2)
C16A—C17A	1.387 (3)	C16B—C17B	1.384 (3)
C16A—H16A	0.9500	C16B—H16B	0.9500
C17A—H17A	0.9500	C17B—H17B	0.9500
C18A—N19A	1.332 (3)	C18B—N19B	1.324 (3)
C18A—N22A	1.335 (3)	C18B—N22B	1.345 (3)
N19A—N20A	1.362 (2)	N19B—N20B	1.366 (2)
N20A—N21A	1.294 (2)	N20B—N21B	1.288 (2)
N21A—N22A	1.347 (2)	N21B—N22B	1.348 (2)
N22A—H22A	0.82 (3)	N22B—H22B	0.85 (3)

O11A—C1A—C2A	110.53 (16)	O11B—C1B—C2B	109.61 (15)
O11A—C1A—C6A	105.59 (15)	O11B—C1B—C6B	105.58 (15)
C2A—C1A—C6A	111.94 (16)	C2B—C1B—C6B	113.09 (16)
O11A—C1A—H1A	109.6	O11B—C1B—H1B	109.5
C2A—C1A—H1A	109.6	C2B—C1B—H1B	109.5
C6A—C1A—H1A	109.6	C6B—C1B—H1B	109.5
C1A—C2A—C3A	112.83 (17)	C1B—C2B—C3B	111.35 (16)
C1A—C2A—H2A	109.0	C1B—C2B—H2C	109.4
C3A—C2A—H2A	109.0	C3B—C2B—H2C	109.4
C1A—C2A—H2B	109.0	C1B—C2B—H2D	109.4
C3A—C2A—H2B	109.0	C3B—C2B—H2D	109.4
H2A—C2A—H2B	107.8	H2C—C2B—H2D	108.0
C7A—C3A—C2A	111.8 (2)	C7B—C3B—C4B	112.13 (18)
C7A—C3A—C4A	110.87 (17)	C7B—C3B—C2B	111.82 (18)
C2A—C3A—C4A	110.03 (18)	C4B—C3B—C2B	109.50 (16)
C7A—C3A—H3A	108.0	C7B—C3B—H3B	107.7
C2A—C3A—H3A	108.0	C4B—C3B—H3B	107.7
C4A—C3A—H3A	108.0	C2B—C3B—H3B	107.7
C5A—C4A—C3A	112.86 (16)	C3B—C4B—C5B	112.26 (16)
C5A—C4A—H4A	109.0	C3B—C4B—H4C	109.2
C3A—C4A—H4A	109.0	C5B—C4B—H4C	109.2
C5A—C4A—H4B	109.0	C3B—C4B—H4D	109.2
C3A—C4A—H4B	109.0	C5B—C4B—H4D	109.2
H4A—C4A—H4B	107.8	H4C—C4B—H4D	107.9
C4A—C5A—C6A	112.53 (18)	C4B—C5B—C6B	112.33 (16)
C4A—C5A—H5A	109.1	C4B—C5B—H5C	109.1
C6A—C5A—H5A	109.1	C6B—C5B—H5C	109.1
C4A—C5A—H5B	109.1	C4B—C5B—H5D	109.1
C6A—C5A—H5B	109.1	C6B—C5B—H5D	109.1
H5A—C5A—H5B	107.8	H5C—C5B—H5D	107.9
C8A—C6A—C1A	112.73 (16)	C1B—C6B—C5B	109.57 (16)
C8A—C6A—C5A	113.34 (17)	C1B—C6B—C8B	111.95 (16)
C1A—C6A—C5A	109.19 (16)	C5B—C6B—C8B	112.91 (18)
C8A—C6A—H6A	107.1	C1B—C6B—H6B	107.4
C1A—C6A—H6A	107.1	C5B—C6B—H6B	107.4
C5A—C6A—H6A	107.1	C8B—C6B—H6B	107.4
C3A—C7A—H7A	109.5	C3B—C7B—H7D	109.5
C3A—C7A—H7B	109.5	C3B—C7B—H7E	109.5
H7A—C7A—H7B	109.5	H7D—C7B—H7E	109.5
C3A—C7A—H7C	109.5	C3B—C7B—H7F	109.5
H7A—C7A—H7C	109.5	H7D—C7B—H7F	109.5
H7B—C7A—H7C	109.5	H7E—C7B—H7F	109.5
C9A—C8A—C10A	108.04 (19)	C9B—C8B—C10B	109.8 (2)
C9A—C8A—C6A	112.28 (19)	C9B—C8B—C6B	112.6 (2)
C10A—C8A—C6A	112.35 (19)	C10B—C8B—C6B	112.42 (17)
C9A—C8A—H8A	108.0	C9B—C8B—H8B	107.2
C10A—C8A—H8A	108.0	C10B—C8B—H8B	107.2
C6A—C8A—H8A	108.0	C6B—C8B—H8B	107.2
C8A—C9A—H9A	109.5	C8B—C9B—H9D	109.5
C8A—C9A—H9B	109.5	C8B—C9B—H9E	109.5
H9A—C9A—H9B	109.5	H9D—C9B—H9E	109.5
C8A—C9A—H9C	109.5	C8B—C9B—H9F	109.5
H9A—C9A—H9C	109.5	H9D—C9B—H9F	109.5
H9B—C9A—H9C	109.5	H9E—C9B—H9F	109.5
C8A—C10A—H10A	109.5	C8B—C10B—H10D	109.5
C8A—C10A—H10B	109.5	C8B—C10B—H10E	109.5
H10A—C10A—H10B	109.5	H10D—C10B—H10E	109.5
C8A—C10A—H10C	109.5	C8B—C10B—H10F	109.5
H10A—C10A—H10C	109.5	H10D—C10B—H10F	109.5
H10B—C10A—H10C	109.5	H10E—C10B—H10F	109.5
C12A—O11A—C1A	120.05 (15)	C12B—O11B—C1B	120.18 (15)
O11A—C12A—C13A	114.95 (17)	O11B—C12B—C17B	125.35 (18)
O11A—C12A—C17A	125.80 (17)	O11B—C12B—C13B	115.29 (17)
C13A—C12A—C17A	119.23 (16)	C17B—C12B—C13B	119.36 (16)
C14A—C13A—C12A	120.60 (18)	C14B—C13B—C12B	120.67 (18)
C14A—C13A—H13A	119.7	C14B—C13B—H13B	119.7
C12A—C13A—H13A	119.7	C12B—C13B—H13B	119.7
C13A—C14A—C15A	120.59 (18)	C13B—C14B—C15B	120.12 (18)
C13A—C14A—H14A	119.7	C13B—C14B—H14B	119.9
C15A—C14A—H14A	119.7	C15B—C14B—H14B	119.9
C16A—C15A—C14A	118.61 (16)	C16B—C15B—C14B	118.93 (16)
C16A—C15A—C18A	121.38 (17)	C16B—C15B—C18B	121.14 (18)
C14A—C15A—C18A	120.00 (17)	C14B—C15B—C18B	119.93 (18)
C17A—C16A—C15A	121.14 (17)	C17B—C16B—C15B	121.33 (17)
C17A—C16A—H16A	119.4	C17B—C16B—H16B	119.3
C15A—C16A—H16A	119.4	C15B—C16B—H16B	119.3
C16A—C17A—C12A	119.81 (17)	C16B—C17B—C12B	119.46 (18)
C16A—C17A—H17A	120.1	C16B—C17B—H17B	120.3
C12A—C17A—H17A	120.1	C12B—C17B—H17B	120.3
N19A—C18A—N22A	107.33 (16)	N19B—C18B—N22B	107.53 (16)
N19A—C18A—C15A	126.16 (17)	N19B—C18B—C15B	126.82 (18)
N22A—C18A—C15A	126.50 (17)	N22B—C18B—C15B	125.66 (18)
C18A—N19A—N20A	106.31 (16)	C18B—N19B—N20B	106.28 (16)
N21A—N20A—N19A	110.54 (15)	N21B—N20B—N19B	110.65 (16)
N20A—N21A—N22A	106.22 (16)	N20B—N21B—N22B	106.51 (16)
C18A—N22A—N21A	109.59 (17)	C18B—N22B—N21B	109.03 (17)
C18A—N22A—H22A	133.5 (16)	C18B—N22B—H22B	133.7 (18)
N21A—N22A—H22A	116.7 (16)	N21B—N22B—H22B	117.3 (18)

O11A—C1A—C2A—C3A	61.3 (2)	O11B—C1B—C2B—C3B	60.82 (19)
C6A—C1A—C2A—C3A	−56.1 (2)	C6B—C1B—C2B—C3B	−56.7 (2)
C1A—C2A—C3A—C7A	177.13 (17)	C1B—C2B—C3B—C7B	−178.96 (17)
C1A—C2A—C3A—C4A	53.5 (2)	C1B—C2B—C3B—C4B	56.1 (2)
C7A—C3A—C4A—C5A	−177.1 (2)	C7B—C3B—C4B—C5B	179.34 (18)
C2A—C3A—C4A—C5A	−52.9 (3)	C2B—C3B—C4B—C5B	−55.9 (2)
C3A—C4A—C5A—C6A	55.0 (2)	C3B—C4B—C5B—C6B	55.4 (2)
O11A—C1A—C6A—C8A	61.4 (2)	O11B—C1B—C6B—C5B	−66.18 (19)
C2A—C1A—C6A—C8A	−178.22 (17)	C2B—C1B—C6B—C5B	53.7 (2)
O11A—C1A—C6A—C5A	−65.5 (2)	O11B—C1B—C6B—C8B	59.9 (2)
C2A—C1A—C6A—C5A	54.9 (2)	C2B—C1B—C6B—C8B	179.73 (17)
C4A—C5A—C6A—C8A	178.85 (16)	C4B—C5B—C6B—C1B	−52.5 (2)
C4A—C5A—C6A—C1A	−54.6 (2)	C4B—C5B—C6B—C8B	−178.03 (16)
C1A—C6A—C8A—C9A	54.6 (2)	C1B—C6B—C8B—C9B	52.3 (2)
C5A—C6A—C8A—C9A	179.30 (17)	C5B—C6B—C8B—C9B	176.50 (18)
C1A—C6A—C8A—C10A	176.65 (19)	C1B—C6B—C8B—C10B	176.9 (2)
C5A—C6A—C8A—C10A	−58.7 (2)	C5B—C6B—C8B—C10B	−58.9 (3)
C2A—C1A—O11A—C12A	74.1 (2)	C2B—C1B—O11B—C12B	95.80 (18)
C6A—C1A—O11A—C12A	−164.63 (15)	C6B—C1B—O11B—C12B	−142.09 (16)
C1A—O11A—C12A—C13A	−169.86 (16)	C1B—O11B—C12B—C17B	−11.6 (3)
C1A—O11A—C12A—C17A	11.6 (3)	C1B—O11B—C12B—C13B	168.60 (16)
O11A—C12A—C13A—C14A	179.84 (17)	O11B—C12B—C13B—C14B	−176.15 (17)
C17A—C12A—C13A—C14A	−1.5 (3)	C17B—C12B—C13B—C14B	4.1 (3)
C12A—C13A—C14A—C15A	0.8 (3)	C12B—C13B—C14B—C15B	−1.7 (3)
C13A—C14A—C15A—C16A	0.6 (3)	C13B—C14B—C15B—C16B	−1.4 (3)
C13A—C14A—C15A—C18A	179.56 (17)	C13B—C14B—C15B—C18B	178.97 (17)
C14A—C15A—C16A—C17A	−1.3 (3)	C14B—C15B—C16B—C17B	2.2 (3)
C18A—C15A—C16A—C17A	179.71 (18)	C18B—C15B—C16B—C17B	−178.23 (17)
C15A—C16A—C17A—C12A	0.7 (3)	C15B—C16B—C17B—C12B	0.2 (3)
O11A—C12A—C17A—C16A	179.27 (17)	O11B—C12B—C17B—C16B	176.94 (17)
C13A—C12A—C17A—C16A	0.8 (3)	C13B—C12B—C17B—C16B	−3.3 (3)
C16A—C15A—C18A—N19A	−173.60 (18)	C16B—C15B—C18B—N19B	−179.59 (18)
C14A—C15A—C18A—N19A	7.5 (3)	C14B—C15B—C18B—N19B	0.0 (3)
C16A—C15A—C18A—N22A	6.1 (3)	C16B—C15B—C18B—N22B	0.5 (3)
C14A—C15A—C18A—N22A	−172.88 (18)	C14B—C15B—C18B—N22B	−179.89 (17)
N22A—C18A—N19A—N20A	0.0 (2)	N22B—C18B—N19B—N20B	0.0 (2)
C15A—C18A—N19A—N20A	179.67 (17)	C15B—C18B—N19B—N20B	−179.91 (18)
C18A—N19A—N20A—N21A	0.2 (2)	C18B—N19B—N20B—N21B	0.0 (2)
N19A—N20A—N21A—N22A	−0.2 (2)	N19B—N20B—N21B—N22B	0.1 (2)
N19A—C18A—N22A—N21A	−0.1 (2)	N19B—C18B—N22B—N21B	0.1 (2)
C15A—C18A—N22A—N21A	−179.82 (17)	C15B—C18B—N22B—N21B	179.97 (17)
N20A—N21A—N22A—C18A	0.2 (2)	N20B—N21B—N22B—C18B	−0.1 (2)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N22A—H22A···N19Aⁱ	0.82 (3)	2.08 (3)	2.903 (3)	177 (2)
N22B—H22B···N19Bⁱⁱ	0.85 (3)	2.05 (3)	2.900 (3)	177 (3)
C14B—H14B···N21Bⁱⁱⁱ	0.95	2.55	3.493 (3)	170
C14A—H14A···N21A^iv	0.95	2.57	3.495 (3)	165
C16A—H16A···N20Aⁱ	0.95	2.51	3.423 (3)	160
C16B—H16B···N20Bⁱⁱ	0.95	2.43	3.357 (3)	167

Symmetry codes: (i) −x, y+1/2, −z; (ii) −x+3, y−1/2, −z+2; (iii) −x+3, y+1/2, −z+2; (iv) −x, y−1/2, −z.

References

Cristiano, R., Gallardo, H., Bortoluzzi, A. J., Bechtold, I. H., Campos, C. E. M. & Longo, L. R. (2008). Chem. Commun. pp. 5134–5136. CSD CrossRef Google Scholar
Graschtat, V., Proz, I., Lehmann, M. & Detert, H. (2025). J. Mater. Chem. C. 13, 15941–15947. CrossRef CAS Google Scholar
Herget, K., Schollmeyer, D. & Detert, H. (2013). Acta Cryst. E69, o365–o366. CSD CrossRef CAS IUCr Journals Google Scholar
Huisgen, R., Sturm, H. J. & Seidel, M. (1961). Chem. Ber. 94, 1555–1562. CrossRef CAS Web of Science Google Scholar
Parsons, S., Flack, H. D. & Wagner, T. (2013). Acta Cryst. B69, 249–259. Web of Science CSD CrossRef CAS IUCr Journals Google Scholar
Rieth, T., Röder, N., Lehmann, M. & Detert, H. (2018). Chem. Eur. J. 24, 93–96. Web of Science CSD CrossRef CAS PubMed Google Scholar
Rieth, T., Tober, N., Limbach, D., Haspel, T., Sperner, M., Schupp, N., Wicker, P., Glang, S., Lehmann, M. & Detert, H. (2020). Molecules 25, 5761–5779. CrossRef CAS PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spek, A. L. (2009). Acta Cryst. D65, 148–155. Web of Science CrossRef CAS IUCr Journals Google Scholar
Stoe & Cie (2020). X-RED32 and X-AREA. Stoe & Cie, Darmstadt, Germany. Google Scholar
Tober, N., Rieth, T., Lehmann, M. & Detert, H. (2019). Chem. A Eur. J. 25, 15295–15304. Web of Science CSD CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
