Methyl 4,6-O-benzylidene-α-D-glucopyranoside monohydrate

Mari Grobbelaar,^a Eric Cyriel Hosten ^a and Richard Betz ^a ^*

^aNelson Mandela University, Summerstrand Campus, Department of Chemistry, University Way, Summerstrand, PO Box 77000, Port Elizabeth, 6031, South Africa
^*Correspondence e-mail: [email protected]

Edited by M. Bolte, Goethe-Universität Frankfurt, Germany (Received 24 October 2025; accepted 28 October 2025; online 6 November 2025)

The title compound, C₁₄H₁₈O₆·H₂O, is a partially protected derivative of D-glucopyranose. The asymmetric unit contains one sugar molecule and one water molecule of crystallization. Classical hydrogen bonds of the O—H⋯O type form a cooperative set and are observed next to a C—H⋯O(water) contact, connecting the entities of the asymmetric unit into a three-dimensional network.

Keywords: glucopyranose; crystal structure; hydrogen bonds.

CCDC reference: 2498654

Structure description

Carbohydrates are an important group of biomolecules and form part of the three macronutrients of the human diet. Natural members of this compound class of polyhydroxycarbonyls abound for derivatives with five and six carbon atoms, whose stereochemical diversity is enriched by the ability to form furanoid and pyranoid intramolecular hemiacetal-type addition compounds. As they are the product of natural photosynthesis, they are debated as renewable and carbon-neutral feedstock materials for many industrial processes; however, precisely because of their stereochemical variability, exploiting their synthetic potential often requires a carefully crafted preparative strategy based on protection group chemistry (Lindhorst, 2003 ).

In connection with the synthesis of coordination compounds, limiting the number of potential donor sites on a polyfunctional carbohydrate is an important measure to ensure the formation of well-defined product species. In connection with a research project around the coordination behaviour of certain hexoses, partially protected derivatives of D-glucose were to be investigated with a specific focus on the trans-orientated hydroxyl groups on the six-membered ring. To this end, methyl-4,6-O-benzylidene-α-D-glucopyranoside was synthesized and characterized in the solid state to allow for the comparison of metrical parameters in the free ligand and in coordination compounds. The structure of the title compound has been reported earlier (Tamaru et al., 2001 ) but no three-dimensional coordinates were deposited. However, structural information is at hand for the anhydrous version of the title compound (Luboradzki et al., 2000 ) as well as the β-anomer of the carbohydrate (Jessen et al., 2001 ). The stereoisomeric altropyranoside (Bozo & Vasella, 1992 ), allopyranoside (Muddasani et al., 1994 ) and idopyranoside (Chu & Jeffrey, 1965 ; Liu et al., 1993 ; Orban et al., 2023 ) equivalents of the title compound have been the focus of diffraction studies on single crystals previously. The present study is a continuation of our interest in structural aspects of coordination compounds of carbohydrate derivatives (Betz & Klüfers, 2007a , 2009 ; Betz et al., 2007a ) as well as polyheterocyclic compounds (Muller et al., 2021 ; Betz & Klüfers, 2007b ,c ,d ; Betz & Klüfers, 2008a ,b ; Betz et al., 2007b ) and intends to close the gap of missing three-dimensional coordinates for the title compound.

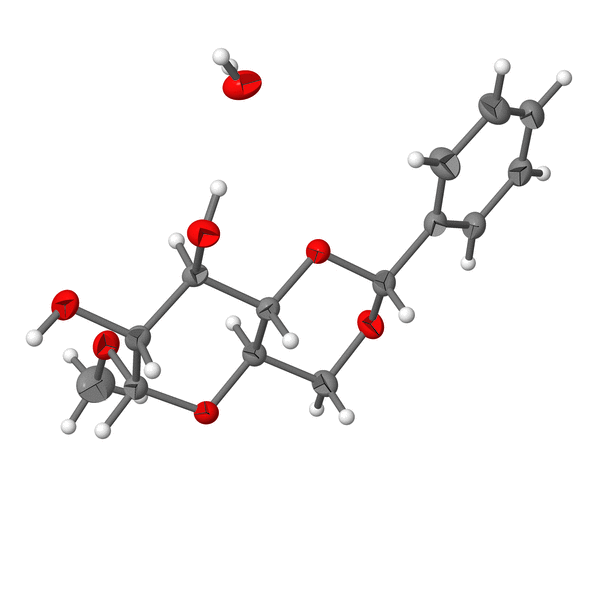

The title compound (Fig. 1) is a twofold protected derivative of D-glucopyranose with the anomeric hydroxyl group converted into a methoxy group (O6–C8) and the hydroxymethyl and the adjacent ring-bound hydroxyl group capped by a benzylidene protection group. The two trans-orientated hydroxyl groups on the pyranose ring remain free. A molecule of water is present in the asymmetric unit. Bond lengths and angles are in good agreement with values reported for comparable compounds whose metrical parameters have been elucidated by means of diffraction studies on single crystals and deposited with the Cambridge Structural Database (Groom et al., 2016 ). While the methoxy group occupies an axial position, the phenyl group is found in an equatorial position. The two free hydroxyl groups adopt a staggered conformation with a O4—C3—C4—O5 torsion angle of 65.17 (16)°. A conformational analysis of the six-membered rings according to Cremer & Pople (1975 ) shows the pyranoid ring to adopt a ¹C₄ (^O2C_C3) conformation while the six-membered ring established by the condensed benzylidene protection group is present in a ⁴C₁ (^C7C_O1) conformation (Boeyens, 1978 ).

Figure 1
The molecular structure of the title compound, with atom labels and anisotropic displacement ellipsoids (drawn at the 50% probability level).

In the crystal, classical hydrogen bonds of the O—H⋯O type are observed next to a C—H⋯O(water) contact (Table 1) whose range falls by more than 0.1 Å below the sum of van der Waals radii of the atoms participating in them. The hydroxyl group adjacent to the anomeric center establishes a hydrogen bond to the oxygen atom of the methoxy group as acceptor, while the second free hydroxyl group involves the oxygen atom of the free water molecule as acceptor. The water molecule exclusively forms hydrogen bonds to the oxygen atom of the second free hydroxyl group, thus giving rise to a cooperative set of hydrogen bonds. The C—H⋯O(water) contact is observed between one of the hydrogen atoms of the methoxy group as donor and solvent molecule's oxygen atom as acceptor. A second C—H⋯O contact between the hydrogen atom of the anomeric center's methine group and the oxygen atom of the hydroxyl group adjacent to the anomeric center is listed for completeness but could be considered an artefact (or consequence) of the hydrogen bonds established by the neighbouring hydroxyl group resulting in distance shortening between the respective C—H and O motifs involved. In terms of graph-set analysis (Etter et al., 1990 ; Bernstein et al., 1995 ), the classical hydrogen bonds require a DDDC¹₁(5) descriptor on the unary level while the C—H⋯O contacts require a DC¹₁(4) descriptor on the same level with the finite pattern reserved for the water-based contact. Furthermore, one C—H⋯π contact is apparent in between the hydrogen atom of the benzylidene protection group and the aromatic system that connects the molecules to chains along the crystallographic b axis. π-Stacking is not a stabilizing factor in the crystal structure of the title compound with the shortest distance in between two centers of gravity measured at 4.8475 (13) Å, which is in agreement with the length of the b axis of the unit cell (Fig. 2).

Table 1
Hydrogen-bond geometry (Å, °)

C_g(1) is the centroid of carbon atoms C21–C26.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O4—H4A⋯O7	0.84	1.86	2.6925 (19)	172
O5—H5A⋯O5ⁱ	0.84	2.48	3.1906 (18)	143
O5—H5A⋯O6ⁱ	0.84	2.12	2.8486 (18)	145
O7—H7C⋯O4ⁱⁱ	0.84 (1)	2.08 (2)	2.8758 (17)	159 (3)
O7—H7D⋯O4ⁱⁱⁱ	0.83 (1)	2.02 (1)	2.8444 (19)	175 (3)
C5—H5⋯O5ⁱ	1.00	2.46	3.299 (2)	141
C8—H8C⋯O7^iv	0.98	2.43	3.380 (3)	163
C1—H1⋯C_g(1)^v	1.00	2.56	3.516 (2)	161
Symmetry codes: (i) $[-x, y+{\script{1\over 2}}, -z+1]$ ; (ii) $[-x+1, y-{\script{1\over 2}}, -z+1]$ ; (iii) ; (iv) ; (v) .

Figure 2
Selected intermolecular contacts, viewed along [010].

Synthesis and crystallization

The compound was obtained following published standard procedures (Becker et al., 2000 ; Lindhorst, 2003; Evans, 1972 ). Crystals suitable for the diffraction study were obtained upon recrystallization from boiling propan-2-ol containing water (alcohol:water approximately 95:5).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Table 2
Experimental details

Crystal data
Chemical formula	C₁₄H₁₈O₆·H₂O
M_r	300.30
Crystal system, space group	Monoclinic, P2₁
Temperature (K)	200
a, b, c (Å)	8.9794 (6), 4.8475 (3), 17.3824 (11)
β (°)	103.927 (2)
V (Å³)	734.37 (8)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	0.11
Crystal size (mm)	0.50 × 0.13 × 0.07

Data collection
Diffractometer	Bruker APEXII CCD
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.705, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	41341, 3652, 3442
R_int	0.033
(sin θ/λ)_max (Å⁻¹)	0.667

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.030, 0.081, 1.06
No. of reflections	3652
No. of parameters	204
No. of restraints	4
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.25, −0.16
Absolute structure	Flack x determined using 1467 quotients [(I⁺)−(I⁻)]/[(I⁺)+(I⁻)] (Parsons et al., 2013 )
Absolute structure parameter	−0.17 (16)
Computer programs: APEX2 and SAINT (Bruker, 2014 ), SHELXS97 (Sheldrick 2008 ), ORTEP-3 for Windows (Farrugia, 2012 ), Mercury (Macrae et al., 2020 ), SHELXL2019/3 (Sheldrick, 2015 ) and PLATON (Spek, 2020 ).

Structural data

CCDC reference: 2498654

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314625009472/bt4184sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625009472/bt4184Isup2.hkl

checkCIF report

Computing details top

Methyl 4,6-O-benzylidene-α-D-glucopyranoside monohydrate top

Crystal data top

C₁₄H₁₈O₆·H₂O	F(000) = 320
M_r = 300.30	D_x = 1.358 Mg m⁻³
Monoclinic, P2₁	Mo Kα radiation, λ = 0.71073 Å
a = 8.9794 (6) Å	Cell parameters from 9923 reflections
b = 4.8475 (3) Å	θ = 2.4–28.3°
c = 17.3824 (11) Å	µ = 0.11 mm⁻¹
β = 103.927 (2)°	T = 200 K
V = 734.37 (8) Å³	Rod, colourless
Z = 2	0.50 × 0.13 × 0.07 mm

Data collection top

Bruker APEXII CCD diffractometer	3652 independent reflections
Radiation source: sealed tube	3442 reflections with I > 2σ(I)
Graphite monochromator	R_int = 0.033
φ and ω scans	θ_max = 28.3°, θ_min = 2.3°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −11→11
T_min = 0.705, T_max = 0.746	k = −6→6
41341 measured reflections	l = −23→23

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F² > 2σ(F²)] = 0.030	w = 1/[σ²(F_o²) + (0.0395P)² + 0.1456P] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.081	(Δ/σ)_max < 0.001
S = 1.06	Δρ_max = 0.25 e Å⁻³
3652 reflections	Δρ_min = −0.16 e Å⁻³
204 parameters	Extinction correction: SHELXL-2019/2 (Sheldrick, 2015), Fc^*=kFc[1+0.001xFc²λ³/sin(2θ)]^-1/4
4 restraints	Extinction coefficient: 0.019 (5)
Primary atom site location: structure-invariant direct methods	Absolute structure: Flack x determined using 1467 quotients [(I⁺)-(I^-)]/[(I⁺)+(I^-)] (Parsons et al., 2013)
Secondary atom site location: difference Fourier map	Absolute structure parameter: −0.17 (16)

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. The carbon-bound H atoms were placed in calculated positions (C–H 0.98 Å for the methyl group, C–H 0.99 Å for the methylene group and C–H 1.00 Å for the methine groups) and were included in the refinement in the riding model approximation, with U(H) set to 1.2U_eq(C).

The H atoms of the methyl group were allowed to rotate with a fixed angle around the C–O bond to best fit the experimental electron density (HFIX 137 in the SHELX program suite (Sheldrick, 2015), with U(H) set to 1.5U_eq(C).

The H atoms of the hydroxyl groups were allowed to rotate with a fixed angle around the C–O bond to best fit the experimental electron density (HFIX 147 in the SHELX program suite (Sheldrick, 2015)), with U(H) set to 1.5U_eq(O).

The hydrogen atoms of the water molecule were located on a difference Fourier map and refined freely with the O—H bonds restrained to 0.84 (1) Å and the H···H distance restrained to 1.34 (2) Å.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
O1	0.46554 (13)	0.5554 (2)	0.74863 (6)	0.0238 (3)
O2	0.12794 (13)	0.9982 (3)	0.71868 (7)	0.0254 (3)
O3	0.40114 (14)	0.6184 (3)	0.87039 (7)	0.0314 (3)
O4	0.42598 (14)	0.7276 (3)	0.58470 (7)	0.0276 (3)
H4A	0.471173	0.574777	0.588148	0.044 (7)*
O5	0.11857 (16)	0.8527 (3)	0.50945 (7)	0.0326 (3)
H5A	0.073092	0.989590	0.484881	0.043 (7)*
O6	−0.02371 (13)	0.7058 (3)	0.62439 (7)	0.0297 (3)
O7	0.57272 (16)	0.2455 (3)	0.58050 (8)	0.0348 (3)
C1	0.52160 (18)	0.6135 (4)	0.83089 (9)	0.0244 (3)
H1	0.574134	0.796858	0.837146	0.029*
C2	0.36312 (17)	0.7704 (3)	0.71266 (9)	0.0206 (3)
H2	0.418578	0.950973	0.720224	0.025*
C3	0.30499 (17)	0.7132 (3)	0.62492 (9)	0.0206 (3)
H3	0.257645	0.525372	0.617432	0.025*
C4	0.18457 (19)	0.9274 (3)	0.58932 (9)	0.0233 (3)
H4	0.236211	1.110364	0.589884	0.028*
C5	0.06150 (19)	0.9515 (3)	0.63686 (10)	0.0244 (3)
H5	−0.007931	1.109256	0.615502	0.029*
C6	0.23033 (18)	0.7808 (3)	0.75229 (9)	0.0233 (3)
H6	0.174321	0.600724	0.744613	0.028*
C7	0.2933 (2)	0.8339 (4)	0.84008 (10)	0.0312 (4)
H7A	0.344631	1.015908	0.848362	0.037*
H7B	0.208970	0.832990	0.867783	0.037*
C8	−0.1524 (2)	0.7112 (6)	0.65891 (16)	0.0531 (6)
H8A	−0.213356	0.877348	0.641402	0.080*
H8B	−0.116555	0.712809	0.716801	0.080*
H8C	−0.215818	0.547268	0.642267	0.080*
C21	0.63591 (19)	0.3933 (4)	0.86650 (10)	0.0259 (3)
C22	0.7440 (2)	0.3128 (5)	0.82542 (12)	0.0357 (4)
H22	0.740831	0.389879	0.774803	0.043*
C23	0.8563 (2)	0.1213 (5)	0.85770 (13)	0.0411 (5)
H23	0.931025	0.071158	0.829763	0.049*
C24	0.8597 (2)	0.0029 (5)	0.93049 (12)	0.0392 (5)
H24	0.936355	−0.128995	0.952543	0.047*
C25	0.7510 (2)	0.0775 (4)	0.97097 (11)	0.0357 (4)
H25	0.751721	−0.006604	1.020429	0.043*
C26	0.6400 (2)	0.2755 (4)	0.93970 (10)	0.0300 (4)
H26	0.567370	0.329480	0.968532	0.036*
H7C	0.599 (3)	0.242 (7)	0.5371 (11)	0.063 (8)*
H7D	0.527 (3)	0.099 (4)	0.5837 (15)	0.049 (7)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
O1	0.0261 (5)	0.0249 (6)	0.0194 (5)	0.0041 (5)	0.0033 (4)	−0.0010 (4)
O2	0.0268 (6)	0.0252 (6)	0.0228 (5)	0.0056 (5)	0.0032 (4)	−0.0036 (5)
O3	0.0303 (6)	0.0431 (8)	0.0214 (5)	0.0104 (6)	0.0075 (5)	0.0041 (5)
O4	0.0324 (6)	0.0276 (6)	0.0260 (6)	0.0030 (5)	0.0134 (5)	0.0026 (5)
O5	0.0455 (7)	0.0300 (7)	0.0183 (5)	0.0057 (6)	−0.0001 (5)	0.0007 (5)
O6	0.0252 (5)	0.0319 (7)	0.0309 (6)	−0.0053 (5)	0.0050 (4)	−0.0046 (5)
O7	0.0444 (7)	0.0294 (7)	0.0362 (7)	−0.0025 (6)	0.0207 (6)	−0.0032 (6)
C1	0.0241 (7)	0.0283 (8)	0.0195 (7)	0.0012 (7)	0.0030 (6)	−0.0016 (6)
C2	0.0228 (7)	0.0189 (7)	0.0196 (6)	0.0001 (6)	0.0039 (5)	−0.0010 (6)
C3	0.0248 (7)	0.0172 (7)	0.0207 (6)	−0.0014 (6)	0.0070 (5)	−0.0008 (6)
C4	0.0304 (8)	0.0176 (8)	0.0204 (7)	−0.0005 (6)	0.0033 (6)	0.0006 (6)
C5	0.0258 (8)	0.0226 (8)	0.0229 (7)	0.0023 (6)	0.0019 (6)	−0.0015 (6)
C6	0.0235 (7)	0.0245 (8)	0.0216 (7)	0.0021 (6)	0.0047 (6)	−0.0005 (6)
C7	0.0301 (8)	0.0410 (10)	0.0224 (7)	0.0110 (8)	0.0064 (6)	−0.0006 (7)
C8	0.0343 (10)	0.0628 (16)	0.0679 (15)	−0.0120 (11)	0.0235 (10)	−0.0125 (13)
C21	0.0246 (7)	0.0265 (8)	0.0242 (7)	−0.0005 (7)	0.0008 (6)	−0.0034 (6)
C22	0.0310 (9)	0.0427 (12)	0.0342 (9)	0.0064 (8)	0.0096 (7)	0.0068 (8)
C23	0.0303 (9)	0.0487 (12)	0.0438 (10)	0.0108 (9)	0.0080 (8)	−0.0016 (10)
C24	0.0350 (9)	0.0380 (11)	0.0372 (10)	0.0098 (9)	−0.0060 (8)	−0.0039 (9)
C25	0.0442 (10)	0.0344 (10)	0.0227 (8)	0.0058 (8)	−0.0034 (7)	−0.0005 (7)
C26	0.0322 (8)	0.0331 (10)	0.0219 (7)	0.0037 (7)	0.0011 (6)	−0.0023 (7)

Geometric parameters (Å, º) top

O1—C1	1.4250 (18)	C4—C5	1.535 (2)
O1—C2	1.4305 (18)	C4—H4	1.0000
O2—C5	1.4218 (19)	C5—H5	1.0000
O2—C6	1.4280 (19)	C6—C7	1.516 (2)
O3—C1	1.4141 (19)	C6—H6	1.0000
O3—C7	1.436 (2)	C7—H7A	0.9900
O4—C3	1.4281 (17)	C7—H7B	0.9900
O4—H4A	0.8400	C8—H8A	0.9800
O5—C4	1.4191 (19)	C8—H8B	0.9800
O5—H5A	0.8400	C8—H8C	0.9800
O6—C5	1.404 (2)	C21—C26	1.387 (2)
O6—C8	1.425 (2)	C21—C22	1.392 (2)
O7—H7C	0.841 (12)	C22—C23	1.386 (3)
O7—H7D	0.832 (13)	C22—H22	0.9500
C1—C21	1.507 (2)	C23—C24	1.383 (3)
C1—H1	1.0000	C23—H23	0.9500
C2—C3	1.5140 (19)	C24—C25	1.382 (3)
C2—C6	1.515 (2)	C24—H24	0.9500
C2—H2	1.0000	C25—C26	1.396 (3)
C3—C4	1.519 (2)	C25—H25	0.9500
C3—H3	1.0000	C26—H26	0.9500

C1—O1—C2	109.23 (11)	O2—C6—C2	109.77 (12)
C5—O2—C6	111.43 (12)	O2—C6—C7	109.48 (13)
C1—O3—C7	111.18 (13)	C2—C6—C7	108.66 (12)
C3—O4—H4A	109.5	O2—C6—H6	109.6
C4—O5—H5A	109.5	C2—C6—H6	109.6
C5—O6—C8	112.74 (16)	C7—C6—H6	109.6
H7C—O7—H7D	107 (2)	O3—C7—C6	107.50 (14)
O3—C1—O1	111.33 (12)	O3—C7—H7A	110.2
O3—C1—C21	109.72 (13)	C6—C7—H7A	110.2
O1—C1—C21	108.27 (13)	O3—C7—H7B	110.2
O3—C1—H1	109.2	C6—C7—H7B	110.2
O1—C1—H1	109.2	H7A—C7—H7B	108.5
C21—C1—H1	109.2	O6—C8—H8A	109.5
O1—C2—C3	109.66 (12)	O6—C8—H8B	109.5
O1—C2—C6	108.61 (12)	H8A—C8—H8B	109.5
C3—C2—C6	110.24 (12)	O6—C8—H8C	109.5
O1—C2—H2	109.4	H8A—C8—H8C	109.5
C3—C2—H2	109.4	H8B—C8—H8C	109.5
C6—C2—H2	109.4	C26—C21—C22	119.16 (17)
O4—C3—C2	111.45 (12)	C26—C21—C1	122.25 (15)
O4—C3—C4	108.54 (12)	C22—C21—C1	118.55 (15)
C2—C3—C4	108.92 (12)	C23—C22—C21	120.60 (18)
O4—C3—H3	109.3	C23—C22—H22	119.7
C2—C3—H3	109.3	C21—C22—H22	119.7
C4—C3—H3	109.3	C24—C23—C22	120.16 (19)
O5—C4—C3	108.23 (13)	C24—C23—H23	119.9
O5—C4—C5	111.15 (13)	C22—C23—H23	119.9
C3—C4—C5	111.52 (12)	C25—C24—C23	119.63 (18)
O5—C4—H4	108.6	C25—C24—H24	120.2
C3—C4—H4	108.6	C23—C24—H24	120.2
C5—C4—H4	108.6	C24—C25—C26	120.48 (18)
O6—C5—O2	111.81 (13)	C24—C25—H25	119.8
O6—C5—C4	106.76 (13)	C26—C25—H25	119.8
O2—C5—C4	111.56 (13)	C21—C26—C25	119.94 (17)
O6—C5—H5	108.9	C21—C26—H26	120.0
O2—C5—H5	108.9	C25—C26—H26	120.0
C4—C5—H5	108.9

C7—O3—C1—O1	−62.57 (18)	C5—O2—C6—C2	63.05 (16)
C7—O3—C1—C21	177.59 (14)	C5—O2—C6—C7	−177.76 (14)
C2—O1—C1—O3	62.49 (17)	O1—C2—C6—O2	178.67 (12)
C2—O1—C1—C21	−176.82 (13)	C3—C2—C6—O2	−61.17 (16)
C1—O1—C2—C3	179.03 (12)	O1—C2—C6—C7	58.97 (17)
C1—O1—C2—C6	−60.45 (15)	C3—C2—C6—C7	179.13 (14)
O1—C2—C3—O4	−65.88 (16)	C1—O3—C7—C6	59.08 (18)
C6—C2—C3—O4	174.60 (13)	O2—C6—C7—O3	−177.12 (13)
O1—C2—C3—C4	174.40 (12)	C2—C6—C7—O3	−57.25 (18)
C6—C2—C3—C4	54.88 (16)	O3—C1—C21—C26	−16.3 (2)
O4—C3—C4—O5	65.17 (16)	O1—C1—C21—C26	−138.00 (16)
C2—C3—C4—O5	−173.32 (13)	O3—C1—C21—C22	165.85 (16)
O4—C3—C4—C5	−172.26 (12)	O1—C1—C21—C22	44.2 (2)
C2—C3—C4—C5	−50.76 (16)	C26—C21—C22—C23	−1.2 (3)
C8—O6—C5—O2	63.6 (2)	C1—C21—C22—C23	176.72 (19)
C8—O6—C5—C4	−174.09 (16)	C21—C22—C23—C24	1.6 (3)
C6—O2—C5—O6	60.50 (16)	C22—C23—C24—C25	−0.3 (3)
C6—O2—C5—C4	−58.97 (17)	C23—C24—C25—C26	−1.4 (3)
O5—C4—C5—O6	51.55 (16)	C22—C21—C26—C25	−0.4 (3)
C3—C4—C5—O6	−69.32 (16)	C1—C21—C26—C25	−178.28 (17)
O5—C4—C5—O2	173.98 (13)	C24—C25—C26—C21	1.7 (3)
C3—C4—C5—O2	53.10 (17)

Hydrogen-bond geometry (Å, º) top

C_g(1) is the centroid of carbon atoms C21–C26.

D—H···A	D—H	H···A	D···A	D—H···A
O4—H4A···O7	0.84	1.86	2.6925 (19)	172
O5—H5A···O5ⁱ	0.84	2.48	3.1906 (18)	143
O5—H5A···O6ⁱ	0.84	2.12	2.8486 (18)	145
O7—H7C···O4ⁱⁱ	0.84 (1)	2.08 (2)	2.8758 (17)	159 (3)
O7—H7D···O4ⁱⁱⁱ	0.83 (1)	2.02 (1)	2.8444 (19)	175 (3)
C5—H5···O5ⁱ	1.00	2.46	3.299 (2)	141
C8—H8C···O7^iv	0.98	2.43	3.380 (3)	163
C1—H1···C_g(1)^v	1.00	2.56	3.516 (2)	161

Symmetry codes: (i) −x, y+1/2, −z+1; (ii) −x+1, y−1/2, −z+1; (iii) x, y−1, z; (iv) x−1, y, z; (v) x, y+1, z.

References

Becker, H. G. O., Berger, W., Domschke, G., Fanghänel, E., Faust, J., Fischer, M., Gentz, F., Gewald, K., Gluch, R., Mayer, R., Müller, K., Pavel, D., Schmidt, H., Schollberg, K., Schwetlick, K., Seiler, E. & Zeppenfeld, G. (2000). Organikum – Organisch-Chemisches Grundpraktikum 21st ed. Weinheim: Wiley-VCH. Google Scholar
Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl. 34, 1555–1573. CrossRef CAS Web of Science Google Scholar
Betz, R. & Klüfers, P. (2007a). Acta Cryst. E63, o4132. Web of Science CSD CrossRef IUCr Journals Google Scholar
Betz, R. & Klüfers, P. (2007b). Acta Cryst. E63, o4279. Web of Science CSD CrossRef IUCr Journals Google Scholar
Betz, R. & Klüfers, P. (2007c). Acta Cryst. E63, o4922. Web of Science CSD CrossRef IUCr Journals Google Scholar
Betz, R. & Klüfers, P. (2007d). Acta Cryst. E63, o3933. Web of Science CSD CrossRef IUCr Journals Google Scholar
Betz, R. & Klüfers, P. (2008a). Acta Cryst. E64, o399. Web of Science CSD CrossRef IUCr Journals Google Scholar
Betz, R. & Klüfers, P. (2008b). Phosphorus Sulfur Silicon 183, 1615–1629. Web of Science CSD CrossRef CAS Google Scholar
Betz, R. & Klüfers, P. (2009). Inorg. Chem. 48, 925–935. Web of Science CSD CrossRef PubMed CAS Google Scholar
Betz, R., Klüfers, P. & Reichvilser, M. M. (2007a). Acta Cryst. E63, o3890. Web of Science CSD CrossRef IUCr Journals Google Scholar
Betz, R., Klüfers, P. & Reichvilser, M. M. (2007b). Acta Cryst. E63, o3558. Web of Science CSD CrossRef IUCr Journals Google Scholar
Boeyens, J. C. A. (1978). J. Cryst. Mol. Struct. 8, 317–320. CrossRef Web of Science Google Scholar
Bozó, E. & Vasella, A. (1992). Helv. Chim. Acta 75, 2613–2633. Google Scholar
Bruker (2014). APEX2 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Chu, S. S. C. & Jeffrey, G. A. (1965). Acta Cryst. 18, 820. CrossRef IUCr Journals Web of Science Google Scholar
Cremer, D. & Pople, J. A. (1975). J. Am. Chem. Soc. 97, 1354–1358. CrossRef CAS Web of Science Google Scholar
Etter, M. C., MacDonald, J. C. & Bernstein, J. (1990). Acta Cryst. B46, 256–262. CrossRef ICSD CAS Web of Science IUCr Journals Google Scholar
Evans, M. E. (1972). Carbohydr. Res. 21, 473–475. CrossRef CAS Web of Science Google Scholar
Farrugia, L. J. (2012). J. Appl. Cryst. 45, 849–854. Web of Science CrossRef CAS IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Jessen, L., Haupt, E. T. K. & Heck, J. (2001). Chem. Eur. J. 7, 3791–3797. CrossRef PubMed CAS Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Lindhorst, T. K. (2003). Essentials of Carbohydrate Chemistry and Biochemistry 2nd ed. Weinheim: Wiley-VCH. Google Scholar
Liu, H.-M., Sato, Y. & Tsuda, Y. (1993). Chem. Pharm. Bull. 41, 491–501. CSD CrossRef CAS Google Scholar
Luboradzki, R., Gronwald, O., Ikeda, M., Shinkai, S. & Reinhoudt, D. N. (2000). Tetrahedron 56, 9595–9599. Web of Science CSD CrossRef CAS Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Muddasani, P. R., Bernet, B. & Vasella, A. (1994). Helv. Chim. Acta 77, 334–350. CSD CrossRef CAS Web of Science Google Scholar
Muller, K., Hosten, E. C. & Betz, R. (2021). Z. Kristallogr. New Cryst. Struct. 236, 353–355. Web of Science CSD CrossRef CAS Google Scholar
Orban, I., Ujj, D., Matravolgyi, B., Holczbauer, T. & Rapi, Z. (2023). Symmetry 15, 1714. Google Scholar
Parsons, S., Flack, H. D. & Wagner, T. (2013). Acta Cryst. B69, 249–259. Web of Science CSD CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Tamaru, S., Luboradzki, R. & Shinkai, S. (2001). Chem. Lett. 30, 336–337. Web of Science CSD CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 11| November 2025| x250947

https://doi.org/10.1107/S2414314625009472

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

organic compounds\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

Methyl 4,6-O-benzyl­­idene-α-D-gluco­pyran­oside monohydrate

Structure description

Synthesis and crystallization

Refinement

Structural data

References

organic compounds

Methyl 4,6-O-benzylidene-α-D-glucopyranoside monohydrate
