10-(4-Chloro­phen­yl)-4-[(4-fluoro­phen­yl)amino]-5-phenyl-5,8,9,10-tetra­hydro­pyrimido[4,5-b]quin­olin-6(7H)-one

Adeleke, A.A.; Zamisa, S.J.; Omondi, B.

doi:10.1107/S2414314625007758

organic compounds

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 9| September 2025| x250775

https://doi.org/10.1107/S2414314625007758

Open

access

10-(4-Chlorophenyl)-4-[(4-fluorophenyl)amino]-5-phenyl-5,8,9,10-tetrahydropyrimido[4,5-b]quinolin-6(7H)-one

Adesola A. Adeleke,^a ^* Sizwe J. Zamisa ^a and Bernard Omondi ^a

^aSchool of Agriculture and Science, Discipline of Chemistry, University of KwaZulu-Natal, Private Bag X54001, Durban, 4000, South Africa
^*Correspondence e-mail: [email protected]

Edited by L. Van Meervelt, Katholieke Universiteit Leuven, Belgium (Received 30 July 2025; accepted 1 September 2025; online 5 September 2025)

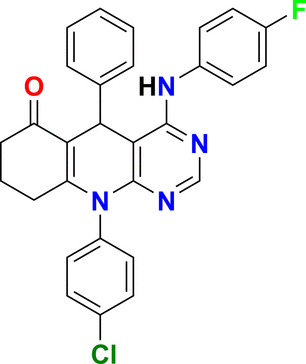

The title compound, C₂₉H₂₂ClFN₄O, crystallizes with one molecule in the asymmetric unit. The pyrimidinyl and anilinyl moieties subtend a dihedral angle = 36.65 (5)°, while the dihydropyridine and phenyl rings are approximately orthogonal [dihedral angles = 81.65 (7) and 89.95 (7)°]. The crystal packing reveals alternating C—H⋯π and C—F⋯π interactions forming corrugated two-dimensional sheets along the ac plane, which are further linked into a three-dimensional network through N—H⋯O and C—H⋯O hydrogen bonds and Cl⋯Cl interactions.

Keywords: crystal structure; pyrimidine; syn-clinal orientation.

CCDC reference: 2484308

Structure description

The title compound represents a heterocycle from the pyrimido[4,5-b]quinoline family, distinguished by its fused pyrimidine and quinoline framework. These scaffolds are typically constructed via efficient single-pot, multicomponent reactions (Moosavi-Zare & Najafi, 2023 ). Fused tetrahydroquinoline systems, especially those incorporating pyrimidine units, continue to attract pharmaceutical research due to their broad-spectrum bioactivity – including antimicrobial, anticancer, antimalarial, anti-inflammatory, and antihistaminic potential (Patel et al., 2024 ; Tawfeek et al., 2024 ). Beyond these applications, pyrimidine motifs have shown utility in modulating signaling enzymes such as Abl kinase and PTP1B, and can also function as DNA intercalators (Esmaili et al., 2022 ). Motivated by ongoing efforts to develop enhanced pyrimidine-quinoline-based therapeutics, we now report the crystallographic characterization of the title compound (Zamisa et al., 2023 ).

The crystal structure of the title compound consists of one molecule in the asymmetric unit (Fig. 1). The pyrimidinyl and anilinyl units exhibit near coplanarity, with a dihedral angle of 36.65 (7)°. In contrast, the dihydropyridine and the C–C18 and C24–C29 phenyl rings are nearly perpendicular, subtending dihedral angles of 81.65 (7) and 89.85 (7)°, respectively. These geometric parameters are comparable with those of reported for chromenopyrimidine (Zamisa et al. 2022 ) and hexahydroquinolinyl formimidate (Zamisa & Omondi, 2022 ) derivatives

Figure 1
Molecular structure of the title compound with displacement ellipsoids drawn at the 50% probablility level.

In the packing of the title compound, C—H⋯π hydrogen bonds are observed between the H10 atom of the pyrimidine ring and the centroid of the C24–C20 phenyl ring (Cg1), which form supramolecular chains along the crystallographic a-axis direction (Table 1). These chains are linked via C15—F1⋯Cg2 interactions (Cg2 is the centroid of the C18–C23 ring) to form supramolecular sheets that extend alongthe [111] direction (Fig. 2, Table 1). The O1 atom of the carbonyl group acts as a double acceptor for the N4—H4⋯O1 and C29—H29⋯O1 hydrogen bonding patterns, which together with Cl1⋯Cl1 contacts [3.2755 (5) Å < 3.50 Å ; (sum of van der Waals radii), symmetry code: −x + 2, −y + 2, −z + 2], link the sheets into a three-dimensional supramolecular architecture (Fig. 3, Table 1).

Table 1
Hydrogen-bond geometry (Å, °)

Cg1 and Cg2 are the centroids of the C24–C29 and C18–C23 rings, respectively.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N4—H4⋯O1ⁱ	0.88	2.17	3.0036 (16)	159
C29—H29⋯O1ⁱ	0.95	2.46	3.3169 (18)	150
C10—H10⋯Cg1ⁱⁱ	0.95	2.74	3.5719 (18)	147
C15—F1⋯Cg2ⁱⁱⁱ	1.3604 (18)	3.1604 (13)	4.4286 (18)	154.70 (10)
Symmetry codes: (i) ; (ii) ; (iii) .

Figure 2
Representation of the C10—H10⋯Cg1 and C15—F1⋯Cg2 interactions in the crystal packing of the title compound.

Figure 3
Representation of (a) the C29—H29⋯O1 and N4—H4⋯O1 hydrogen bonds in the crystal packing of the title compound and (b) the formation of a three dimensional supramolecular structure formed via alternating double-acceptor hydrogen bonds involving the O1 atom (cyan-coloured dashed lines) and Cl⋯Cl contacts (magenta-coloured dashed lines). Gold and grey colors indicate symmetry relationships with the asymmetric unit. Light grey represents the asymmetric unit contents, while golden-yellow indicates inversion symmetry. Symmetry code: (i) −x, −y, −z + 1.

Synthesis and crystallization

The stepwise intermediates: 2-amino-1-(4-chlorophenyl)-5-oxo-4-phenylhexahydroquinoline-3-carbonitrile and ethyl (E)-N-(3-cyano-1-(4-chlorophenyl)-5-oxo-4-phenylhexahydroquinolin-2-yl)formimidate were synthesized via adapted literature protocols (Zamisa et al., 2022; Zamisa & Omondi, 2022). Following established methods, the synthesis involved combining 1 mmol of the formimidate derivative with 1.2 mmol of 4-fluoroaniline in 10 ml of acetic acid. This mixture was sealed in a 30 ml high-pressure vial and subjected to microwave irradiation (200 W) at 413 K for 20 minutes using a single-mode microwave reactor. The formation of the product was confirmed using thin-layer chromatography (TLC). After the reaction, distilled water was carefully layered onto the mixture, creating a cloudy suspension that was left undisturbed overnight. The resulting solid was harvested by vacuum filtration, rinsed with distilled water, and purified via recrystallization using an ethanol–water solvent system (Zamisa et al., 2023).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2.

Table 2
Experimental details

Crystal data
Chemical formula	C₂₉H₂₂ClFN₄O
M_r	496.95
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	100
a, b, c (Å)	8.4512 (2), 11.6756 (3), 12.7892 (3)
α, β, γ (°)	106.100 (1), 101.492 (2), 97.612 (2)
V (Å³)	1164.29 (5)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	0.20
Crystal size (mm)	0.23 × 0.14 × 0.08

Data collection
Diffractometer	Bruker SMART APEX2 area detector
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.696, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	17352, 5250, 4225
R_int	0.027
(sin θ/λ)_max (Å⁻¹)	0.651

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.038, 0.095, 1.04
No. of reflections	5250
No. of parameters	325
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.30, −0.26
Computer programs: COSMO and SAINT (Bruker, 2009 ), SHELXT2018/2 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Structural data

CCDC reference: 2484308

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2414314625007758/vm4071sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625007758/vm4071Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2414314625007758/vm4071Isup3.cml

checkCIF report

Computing details top

10-(4-Chlorophenyl)-4-[(4-fluorophenyl)amino]-5-phenyl-5,8,9,10-tetrahydropyrimido[4,5-b]quinolin-6(7H)-one top

Crystal data top

C₂₉H₂₂ClFN₄O	Z = 2
M_r = 496.95	F(000) = 516
Triclinic, P1	D_x = 1.418 Mg m⁻³
a = 8.4512 (2) Å	Mo Kα radiation, λ = 0.71073 Å
b = 11.6756 (3) Å	Cell parameters from 5292 reflections
c = 12.7892 (3) Å	θ = 2.5–27.5°
α = 106.100 (1)°	µ = 0.20 mm⁻¹
β = 101.492 (2)°	T = 100 K
γ = 97.612 (2)°	Block, colourless
V = 1164.29 (5) Å³	0.23 × 0.14 × 0.08 mm

Data collection top

Bruker SMART APEX2 area detector diffractometer	5250 independent reflections
Radiation source: microfocus sealed X-ray tube, Incoatec Iµs	4225 reflections with I > 2σ(I)
Mirror optics monochromator	R_int = 0.027
Detector resolution: 7.9 pixels mm^-1	θ_max = 27.6°, θ_min = 1.7°
ω and φ scans	h = −10→9
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −15→15
T_min = 0.696, T_max = 0.746	l = −16→15
17352 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.038	H-atom parameters constrained
wR(F²) = 0.095	w = 1/[σ²(F_o²) + (0.0402P)² + 0.494P] where P = (F_o² + 2F_c²)/3
S = 1.03	(Δ/σ)_max < 0.001
5250 reflections	Δρ_max = 0.30 e Å⁻³
325 parameters	Δρ_min = −0.26 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Cl1	0.86634 (5)	0.87170 (3)	0.96121 (3)	0.02694 (11)
F1	0.45178 (13)	−0.26576 (10)	−0.02464 (9)	0.0397 (3)
O1	−0.04527 (13)	0.11981 (9)	0.62009 (9)	0.0196 (2)
N1	0.45496 (15)	0.39153 (11)	0.68315 (10)	0.0170 (3)
N2	0.65678 (15)	0.34370 (11)	0.58815 (11)	0.0184 (3)
N3	0.60496 (15)	0.16517 (11)	0.42959 (11)	0.0186 (3)
N4	0.35389 (15)	0.02975 (11)	0.36641 (10)	0.0175 (3)
H4	0.260621	0.004335	0.381264	0.021*
C1	0.05053 (18)	0.21608 (12)	0.67702 (12)	0.0150 (3)
C2	0.02320 (19)	0.28912 (13)	0.78701 (13)	0.0188 (3)
H2A	0.066013	0.253542	0.846130	0.023*
H2B	−0.096591	0.283690	0.779822	0.023*
C3	0.10726 (19)	0.42222 (13)	0.82264 (13)	0.0189 (3)
H3A	0.051144	0.462085	0.771092	0.023*
H3B	0.098103	0.463853	0.899330	0.023*
C4	0.28759 (19)	0.43447 (13)	0.82097 (12)	0.0184 (3)
H4A	0.335833	0.520915	0.834679	0.022*
H4B	0.347684	0.408114	0.882085	0.022*
C5	0.30843 (18)	0.35904 (13)	0.71031 (12)	0.0153 (3)
C6	0.19369 (18)	0.25977 (12)	0.64127 (12)	0.0145 (3)
C7	0.21029 (17)	0.18858 (12)	0.52702 (12)	0.0143 (3)
H7	0.170754	0.100014	0.514119	0.017*
C8	0.38970 (18)	0.20947 (13)	0.52368 (12)	0.0147 (3)
C9	0.50129 (18)	0.31190 (13)	0.59558 (12)	0.0155 (3)
C10	0.69670 (19)	0.26784 (13)	0.50356 (13)	0.0194 (3)
H10	0.804490	0.289713	0.494794	0.023*
C11	0.45157 (18)	0.13464 (13)	0.44097 (12)	0.0157 (3)
C12	0.38757 (18)	−0.04232 (12)	0.26750 (12)	0.0158 (3)
C13	0.25837 (19)	−0.08672 (13)	0.17169 (13)	0.0197 (3)
H13	0.154546	−0.064739	0.174021	0.024*
C14	0.2785 (2)	−0.16261 (14)	0.07267 (14)	0.0242 (4)
H14	0.189555	−0.194182	0.007472	0.029*
C15	0.4307 (2)	−0.19067 (14)	0.07178 (14)	0.0246 (4)
C16	0.5628 (2)	−0.14599 (14)	0.16411 (14)	0.0228 (3)
H16	0.667351	−0.165706	0.159818	0.027*
C17	0.54137 (19)	−0.07179 (13)	0.26349 (13)	0.0192 (3)
H17	0.630809	−0.041216	0.328430	0.023*
C18	0.56396 (18)	0.50712 (13)	0.74583 (12)	0.0158 (3)
C19	0.53198 (19)	0.61016 (14)	0.71943 (13)	0.0201 (3)
H19	0.444946	0.603477	0.656895	0.024*
C20	0.6271 (2)	0.72343 (13)	0.78427 (13)	0.0205 (3)
H20	0.605018	0.794967	0.767541	0.025*
C21	0.75403 (19)	0.73003 (13)	0.87341 (13)	0.0184 (3)
C22	0.79132 (19)	0.62711 (14)	0.89766 (13)	0.0194 (3)
H22	0.882328	0.633451	0.957559	0.023*
C23	0.69449 (19)	0.51452 (13)	0.83365 (13)	0.0188 (3)
H23	0.717561	0.442984	0.849934	0.023*
C24	0.10579 (18)	0.22623 (13)	0.43494 (12)	0.0150 (3)
C25	0.1398 (2)	0.34558 (14)	0.43307 (13)	0.0220 (3)
H25	0.229200	0.402228	0.488211	0.026*
C26	0.0455 (2)	0.38264 (14)	0.35238 (14)	0.0261 (4)
H26	0.070133	0.464417	0.352350	0.031*
C27	−0.0857 (2)	0.30057 (14)	0.27089 (13)	0.0223 (3)
H27	−0.151043	0.326085	0.215382	0.027*
C28	−0.12015 (19)	0.18154 (14)	0.27138 (13)	0.0212 (3)
H28	−0.209032	0.124906	0.215720	0.025*
C29	−0.02512 (18)	0.14469 (13)	0.35305 (13)	0.0181 (3)
H29	−0.049798	0.062880	0.352987	0.022*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Cl1	0.0285 (2)	0.01610 (18)	0.0258 (2)	−0.00600 (15)	−0.00005 (16)	−0.00021 (15)
F1	0.0370 (6)	0.0433 (6)	0.0267 (6)	0.0056 (5)	0.0150 (5)	−0.0121 (5)
O1	0.0196 (5)	0.0164 (5)	0.0212 (6)	−0.0007 (4)	0.0071 (4)	0.0039 (4)
N1	0.0161 (6)	0.0147 (6)	0.0156 (6)	−0.0013 (5)	0.0047 (5)	−0.0009 (5)
N2	0.0154 (6)	0.0177 (6)	0.0186 (7)	−0.0005 (5)	0.0041 (5)	0.0018 (5)
N3	0.0162 (6)	0.0189 (6)	0.0184 (7)	0.0009 (5)	0.0061 (5)	0.0021 (5)
N4	0.0147 (6)	0.0170 (6)	0.0176 (7)	−0.0012 (5)	0.0071 (5)	0.0003 (5)
C1	0.0163 (7)	0.0144 (7)	0.0157 (7)	0.0043 (6)	0.0040 (6)	0.0061 (6)
C2	0.0206 (8)	0.0184 (7)	0.0187 (8)	0.0034 (6)	0.0095 (6)	0.0050 (6)
C3	0.0237 (8)	0.0161 (7)	0.0180 (8)	0.0056 (6)	0.0097 (6)	0.0032 (6)
C4	0.0214 (8)	0.0159 (7)	0.0153 (8)	0.0011 (6)	0.0065 (6)	0.0005 (6)
C5	0.0178 (7)	0.0148 (7)	0.0147 (7)	0.0042 (6)	0.0057 (6)	0.0050 (6)
C6	0.0165 (7)	0.0136 (7)	0.0140 (7)	0.0032 (5)	0.0047 (6)	0.0043 (6)
C7	0.0145 (7)	0.0119 (6)	0.0142 (7)	−0.0001 (5)	0.0038 (6)	0.0017 (5)
C8	0.0147 (7)	0.0157 (7)	0.0135 (7)	0.0021 (5)	0.0041 (6)	0.0041 (6)
C9	0.0163 (7)	0.0157 (7)	0.0140 (7)	0.0029 (6)	0.0045 (6)	0.0036 (6)
C10	0.0156 (7)	0.0206 (7)	0.0204 (8)	0.0010 (6)	0.0061 (6)	0.0042 (6)
C11	0.0161 (7)	0.0156 (7)	0.0147 (7)	0.0027 (6)	0.0029 (6)	0.0044 (6)
C12	0.0187 (7)	0.0124 (6)	0.0161 (7)	0.0010 (5)	0.0068 (6)	0.0031 (6)
C13	0.0178 (8)	0.0206 (7)	0.0193 (8)	0.0022 (6)	0.0063 (6)	0.0033 (6)
C14	0.0220 (8)	0.0258 (8)	0.0185 (8)	−0.0002 (7)	0.0043 (6)	0.0000 (7)
C15	0.0305 (9)	0.0217 (8)	0.0190 (8)	0.0036 (7)	0.0128 (7)	−0.0016 (6)
C16	0.0210 (8)	0.0203 (7)	0.0275 (9)	0.0077 (6)	0.0103 (7)	0.0034 (7)
C17	0.0194 (8)	0.0180 (7)	0.0183 (8)	0.0037 (6)	0.0039 (6)	0.0034 (6)
C18	0.0169 (7)	0.0140 (7)	0.0137 (7)	−0.0009 (6)	0.0068 (6)	−0.0005 (6)
C19	0.0203 (8)	0.0218 (8)	0.0145 (8)	0.0010 (6)	0.0012 (6)	0.0033 (6)
C20	0.0254 (8)	0.0160 (7)	0.0199 (8)	0.0017 (6)	0.0055 (6)	0.0062 (6)
C21	0.0189 (8)	0.0149 (7)	0.0173 (8)	−0.0028 (6)	0.0058 (6)	0.0003 (6)
C22	0.0177 (8)	0.0221 (8)	0.0147 (8)	0.0018 (6)	0.0018 (6)	0.0026 (6)
C23	0.0215 (8)	0.0170 (7)	0.0177 (8)	0.0041 (6)	0.0051 (6)	0.0048 (6)
C24	0.0143 (7)	0.0168 (7)	0.0142 (7)	0.0027 (5)	0.0069 (6)	0.0032 (6)
C25	0.0221 (8)	0.0189 (7)	0.0200 (8)	−0.0036 (6)	−0.0001 (6)	0.0053 (6)
C26	0.0310 (9)	0.0190 (8)	0.0261 (9)	−0.0001 (7)	0.0012 (7)	0.0100 (7)
C27	0.0228 (8)	0.0261 (8)	0.0176 (8)	0.0046 (7)	0.0016 (6)	0.0085 (7)
C28	0.0182 (8)	0.0223 (8)	0.0169 (8)	−0.0008 (6)	0.0017 (6)	0.0008 (6)
C29	0.0184 (7)	0.0147 (7)	0.0190 (8)	0.0013 (6)	0.0048 (6)	0.0027 (6)

Geometric parameters (Å, º) top

Cl1—C21	1.7398 (15)	C12—C13	1.388 (2)
F1—C15	1.3604 (18)	C12—C17	1.395 (2)
O1—C1	1.2325 (17)	C13—H13	0.9500
N1—C5	1.3850 (19)	C13—C14	1.386 (2)
N1—C9	1.4020 (18)	C14—H14	0.9500
N1—C18	1.4453 (17)	C14—C15	1.370 (2)
N2—C9	1.3467 (19)	C15—C16	1.376 (2)
N2—C10	1.3274 (19)	C16—H16	0.9500
N3—C10	1.3287 (19)	C16—C17	1.386 (2)
N3—C11	1.3454 (19)	C17—H17	0.9500
N4—H4	0.8800	C18—C19	1.382 (2)
N4—C11	1.3643 (18)	C18—C23	1.383 (2)
N4—C12	1.4163 (19)	C19—H19	0.9500
C1—C2	1.509 (2)	C19—C20	1.388 (2)
C1—C6	1.456 (2)	C20—H20	0.9500
C2—H2A	0.9900	C20—C21	1.378 (2)
C2—H2B	0.9900	C21—C22	1.381 (2)
C2—C3	1.521 (2)	C22—H22	0.9500
C3—H3A	0.9900	C22—C23	1.385 (2)
C3—H3B	0.9900	C23—H23	0.9500
C3—C4	1.517 (2)	C24—C25	1.393 (2)
C4—H4A	0.9900	C24—C29	1.390 (2)
C4—H4B	0.9900	C25—H25	0.9500
C4—C5	1.503 (2)	C25—C26	1.378 (2)
C5—C6	1.363 (2)	C26—H26	0.9500
C6—C7	1.512 (2)	C26—C27	1.392 (2)
C7—H7	1.0000	C27—H27	0.9500
C7—C8	1.515 (2)	C27—C28	1.384 (2)
C7—C24	1.528 (2)	C28—H28	0.9500
C8—C9	1.3823 (19)	C28—C29	1.388 (2)
C8—C11	1.409 (2)	C29—H29	0.9500
C10—H10	0.9500

C5—N1—C9	120.50 (12)	C13—C12—C17	119.61 (14)
C5—N1—C18	120.58 (12)	C17—C12—N4	123.14 (13)
C9—N1—C18	118.91 (12)	C12—C13—H13	119.5
C10—N2—C9	114.19 (12)	C14—C13—C12	121.03 (15)
C10—N3—C11	116.06 (13)	C14—C13—H13	119.5
C11—N4—H4	116.7	C13—C14—H14	121.0
C11—N4—C12	126.52 (12)	C15—C14—C13	117.91 (15)
C12—N4—H4	116.7	C15—C14—H14	121.0
O1—C1—C2	120.18 (13)	F1—C15—C14	118.51 (15)
O1—C1—C6	120.95 (13)	F1—C15—C16	118.71 (15)
C6—C1—C2	118.84 (12)	C14—C15—C16	122.79 (15)
C1—C2—H2A	109.1	C15—C16—H16	120.5
C1—C2—H2B	109.1	C15—C16—C17	119.08 (15)
C1—C2—C3	112.48 (12)	C17—C16—H16	120.5
H2A—C2—H2B	107.8	C12—C17—H17	120.2
C3—C2—H2A	109.1	C16—C17—C12	119.56 (14)
C3—C2—H2B	109.1	C16—C17—H17	120.2
C2—C3—H3A	109.5	C19—C18—N1	119.04 (13)
C2—C3—H3B	109.5	C19—C18—C23	120.78 (13)
H3A—C3—H3B	108.0	C23—C18—N1	120.14 (13)
C4—C3—C2	110.92 (12)	C18—C19—H19	120.0
C4—C3—H3A	109.5	C18—C19—C20	120.00 (14)
C4—C3—H3B	109.5	C20—C19—H19	120.0
C3—C4—H4A	109.4	C19—C20—H20	120.7
C3—C4—H4B	109.4	C21—C20—C19	118.67 (14)
H4A—C4—H4B	108.0	C21—C20—H20	120.7
C5—C4—C3	111.31 (12)	C20—C21—Cl1	119.45 (12)
C5—C4—H4A	109.4	C20—C21—C22	121.77 (14)
C5—C4—H4B	109.4	C22—C21—Cl1	118.74 (12)
N1—C5—C4	116.74 (12)	C21—C22—H22	120.4
C6—C5—N1	120.68 (13)	C21—C22—C23	119.24 (14)
C6—C5—C4	122.51 (13)	C23—C22—H22	120.4
C1—C6—C7	117.14 (12)	C18—C23—C22	119.46 (14)
C5—C6—C1	120.51 (13)	C18—C23—H23	120.3
C5—C6—C7	122.33 (13)	C22—C23—H23	120.3
C6—C7—H7	108.8	C25—C24—C7	119.70 (13)
C6—C7—C8	109.55 (11)	C29—C24—C7	121.73 (13)
C6—C7—C24	110.49 (12)	C29—C24—C25	118.56 (14)
C8—C7—H7	108.8	C24—C25—H25	119.5
C8—C7—C24	110.44 (12)	C26—C25—C24	120.93 (14)
C24—C7—H7	108.8	C26—C25—H25	119.5
C9—C8—C7	121.50 (13)	C25—C26—H26	119.9
C9—C8—C11	114.95 (13)	C25—C26—C27	120.17 (14)
C11—C8—C7	123.21 (12)	C27—C26—H26	119.9
N2—C9—N1	115.39 (12)	C26—C27—H27	120.3
N2—C9—C8	124.53 (13)	C28—C27—C26	119.48 (14)
C8—C9—N1	120.07 (13)	C28—C27—H27	120.3
N2—C10—N3	128.20 (14)	C27—C28—H28	119.9
N2—C10—H10	115.9	C27—C28—C29	120.14 (14)
N3—C10—H10	115.9	C29—C28—H28	119.9
N3—C11—N4	117.64 (13)	C24—C29—H29	119.6
N3—C11—C8	121.96 (13)	C28—C29—C24	120.71 (14)
N4—C11—C8	120.36 (13)	C28—C29—H29	119.6
C13—C12—N4	117.24 (13)

Cl1—C21—C22—C23	174.98 (12)	C9—N1—C18—C19	99.10 (17)
F1—C15—C16—C17	−178.45 (14)	C9—N1—C18—C23	−83.32 (18)
O1—C1—C2—C3	−158.02 (14)	C9—N2—C10—N3	−2.2 (2)
O1—C1—C6—C5	−172.82 (14)	C9—C8—C11—N3	−3.7 (2)
O1—C1—C6—C7	5.6 (2)	C9—C8—C11—N4	178.79 (13)
N1—C5—C6—C1	171.52 (13)	C10—N2—C9—N1	−179.02 (13)
N1—C5—C6—C7	−6.8 (2)	C10—N2—C9—C8	0.5 (2)
N1—C18—C19—C20	174.82 (14)	C10—N3—C11—N4	179.98 (13)
N1—C18—C23—C22	−175.75 (13)	C10—N3—C11—C8	2.4 (2)
N4—C12—C13—C14	−176.98 (14)	C11—N3—C10—N2	0.7 (2)
N4—C12—C17—C16	178.02 (13)	C11—N4—C12—C13	−137.19 (15)
C1—C2—C3—C4	−51.88 (17)	C11—N4—C12—C17	44.2 (2)
C1—C6—C7—C8	−155.73 (12)	C11—C8—C9—N1	−178.33 (13)
C1—C6—C7—C24	82.38 (15)	C11—C8—C9—N2	2.2 (2)
C2—C1—C6—C5	5.6 (2)	C12—N4—C11—N3	−10.0 (2)
C2—C1—C6—C7	−175.96 (12)	C12—N4—C11—C8	167.69 (14)
C2—C3—C4—C5	51.70 (17)	C12—C13—C14—C15	−1.1 (2)
C3—C4—C5—N1	159.04 (13)	C13—C12—C17—C16	−0.6 (2)
C3—C4—C5—C6	−24.0 (2)	C13—C14—C15—F1	179.54 (14)
C4—C5—C6—C1	−5.4 (2)	C13—C14—C15—C16	−0.6 (3)
C4—C5—C6—C7	176.28 (13)	C14—C15—C16—C17	1.7 (3)
C5—N1—C9—N2	−169.69 (13)	C15—C16—C17—C12	−1.0 (2)
C5—N1—C9—C8	10.8 (2)	C17—C12—C13—C14	1.7 (2)
C5—N1—C18—C19	−81.97 (18)	C18—N1—C5—C4	−13.3 (2)
C5—N1—C18—C23	95.60 (17)	C18—N1—C5—C6	169.60 (13)
C5—C6—C7—C8	22.68 (19)	C18—N1—C9—N2	9.24 (19)
C5—C6—C7—C24	−99.22 (16)	C18—N1—C9—C8	−170.32 (13)
C6—C1—C2—C3	23.54 (19)	C18—C19—C20—C21	1.0 (2)
C6—C7—C8—C9	−23.13 (18)	C19—C18—C23—C22	1.8 (2)
C6—C7—C8—C11	163.86 (13)	C19—C20—C21—Cl1	−175.91 (12)
C6—C7—C24—C25	62.20 (17)	C19—C20—C21—C22	1.7 (2)
C6—C7—C24—C29	−116.82 (15)	C20—C21—C22—C23	−2.7 (2)
C7—C8—C9—N1	8.1 (2)	C21—C22—C23—C18	0.9 (2)
C7—C8—C9—N2	−171.39 (13)	C23—C18—C19—C20	−2.7 (2)
C7—C8—C11—N3	169.77 (13)	C24—C7—C8—C9	98.79 (15)
C7—C8—C11—N4	−7.8 (2)	C24—C7—C8—C11	−74.21 (17)
C7—C24—C25—C26	−178.69 (15)	C24—C25—C26—C27	−0.1 (3)
C7—C24—C29—C28	178.86 (14)	C25—C24—C29—C28	−0.2 (2)
C8—C7—C24—C25	−59.17 (17)	C25—C26—C27—C28	−0.2 (3)
C8—C7—C24—C29	121.81 (14)	C26—C27—C28—C29	0.4 (2)
C9—N1—C5—C4	165.57 (13)	C27—C28—C29—C24	−0.2 (2)
C9—N1—C5—C6	−11.5 (2)	C29—C24—C25—C26	0.3 (2)

Hydrogen-bond geometry (Å, º) top

Cg1 and Cg2 are the centroids of the C24–C29 and C18–C23 rings, respectively.

D—H···A	D—H	H···A	D···A	D—H···A
N4—H4···O1ⁱ	0.88	2.17	3.0036 (16)	159
C29—H29···O1ⁱ	0.95	2.46	3.3169 (18)	150
C10—H10···Cg1ⁱⁱ	0.95	2.74	3.5719 (18)	147
C15—F1···Cg2ⁱⁱⁱ	1.36 (1)	3.16 (1)	4.4286 (18)	155 (1)

Symmetry codes: (i) −x, −y, −z+1; (ii) x+1, y, z; (iii) x, y−1, z−1.

Acknowledgements

We thank the University of KwaZulu-Natal for their support of this research.

References

Bruker (2009). COSMOand SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Esmaili, S., Moosavi-Zare, A. R., Khazaei, A. & Najafi, Z. (2022). ACS Omega 7, 45314–45324. Web of Science CrossRef CAS PubMed Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Moosavi-Zare, A. R. & Najafi, R. (2023). Sci. Rep. 13, 16501. Web of Science PubMed Google Scholar
Patel, P., Patel, B., Patel, M. & Patel, P. (2024). Results Chem. 7, 101377. Web of Science CrossRef Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Tawfeek, H. N., Hasanin, T. H. A. & Bräse, S. (2024). J. Heterocycl. Chem. 61, 971–1008. Web of Science CrossRef CAS Google Scholar
Zamisa, S. J., Adeleke, A. A., Devnarain, N., Rhman, M. A., Owira, P. M. O. & Omondi, B. (2023). RSC Adv. 13, 21820–21837. Web of Science CSD CrossRef CAS PubMed Google Scholar
Zamisa, S. J., Ngubane, N. P., Adeleke, A. A., Jonnalagadda, S. B. & Omondi, B. (2022). Cryst. Growth Des. 22, 5814–5834. Web of Science CSD CrossRef CAS Google Scholar
Zamisa, S. J. & Omondi, B. (2022). Molbank 2022, M1364. Web of Science CSD CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

IUCrDATA

ISSN: 2414-3146

Volume 10| Part 9| September 2025| x250775

https://doi.org/10.1107/S2414314625007758

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

organic compounds\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

10-(4-Chloro­phen­yl)-4-[(4-fluoro­phen­yl)amino]-5-phenyl-5,8,9,10-tetra­hydro­pyrimido[4,5-b]quin­olin-6(7H)-one

Structure description

Synthesis and crystallization

Refinement

Structural data

Acknowledgements

References

organic compounds

10-(4-Chlorophenyl)-4-[(4-fluorophenyl)amino]-5-phenyl-5,8,9,10-tetrahydropyrimido[4,5-b]quinolin-6(7H)-one
