organic compounds
3-Chloropropiophenone
aLeibniz-Institut für Katalyse e. V., Albert-Einstein-Str. 29a, 18059 Rostock, Germany
*Correspondence e-mail: tim.peppel@catalysis.de

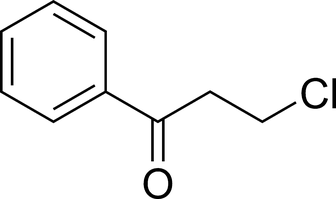

The title compound, 3-chloropropiophenone (or 3-chloro-1-phenylpropan-1-one), C9H9ClO, consists of an almost planar molecule that is charaterized by very small torsion angles within the alkyl side chain (torsion angles < 6.3°). No hydrogen bonds are observed in the crystal packing. The compound exhibits a melting point of 54°C.
Keywords: crystal structure; 3-chloropropiophenone; β-chloro ketone.
CCDC reference: 1501322
![[Scheme 3D1]](bt4169scheme3D1.gif)
![[Scheme 1]](bt4169scheme1.gif)
Structure description
β-Chloro are useful building blocks for many chemical transformation reactions. They are accessible via different reaction schemes such as Friedel-Crafts acylation (Sartori & Maggi, 2006), Wacker-type oxidation (Liu et al., 2017
), or light-mediated ring opening of aryl cyclopropanes (Petzold et al., 2019
). The title compound was obtained in almost quantitative yield in high purity. It can be designated as a suitable building block in the ongoing efforts to synthesize feasible new ligands for Cu-based complexes (Sonneck et al., 2015
, 2016
).

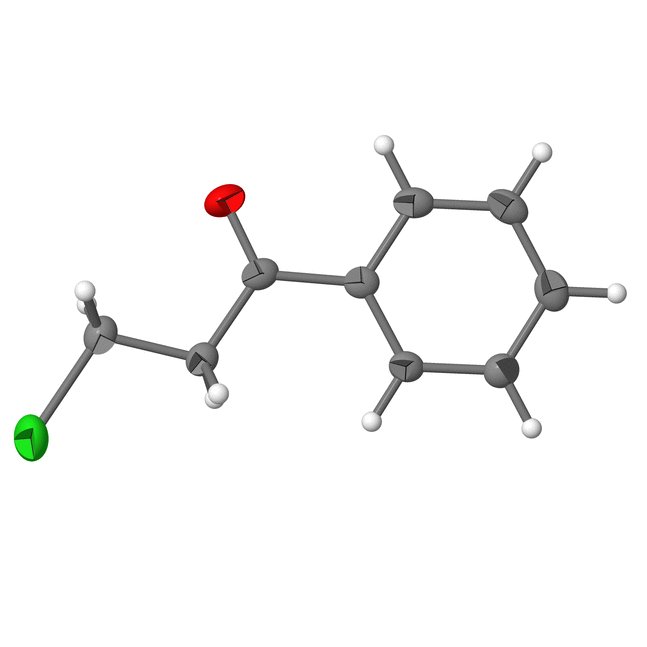

The molecular structure of 3-chloropropiophenone is almost planar with torsion angles of less than 6.3 degrees [maximum torsion angle: C1—C2—C3—O1 = −6.21 (19)°] in the side chain (Fig. 1). The main deviation out of the plane defined by the non-hydrogen atoms of the molecule is observed for O1 with −0.1091 (10) Å and for Cl1 with 0.1065 (8) Å. In addition, the layered packing prevents the formation of extended halogen or hydrogen-bonding networks. The molecules form stacks along the c axis. In a stack, neighbouring molecules are related by the c glide plane. All bond lengths and angles are within the expected range and the C=O bond is 1.2158 (18) Å.
![]() | Figure 1 Molecular structure of the title compound with atom labelling and displacement ellipsoids drawn at 50% probability level. |
Synthesis and crystallization
3-Chloropropiophenone was obtained as colourless crystals in quantitative yield from the Friedel–Crafts acylation of benzene and 3-chloropropionyl chloride in dichloromethane. AlCl3 (38.2 g, 286.5 mmol, 1.25 eq.) was suspended in 50 ml of dry dichloromethane at 0°C. A solution of 3-chloropropionyl chloride (29.1 g, 229.2 mmol, 1.0 eq.) in 90 ml dichloromethane was added dropwise at 0°C to the AlCl3 suspension. Afterwards, a solution of benzene (17.9 g, 229.2 mmol, 1.0 eq.) in 25 mL dichloromethane was added dropwise at 0°C to the suspension and further stirred for 2 h at 0°C and 12 h at ambient conditions. The final solution was poured onto ice and concentrated hydrochloric acid (70 g:7 g) and after separation of the organic phase, the aqueous phase was extracted twice with 100 ml portions of dichloromethane. The combined organic phases were extracted twice with 150 ml portions of water and finally dried over Na2SO4. The solvent was removed completely under diminished pressure and the off-white crystalline solid residue was recrystallized from pentane to yield the final product (37.5 g, 97%). Colourless single crystals of 3-chloropropiophenone were obtained from a pentane solution by slow evaporation of the solvent at 4°C over the period of one week. Analytic data for C9H9ClO: m.p. 54°C, elemental analysis % (calculated): C 64.14 (64.11), H 5.25 (5.38); Cl 21.01 (21.02). 1H NMR (400 MHz, CDCl3): δ (p.p.m.) = 7.98–7.93 (m, 2H, ArH); 7.61–7.56 (m, 1H, ArH); 7.51–7.45 (m, 2H, ArH); 3.92 (t, 3J = 6.8 Hz, 2H); 3.45 (t, 3J = 6.7 Hz, 2H); 13C NMR (100 MHz, CDCl3): δ (p.p.m.) = 196.78 (CO); 136.45 (C); 133.65, 128.84, 128.84, 128.14, 128.14 (CH); 41.36, 38.79 (CH2).
Refinement
Crystal data, data collection and structure .
|
Structural data
CCDC reference: 1501322
https://doi.org/10.1107/S2414314625003499/bt4169sup1.cif
contains datablock I. DOI:Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2414314625003499/bt4169Isup2.hkl
Supporting information file. DOI: https://doi.org/10.1107/S2414314625003499/bt4169Isup3.cml
C9H9ClO | F(000) = 352 |
Mr = 168.61 | Dx = 1.380 Mg m−3 |
Monoclinic, P21/c | Mo Kα radiation, λ = 0.71073 Å |
a = 5.4485 (13) Å | Cell parameters from 2965 reflections |
b = 20.347 (5) Å | θ = 3.0–28.7° |
c = 7.4860 (17) Å | µ = 0.40 mm−1 |
β = 102.123 (4)° | T = 150 K |
V = 811.4 (3) Å3 | Plate, colourless |
Z = 4 | 0.51 × 0.43 × 0.07 mm |
Bruker APEXII CCD diffractometer | 1951 independent reflections |
Radiation source: fine-focus sealed tube | 1595 reflections with I > 2σ(I) |
Detector resolution: 8.3333 pixels mm-1 | Rint = 0.032 |
φ and ω scans | θmax = 28.0°, θmin = 2.0° |
Absorption correction: multi-scan (SADABS; Krause et al., 2015) | h = −7→7 |
Tmin = 0.79, Tmax = 0.97 | k = −26→25 |
9113 measured reflections | l = −9→9 |
Refinement on F2 | Primary atom site location: structure-invariant direct methods |
Least-squares matrix: full | Hydrogen site location: inferred from neighbouring sites |
R[F2 > 2σ(F2)] = 0.038 | H-atom parameters constrained |
wR(F2) = 0.095 | w = 1/[σ2(Fo2) + (0.0414P)2 + 0.259P] where P = (Fo2 + 2Fc2)/3 |
S = 1.08 | (Δ/σ)max < 0.001 |
1951 reflections | Δρmax = 0.36 e Å−3 |
100 parameters | Δρmin = −0.24 e Å−3 |
0 restraints |
Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes. |
Refinement. Hydrogen atoms were located in a difference map and refined as riding on their parent atoms with U(H)=1.2Ueq(C). |
x | y | z | Uiso*/Ueq | ||
C1 | 0.4181 (3) | 0.91110 (7) | 0.3732 (2) | 0.0292 (3) | |
H1A | 0.5586 | 0.9205 | 0.3120 | 0.035* | |
H1B | 0.4812 | 0.9154 | 0.5067 | 0.035* | |
C2 | 0.3239 (3) | 0.84182 (7) | 0.3283 (2) | 0.0243 (3) | |
H2A | 0.1794 | 0.8331 | 0.3859 | 0.029* | |
H2B | 0.2658 | 0.8373 | 0.1944 | 0.029* | |
C3 | 0.5285 (3) | 0.79232 (7) | 0.39585 (19) | 0.0252 (3) | |
C4 | 0.4665 (3) | 0.72090 (7) | 0.38053 (19) | 0.0229 (3) | |
C5 | 0.6530 (3) | 0.67574 (8) | 0.4561 (2) | 0.0283 (3) | |
H5 | 0.8139 | 0.6911 | 0.5163 | 0.034* | |
C6 | 0.6055 (3) | 0.60927 (8) | 0.4438 (2) | 0.0313 (4) | |
H6 | 0.7334 | 0.5789 | 0.4953 | 0.038* | |
C7 | 0.3713 (3) | 0.58649 (8) | 0.3564 (2) | 0.0309 (3) | |
H7 | 0.3389 | 0.5406 | 0.3484 | 0.037* | |
C8 | 0.1843 (3) | 0.63050 (8) | 0.2808 (2) | 0.0280 (3) | |
H8 | 0.0241 | 0.6148 | 0.2205 | 0.034* | |
C9 | 0.2314 (3) | 0.69757 (7) | 0.29323 (19) | 0.0245 (3) | |
H9 | 0.1026 | 0.7277 | 0.2419 | 0.029* | |
Cl1 | 0.17021 (9) | 0.96882 (2) | 0.29882 (7) | 0.04702 (17) | |
O1 | 0.7414 (2) | 0.81030 (6) | 0.46074 (17) | 0.0399 (3) |
U11 | U22 | U33 | U12 | U13 | U23 | |
C1 | 0.0317 (8) | 0.0274 (7) | 0.0294 (8) | −0.0056 (6) | 0.0081 (6) | −0.0028 (6) |
C2 | 0.0243 (7) | 0.0254 (7) | 0.0237 (7) | −0.0038 (5) | 0.0064 (6) | −0.0007 (5) |
C3 | 0.0227 (7) | 0.0327 (8) | 0.0202 (7) | −0.0042 (6) | 0.0050 (6) | 0.0002 (6) |
C4 | 0.0221 (7) | 0.0290 (7) | 0.0190 (6) | −0.0001 (5) | 0.0074 (6) | 0.0011 (5) |
C5 | 0.0214 (7) | 0.0381 (8) | 0.0254 (8) | 0.0028 (6) | 0.0051 (6) | 0.0014 (6) |
C6 | 0.0298 (8) | 0.0356 (8) | 0.0303 (8) | 0.0108 (6) | 0.0103 (7) | 0.0052 (6) |
C7 | 0.0375 (9) | 0.0266 (7) | 0.0317 (8) | 0.0034 (6) | 0.0144 (7) | 0.0011 (6) |
C8 | 0.0256 (8) | 0.0295 (7) | 0.0294 (8) | −0.0017 (6) | 0.0065 (6) | −0.0001 (6) |
C9 | 0.0216 (7) | 0.0277 (7) | 0.0243 (7) | 0.0015 (5) | 0.0052 (6) | 0.0027 (5) |
Cl1 | 0.0454 (3) | 0.0260 (2) | 0.0684 (3) | 0.00011 (18) | 0.0092 (2) | −0.00376 (19) |
O1 | 0.0255 (6) | 0.0408 (7) | 0.0487 (8) | −0.0080 (5) | −0.0034 (5) | 0.0026 (5) |
C1—C2 | 1.514 (2) | C4—C5 | 1.399 (2) |
C1—Cl1 | 1.7882 (17) | C5—C6 | 1.377 (2) |
C1—H1A | 0.9900 | C5—H5 | 0.9500 |
C1—H1B | 0.9900 | C6—C7 | 1.386 (2) |
C2—C3 | 1.509 (2) | C6—H6 | 0.9500 |
C2—H2A | 0.9900 | C7—C8 | 1.385 (2) |
C2—H2B | 0.9900 | C7—H7 | 0.9500 |
C3—O1 | 1.2158 (18) | C8—C9 | 1.388 (2) |
C3—C4 | 1.491 (2) | C8—H8 | 0.9500 |
C4—C9 | 1.393 (2) | C9—H9 | 0.9500 |
C2—C1—Cl1 | 110.12 (11) | C5—C4—C3 | 118.39 (13) |
C2—C1—H1A | 109.6 | C6—C5—C4 | 120.52 (14) |
Cl1—C1—H1A | 109.6 | C6—C5—H5 | 119.7 |
C2—C1—H1B | 109.6 | C4—C5—H5 | 119.7 |
Cl1—C1—H1B | 109.6 | C5—C6—C7 | 120.13 (14) |
H1A—C1—H1B | 108.2 | C5—C6—H6 | 119.9 |
C3—C2—C1 | 110.81 (12) | C7—C6—H6 | 119.9 |
C3—C2—H2A | 109.5 | C8—C7—C6 | 120.13 (15) |
C1—C2—H2A | 109.5 | C8—C7—H7 | 119.9 |
C3—C2—H2B | 109.5 | C6—C7—H7 | 119.9 |
C1—C2—H2B | 109.5 | C7—C8—C9 | 119.92 (15) |
H2A—C2—H2B | 108.1 | C7—C8—H8 | 120.0 |
O1—C3—C4 | 120.39 (14) | C9—C8—H8 | 120.0 |
O1—C3—C2 | 120.58 (14) | C8—C9—C4 | 120.33 (14) |
C4—C3—C2 | 119.03 (12) | C8—C9—H9 | 119.8 |
C9—C4—C5 | 118.96 (14) | C4—C9—H9 | 119.8 |
C9—C4—C3 | 122.65 (13) | ||
Cl1—C1—C2—C3 | −178.09 (10) | C3—C4—C5—C6 | −179.35 (13) |
C1—C2—C3—O1 | −6.21 (19) | C4—C5—C6—C7 | −0.1 (2) |
C1—C2—C3—C4 | 174.28 (12) | C5—C6—C7—C8 | 0.1 (2) |
O1—C3—C4—C9 | −174.35 (14) | C6—C7—C8—C9 | −0.3 (2) |
C2—C3—C4—C9 | 5.2 (2) | C7—C8—C9—C4 | 0.4 (2) |
O1—C3—C4—C5 | 5.2 (2) | C5—C4—C9—C8 | −0.4 (2) |
C2—C3—C4—C5 | −175.26 (12) | C3—C4—C9—C8 | 179.21 (13) |
C9—C4—C5—C6 | 0.2 (2) |
References
Bruker (2013). SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Bruker (2014). APEX2 Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Liu, B., Jin, F., Wang, T., Yuan, X. & Han, W. (2017). Angew. Chem. Int. Ed. 56, 12712–12717. CrossRef CAS Google Scholar
Petzold, D., Singh, P., Almqvist, F. & König, B. (2019). Angew. Chem. Int. Ed. 58, 8577–8580. CrossRef CAS Google Scholar
Sartori, G. & Maggi, R. (2006). Chem. Rev. 106, 1077–1104. CrossRef PubMed CAS Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sonneck, M., Peppel, T., Spannenberg, A. & Wohlrab, S. (2015). Crystals, 5, 466–474. Web of Science CSD CrossRef CAS Google Scholar
Sonneck, M., Spannenberg, A., Wohlrab, S. & Peppel, T. (2016). Crystals, 6, 66. Web of Science CSD CrossRef Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar
